PB4-MT153BLUETOOTH BOOMBOX

MW153 TW153 Specification Product Name Bluetooth BoomBox Model Number MW153 TW153 Brands: Memorex (MW153), TDK Life on Record (TW153) Document Initiated June 1, 2012 Control Map Control Panel Display 1. Factory Settings Volume should be set to 30-%40 of max volume Source selection will be set to “Line-In.” 2. Power On To power on device, Press POWER button. LED in volume button will illuminate (white) when the device is powered on. The device will power-up into whichever source mode it was powered down. 3. Power Off To power off, press POWER button. 4. Sleep Mode After 20 minutes of detecting no line-in or audio streaming signal from a Bluetooth connection, the MW153/TW153 powers down. Bluetooth signal is disconnected. When MW153/TW153 enters sleep mode, it plays power down tune (ref MA3911MS) at volume level (%15 max volume). Device is awoken from sleep mode the following ways: Pressing power button. MW153/TW153 will attempt to reconnect to last BT device when awoken from sleep mode. Device will not sleep if FM source is selected. 5. Adjust Volume Increase volume by pressing VOLUME + Decrease volume by pressing VOLUME – 6. Line-In Source Press AUX button to switch to line-in source. When in Line-In source, display audio visualizer. Visualizer is a function of volume signal strength to left and right channels. 7. Bluetooth Press BLUETOOTH button once to engage Bluetooth mode. Will connect to previously connected devices if possible. Press and hold BLUETOOTH button for 3 sec to make MW153/TW153 is discoverable to compatible devices. Display: PAIR will repeatedly flash .5 sec on, .5 sec off. Follow directions of applicable device to connect with MW153/TW153. When paired, but not yet connected, display will indicate PAIRED, NOT CONNECTED. Upon successful connection, display will read PAIRED, CONNECTED. Upon termination of connection, display will read PAIRED, NOT CONNECTED. Device will appear as “MW153” or “TW153” to compatible devices. After successful pairing, the speaker will play Memorex power-up tune at volume level (%15 max volume). 8. Bluetooth Connections Bluetooth connection will not terminate when switch between Bluetooth and Line-In. MW153/TW153 will send “pause” signal to streaming device when switching between Bluetooth and Line- In mode. 9. Returning Connections When powered on and in Bluetooth source mode, MW153/TW153 will automatically connect to the most recently paired device if it is available. 10. Headphone When using headphones, audio does not stream from speakers. 11. Battery Indicator Battery indicator will display battery power. Icon will blink 1 sec on, 1 sec off when battery level is at %10 12. Charging MW153/TW153 is capable of providing 1 Amp of current through it’s USB port to be used for charging external devices. However, it will not provide this function when running on battery power. 13. Bass Boost Toggle BassBoost button on/off for extra bass boost. BB icon will illuminate. 14. FM Stereo Press FM button. FM tuner becomes engaged. Tunes to previously tuned station. RADIO FM icon is displayed on screen. 15. Presets There are six preset stations available. To set a preset in slot (one), tune to desired station. Press and hold PRESET button. After 1 second of holding, preset (#1) Icon will begin flashing. Release button to set station. To set stations 2-6, press and hold PRESET button until the desired preset begins to flash. Pressing preset button once will tune to preset number 1. Press again to tune to number 2 etc. Preset number will appear on display for 2 seconds, and then display tuned station.

Imation Corp. 1 Imation Way, Oakdale, MN 55128 USA FCC ID: PB4-MT153 Product Name: Bluetooth Boombox Model No.: MW153,TW153,USB-153 Declaration The Bluetooth Boombox which has the Line In/AUX ports for the Equipment ClassB of JBP, we will application the FCC DOC for this Line In/AUX port in th future. Sign: Cheryl D White/Manager Date: 2013-01-14 Imation Corp.

Imation Corp. FCC ID: PB4- MT153 POWER OF ATTORNEY Jan. 06 , 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on J an. 05 ,201 4 This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Imation Corp. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Imation Corp. ....................................................................................

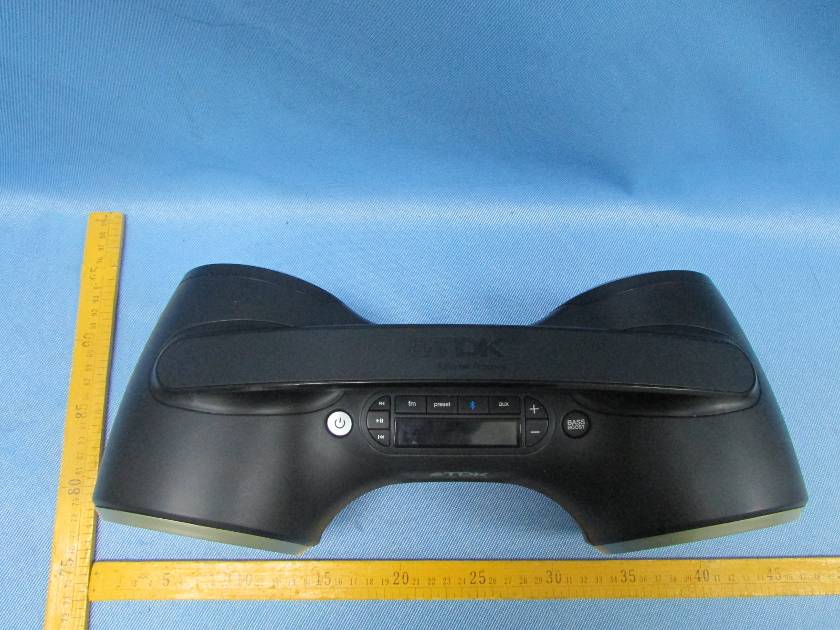

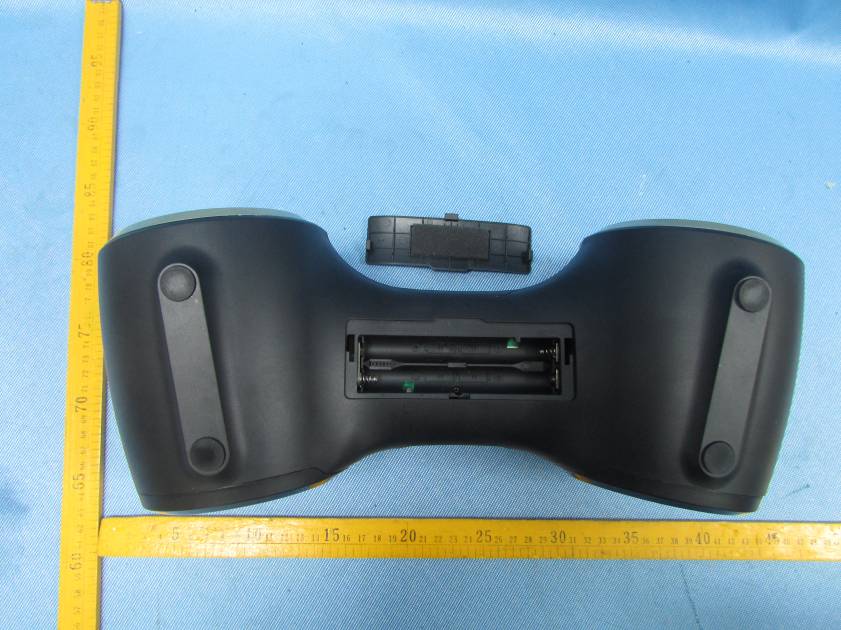

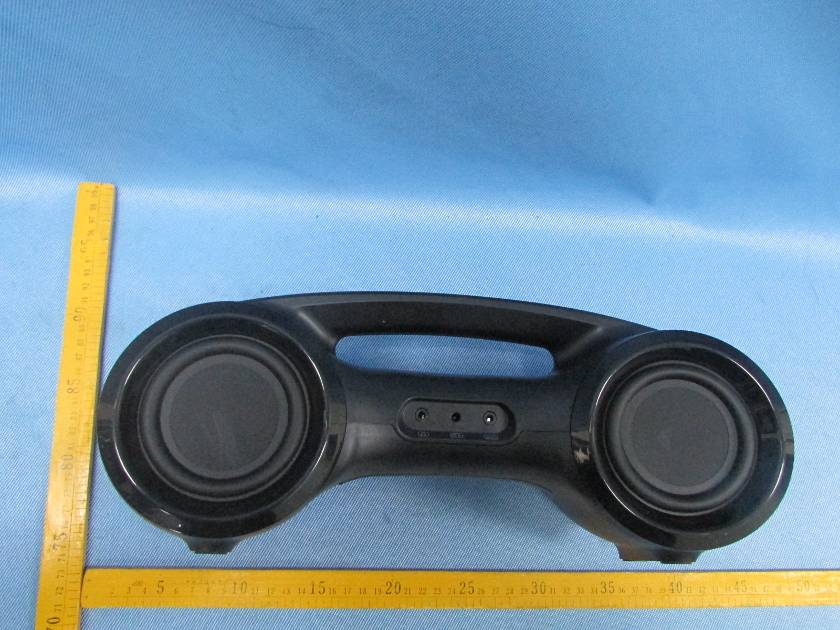

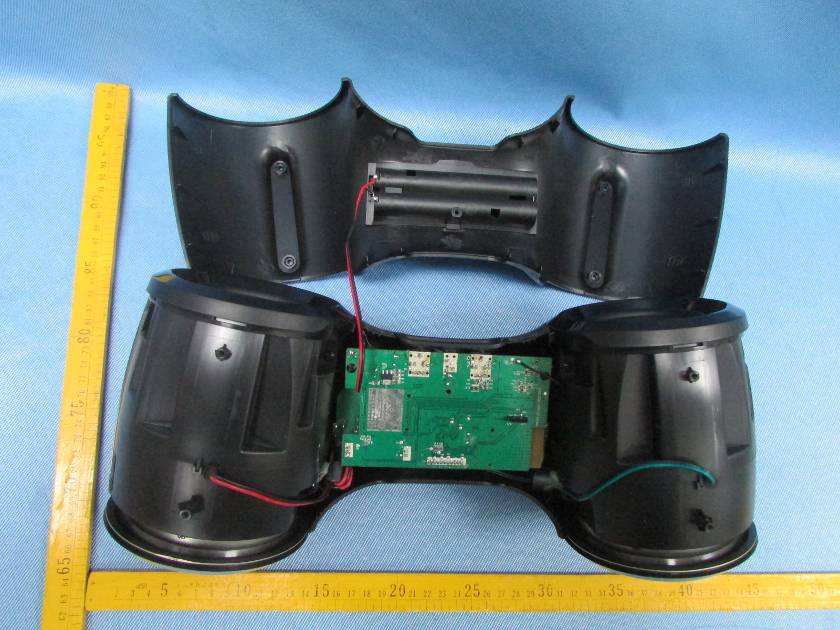

2.1 EUT – Appearance View 2.2 EUT – Appearance View 2.3 EUT – Appearance View 2.4 EUT – Appearance View 2.5 EUT – Appearance View 2.6 EUT – Appearance View 2.7 EUT – Open View

Page:55 of 55 Imation Corp. FCC ID: PB4-MT153 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12128623-S-S-F 17 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Back View/ proposed FCC Label Location FCC ID: PB4-MT153 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Models: MW153,TW153,USB-153 FCC ID: PB4-MT153 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – PCB(1) Front View 2.2 EUT –PCB(1) Back View 2.3 EUT – PCB(2) Front View 2.4 EUT –PCB(2) Back View 2.5 EUT – PCB(3) Front View BT Module 2.6 EUT –PCB(3) Back View

Antenna Manufacturer: Imation Corp. Model No.: MW153,TW153,USB153 Antenna Spec.: Antenna Size: Thickness:0.8mm.

Page: 1 of 57 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12128623-S-S-F FCC ID : PB4-MT153 Applicant : Imation Corp. Address : 1 Imation Way, Oakdale, MN 55128 USA Equipment Under Test (EUT) : Product Name : Bluetooth Boombox Model No. : MW153,TW153,USB-153 Standards : FCC CFR47 Part 15 Section 15.247:2010 Date of Test : Dec.27,2012 ~ Jan. 06, 2013 Date of Issue : Jan. 06, 2013 Tested By : Olic huang / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-83551033 Fax:+86-755-83552400 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 57 Imation Corp. FCC ID: PB4-MT153 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12128623-S-S-F 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 PASS Radiated Spurious Emissions 15.205(a) 15.209 15.247(d) PASS 20Db Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page:3 of 57 Imation Corp. FCC ID: PB4-MT153 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12128623-S-S-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST FACILITY...................................................................................................................................................... 6 4.7 TEST LOCATION.................................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 8 6.1 E.U.T. OPERATION................................................................................................................................................ 8 6.2 EUT SETUP........................................................................................................................................................... 9 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................... 9 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 12 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 13 7.1 EUT OPERATION :............................................................................................................................................... 13 7.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 13 7.3 TEST SETUP......................................................................................................................................................... 14 7.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 15 7.5 TEST PROCEDURE................................................................................................................................................ 16 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................... 16 7.7 SUMMARY OF TEST RESULTS.............................................................................................................…

Text truncated - open the document above for the full version.

2.1 Photograph – Conducted Emission Test Setup 2.2 Photograph – Radiation Spurious Emission Test Setup Below 30MHz From 30-1000MHz Above 1GHz
