PB4-MT233BLUETOOTH SPEAKER

OPERATIONLOCATION OF CONTROLS 1. Hanging Cord 2. Power Button with Power Indicator 3. Bluetooth Button with Bluetooth Indicator 4. Play/Pause4; Button 5. Skip/Search 8 Button 6. Skip/Search 7 Button 7. Volume Up (+) Button 8. Volume Down (–) Button 9. Micro USB Port (MICRO USB CABLE Part NO.: T5W5AZ000024*) *Consumer Replaceable Part (See end of guide to order.) Dimensions ..... 3.07 (W) x 1.57 (D) x 7.4 (H) inches Weight .....................................................0.63 lbs Speaker................................ 2.5” full-range driver ............................................. 2.5” passive radiator Speaker Power Output .............................. 5.4W Battery .....................NiMH Rechargeable battery Bluetooth ......................................... Version 4.0 .........................(using A2DP and AVRCP profiles) SPECIFICATIONS AND COMPATIBILITY Specifications are subject to change without notice. 123456789 Bluetooth devices will ask you to accept the connection. If the units are paired properly, the speaker will beep and the Bluetooth indicator will light solid blue. If it failed, the Bluetooth indicator will blink slowly. IMPORTANT: After step 3, you have two minutes to pair the units. Note: After you pair a device, this TW234 will remember it for future use. Using a Bluetooth Device 1. Turn on the TW234. With a unit paired (see previous section), operate your Bluetooth device and its sound will be heard through the TW234’s speakers. 2. Press the Play/Pause4; button x to pause playback. Press again to resume playback. 3. Press the Skip/Search 8 y or 7 U button to skip forward or backward through songs. Press and hold the Skip/Search 8 y or 7 U button to search rapidly through the songs. 4. Adjust the volume using the Volume Up (+) V or Down (–) W button. You can also adjust the volume using the device you are listening to. Splash Resistant The TW234 is splash resistant, but cannot be submerged in water or be subjected to constant flow of water. In order to ensure the product is splash resistant, close the rubber flap on the side of the TW234. To properly close flap, fully insert the rubber dongle (on inside of flap) into Micro USB port X, then smooth out entire flap until flap is flush with the sides of the TW234. Auto Power Off If the TW234 has no audio signal, and/or a USB device is not charging, for 20 minutes, the TW234 will turn itself off. To “wake” the TW234, simply press the Power button v. Troubleshooting If the TW234 is not producing sound, adjust the volume level on your digital music device higher. If TW234 becomes non-responsive, press and hold the Power button v for five seconds to reset. RECHARGING THE BATTERY To charge the internal battery, connect the smaller end of the supplied USB cable to the Micro USB port X (under the flap) and the other end to a powered USB port on your computer, or an AC power supply (not included). When the TW234 power is on and charging, the Power indicator will blink slowly and light solid when fully charged. The Power indicator will fade in and out when it is in need of charging. Note: The battery will provide approximately six hours of operation at normal listening level. Replacing the Rechargeable Battery: If the battery does not supply enough power (see note in Rechargeable Battery Notes box below), visit www.tdkperformance.com for instructions on battery replacement. Rechargeable Battery Notes: • Each time you charge and discharge the battery (charge cycles), battery capacity slightly diminishes. Rechargeable batteries have a limited number of charge cycles and need to be replaced eventually. • You may wish to replace your battery when, or before, the battery does not supply enough power to function your device. Also, proper disposal is essential from environmental and safety point of view. Putting any battery directly in the trash will harm the environment. • Do not incinerate. 75000037194 Bluetooth ® Outdoor Speaker User Guide Please read these instructions completely before operating this product TDKperformance.eu TW234 TDKperformance.eu TW234 Coluna Bluetooth ® para uso exterior Manual do utilizador Antes de utilizar o produto, leia atentamente estas instruções até ao fim. Technical Assistance: Germany/Austria/ Switzerland .............+49 (0) 900 146 2846 Italy.............................+39 022 1043818 Spain/Portugal ......................900-993166 France ...............................0800-918651 UK/Ireland ..............+44 (0) 1344 862201 NL ............................+31 (0) 23521 2605 Imation Europe B.V. Planeetbaan 4 2132 HZ Hoofddorp The Netherlands www.tdkperformance.eu The TDK Life on Record Logo is a trademark of TDK Corporation and is used under license. All other trademarks and logos are property of their respective owners. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Imation Corp is under license. FUNCIONAMENTOLOCALIZAÇÃO DOS CONTROLOS 1. Cordão para pendurar 2. Botão de ligação com indicador de ligação 3. Botão Bluetooth com indicador Bluetooth 4. Botão Reproduzir/Pausa4; 5. Botão Saltar/Procurar 8 6. Botão Saltar/Procurar 7 7. Botão Aumentar volume (+) 8. Botão Diminuir volume (–) 9. Porta Micro USB (CABO MICRO USB Referência nº: T5W5AZ000024*) *Acessório substituível pelo consumidor (Consultar parte final do guia para encomendar.) Dimensões .. 3,07 (L) x 1,57 (P) x 7,4 (A) polegadas Peso ............................................286 g (0,63 lbs) Coluna ...................... Driver de gama total de 2,5" ....................... Cone de irradiação passivo de 2,5" Potência de saída da coluna ..................... 5,4 W Bateria ......................Interna NiMH recarregável Bluetooth .......................................... Versão 4.0 .........................(utilizando perfis A2DP e AVRCP) ESPECIFICAÇÕES E COMPATIBILIDADE 123456789 “0000”. Alguns dispositivos Bluetooth pedem-lhe para aceitar a ligação. Se os d…

Text truncated - open the document above for the full version.

Imation Corp. FCC ID: PB4- MT233 POWER OF ATTORNEY Aug. 09 , 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Ju ly 08 ,2014 This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Imation Corp. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Imation Corp. ....................................................................................

Imation Corp. 1 Imation Way, Oakdale, MN 55128-3421, USA Aug.06,2013 Certification Number: FCC ID:PB4-MT233 IC Number：6009A-MT233 RE: model number declaration Imation Corp. attests that the models of MW233, TW233, MW234, TW234 uses the same sample,just the difference of brand name:Memorex for MW233 and MW234, TDK Life on Record for TW233 and TW234. and the product name:MW233, TW233 for Bluetooth Shower Speaker,MW234, TW234 for Bluetooth Outdoor Speaker. Best regards, Aug.06,2013

Imation Corp. 1 Imation Way, Oakdale, MN 55128-3421, USA Aug.06,2013 Certification Number: PB4-MT233 RE: USB Port Declaration Imation Corp. attests that the models of MW233, TW233, MW234, TW234 which uses the difference brand name and the product name,and Memorex for MW233 and MW234,TDK Life on Record for TW233 and TW234. the product name:MW233, TW233 for Bluetooth Shower Speaker,MW234,TW234 for Bluetooth Outdoor Speaker,the USB Port just for charging only,no data transmit function. Best regards, Aug.06,2013

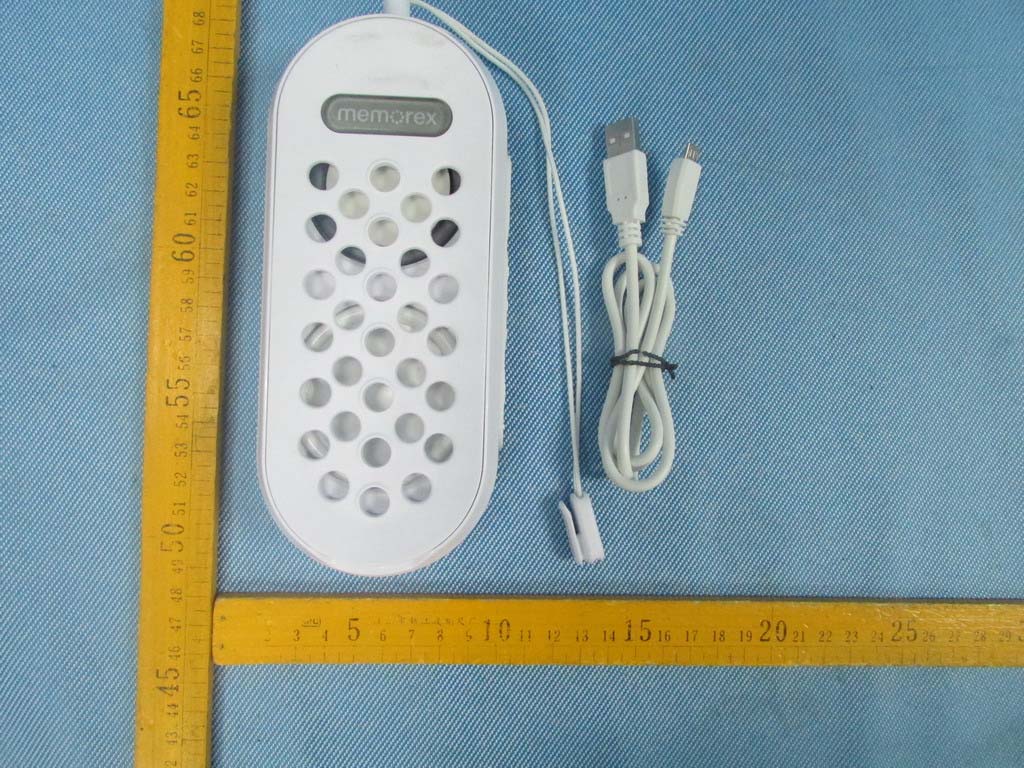

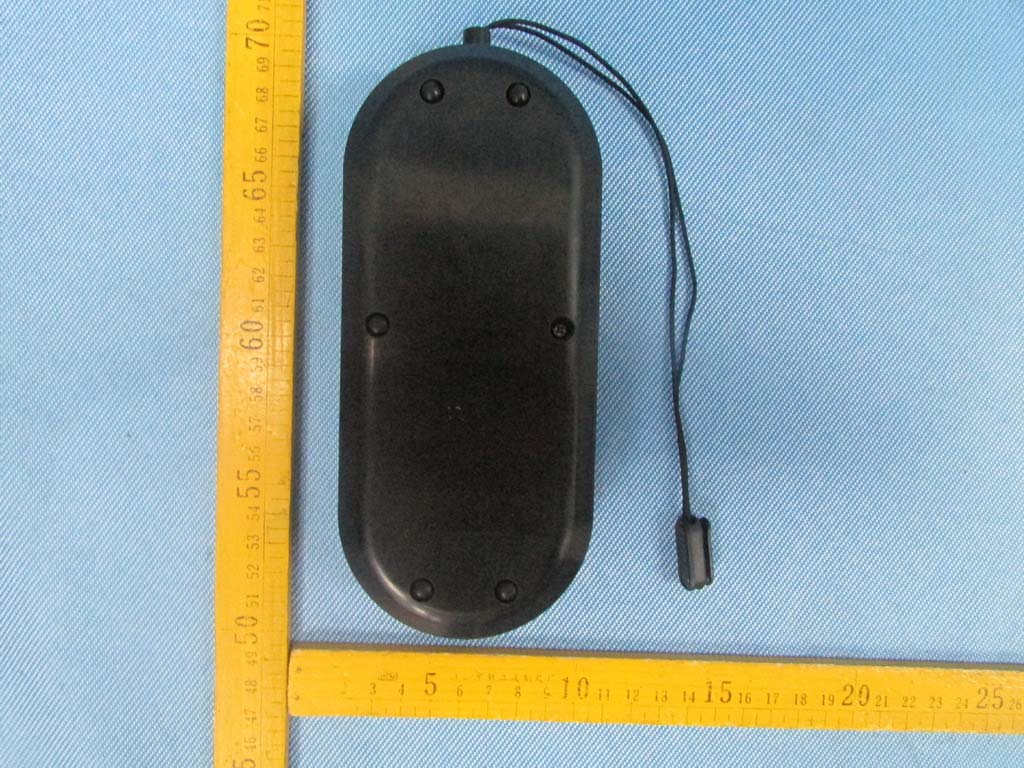

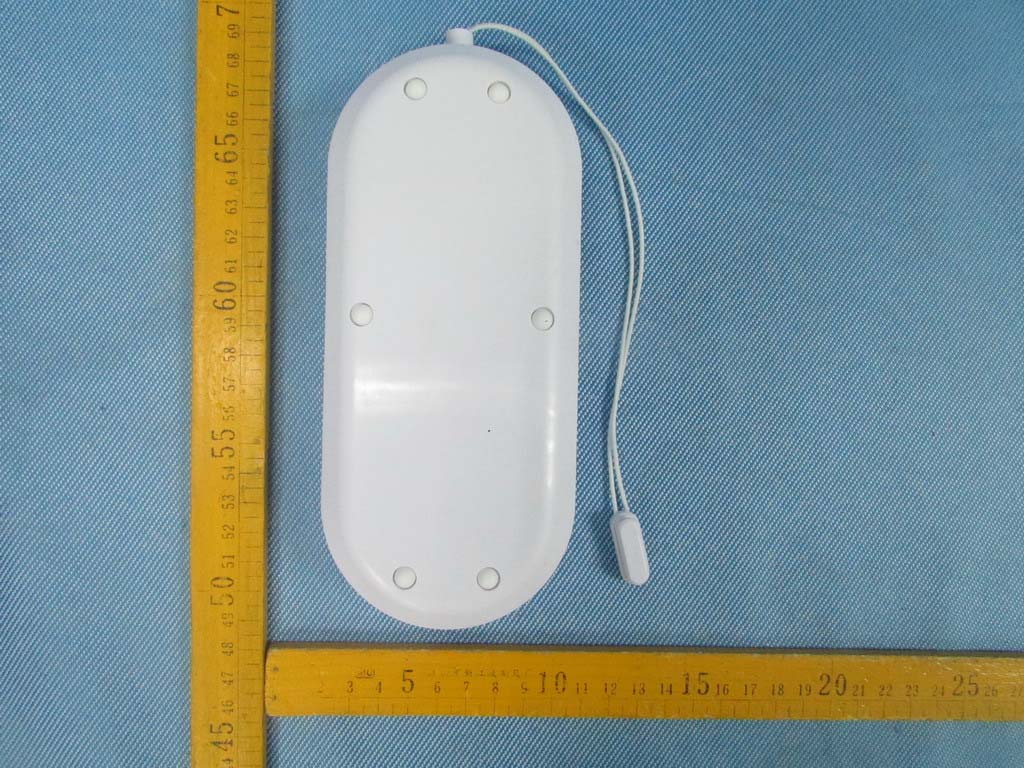

2 Photographs - Constructional Details 2.1 EUT – External View For MW233, TW233 2.2 EUT – External View For MW234, TW234

FCC Label Location The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES 2 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Back View/ proposed FCC Label Location FCC ID: PB4-MT233 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Models: FCC ID: PB4-MT233 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

EUT – Internal View RF module ANT.

2.1 EUT-RF Module View

Reference No.: WTS13S0604433E Page 1 of 81 FCC TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC ID : PB4-MT233 Applicant : Imation Corp. Address : 1 Imation Way, Oakdale, MN 55128 USA Manufacturer : Imation Corp. Address : 1 Imation Way, Oakdale, MN 55128 USA Equipment Under Test (EUT) : Product Name & Model No. : MW233, TW233 for Bluetooth Shower Speaker MW234, TW234 for Bluetooth Outdoor Speaker Brand Name : Memorex for MW233 and MW234, TDK Life on Record for TW233 and TW234 Standards : FCC Part15.247:2010 Date of Test : June 9~14, 2013 Date of Issue : June 28, 2013 Test Result : PASS Remark: * The sample described above has been tested to be in compliance with the requirements of ANSI C63.4:2003. The test results have been reviewed and comply with the rules listed above and found to meet their essential requirements. The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel: +86-755-83551033 Fax: +86-755-83552400 Compiled by: Approved by: Maikou Zhang / Project Engineer Philo Zhong / Manager Reference No.: WTS13S0604433E Page 2 of 81 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Spurious Radiated Emissions 15.205(a) 15.209 15.247(d) PASS Band edge Emissions 15.247(d) PASS Spurious RF Conducted Emissions from out of band 15.247(d) PASS Duty Cycle 15.35 PASS Conducted Emissions 15.207 PASS 20dB Bandwidth 15.215c 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: WTS13S0604433E Page 3 of 81 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................................... 2 3 CONTENTS ............................................................................................................................................................. 3 4 GENERAL INFORMATION .................................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 5 4.2 DETAILS OF E.U.T. .......................................................................................................................................... 5 4.3 TEST FACILITY ................................................................................................................................................. 5 4.4 TEST LOCATION ............................................................................................................................................... 6 4.5 CHANNEL LIST ................................................................................................................................................. 6 5 EQUIPMENT USED DURING TEST ................................................................................................................... 7 5.1 EQUIPMENTS LIST ........................................................................................................................................... 7 5.2 MEASUREMENT UNCERTAINTY ........................................................................................................................ 7 5.3 TEST EQUIPMENT CALIBRATION ..................................................................................................................... 8 6 CONDUCTED EMISSION ..................................................................................................................................... 9 6.1 E.U.T. OPERATION .......................................................................................................................................... 9 6.2 EUT SETUP ..................................................................................................................................................... 9 6.3 CONDUCTED EMISSION TEST RESULT .......................................................................................................... 10 7 SPURIOUS RADIATED EMISSIONS ............................................................................................................... 12 7.1 EUT OPERATION : ......................................................................................................................................... 12 7.2 TEST SETUP .................................................................................................................................................. 13 7.3 SPECTRUM ANALYZER SETUP ...................................................................................................................... 13 7.4 TEST PROCEDURE ......................................................................................................................................... 15 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ..................................................................................... 15 7.6 SUMMARY OF TEST RESULTS ....................................................................................................................... 16 8 SPURIOUS RF CONDUCTED EMISSIONS FROM O…

Text truncated - open the document above for the full version.

2 Photographs – Test Setup 2.1 Conducted Emissions 2.2 Radiated Emissions Below 30MHz From 30-1000MHz Above 1GHz
