PB4-MT345BLUETOOTH TRAVEL SPEAKER

2013 MW345 Bluetooth Pureplay August 2nd, 2012 MMX 2013 MW345 Bluetooth Pureplay Rev B Spring 2013 Open Audio I User Interface Documentation Imation Confidential / August 2nd, 2012 / Kelsey Halberg 1. MW345 PRODUCT DESCRIPTION 1.1 The MW345 is a stereo speaker system supporting Bluetooth and a line-in source. When paired with a mobile phone, the MW345 may function as a speakerphone. It is also portable when powered by batteries. 2. FACTORY SETTINGS 2.1 Source selection will be set to Bluetooth in ‘discoverable’ mode. 3. POWER ON/OFF: 3.1 Click to toggle on and off. LED illuminates the power icon white when on. 3.2 The device will power-up into whichever source mode it was powered down. 4. SLEEP MODE 4.1 After 20 minutes of detecting no line-in or audio streaming signal from a Bluetooth connection, the MW345 powers down. Bluetooth signal is disconnected. 4.2 Press the power button to wake the device from sleep mode. 4.3 MW345 will attempt to reconnect to last BT device when awoken from sleep mode. 4.4 If awoken by line-in source, BT connection will attempt to reconnect to last device. BLUETOOTH BUTTON illuminated LINE IN BUTTON illuminated POWER BUTTON illuminated VOLUME BUTTONS printed ANSWER + CALL/END CALL + SPEAKERPHONE ON/OFF printed MMX 2013 MW345 Bluetooth Pureplay Rev B Spring 2013 Open Audio I User Interface Documentation Imation Confidential / August 2nd, 2012 / Kelsey Halberg 5. VOLUME 5.1 Click [+] to increase volume level, [-] to decrease volume level. Holding [+/-] down for 1+ seconds activates rapid increase or decrease of volume level. An audible indicator will notify user when maximum and minimum volumes are reached. Rapid increase/decrease should be 7 seconds between lowest and highest volumes. 6. LINE IN SOURCE 6.1 Line-in source becomes active when it detects a live input to the line-in jack. 7. BLUETOOTH 7.1 Click to enter BT mode. 7.2 When in BT mode, the BT icon will illuminate blue continually, if connected to a BT device. 8. FIRST CONNECTION 8.1 To pair with a device for the first time, press the ‘Bluetooth’ button on MW345. The speaker will enter pairing mode and become visible to compatible Bluetooth devices. The product will beep once indicating that you have now entered ‘discoverable’ mode. 8.2 Bluetooth LED will blink slowly, approximately 2-3 times per second in this mode and the Device will stay in ‘discoverable’ for 2 minutes or until successfully paired and connected. 8.3 The speaker will appear as “Memorex MW345” to compatible devices. 8.4 After successfully pairing and/or when in BT mode, the product should beep once and the BT icon will illuminate blue continually. If the pair is not successful, the BT icon will revert to the slow blink rate and produce a ‘failed’ beep. 8.5 Bluetooth connection will not terminate when switching between Bluetooth and Line-In sources. 8.6 MW345 will send “pause” signal to streaming devices when moving from BT to line-in mode. 9. RETURNING CONNECTIONS 9.1 When powered on and in Bluetooth source mode, MW345 will automatically connect to the most recently paired device if it is available. 10. SPEAKERPHONE 10.1 INCOMING CALLS 10.1.1 When paired and connected with a mobile phone which is receiving an incoming call, MW345 will emit a default, pre-set ringtone. 10.1.2 To answer the call through the MW345, press the ‘answer’ button on MW345. Audio and microphone functions will be executed by MW345. 10.1.3 To answer a call privately on your phone, while connected to MW345, press the ‘answer button’ on your smartphone. MMX 2013 MW345 Bluetooth Pureplay Rev B Spring 2013 Open Audio I User Interface Documentation Imation Confidential / August 2nd, 2012 / Kelsey Halberg 10. SPEAKERPHONE continued 10.2 OUTGOING CALLS 10.2.1 Press the ‘call/answer/end’ button twice to automatically dial the last called number on your smartphone. 10.3 CURRENT CALLS 10.3.1 Press ‘call/answer/end’ button once during a phone call to activate or deactivate speakerphone function. 10.3.2 To end a call, press ‘call/answer/end’ button twice. 11. USB CHARGING 11.1 The product shall have a Micro USB connector capable of providing 1A of charging current. 11.2 Rechargeable NiMH Batteries will be charged through USB connector. 11.3 Power indicator will flash red to indicate low battery power.

Imation Corp. 1 Imation Way, Oakdale, MN 55128 USA FCC ID: PB4-MT345 Product Name: Bluetooth Travel Speaker Model No.: MW345,TW345,USB-345 Declaration The Bluetooth Travel Speaker which has the Line In/AUX ports for the Equipment ClassB of JBP, we will application the FCC DOC for this Line In/AUX port in th future. Sign: Cheryl D White/Manager Date: 2013-01-14 Imation Corp.

Imation Corp. FCC ID: PB4- MT345 POWER OF ATTORNEY J AN. 06, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on J AN. 05,2014 This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Imation Corp. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Imation Corp. ....................................................................................

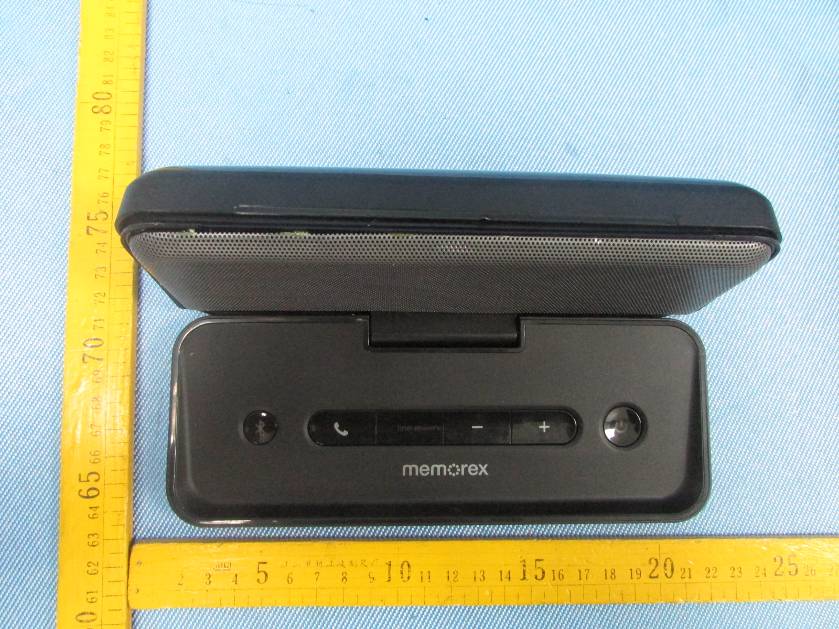

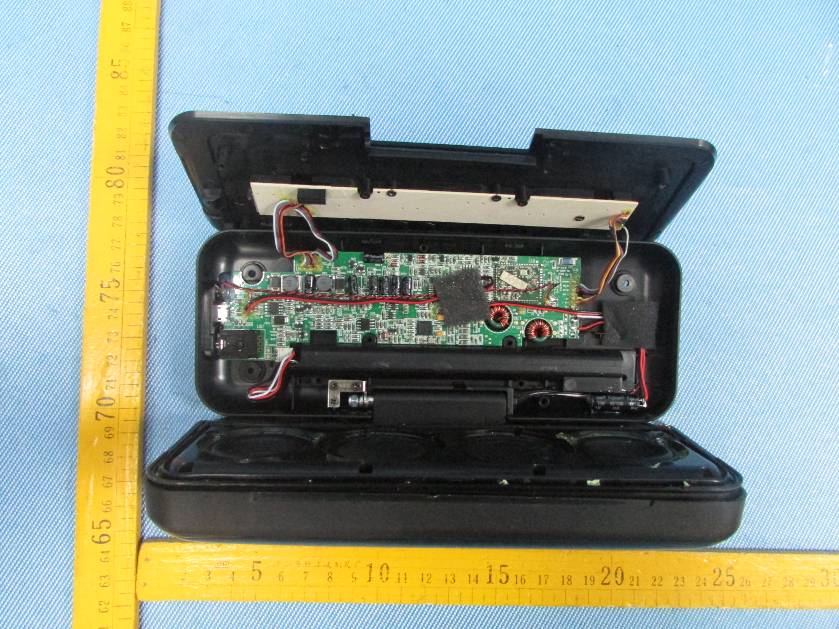

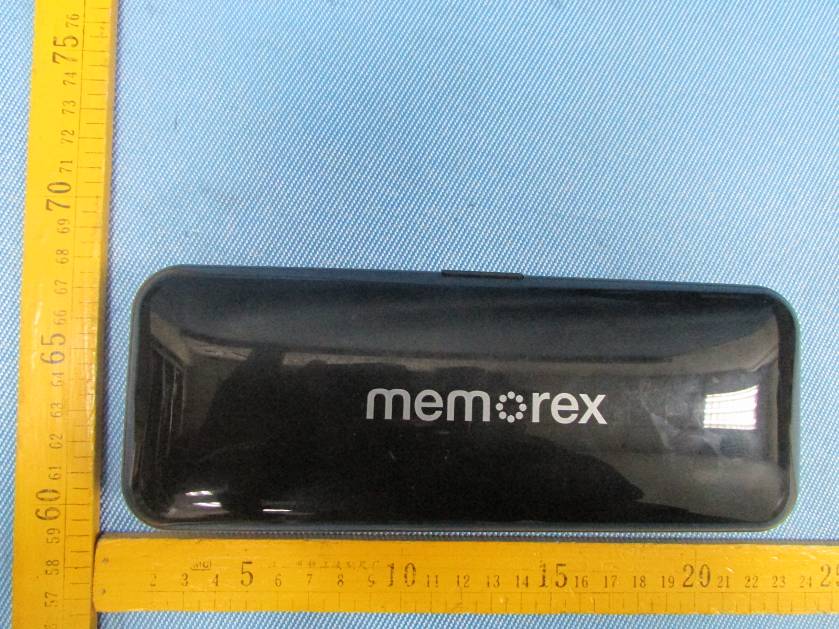

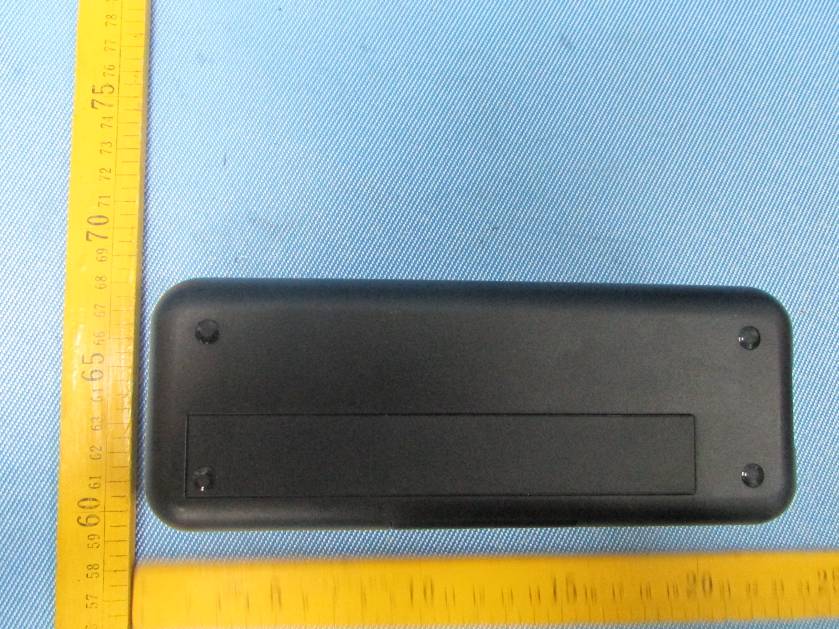

2.1 EUT – Appearance View 2.2 EUT – Appearance View 2.3 EUT – Appearance View 2.4 EUT – Appearance View 2.5 EUT – Open View 2.6 EUT – Open View

Page:55 of 55 Imation Corp. FCC ID: PB4-MT345 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12128599-S-S-F 17 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Back View/ proposed FCC Label Location FCC ID: PB4-MT345 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Models: MW345,TW345 FCC ID: PB4-MT345 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – PCB(1) Front View 2.2 EUT –PCB(1) Back View 2.3 EUT – PCB(2) Front View(1) BT Module 2.4 EUT – PCB(2) Front View(2) 2.5 EUT –PCB(2) Back View

Page: 1 of 58 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12128599-S-S-F FCC ID : PB4-MT345 Applicant : Imation Corp. Address : 1 Imation Way, Oakdale, MN 55128 USA. Equipment Under Test (EUT) : Product Name : Bluetooth Travel Speaker Model No. : MW345,TW345,USB-345 Standards : FCC CFR47 Part 15 Section 15.247:2010 Date of Test : Dec.27,2012 ~ Jan. 06, 2013 Date of Issue : Jan. 06, 2013 Tested By : Olic huang / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-83551033 Fax:+86-755-83552400 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 58 Imation Corp. FCC ID: PB4-MT345 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12128599-S-S-F 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 PASS Radiated Spurious Emissions 15.205(a) 15.209 15.247(d) PASS 20Db Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page:3 of 58 Imation Corp. FCC ID: PB4-MT345 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12128599-S-S-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST FACILITY...................................................................................................................................................... 6 4.7 TEST LOCATION.................................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 9 6.1 E.U.T. OPERATION................................................................................................................................................ 9 6.2 EUT SETUP......................................................................................................................................................... 10 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................. 10 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 13 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 14 7.1 EUT OPERATION :............................................................................................................................................... 14 7.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 14 7.3 TEST SETUP......................................................................................................................................................... 15 7.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 16 7.5 TEST PROCEDURE................................................................................................................................................ 17 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................... 17 7.7 SUMMARY OF TEST RESULTS.......................................................................................................…

Text truncated - open the document above for the full version.

Photograph – Conducted Emission Test Setup Test Setup Front View Test Setup Rear View Photograph – Radiation Spurious Emission Test Setup Below 30MHz From 30-1000MHz Above 1GHz
