PB4-TDKA34WIRELESS SPEAKER

TREK Max Wireless Speaker English Refer to the included Important Safety Instructions. Please read and save this Quick Start Guide, Important Safety Instructions and Warranty.For additional information, please go to TDKperformance.com.u Insert a plug by aligning and then sliding the plug on. v Remove using tweezers or other small-tipped instrument and slide off. w Connect the AC power adapter jack to the 12V DC IN jack on the side of the TREK Max and then connect the plug to a 100V-240V wall outlet. The TREK Max has a built-in rechargeable battery that will automatically be charged as long as the TREK Max is plugged in. When the TREK Max Power is on and charging, the Power indicator will light red and turn amber when fully charged.The Power indicator will fade in and out when it is in need of charging.The battery will provide approximately 8 hours of operation at normal listening level.Notes: • Each time you charge and discharge the battery (charge cycles), battery capacity slightly diminishes. Rechargeable batteries have a limited number of charge cycles and need to be replaced eventually. • You may wish to replace your battery when, or before, the battery does not supply enough power to function your device. Also, proper disposal is essential from environmental and safety point of view. Putting any battery directly in the trash will harm the environment. • Do not incinerate.• Only use the supplied AC adapter.• Remove both the DC plug and AC-IN plug to disconnect AC adapter when not in use.• Disconnect the AC cord to use with DC power (rechargeable battery).Replacing the Rechargeable Battery: If the battery does not supply enough power (see note in Battery/Power Indicator box in chart below), visit www.tdkperformance.com for instructions on battery replacement. AC CONNECTION / RECHARGING THE BATTERY uvw 63953178 A The chart below defines when the indicators will light and the button operations: CONTROL BUTTONS/STATUS INDICATORS - See illustration x x Battery/Power Indicator: Indicates the battery level of charging status: Amber - Power on, full charge Blinks Red - Needs charging Red - ChargingPower Button: Press to turn the power on or off. Volume Buttons: Press to set the desired volume level. Volume Indicators: Indicates the volume level. Bluetooth Button: Press to select the Bluetooth mode. To make the unit “discoverable”, press and hold for 3 seconds until you hear a “beep” and the Bluetooth indicator will blink fast.If unable to connect within 2 minutes, the indicator will revert to blinking slowly. Bluetooth Indicator: Indicates the state when the Bluetooth source is selected: Blinks Slow: Not Paired.Blinks Fast: Discoverable and ready to pair with another device.Solid Blue: Paired with another device. Phone Button: Press to answer an incoming phone call. Press the Phone button twice to end the call. Phone Indicator: Lights amber when the phone is in use. Skip Buttons: Press the Skip/Search  or  button to skip forward or backward through songs. Press and hold the Skip/Search  or  button to search rapidly through the songs. Press the Play/Pause _   button to pause playback. Press again to resume playback. 1. With the unit on, press the Bluetooth button to select Bluetooth mode. 2. Press and hold the Bluetooth button for approximately 3 seconds until the Bluetooth indicator blinks quickly to make the speaker “discoverable”. 3. On the Bluetooth device, enable Bluetooth and select “TREK Max” from the Device List. If the Bluetooth device asks for a passkey, use “0000”. Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, the speaker will beep and the Bluetooth indicator will light solid blue. If it failed, the Bluetooth indicator will blink slowly. Note: After you pair a device, this TREK Max will remember it for future use. PAIRING A BLUETOOTH DEVICE - See illustration y Insert one end of an audio cable (not included) into the LINE OUT jack on your external audio unit and the other end into the AUX IN jack on the side of the TREK Max (under flap). The Aux device will automatically be selected when the audio cable is connected. Start playback of the external unit and the external audio unit’s output sound will be heard through the TREK Max’s speakers. When connecting the AUX IN jack to the external audio device, the Play/Pause/ Skip/ Backward functions will not be able to control by the TREK Max skip buttons. USING THE AUX CONNECTOR - See illustration V NFC offers a simple setup method for your TREK speaker system. Simply turn on the TREK speaker and hold the NFC enabled device (NFC on the device must be “on”) within a few centimeters of the NFC symbol on top of the TREK speaker to pair and establish a Bluetooth connection. It’s just that simple. PAIRING WITH NFC (Requires NFC Enabled Phone) - See illustration U y The TREK Max is splash resistant, but cannot be submerged in water or be subjected to a constant flow of water. In order to ensure the product is splash resistant, close the rubber flap on the side of the TREK Max. To properly close flap, fully insert center rubber dongle (on inside of flap) into the DC IN jack until flap center is flush. Insert the other dongle into the USB jack, then smooth out entire flap until flap is flush with the sides of the TREK Max. SPLASH RESISTANT - See illustration W If the TREK Max has no audio signal, and/or a USB device is not charging, for 20 minutes, the TREK Max will turn itself off. To “wake” the TREK Max, simply press the Power button. AUTO POWER OFF When receiving a phone call on your paired Bluetooth device, press the Phone button to answer (it will light amber) and use the built-in microphone on this TREK Max to take the call. Press twice to disconnect/end the call. ANSWERING A PHONE CALL Connect your device via USB to the USB jack on the TREK Max (under flap). Your device will charge as long as the TREK Max Battery Switch is in the ON position. See the owner’s manual that came with the…

Text truncated - open the document above for the full version.

Imation Corp. Date: March 21, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: PB4-TDKA34. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description SCH.pdf BlockDiagram.pdf CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Imation Corp. ................................................... Signature ................................................... Lawrence Lai/Project Management Manager

Imation Corp. FCC ID:PB4-TDKA34 POWER OF ATTORNEY Date: March 21, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on March 20, 2015. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Imation Corp., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Imation Corp. ................................................... Signature ................................................... Lawrence Lai/Project Management Manager

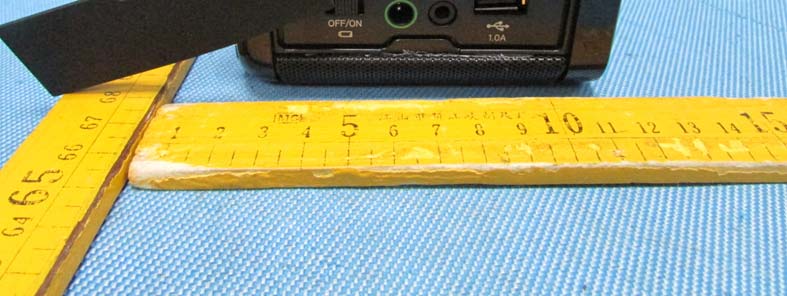

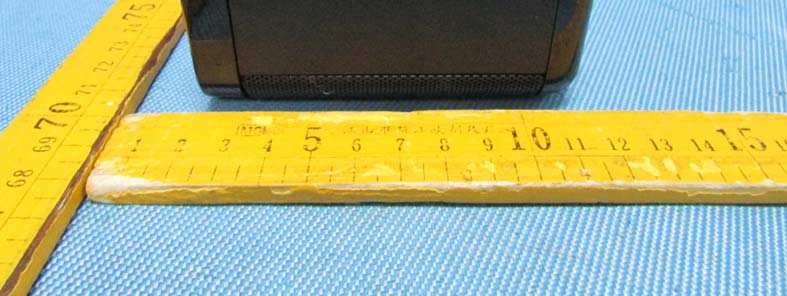

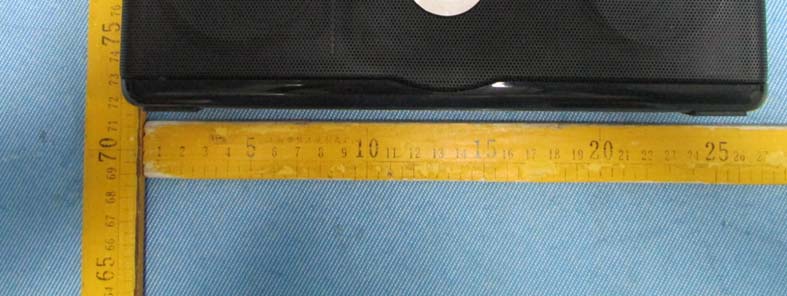

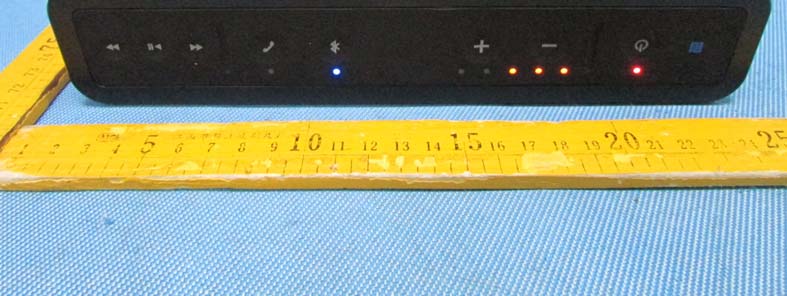

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs - C onstructional Details A34 – Appearance View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs - C onstructional Details A34 – Appearance View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC/IC Label Location for model: A34 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable.

TDK Reg Label - A34 - Black 63953182 Frank Ng / Hong Kong / [email protected] A CHINA 2/xx/2014 TDK Reg Label - A34 - Black 63953182 Frank Ng / Hong Kong / [email protected] A CHINA 2/xx/2014

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn A34 – Internal View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn EUT – RF Module View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 71 Reference No. .................... : WTS14S0312192E FCC ID ................................ : PB4-TDKA34 Applicant ............................ : Imation Corp. Address .............................. : 1 Imation Way, Oakdale, MN 55128 USA Manufacturer ..................... : Imation Corp. Address .............................. : 1 Imation Way, Oakdale, MN 55128 USA Product Name .................... : Wireless Speaker Model No. ........................... : A34 Trademark...................... : TDK Life on Record Standards ........................... : FCC CFR47 Part 15 Section 15.247: 2012 Date of Receipt sample ..... : Mar.18, 2014 Date of Test ........................ : Mar.21, 2014 Date of Issue ...................... : Mar.31, 2014 Test Result ......................... : Pass * *Remarks: The results shown in this test report refer only to the sample(s) tested; this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Testing location: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTS14S0312192E Page 2 of 71 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 PASS Spurious Radiated Emissions 15.205(a) 15.209 15.247(d) PASS Band edge Emissions 15.247(d) PASS 20dB Bandwidth 15.215c 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: WTS14S0312192E Page 3 of 71 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................................... 2 3 CONTENTS ............................................................................................................................................................. 3 4 GENERAL INFORMATION .................................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 5 4.2 DETAILS OF E.U.T. .......................................................................................................................................... 5 4.3 CHANNEL LIST ................................................................................................................................................. 5 4.4 TEST FACILITY ................................................................................................................................................. 6 4.4.2 Test Mode ................................................................................................................................................. 6 5 EQUIPMENT USED DURING TEST ................................................................................................................... 7 5.1 EQUIPMENT’S LIST ........................................................................................................................................... 7 5.2 MEASUREMENT UNCERTAINTY ........................................................................................................................ 7 5.3 TEST EQUIPMENT CALIBRATION ..................................................................................................................... 7 6 CONDUCTED EMISSION TEST ......................................................................................................................... 8 6.1 E.U.T. TEST CONDITION ................................................................................................................................. 8 6.2 EUT SETUP ..................................................................................................................................................... 8 6.3 CONDUCTED EMISSION TEST RESULT ............................................................................................................ 9 7 SPURIOUS RADIATED EMISSIONS ............................................................................................................... 11 7.1 EUT OPERATION: .......................................................................................................................................... 11 7.2 TEST SETUP .................................................................................................................................................. 12 7.3 SPECTRUM ANALYSER SETUP ...................................................................................................................... 13 7.4 TEST PROCEDURE ......................................................................................................................................... 14 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ..................................................................................... 14 7.6 SUMMARY OF TEST RESULTS ..............................................................................................…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs – Test Setup A34 Photograph –Power Line Conducted Emission Test Setup Phot ograph – Radiated Emission Test Setup Below 30MHz Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn From 30-1000MHz Above 1G Hz
