PB4-TDKA360WIRELESS SPEAKER

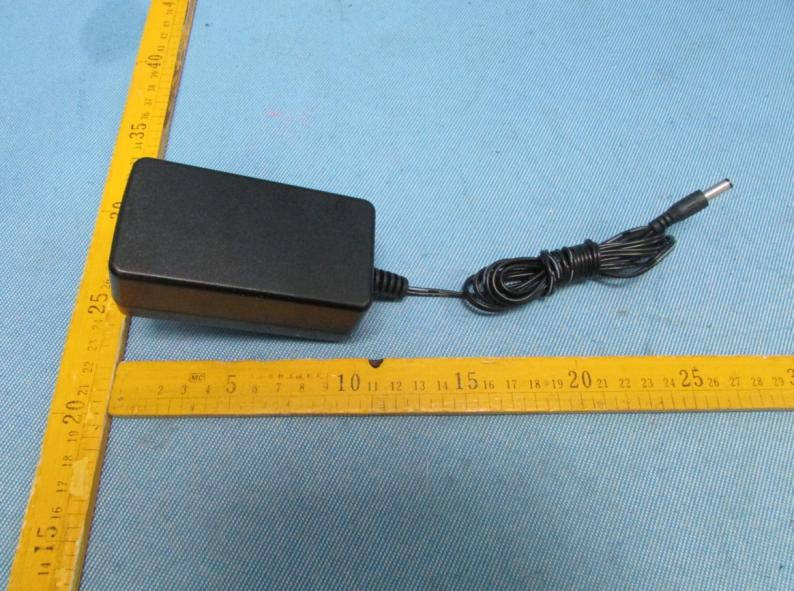

OPERATION 36953002A GENERAL: Power Source (AC) .............Input: 100-240V AC, 50/60Hz, ........................................1.2 A max, Output: 19 V DC, 2A Dimensions ........................... 6 (W) x 6 (H) x 6 (D) inches ................................... 15.2 (W) x 15.2 (H) x 15.2 (D) cm Weight ......................................................4.4 lbs / 2.0 kg Speakers ............................... 4 x 1 inch full-range drivers, ..............................................................4 inch subwoofer Specifications are subject to change without notice. The TDK Life on Record Logo is a trademark of TDK Corporation and is used under license. All other trademarks and logos are property of their respective owners. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Imation Corp is under license. Speaker Power Output .......... 2 W x 4 + 15 W (subwoofer) Wireless Audio .............................. Bluetooth version 2.1, ..................................................A2DP profile, AAC Codec Line-input Audio .........................3.5 mm stereo jack up to .......................................................2.5 Vrms input signal USB Port. ................................. 5.0 V @ 0.5 A charge only SPECIFICATIONS AND COMPATIBILITY Turning the A360 On and Off: 1. For AC operation: Press the Power/Volume control u on the main unit to turn the power on. 2. For DC operation: Slide the Battery switch al to the ON position. Press the Power/Volume control u; the unit will turn on the previous source and volume. 3. To turn the power off, press the Power/Volume control u. Pairing a Bluetooth Device 1. Turn the A360 on; the LED(s) around the Power/Volume control will light and the previously listened to source and volume will be selected. 2. Press and hold the Source/Select button V until the Bluetooth indicator blinks rapidly to make the A360 “discoverable.” 3. On the Bluetooth device, enable Bluetooth and select “A360” from the Device List. If the Bluetooth device asks for a passkey, use “0000”. Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, the speaker will beep and the Bluetooth indicator will light solid blue. If it failed, the Bluetooth indicator will blink slowly. IMPORTANT: After step 3, you have two minutes to pair the units. Note: After you pair a device, the A360 will remember it for future use. Using a Bluetooth Device 1. Turn the A360 on; the LED(s) around the Power/Volume control will light and the previously listened to source and volume will be selected 2. With a unit paired (see previous section), press the Source/Select button V so the Bluetooth indicator lights. 3. Operate your Bluetooth device and its sound will be heard through the A360’s speakers. 4. Adjust the volume by rotating the Power/Volume control u on the A360, or the Volume control on the Bluetooth device, and adjust the Bass and Treble as described later in this guide. AUX Jack (Rear of A360) 1. Insert one end of an audio cable (not included) into the LINE OUT or Headphone jack on your external audio unit and the other end into the AUX jack ak on the rear of the A360, under the flap. 2. To listen to the external audio unit, turn the A360 on and press the Source/Select button V once so the AUX indicator lights to select the Line In mode. 3. Start playback of the external unit and the external audio unit’s output sound will be heard through the A360’s speakers. 4. Adjust the volume using the Power/Volume control u on the A360, or the Volume control on the Bluetooth device, and adjust the Bass and Treble as described later in this guide. Charging a USB Device with the A360’s USB Jack Connect your device via USB to the USB jack W on the A360. Your device will charge when the A360 is connected to AC power. Your device will also charge during operation in DC mode if Battery OFF/ON switch al is ON. Note: USB charging will significantly reduce battery life in DC mode. Setting the Treble and Bass 1. TREBLE: Press the Treble/Bass button y until the Treble Indicator lights. Adjust the setting using the Power/Volume control u. 2. BASS: Press the Treble/Bass button y until the Bass Indicator lights. Adjust the setting using the Power/Volume control u. Note: After five seconds, the unit will save the Bass/Treble settings and revert to Volume selection mode. Auto Power Off If the unit has no audio signal or a USB device is not charging, for 20 minutes, the unit will turn itself off. To “wake” the unit up, simply press the Power/Volume control u. Splash Resistant The A360 is splash resistant, but cannot be submerged in water or be subject to constant flow of water. In order to ensure the product is splash resistant, close the rubber flap on the rear of the A360. To properly close flap, fully insert center rubber dongle (on inside of flap at) into the DC IN jack X until flap center is flush. Insert the other dongle into USB jack W, then smooth out entire flap until flap is flush with the sides of the A360. Troubleshooting If the A360 is not producing sound, adjust the volume level on your digital music device to high. AC CONNECTION/RECHARGING THE BATTERY LOCATION OF CONTROLS 1. Power/Volume Control 2. Low Battery Indicator 3. Carrying Handle 4. Bluetooth ® and Aux Source Indicators 5. Treble/Bass Button 6. Treble/Bass Indicators 7. Source/Select Button 8. USB Charge Jack 9. DC IN Jack 10. Rubber Flap 11. AUX Jack 12. Battery OFF/ON Switch Notes: • Only use the supplied AC adapter. • Remove both the DC plug and AC-IN plug to disconnect AC adapter when not in use. • Disconnect the AC cord to use with DC power (rechargeable battery). 1 . Select the appropriate plug for your country and connect it to the AC power adapter. 2. Connect the AC power adapter jack to the DC IN jack X on the rear of the unit and then connect the plug to a 100V-240V wall outlet. This unit has a built-in rechargeable battery …
