PB4-TDKA73TDK WIRELESS BOOMBOX

Wireless Boombox OPERATION 63952712-A GENERAL:Power Source ........DC 18V, 2A Adapter (Center Pos.)Power (DC) ......... Internal NiMH rechargeable batteryDimensions .......... .17 (W) x 11.5 (H) x 4 (D) inchesWeight .. ....................................................... XXXlbs Speakers .........2 x 2 inch full-range drivers, 1 x 5.25....... inch subwoofer, 2 x 5.25 inch passive radiatorsThe TDK Life on Record Logo is a trademark of TDK Corporation and is used under license.All other trademarks and logos are property of their respective owners. Output Power ............. . 7W x 2 + 15W (subwoofer)Wireless Audio ...... Bluetooth version 2.1-A2DP profileLine-input Audio ................ 3.5mm stereo jack up to ............................................... 2.5Vrms input signalUSB Port.............................5 V @ 2.1 A charge onlyRADIO SECTION:Frequency Range (FM)....................... 87.5-108MHzFrequency Range (AM) ..................... 530-1710KHz SPECIFICATIONS AND COMPATIBILITY TDKperformance.eu A73 User Guide Please read these instructions completely before operating this product Headphone Jack (Rear of Unit)For private listening, simply plug headphones into the Headphone jack X on the rear of this unit. The speaker’s sound will be muted when headphones are inserted.AUX Jack (Rear of Unit)Insert one end of an audio cable (not included) into the LINE OUT jack on your external audio unit and the other end into the AUX jack U on the rear of this unit. To listen to the external audio unit, turn this unit on and turn on the external unit as well. Press the Source/Select control x once so all the modes light. Rotate the Source/Select control x to the AUX position to select the Line In mode. Start playback of the external unit and the external audio unit’s output sound will be heard through this unit’s speakers. Turning the Unit On and Off:1. The main power switch is on the rear of the unit. Slide to the ON position to turn the unit on and activate the Power/Volume control on the main unit and the Power button on the remote. 2. Once the main power switch is turned on, you can turn the unit on or off by pressing the Power/Volume control v on the main unit. If using the remote, press the Power button am to turn the unit on. Press the OFF button al to turn the unit off. Pairing a Bluetooth Device1. Turn the unit on; the previously listened to source and volume will be selected.2. Press the Source/Select control x once so all the modes light. Rotate the Source/ Select control x to the Bluetooth ( ) position to select the Bluetooth mode. 3. Press and hold the Source/Select control x for approximately 3 seconds until the Bluetooth indicator blinks quickly to make the speaker “discoverable”. 4. On the bluetooth device, enable bluetooth and select “A73” from the Device List. If the bluetooth device asks for a passkey, use “0000”. Some bluetooth devices will ask you to accept the connection. If the units are paired properly, the speaker will beep and the Bluetooth indicator will light solid. If it failed, the Bluetooth indicator will blink slowly. Note: After you pair a device, this unit will remember it for future use. Using a Bluetooth Device1. Turn the unit on; the previously listened to source and volume will be selected.2. With a unit paired (see previous section), press the Source/Select control x once so all the modes light. Rotate the Source/Select control x to the Bluetooth ( )position to select the Bluetooth mode. 3. Operate your bluetooth device and its sound will be heard through this unit’s speakers.4. Adjust the volume using the Power/Volume control v on this unit, or the Volume AC CONNECTION / RECHARGING THE BATTERY LOCATION OF CONTROLS This unit has a built-in rechargeable battery that will automatically be charged as long as the unit is plugged in. When charging, the Battery indicator will light red. When fully charged, the indicator will turn off.If the battery is low, the Battery indicator will fade in and out in a red hue. Note: The battery will provide approximately 6 hours of operation at 50% volume or 2 hours at 100% volume. 1. Carrying Handle2. Power/Volume Control3. Display 4. Source/Select Control5. Remote Sensor Notes:t
0OMZ
VTF
UIF
TVQQMJFE
"$
BEBQUFSt
3FNPWF
CPUI
UIF
%$
QMVH
BOE
"$*/
QMVH
UP
EJTDPOOFDU
"$
BEBQU FS
XIFO
OPU
JO
VTF t
%JTDPOOFDU
UIF
"$
DPSE
UP
VTF
XJUI
%$
QPXFS
SFDIBSHFBCMF
CBU UFSZ  Wireless Boombox US ACPlugShown 1. Select the appropriate plug for your country and connect it to the AC power adapter. 2. Connect the AC power adapter jack to the DC IN jack W on the rear of the unit and then connect the plug to a 100V-240V wall outlet. Rechargeable Battery Notes:t
&BDI
UJNF
ZPV
DIBSHF
BOE
EJTDIBSHF
UIF
CBUUFSZ
DIBSHF
DZDMFT
CBUUFSZ
DBQBDJUZ
slightly diminishes. Rechargeable batteries have a limited number of charge cycles and need to be replaced eventually. t
:PV
NBZ
XJTI
UP
SFQMBDF
ZPVS
CBUUFSZ
XIFO
PS
CFGPSF
UIF
CBU UFSZ
EPFT
OPU
TVQQMZ
FOPVHI
power to operate your device. Also, proper disposal is essential from environmental and safety point of view. Putting any battery directly in the trash will harm the environment. t
%P
OPU
JODJOFSBUF Replacing the Remote Control Battery:1. Remove the Battery Compartment by pressing in on the tab and then sliding the compartment out. 2. Install a CR2025 battery, paying attention to the polarity diagram in the compartment (positive side up). 3. Replace the Battery Compartment. Replacing the Rechargeable Battery:If the battery does not supply enough power (see note in Rechargeable Battery Notes box below), replace the rechargeable battery as follows:1. Remove the screws on the bottom of the unit and remove the bottom plate.2. Unplug the rechargeable battery and replace with battery pack with the following specs, (xxxxx,xxxxx,xxxxx ADVISE SPECS) 3. Replace the bottom plate and tighten the screws. 21 4 35 12. OFF Button13. Power Button14. Bluetooth Button15. SEEK Buttons16. AUX Button 17. FM Butt…

Text truncated - open the document above for the full version.

Imation Corp. FCC ID: PB4-TDKA73 POWER OF ATTORNEY June 12, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on June 11,2013 This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Imation Corp. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Imation Corp. ....................................................................................

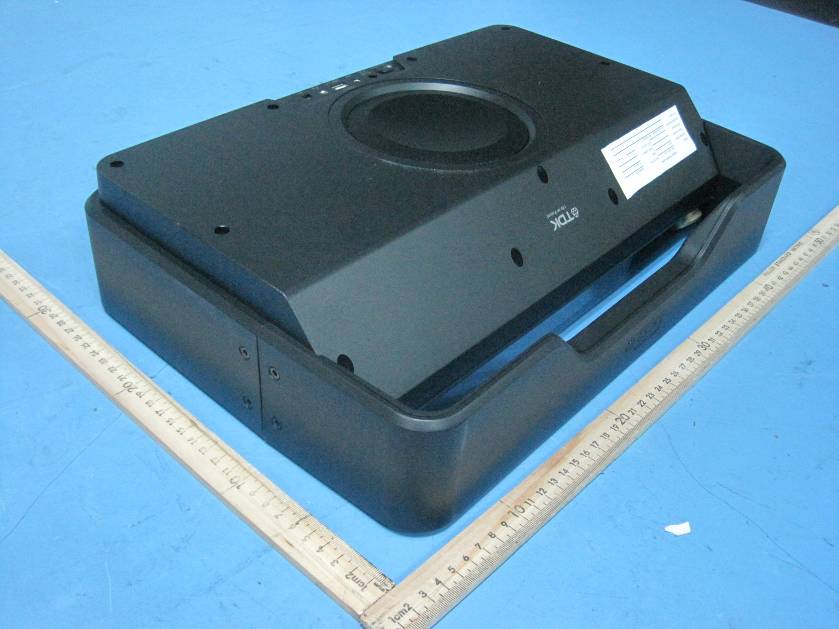

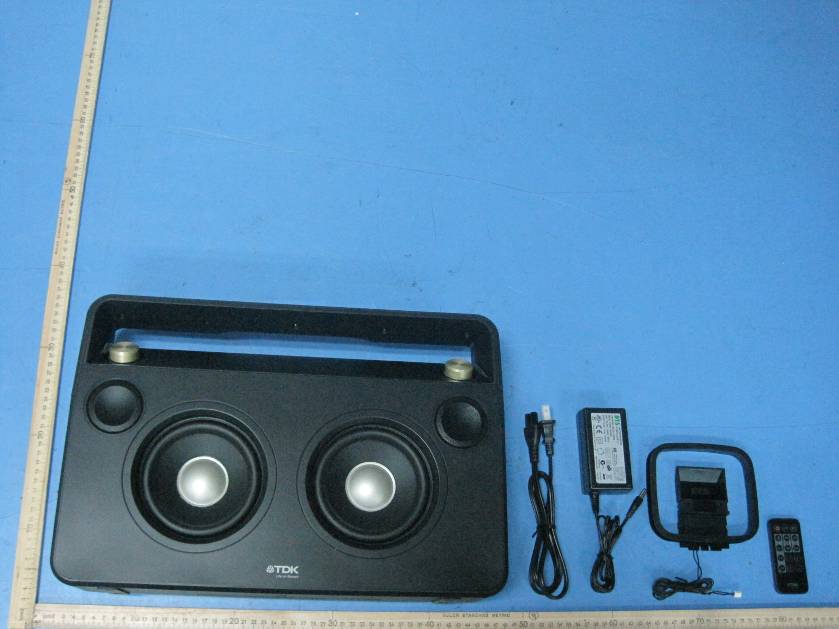

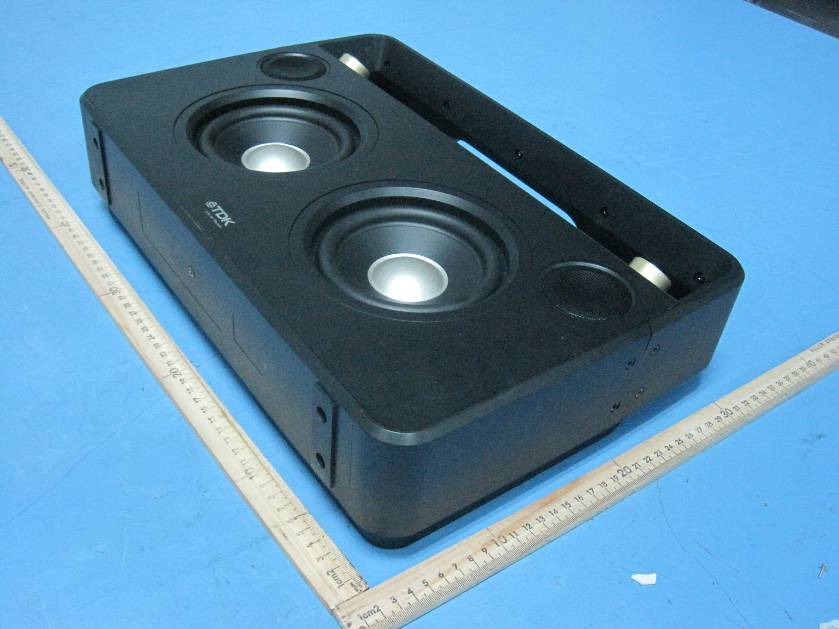

2.1 EUT – Appearance View 2.2 EUT – Appearance Front View 2.3 EUT – Appearance Back View
