PB4-TDKQ35WIRELESS CHARGING SPEAKER

Wireless Charging Speaker Q35 OPERATION 63952842-A GENERAL: Power Source (AC) .......Input: 100-240V AC, 50/60Hz, ..................................1.2 A max, Output: 19 V DC, 2A Dimensions .................... 6 (W) x 6 (H) x 6 (D) inches ............................ 15.2 (W) x 15.2 (H) x 15.2 (D) cm Weight ...............................................5.7 lbs / 2.6 kg Speakers ................... 1 inch full-range drivers, 4 inch ................ subwoofer, 2 x 5.25 inch passive radiators The TDK Life on Record Logo is a trademark of TDK Corporation and is used under license. All other trademarks and logos are property of their respective owners. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Imation Corp is under license. The ‘Qi’ symbol is a trademark of the Wireless Power Consortium. Qi ...........................................5.0 V at up to 1.0 Amp Power Output ................. 2 W x 4 + 15 W (subwoofer) Wireless Audio ... Bluetooth version 2.1, A2DP profile, ................................................................AAC Codec Line-input Audio ...3.5 mm stereo jack up to 2.5 Vrms ...............................................................input signal USB Port. .......................... 5.0 V @ 0.5 A charge only Specifications are subject to change without notice. SPECIFICATIONS AND COMPATIBILITY TDKperformance.com Q35 User Guide Please read these instructions completely before operating this product Pairing a Bluetooth Device 1. Turn the Q35 on; the LED(s) around the Power/Volume control will light and the previously listened to source and volume will be selected. 2. Press the Function button W until the Bluetooth indicator blinks slowly. 3. Press and hold the Function button W until the Bluetooth indicator blinks rapidly to make the Q35 “discoverable.” 4. On the Bluetooth device, enable Bluetooth and select “Q35” from the Device List. If the Bluetooth device asks for a passkey, use “0000”. Some Bluetooth devices will ask you to accept the connection. If the units are paired properly, the speaker will beep and the Bluetooth indicator will light solid blue. If it failed, the Bluetooth indicator will blink slowly. IMPORTANT: After step 3, you have two minutes to pair the units. Note: After you pair a device, the Q35 will remember it for future use. Using a Bluetooth Device 1. Turn the Q35 on; the LED(s) around the Power/Volume control will light and the previously listened to source and volume will be selected 2. With a unit paired (see previous section), press the Function button W so the Bluetooth indicator lights. 3. Operate your Bluetooth device and its sound will be heard through the Q35’s speakers. 4. Adjust the volume by rotating the Power/Volume control u on the Q35, or the Volume control on the Bluetooth device, and adjust the Bass and Treble as described later in this guide. AUX Jack (Rear of Q35) 1. Insert one end of an audio cable (not included) into the LINE OUT or Headphone jack on your external audio unit and the other end into the AUX jack al on the rear of the Q35, under the flap. 2. To listen to the external audio unit, turn the Q35 on and press the Function button W once so the AUX indicator lights to select the Line In mode. 3. Start playback of the external unit and the external audio unit’s output sound will be heard through the Q35’s speakers. 4. Adjust the volume using the Power/Volume control u on the Q35, or the Volume control on the Bluetooth device, and adjust the Bass and Treble as described later in this guide. Charging a USB Device with the Q35’s USB Jack Connect your device via USB to the USB jack X on the Q35. Your device will charge when the Q35 is connected to AC power. Your device will also charge during operation in DC mode if Battery OFF/ON switch am is ON. Note: USB charging will significantly reduce battery life in DC mode. Charging a Qi Device Designed with inductive charging capabilities, the Q35 allows you to place your Qi compatible device on top of the speaker for wireless charging. It’s that simple! The charging area is approximately two inches in the center of the top of the speaker. Make sure your device is Qi compatible or utilizes a Qi case or other Qi charging option (both available separately), then place the unit on top of the Q35. The Qi indicator x will flash green while charging. It will be solid green when charging is completed and it will flash red if there is an error condition. If there is an error condition remove the Qi compatible device and replace it on the Q35. Make sure the Q35 is connected to AC power when charging. Setting the Treble and Bass 1. TREBLE: Press the Treble/Bass button U until the Treble Indicator lights. Adjust the setting using the Power/Volume control u. 2. BASS: Press the Treble/Bass button U until the Bass Indicator lights. Adjust the setting using the Power/Volume control u. Note: After five seconds, the unit will save the Bass/Treble settings and revert to Volume selection mode. Auto Power Off If the unit has no audio signal, a USB or Qi device is not charging, for 20 minutes, the unit will turn itself off. To “wake” the unit up, simply press the Power/Volume control u. Splash Resistant The Q35 is splash resistant, but cannot be submerged in water or be subject to constant flow of water. In order to ensure the product is splash resistant, close the rubber flap on the rear of the Q35. To properly close flap, fully insert center rubber dongle (on inside of flap) into the DC IN jack at until flap center is flush. Insert the other dongle into USB jack X, then smooth out entire flap until flap is flush with the sides of the the Q35. Troubleshooting If the Q35 is not producing sound, adjust the volume level on your digital music device to high. AC CONNECTION / RECHARGING THE BATTERY LOCATION OF CONTROLS 1. Power/Volume Control 2. Low Battery Indicator 3. Charging Area 4. Qi Charge Indicator 5. Bluetooth ® and Aux Sour…

Text truncated - open the document above for the full version.

Imation Corp. FCC ID: PB4-TDK Q35 POWER OF ATTORNEY Aug. 25, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Aug. 24,2013 This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Imation Corp. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Imation Corp. ....................................................................................

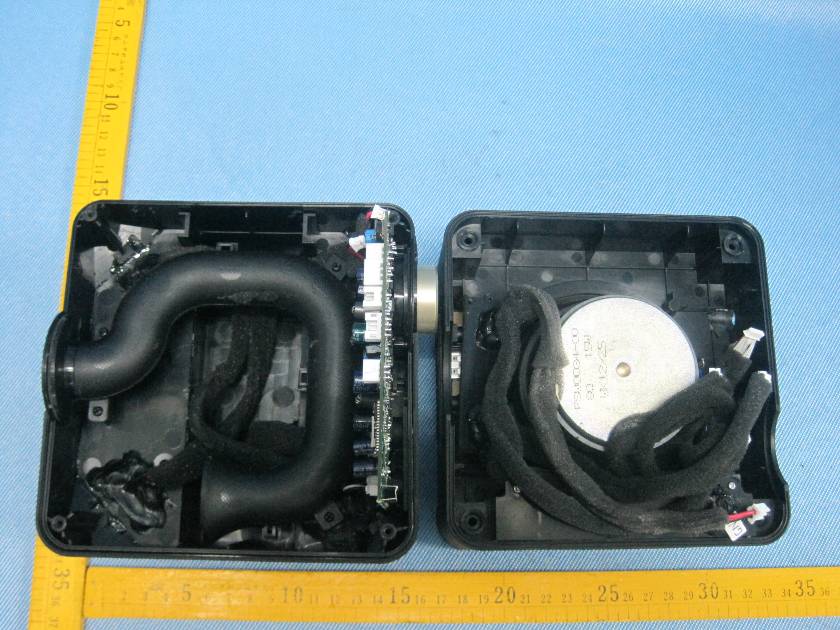

Model No.: Q35 2.1 EUT – Appearance View(1) 2.2 EUT – Appearance View(2) 2.3 EUT – Appearance View(3) 2.4 EUT – Appearance View(4) 2.5 EUT – Open View

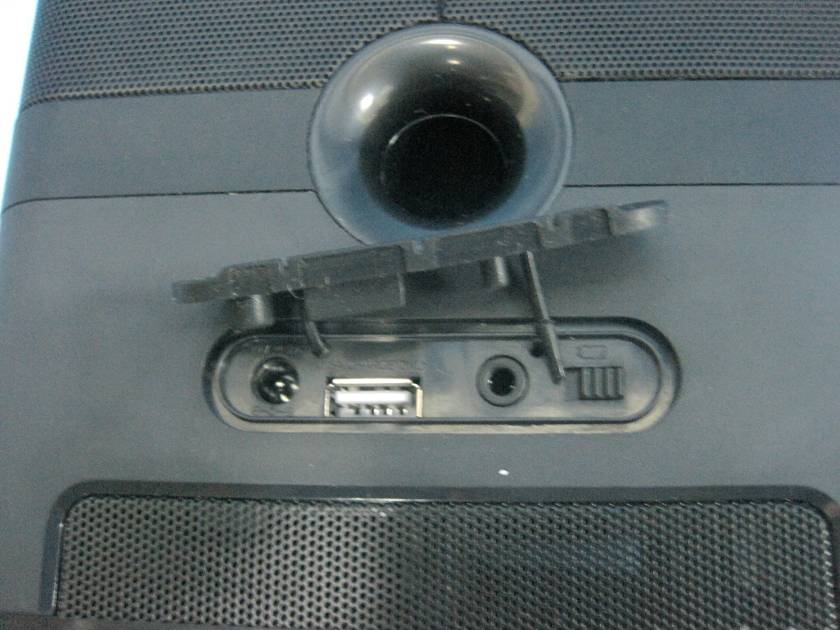

Imation Corp. FCC ID: PB4-TDKQ35 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12085582-S-S-F 17 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Back View/ proposed FCC Label Location FCC ID: PB4-TDKQ35 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Models: Q35 FCC ID: PB4-TDKQ35 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Model No.: Q35 2.1 EUT – PCB(1) Front View 2.2 EUT –PCB(1) Back View 2.3 EUT –Antenna View ANT. 2.4 EUT – PCB(2) Front View 2.5 EUT –PCB(2) Back View 2.6 EUT – PCB(3) Front View 2.7 EUT –PCB(3) Back View

Page: 1 of 54 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12085582-S-S-F FCC ID : PB4-TDKQ35 Applicant : Imation Corp. Address : 1 Imation Way, Oakdale, MN 55128-3421 USA. Equipment Under Test (EUT) : Product Name : Wireless Charging Speaker Model No. : Q35 Standards : FCC CFR47 Part 15 Section 15.247:2010 Date of Test : Aug.02 ~ Aug.25, 2012 Date of Issue : Aug.25, 2012 Tested By : Olic huang / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-83551033 Fax:+86-755-83552400 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 54 Imation Corp. FCC ID: PB4-TDKQ35 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12085582-S-S-F 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 PASS Radiated Spurious Emissions 15.205(a) 15.209 15.247(d) PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page:3 of 54 Imation Corp. FCC ID: PB4-TDKQ35 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12085582-S-S-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST FACILITY...................................................................................................................................................... 6 4.7 TEST LOCATION.................................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 8 6.1 E.U.T. OPERATION................................................................................................................................................ 8 6.2 EUT SETUP........................................................................................................................................................... 9 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................... 9 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 12 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 13 7.1 EUT OPERATION :............................................................................................................................................... 13 7.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 13 7.3 TEST SETUP......................................................................................................................................................... 14 7.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 15 7.5 TEST PROCEDURE................................................................................................................................................ 16 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................... 16 7.7 SUMMARY OF TEST RESULTS...................................................................................................................…

Text truncated - open the document above for the full version.

Model No.:Q35 2.1 Photograph – Conducted Emission Test Setup 2.2 Photograph – Radiation Spurious Emission Test Setup Below 30MHz From 30-1000MHz Above 1GHz
