PB4-TDKV513WIRELESS SOUND CUBE

Soundcube OPERATION 63952719-A GENERAL: Power Source (AC) ..DC 18V Adapter (Center Positive) Speakers. ...........4 x 2 inch full-range drivers, 1 x 5.25 ..........inch subwoofer, 2 x 5.25 inch passive radiators Output Power ...................3W x 4 + 15W (subwoofer) Weight. ..............................................................[tbd] The TDK Life on Record Logo is a trademark of TDK Corporation and is used under license. All other trademarks and logos are property of their respective owners. Dimensions ....................9 (W) x 9 (H) x 9 (D) inches. Wireless Audio. .....Bluetooth version 2.1-A2DP profile Line-input Audio. ....3.5mm stereo jack up to 2.5Vrms ...............................................................input signal USB Port. ..............................5 V @ 2.1 A charge only SPECIFICATIONS AND COMPATIBILITY TDKperformance.eu V513 User Guide Please read these instructions completely before operating this product AUX Jack (Rear of Unit) Insert one end of an audio cable (not included) into the LINE OUT jack on your external audio unit and the other end into the AUX jack y on the rear of this unit. To listen to the external audio unit, turn this unit on and turn on the external unit as well. Press the Source/Select control w once so all the modes light. Rotate the Source/Select control w to the AUX position to select the Line In mode. Start playback of the external unit and the external audio unit’s output sound will be heard through this unit’s speakers. Turning the Unit On and Off: 1. The main power switch is on the rear of the unit. Slide to the ON position to turn the unit on and activate the Power/Volume control on the main unit and the Power button on the remote. 2. Once the main power switch is turned on, you can turn the unit on or off by pressing the Power/Volume control v on the main unit. If using the remote, press the Power button at to turn the unit on. Press the OFF button X to turn the unit off. Pairing a Bluetooth Device 1. Turn the unit on; the previously listened to source and volume will be selected. 2. Press the Source/Select control w once so all the modes light. Rotate the Source/ Select control w to the Bluetooth () position to select the Bluetooth mode. 3. Press and hold the Source/Select control w until the Bluetooth indicator blinks to make the speaker “discoverable”. 4. On the bluetooth device, enable bluetooth and select “V513” from the Device List. If the bluetooth device asks for a passkey, use “0000”. Some bluetooth devices will ask you to accept the connection. If the units are paired properly, the speaker will beep and the Bluetooth indicator will light solid. If it failed, the Bluetooth indicator will blink slowly. Note: After you pair a device, this unit will remember it for future use. Using a Bluetooth Device 1. Turn the unit on; the previously listened to source and volume will be selected. 2. With a unit paired (see previous section), press the Source/Select control w once so all the modes light. Rotate the Source/Select control w to the Bluetooth ()position to select the Bluetooth mode. 3. Operate your Bluetooth device and its sound will be heard through this unit’s speakers. 4. Adjust the volume using the Power/Volume control v on this unit, or the Volume control on the Bluetooth device, and adjust the Bass and Treble as described later in this guide. 5. To mute the sound, press the Mute button am on the remote control. IMPORTANT: After step 2, you have two minutes to pair the units. Charging a Bluetooth Device with this Unit On the rear of this unit is a USB jack that can be connected to a USB device, which will charge if the unit is connected to AC power. Setting the EQ and Bass 1. TREBLE: Press the Source/Select control w once so all the modes light. Rotate the Source/Select control w to the TRE (Treble) position. Adjust the setting using the Power/Volume control v. 3. BASS: Press the Source/Select control w once so all the modes light. Rotate the Source/Select control w to 2x for double bass, or 4x for quadruple bass. Note: If no setting has taken place for five seconds, the unit will exit the Bass/Treble setting mode and will revert to the previous mode. Auto Power Off If the unit has no audio signal, and/or a USB device is not charging, for 20 minutes, the unit will turn itself off. To “wake” the unit up, simply press the Power/Volume control v on the main unit or the Power button at on the remote control. AC CONNECTION LOCATION OF CONTROLS Notes: • Only use the supplied AC adapter. • Remove both the DC plug and AC-IN plug to disconnect AC adapter when not in use. Soundcube TDKperformance.eu V513 User Guide Please read these instructions completely before operating this product US AC Plug Shown 1 . Select the appropriate plug for your country and connect it to the AC power adapter. 2. Connect the AC power adapter jack to the DC IN jack y on the rear of the unit and then connect the plug to a 100V-240V wall outlet. Replacing the Remote Control Battery: 1. Remove the Battery Compartment by pressing in on the tab and then sliding the compartment out. 2. Install a CR2025 battery, paying attention to the polarity diagram in the compartment (positive side up). 3. Replace the Battery Compartment. Specifications are subject to change without notice. 2 1 3 4 5. DC IN Jack 6. Main Power (OFF/ON) Switch 7. AUX Jack 8. USB CHARGE Jack 6 5 7 8 1. Carrying Handle 2. Power/Volume Control 3. Source/Select Control 4. Remote Sensor 9. OFF Button 10. Power Button 11. Bluetooth Button 12. AUX Button 13. Mute Button 14. Volume Buttons OFF AUX X 10 9 11 12 13 14 Press one of the Mode buttons (Bluetooth, AUX) to access the respective mode. Soundcube TDKperformance.eu V513 User Guide Please read these instructions completely before operating this product Soundcube TDKperformance.eu V513 User Guide Please read these instructions completely before operating this product THIS WILL GO AT THE END OF THE MANUAL -------------------------- Techni…

Text truncated - open the document above for the full version.

Imation Corp. FCC ID: PB4-TDK V513 POWER OF ATTORNEY June 30, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on June 2 9,2013 This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Imation Corp. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Imation Corp. ....................................................................................

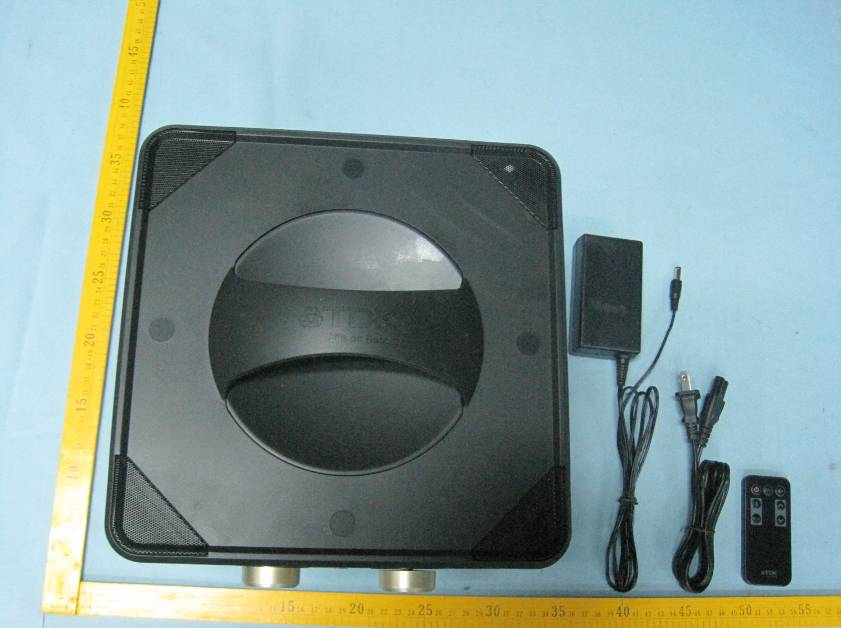

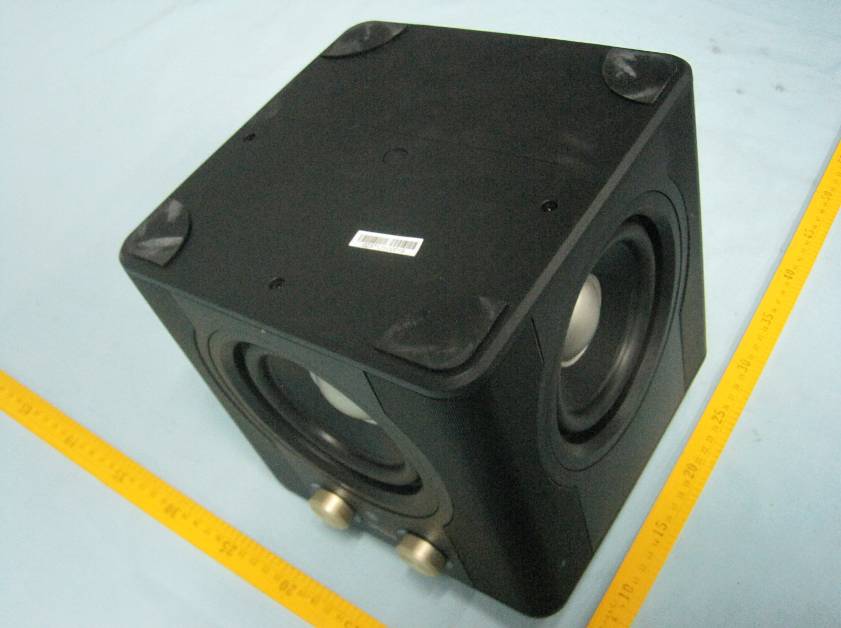

2.1 EUT – Appearance View(1) 2.2 EUT – Appearance View(2) 2.3 EUT – Appearance View(3) 2.4 EUT – Appearance Front View 2.5 EUT – Appearance Back View

Page: 1 of 1 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12064315-S-S-F FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Back View/ proposed FCC Label Location FCC ID: PB4-TDKV513 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Sample for Models: V513 FCC ID: PB4-TDKV513 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – Open View 2.2 EUT – PCB(1) Front View Antenna 2.3 EUT –PCB(1) Back View 2.4 EUT – Module Front View 2.5 EUT – Module Back View 2.6 EUT – PCB(2) Front View 2.7 EUT –PCB(2) Back View

Page: 1 of 57 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12064315-S-S-F FCC ID : PB4-TDKV513 Applicant : Imation Corp. Address : 1 Imation Way, Oakdale, MN 55128-3421 USA. Equipment Under Test (EUT) : Product Name : Wireless Sound Cube Model No. : V513 Standards : FCC CFR47 Part 15 Section 15.247:2010 Date of Test : June 19 ~ June 30, 2012 Date of Issue : July 02, 2012 Tested By : Olic huang / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel :+86-755-83551033 Fax:+86-755-83552400 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 57 Imation Corp. FCC ID: PB4-TDKV513 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12064315-S-S-F 2 Test Summary Test Items Test Requirement Result Conducted Emissions 15.207 PASS Radiated Spurious Emissions 15.205(a) 15.209 15.247(d) PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page:3 of 57 Imation Corp. FCC ID: PB4-TDKV513 The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12064315-S-S-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST FACILITY...................................................................................................................................................... 6 4.7 TEST LOCATION.................................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 8 6.1 E.U.T. OPERATION................................................................................................................................................ 8 6.2 EUT SETUP........................................................................................................................................................... 9 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................... 9 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 12 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 13 7.1 EUT OPERATION :............................................................................................................................................... 13 7.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 13 7.3 TEST SETUP......................................................................................................................................................... 14 7.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 15 7.5 TEST PROCEDURE................................................................................................................................................ 16 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................... 16 7.7 SUMMARY OF TEST RESULTS..................................................................................................................…

Text truncated - open the document above for the full version.

2.1 Photograph – Conducted Emission Test Setup 2.2 Photograph – Radiation Spurious Emission Test Setup Below 30MHz From 30-1000MHz Above 1GHz
