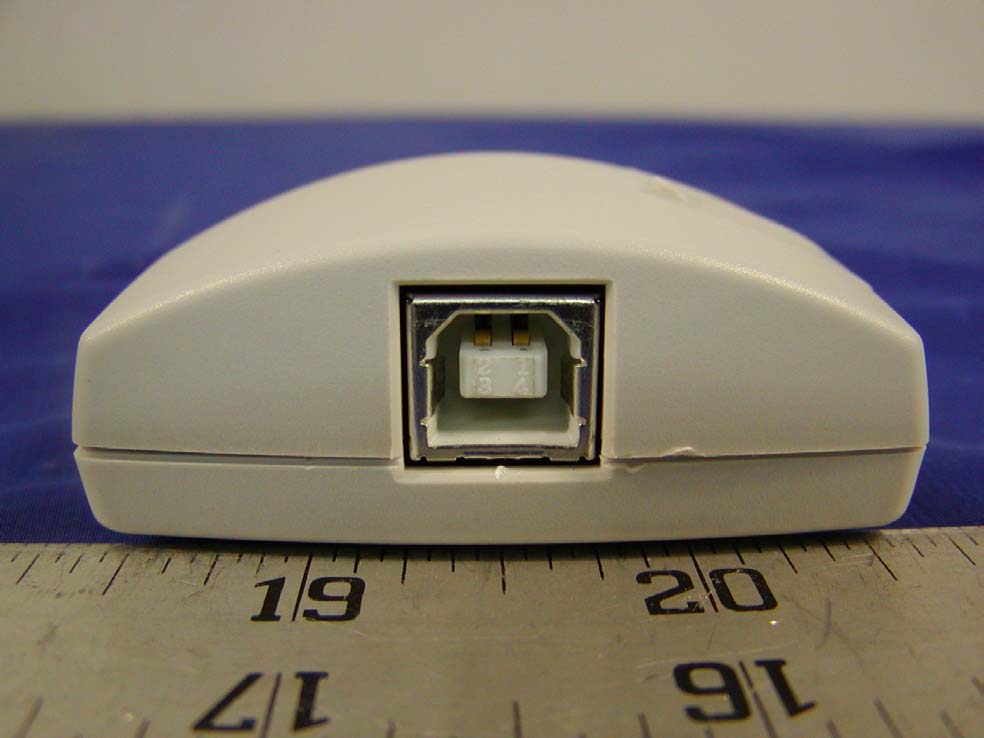

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Chassis - Top View Chassis - Bottom View Chassis - Port View

APPENDIX A - FCC ID LABEL INFORMATION Proposed FCC ID Label Proposed Label Location on EUT Bottom Side of EUT/FCC ID Label

APPENDIX C - EUT INTERNAL PHOTOGRAPHS Main Board - Component View Main Board - Solder View

TGC PROPRIETARY Rev. 0.1 6/4/2002 1/1 02/06/04 09:43 AM Operational Description The TWL-U11 is designed to meet the mobility, performance, security, interoperability, management, reliability requirements of IEEE 802.11b high data rate standard. When installed, TWL-U11 can communicate with other IEEE 802.11b compatible products to create a wireless network in your office or home.TWL-U11 is powered 5VDC which is fed by desktop or notebook PC. Two antennas inside used to tranceive RF signal. This equipment should be installed and operated with the minimum 15 cm between your body and the Antenna. The other instruction, please have a look at the users manual. 4. SPECIFICATIONS General Standards compliance Compliant IEEE 802.11b Standard Security WEP 64-bit, 128-bit, encryption MD5 Hardware RF Range Frequency range: 2.4 ~ 2.4835GHz Data rate 11Mbps / 5.5Mbps / 2Mbps / 1Mbps DSSS (Direct Sequence Spread Spectrum) Modulation DBPSK/DQPSK 1, 2Mbps: 11 chip/bit Barker Coding Coding 5.5, 11Mbps: Complementary Code Keying Europe: 13 (3 non-overlapping) US: 11 (3 non-overlapping) France: 4 (1 non-overlapping) Number of channels Japan: 14 (3 non-overlapping) Host Interface USB 1.1 Compliant Transmit power +15dBm (Typ.) Receive sensitivity -83dBm (Typ.) for 11Mbps; -88dBm (Typ.) for 5.5/2/1Mbps; (@BER 10E-5) Software Driver Support MS Windows 98SE/ME/2000/XP Utility User setup and diagnostics tool Mechanical Dimensions 120 x 77 x 25 mm Weight 80 grams Environmental Temperature 0 ~ 55°C (operation), -20 ~ +65°C (storage) Relative Humidity 95% (non-condensing) Certificate U.S., Canada: FCC Part 15, sections 15.247, 15.205, 15.209; RSS-210 Europe: ETS 300 328, ETS 300 826, CE Marked EMC Japan: ARIB STD T-66, D-33 14

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC 15 SUBPART C EMI MEASUREMENT AND TEST REPORT For TeLLUS Group Corp. 4F, No. 15, Industry E.Rd. IX, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C FCC ID: PB6-01102 June 3, 2002 This Report Concerns: Original Report Equipment Type: Wireless LAN Test Engineer: Jeff Lee Report No.: R0205135 Test Date: March 10, 2002 Reviewed By: Benjamin Jin Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 TeLLUS Group Corp. FCC ID: PB6-01102 Report # R0205135_Rpt FCC 15.247 Test Report Page 2 of 30 TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................4 1.2 OBJECTIVE.............................................................................................................................................................4 1.3 RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................4 1.4 TEST METHODOLOGY............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................5 1.6 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................5 1.7 HOST SYSTEM CONFIGURATION LIST AND DETAILS..............................................................................................6 1.8 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS...................................................................................................6 1.9 EXTERNAL I/O CABLING LIST AND DETAILS.........................................................................................................6 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................7 2.1 JUSTIFICATION.......................................................................................................................................................7 2.2 EUT EXERCISE SOFTWARE....................................................................................................................................7 2.3 SPECIAL ACCESSORIES...........................................................................................................................................7 2.4 SCHEMATICS / BLOCK DIAGRAM...........................................................................................................................7 2.5 EQUIPMENT MODIFICATIONS.................................................................................................................................7 2.6 CONFIGURATION OF TEST SYSTEM.........................................................................................................................8 2.7 TEST SETUP BLOCK DIAGRAM...............................................................................................................................8 3 - SUMMARY OF TEST RESULTS..........................................................................................................................9 4 - PEAK OUTPUT POWER MEASUREMENT ....................................................................................................10 4.1 STANDARD APPLICABLE......................................................................................................................................10 4.2 MEASUREMENT PROCEDURE................................................................................................................................10 4.3 MEASUREMENT RESULT......................................................................................................................................10 4.3 MEASUREMENT RESULT......................................................................................................................................10 5 - SPURIOUS EMISSION.........................................................................................................................................12 5.1 STANDARD APPLICABLE......................................................................................................................................12 5.2 MEASUREMENT PROCEDURE................................................................................................................................12 5.3 MEASUREMENT DATA..........................................................................................................................................12 6 - PEAK POWER SPECTRAL DENSITY ..............................................................................................................16 6.1 STANDARD APPLICABLE......................................................................................................................................16 6.2 MEASUREMENT PROCEDURE................................................................................................................................16 6.3 TEST RESULTS.....................................................................................................................................................16 7 - 6 DB BANDWIDTH..................................................................…
