PB6-03061Wireless LAN CF Card

Wireless LAN CF Card User’s Manual Ver. 1.40 1 Copyright © 2001 by manufacturer. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions The content described in this manual may be improved or changed at any time and it is subject to be changed without notice. Manufacturer assumes no responsibility for errors contained herein or for direct, indirect, special, incidental or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if manufacturer of its suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device will accept any interference received, including interference that may cause undesired operation. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) 2 this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. This product has been certified in France, Germany, Italy, Spain, Sweden, UK, and US. 3 LIMITED WARRANTY This product is warranted by manufacturer to be free from defects in material and workmanship for one (1) year from the date of purchase, unless otherwise stated. During this period if this product is found to be defective in material or workmanship, manufacturer or one of its authorized service facilities will at its option either repair or replace this product without charge, subject to the following conditions, limitations and exclusions: 1. This warranty extends to the original consumer purchaser only and is not assignable or transferable. 2. This warranty shall not apply to any product which has been subjected to misuse, abuse, abnormal use, negligence, alteration or accident, or has had its serial number altered or removed. 3. This warranty does not apply to any defects or damage directly or indirectly caused by or resulting from the use of unauthorized replacement parts and/or service performed by unauthorized personnel. 4. This warranty does not apply to the software driver that accompanies this product. This warranty is made expressly in lieu of all other warranties, expressed or implied, including but not limited to any implied warranty of merchantability of fitness for a particular purpose, and all other obligations on the part of Manufacturer provided, however, that if the disclaimer of implied warranties is ineffective under applicable law, the duration of any implied warranties arising by operation of law shall be limited to one (1) year from the date of purchase or such longer period as may be required by applicable law. Manufacturer hereby disclaims any and all liabilities for consequential and incidental damages arising out of or in connection with any breach of this warranty or any other claim with respect to this product, including but not limited to claims of negligence, strict liability in tort or breach of contract. 4 Table of Contents 1. INTRODUCTION .......................................................................................................................... 5 1.1 Features.................................................................................................................................. 5 1.2 Applications ........................................................................................................................... 5 1.3 Wireless LAN System............................................................................................................ 6 1.3.1 802.11 Ad-Hoc Configuration ................................................................................... 6 1.3.2 Infrastructure Configuration ...................................................................................... 6 2…

Text truncated - open the document above for the full version.

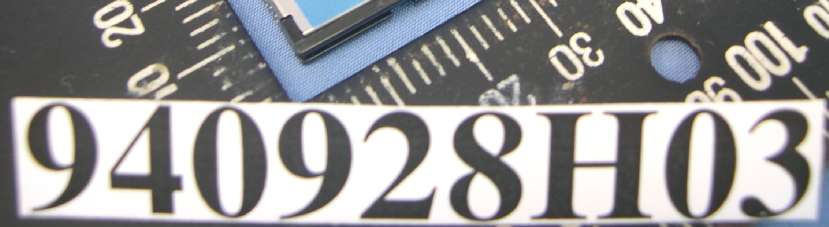

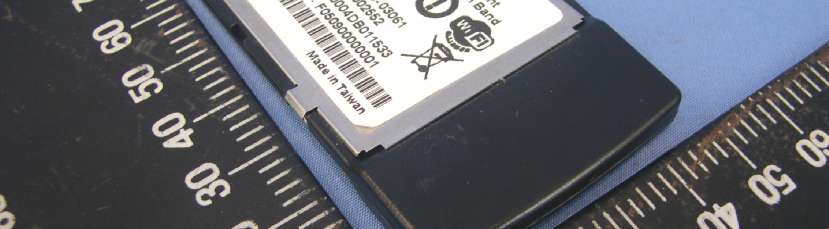

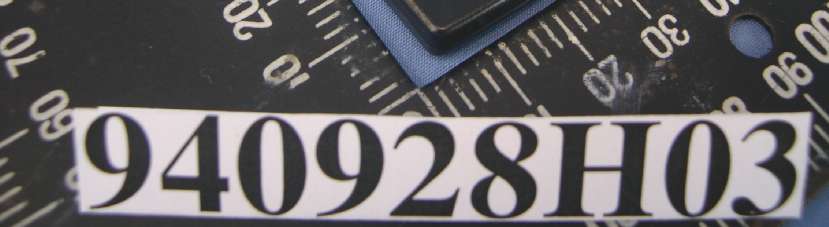

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: PB6-03061 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3

FCC ID: PB6-03061 Report No. RF940928H03 Operational Description This device is a Wireless LAN CF Card which operates in 2.4 GHz band with DSSS technique. The transmitter of the EUT is powered by host equipment. The antenna is Chip antenna without connector. For more detailed instruction, please refer to the user’s manual. DSSS Information Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: PB6-03061 ADT No.: 940928H03 1 No SAR Evaluation Required if power is below the following threshold: Tunable Range F(GHz) LowF(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 2.4122.4622.43724.62 Maximum measured transmitter power: Pout Conducted (dBm) Pout Conducted (mW) Maximum Antenna Gain (dBi) Pout EIRP (mW) 11.614.4542.0022.909 Threshold for no SAR evaluation is 24.62 mW Maximum TX Power is 14.454 mW Conducted and 22.909mW EIRP Conclusion: No SAR evaluation required since maximum Transmitter Pout (both conducted and EIRP) is below FCC threshold

FCC ID: PB6-03061 Report No.: RF940928H031Report Format Version 2.0.4 FCC TEST REPORT REPORT NO.: RF940928H03 MODEL NO.: F110 RECEIVED: Sep. 28, 2005 TESTED: Oct. 03 to 05, 2005 ISSUED: Oct. 13, 2005 APPLICANT: Tellus Group Corporation ADDRESS: 1F, No. 29, Industrial E. Rd. IX, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 46 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: PB6-03061 Report No.: RF940928H032Report Format Version 2.0.4 Table of Contents 1CERTIFICATION...........................................................................................4 2SUMMARY OF TEST RESULTS...................................................................5 3GENERAL INFORMATION............................................................................6 3.1GENERAL DESCRIPTION OF EUT..............................................................6 3.2DESCRIPTION OF TEST MODES................................................................7 3.3TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL:................8 3.4GENERAL DESCRIPTION OF APPLIED STANDARDS................................9 3.5DESCRIPTION OF SUPPORT UNITS........................................................10 3.6CONFIGURATION OF SYSTEM UNDER TEST.........................................10 4TEST TYPES AND RESULTS.....................................................................11 4.1CONDUCTED EMISSION MEASUREMENT..............................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................11 4.1.2TEST INSTRUMENTS.................................................................................11 4.1.3TEST PROCEDURES.................................................................................12 4.1.4TEST SETUP..............................................................................................12 4.1.5EUT OPERATING CONDITIONS................................................................13 4.1.6TEST RESULTS..........................................................................................14 4.2RADIATED EMISSION MEASUREMENT...................................................16 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.................................16 4.2.2TEST INSTRUMENTS.................................................................................17 4.2.3TEST PROCEDURES.................................................................................18 4.2.4TEST SETUP..............................................................................................19 4.2.5EUT OPERATING CONDITIONS................................................................19 4.2.6TEST RESULTS..........................................................................................20 4.2.7TEST RESULTS..........................................................................................21 4.36dB BANDWIDTH MEASUREMENT...........................................................24 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................24 4.3.2TEST INSTRUMENTS.................................................................................24 4.3.3TEST PROCEDURE....................................................................................25 4.3.4TEST SETUP..............................................................................................25 4.3.5EUT OPERATING CONDITIONS................................................................25 4.3.6TEST RESULTS..........................................................................................26 FCC ID: PB6-03061 Report No.: RF940928H033Report Format Version 2.0.4 4.4MAXIMUM PEAK OUTPUT POWER..........................................................29 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........29 4.4.2TEST INSTRUMENTS.................................................................................29 4.4.3TEST PROCEDURES.................................................................................30 4.4.4TEST SETUP..............................................................................................30 4.4.5EUT OPERATING CONDITIONS................................................................30 4.4.6TEST RESULTS..........................................................................................31 4.5POWER SPECTRAL DENSITY MEASUREMENT......................................32 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................32 4.5.2TEST INSTRUMENTS.................................................................................32 4.5.3TEST PROCEDURE....................................................................................33 4.5.4TEST SETUP..............................................................................................33 4.5.5EUT OPERATING CONDITIONS................................................................33 4.5.6TEST RESULTS..........................................................................................34 4.6BAND EDGES MEASUREMENT................................................................37 4.6.1LIMITS OF BAND EDGES MEASUREMENT..............................................37 4.6.2TEST INSTRUMENTS.................................................................................37 4.6.3TEST PROCEDURE....................................................................................37 4.6.4EUT O…

Text truncated - open the document above for the full version.

FCC ID: PB6-03061 Report No.: RF940928H0343Report Format Version 2.0.4 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: PB6-03061 Report No.: RF940928H0344Report Format Version 2.0.4 RADIATED EMISSION TEST
