PB6-04121Wireless LAN 11g Access Point

Wireless LAN 11g AP User’s Manual Ve r s i o n 0 . 1 1 Wireless LAN 11g Access Point User’s Manual Version 0.11 Wireless LAN 11g Access Point User’s Manual Ve r s i o n 0 . 1 1 1 WA R N I N G - D i s c l a i m e r Tellus Group Corp., its Sales, Manufacturing and Design Organizations, Reps., Distributors, VARs and distribution channels are absolutely not liable for any death, injury, property damage, loss of data, and loss of business of any other unmentioned loss. The aforementioned entities are not liable even in the event that any of these entities were apprized of the specifics or generalities of an application or intended installation at any time. Radio Linkages of any type can be fragile and tenuous. Over 1/5th of the entire population of the world now owns cellular telephones, and as any user of a cell phone knows, the cell phone radio communications link may be easily disrupted or completely lost simply by turning your head or by other small environmental movements or changes. This clearly demonstrates to everyone the fragility of any radio link and why radio should not be used for critical implementations, or where death, personal injury, physical damage, property damage or environmental damage may result. Tellus Group Corp products are not designed, manufactured, or intended for use or resale as online control equipment in hazardous environments requiring fail-safe performance, such as, but not limited to the operation of nuclear facilities, aircraft navigation, vital communication systems, air traffic control, life support machines, weapons systems, or any industry in which environmental disruptions or technology failure could lead directly to death, personal injury, physical damage, property damage or environmental damage. Do not use this device in applications for which any failure of the wireless link or any data error may cause death, injury or damage of any kind. Wireless LAN 11g Access Point User’s Manual Ve r s i o n 0 . 1 1 2 Copyright © 2005 by manufacturer. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions The content described in this manual may be improved or changed at any time and it is subject to be changed without notice. Manufacturer assumes no responsibility for errors contained herein or for direct, indirect, special, incidental or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if manufacturer of its suppliers have been advised of the possibility of such damages. Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antenna) made to this device that are not expressly approved by manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. Wireless LAN 11g Access Point User’s Manual Ve r s i o n 0 . 1 1 3 Limited Warranty This product is warranted by manufacturer to be free from defects in material and workmanship for one (1) year from the date of purchase unless otherwise stated. During this period if this product is found to be defective in material or workmanship, manufacturer or one of its authorized service facilities will at its option either repair or replace this product without charge, subject to the following conditions, limitations and exclusions: This warranty extends to the original consumer purchaser only and is not assignable or transferable. This warranty shall not apply to any product which has been subjected to misuse, abuse, abnormal use, negligence, alteration or accident, or has had its serial number altered or removed. This warranty does not apply to any defects or damage directly or indirectly caused by or resulting from the use of unauthorized replacement parts and/or service performed by unauthorized personnel. This warranty does not apply to the software driver that accompanies this product. This warranty is made expressly in lieu of all other warranties, expressed or implied, including but not limited to any implied warranty of merchantability of fitness for a particular purpose, and all other obligations on the part of Manufacturer provided, however, that if the disclaimer of implied warranties is ineffective under applicable law, the duration of any implied warranties arising by operation of law shall be limited to one (1) year from the date of purchase or such longer period as may be required by applicable law. Manufacturer hereby disclaims any and all liabilities for consequential and incidental damages arising out of or in connection with any breach of this warranty or any other claim with respect to this product, including but not limited to claims of negligence, strict liability in tort or breach of contract. Wireless LAN 11g Access Point User’s Manual Ve r s i o n 0 . 1 1 4 Table of Content 1. Introduction....................................................................................................................................... 6 1.1 Features ...............................................................…

Text truncated - open the document above for the full version.

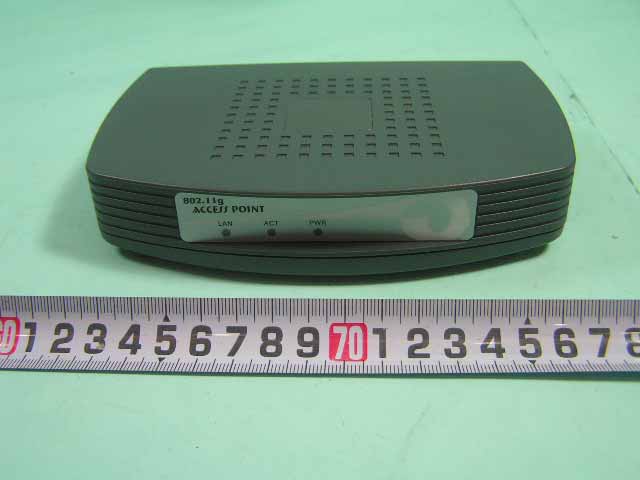

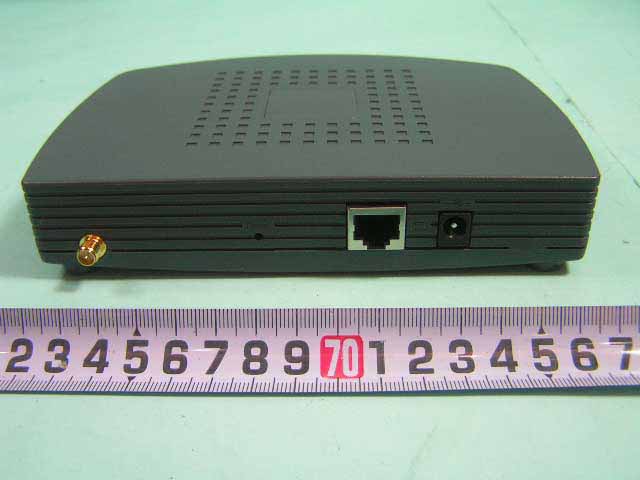

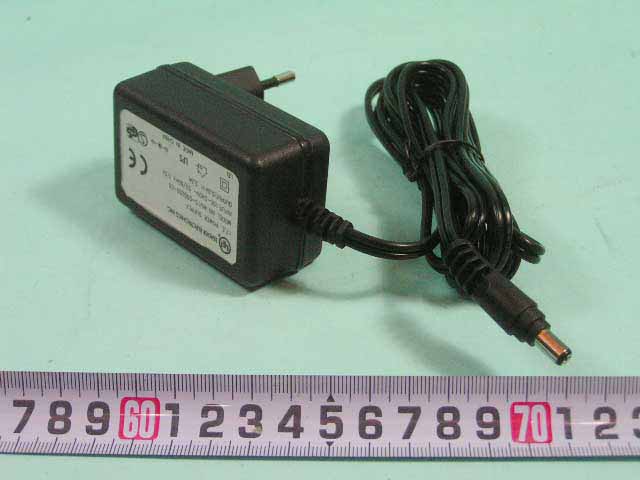

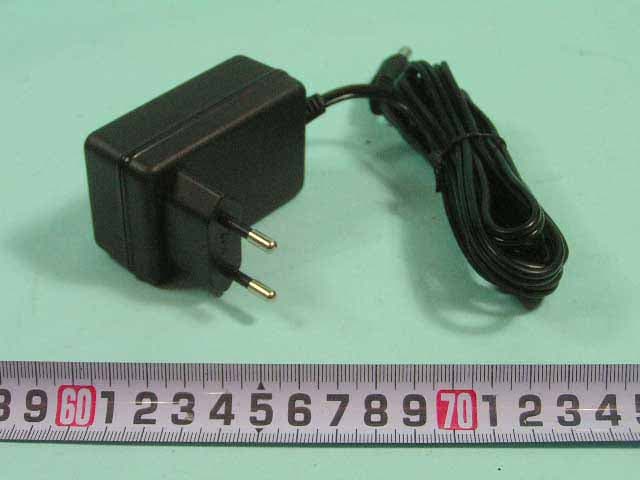

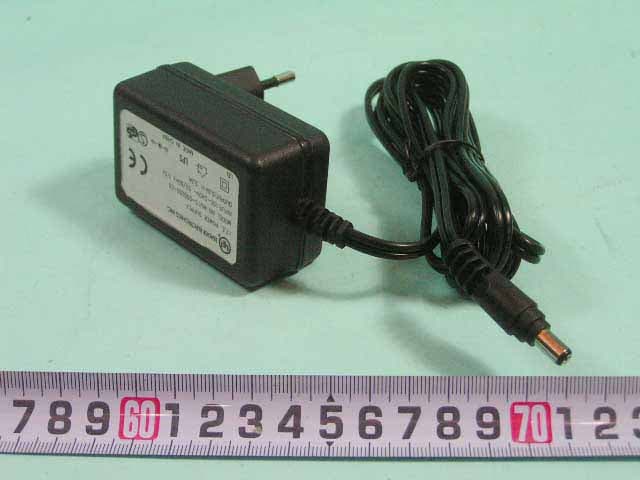

SPORTON International Inc. PAGE NUMBER : A1 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A2 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,26,2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A5 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A12 TEL : 886-2-2696-2468 ISSUED DATE : Dec,15,2005 FAX : 886-2-2696-2255

Opreational Description Date: 2005/12/8 EUT is a Wireless LAN 11g Access Point with 11 channels (2412MHz~2462MHz, Space 5MHz). It allows you to connect to other WLAN device. General Operational Description: 1. Time base of the transmission frequency: For IF and RF frequency, Crystal is a clock reference. 2. Synthesizer: Synthesizer inside Transceiver IC and operate frequency in 2.4GHz ISM Band. Internal voltage controlled oscillator (VCO) provides the desired LO signal base on the phase-locked loop (PLL) with a relatively wide tuning range for this application. 3. Transmission: BBP IC has DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM) modulation function, it provides transmission data rate are 1, 2, 5.5, 11 Mbps on DSSS and 6, 12, 18, 24, 36, 48, 54 Mbps on OFDM. Digital data signal will be converted to analog (TX IQ) signals through DAC in BBP IC, TX IQ pass through to low pass filter. TX I/Q signal use direct conversion (zero-IF) architecture converter to generate carrier frequency signal. Transceiver IC and external PA magnify output power. 4. Receiver: Reverse direction isolation of LNA inside Transceiver IC suppresses unwanted radiation. Then 2.4GHz RF signal will be directly down to IF signal (RX IQ) and high frequency spurious emissions are suppressed by LPF. At last RX IQ signal will be demodulated digital data. 5. Base band Processing: Channel Selection: Channel selection is controlled by BBP IC. Data Modulation: DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM) modulation type is controlled by BBP IC. Power Control Level: BBP IC has the power leveling loop table are calibrated by manufacturer, then uses closed-loop power control function to limit RF output power level. Power leveling step accuracy is ±0.5dB. Transmit/Receive Switch: EUT has Transmit/Receive Switch and Antenna switch Data Link Layer: Firmware implements the full IEEE 802.11 Wireless LAN MAC protocol. It supports BSS and IBSS operation under DCF, and operation under the optional Point Coordination Function (PCF). Lower level protocol functions such as RTS/CTS generation and acknowledgment, fragmentation and de-fragmentation, and automatic beacon monitoring are handled without host intervention. Active scanning is performed autonomously once initiated by host command. Host interface command and status handshakes allow concurrent operations from multi-threaded I/O drivers. 6. Interface: RJ45 7. Power: Input 5Vdc from adapter. This power is provided to regulator components to regulated DC power. Report No.: FR5D0101 Report Format Version: RF-15.247-a Page No. : 3 of 51 FCC ID: PB6-04121 Issued Date : Dec. 15, 2005 3. GENERAL INFORMATION 3.1. Product Details EUT IS a access point with IEEE 802.11b/g radio functions. Only the radio detail of WLAN is shown in the table below. For more detailed features description, please refer to the manufacturer’s specifications or user’s manual. Items Description Product Type WLAN Radio Type Intentional Transceiver Power Type Power Adapter Interface Type RJ-45 Modulation DSSS for IEEE 802.11b ; OFDM for IEEE 802.11g Data Modulation DSSS (BPSK / QPSK / CCK) ; OFDM (BPSK / QPSK / 16QAM / 64QAM) Data Rate (Mbps) DSSS (1/ 2/ 5.5/11) ; OFDM (6/9/12/18/24/36/48/54) Frequency Range 2400 ~ 2483.5MHz Channel Number 11 Channel Band Width (99%) 11b: 12.92 MHz ; 11g: 16.44 MHz Conducted Output Power 11b: 17.63 dBm ; 11g: 19.51 dBm Carrier Frequencies 2412~2462 MHz Antenna Dipole Antenna 3.2. Accessories Power Brand Model Rating Adapter LEI MU15-05025 0-C5 Input: 100~240VAC Output: 5.0VDC 3.3. Table for Filed Antenna Ant. Antenna Type Connector Gain (dBi) 1 Dipole Antenna Reversed-SMA 2.00

Report No.: 5D0101 FCC ID: PB6-04121 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: 5D0101 FCC ID: PB6-04121 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20 cm normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (mW/cm²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (mW) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (cm) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=20cm, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: 5D0101 FCC ID: PB6-04121 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dopole Max Conducted Power for IEEE 802.11b/g : 20dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 19.5100 89.3305 0.028181 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-a FCC RADIO TEST REPORT Applicant’s company Tellus Group Corporation Applicant Address 1F, No. 29, Industrial E. Rd. IX, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. FCC ID PB6-04121 Manufacturer’s company Tellus Group Corporation Manufacturer Address 1F, No. 29, Industrial E. Rd. IX, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Product Name Wireless LAN 11g Access Point Brand Name TeLLUS Model Name A20 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Dec. 01, 2005 Test Date Dec. 14, 2005 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR5D0101 Report Format Version: RF-15.247-a Page No. : i of ii FCC ID: PB6-04121 Issued Date : Dec. 15, 2005 Table of Contents 1. CERTIFICATE OF COMPLIANCE.......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT........................................................................................................................... 2 3. GENERAL INFORMATION................................................................................................................................... 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories.........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies...............................................................................................................................................................4 3.5. Table for Test Modes............................................................................................................................................................................4 3.6. Table for Testing Locations...................................................................................................................................................................4 3.7. Table for Supporting Units....................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting.......................................................................................................................................5 3.9. Test Configurations..............................................................................................................................................................................6 4. TEST RESULT...................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement............................................................................................................................8 4.2. Maximum Peak Output Power Measurement....................................................................................................................................12 4.3. Power Spectral Density Measurement...............................................................................................................................................14 4.4. 6dB Spectrum Bandwidth Measurement...........................................................................................................................................19 4.5. Radiated Emissions Measurement.....................................................................................................................................................24 4.6. Band Edge Emissions Measurement..................................................................................................................................................42 4.7. Antenna Requirements......................................................................................................................................................................47 5. LIST OF MEASURING EQUIPMENTS.................................................................................................................... 48 6. SPORTON COMPANY PROFILE......................................................................................................................... 50 6.1. Test Location.....................................................................................................................................................................................50 7. C CERTIFICATE OF NVLAP ACCREDITATION...................................................................................................... 51 APPENDIX A. PHOTOGRAPHS OF EUT ........................................................................................................... A1 ~ A12 APPENDIX B. TEST PHOTOS ...................................…

Text truncated - open the document above for the full version.

Report No.: FR5D0101 FCC ID: PB6-04121 Page No. : 1 of 3 Appendix B. Test Photos Report No.: FR5D0101 FCC ID: PB6-04121 Page No. : 2 of 3 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR5D0101 FCC ID: PB6-04121 Page No. : 3 of 3 2. Photographs of Radiated Emissions Test Configuration FRONT VIEW REAR VIEW
