PB6-02081WLAN Access Point

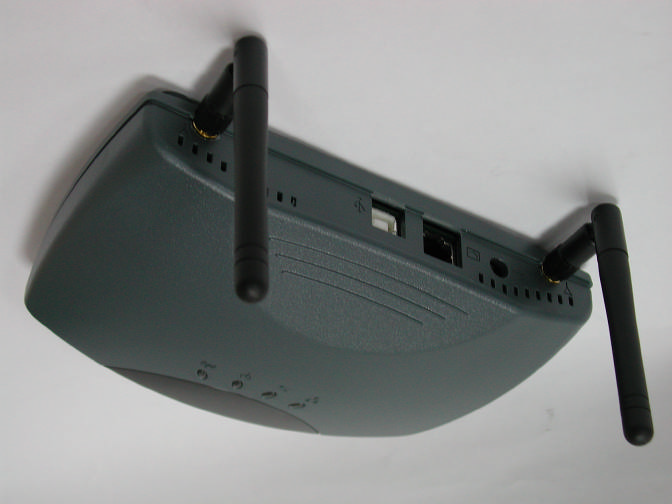

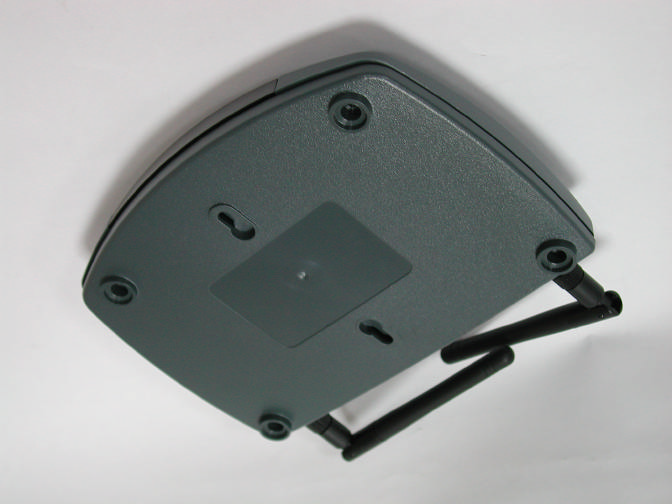

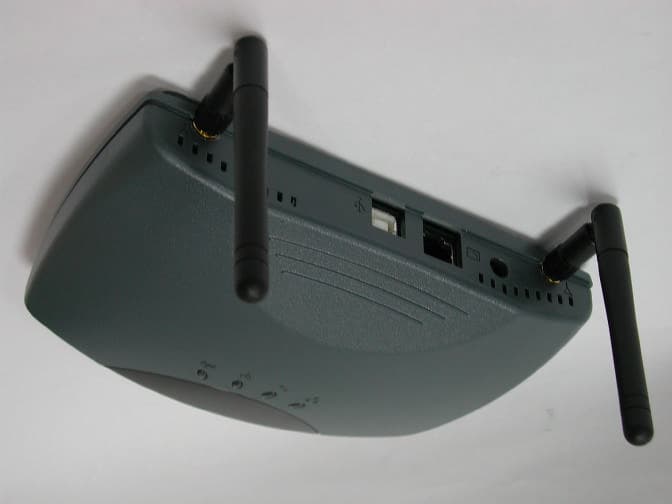

External Photo of the TeLLUS TWL-A13 External Photo of the TeLLUS TWL-A13 External Photo of the TeLLUS TWL-A13

Label Location of the TeLLUS TWL-A13

Internal Photo of the TeLLUS TWL-A13 Internal Photo of the TeLLUS TWL-A13 Internal Photo of the TeLLUS TWL-A13 Internal Photo of the TeLLUS TWL-A13 Internal Photo of the TeLLUS TWL-A13

Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT EUT : TeLLUS Wireless LAN Access Point Model No. : TWL-A13 Granted FCC ID : PB6-02081 Frequency Range : 2.412 GHz ~ 2.462GHz Antenna Kit : 2 R-SMA connectors for external antennas Supported Channel: 11 Channel Modulation Skill : DBPSK, DQPSK, CCK Power Cable : Non-shielded, 190cm long, No bead Data Cable : RJ45: Non-shielded, 10-meter, No ferrite bead Power Type : AC to DC Switching Adapter Input: 100 ~ 240VAC, 47/63Hz, 0.3A Output: +5VDC, 2A Applicant : TeLLUS Group Corporation 5/F, No.24-2 Industry E Rd. IV, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Training Research Co., Ltd. 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, equation for predicting RF fields, by the Friis Transmission Formula: Power density at the specific separation (portable): 22 22 /10345.1 )20(4 585.166.42 4 cmmW R PG S − ×= × == ππ Estimated safe separation: cm PG R320.2 4 585.166.42 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 2.320 cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (2 / 10) = 1.585

Test Report ------------------------------------------------------------------------------ 3/42 Report No.: T6915937 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ..................................................................................................................... 5 1.1 Introduction .............................................................................................................. 5 1.2 Description of EUT .................................................................................................. 5 1.3 Description of Support Equipment ........................................................................... 6 1.4 Configuration of System Under Test ........................................................................ 7 1.5 Verify the Frequency and Channel ........................................................................... 8 1.6 Test Procedure ......................................................................................................... 9 1.7 Location of the Test Site .......................................................................................... 9 1.8 General Test Condition ............................................................................................ 9 II. Section 15.203 : Antenna Requirement........................................................................ 10 III. Section 15.207: Power Line Conducted Emissions for AC Powered Units .............. 11 3.1 Test Condition & Setup ........................................................................................... 11 3.2 List of Test Instruments ........................................................................................... 11 3.3 Test Configuration .................................................................................................. 12 3.4 Test Result of Conducted Emissions ....................................................................... 13 IV. Section 15.247(a) : Technical Description of the EUT................................................. 16 V. Section 15.247(a)(2): Bandwidth for Direct Sequence System .................................. 17 5.1 Test Condition & Setup ........................................................................................... 17 5.2 Test Instruments Configuration ............................................................................... 17 5.3 List of Test Instruments ........................................................................................... 17 5.4 Test Result of Bandwidth ........................................................................................ 18 VI. Section 15.247(b) : Power Output ............................................................................... 22 6.1 Test Condition & Setup ........................................................................................... 22 6.2 List of Test Instruments ........................................................................................... 23 6.3 Test Result .............................................................................................................. 23 VII. Section 15.247(c) : Spurious Emissions (Radiated) .................................................... 24 7.1 Test Condition & Setup ........................................................................................... 24 7.2 List of Test Instruments ........................................................................................... 25 7.3 Test Instruments Configuration ............................................................................... 26 7.4 Test Result of Spurious Radiated Emissions ........................................................... 27 7.5 Test Result of Band-edge Compliance...................................................................... 34 VIII.Section 15.247(d) : Power Spectral Density .............................................................. 37 8.1 Test Condition & Setup ........................................................................................... 37 8.2 Test Instruments Configuration ............................................................................... 37 8.3 List of Test Instruments............................................................................................ 37 8.4 Test Result of Power Spectral Density .................................................................... 38 Test Report ------------------------------------------------------------------------------ 4/42 Report No.: T6915937 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Appendix A: Set Up Procedure .......................................................................................... 42 Test Report ------------------------------------------------------------------------------ 5/42 Report No.: T6915937 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 GENERAL 1.1 Introduction The following measurement report is submitted on behalf of Applicant in support of a wireless access point certification in accordance with Part 2 Subpart J and Part 15 Subpart A and C of the Commission's Rules and Regulations. 1.2 Description of EUT EUT : TeLLUS Wireless LAN Access Point Model No. : TWL-A13 Granted FCC ID : PB6-02081 Frequency Range : 2.412 GHz ~ 2.462GHz Antenna Kit : 2 R-SMA connectors for external antennas Supported Channel: 11 Channel Modulation Skill : DBPSK, DQPSK, CCK Power Cable : Non-shielded, 190cm long, No bead Data Cable : RJ45: Non-shielded, 10-meter, No ferrite bead Power Type : AC to DC Switching Adapter Input: 100 ~ 240VAC, 47/63Hz, 0.3A Output: +5VDC, 2A Applicant : TeLLUS Group Corporation 5/F, No.24-2 Industry E Rd. IV, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Test Report ------------------------------------------------------------------------------ 6/42 Report No.: T6915937 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2…

Text truncated - open the document above for the full version.

Test Report ------------------------------------------------------------------------------ 12/42 Report No.: T6915937 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 3.3 Test configuration Conducted Emissions Test Placement

Test Report ------------------------------------------------------------------------------ 26/42 Report No.: T6915937 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 7.3 Test Instruments Configuration Front View of the Test Configuration Rear View of the Test Configuration The test configuration for frequency between 1GHz to 18GHz is same as above.
