PB6-0210211Mbps WLAN Access Point

Wireless LAN Access Point User’s Manual Version 1.1 1 Copyright © 2003 by manufacturer. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions The content described in this manual may be improved or changed at any time and it is subject to be changed without notice. Manufacturer assumes no responsibility for errors contained herein or for direct, indirect, special, incidental or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if manufacturer of its suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device will accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user need to correct the interference at his area. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures: ü Plug the equipment into an outlet that is on a different circuit from the television or radio. ü Change the direction of the television or radio antenna until the interference disappears. ü Move the equipment to one side or the other of the television or radio. ü Move the equipment farther away from the television or radio. To assure continued compliance, any changes or modifications not expressly approved by manufacturer could void the user’s authority to operate the equipment. 2 FCC Radiation Exposure Statement This device and its antennas must operate with a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End users must be provided with specific operating instructions for satisfying RF exposure compliance. This product has been certified in France, Germany, Italy, Spain, Sweden, UK, and US. Prohibition of co-location This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. Caution Statement of the FCC Radio Frequency Exposure This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65C and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247(b)(4) addressing RF Exposure from radio frequency devices. The radiation output power of this Wireless LAN device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation—as a mobile or portable device but use in a body-worn way is strictly prohibit. When using this device, a certain separation distance between antenna and nearby persons has to be kept to ensure RF exposure compliance. 3 MPE Statement (Safety Information) Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. LIMITED WARRANTY This product is warranted by manufacturer to be free from defects in material and workmanship for one (1) year from the date of purchase unless otherwise stated. During this period if this product is found to be defective in material or workmanship, manufacturer or one of its authorized service facilities will at its option either repair or replace this product without charge, subject to the following conditions, limitations and exclusions: 1. This warranty extends to the original consumer purchaser only and is not assignable or transferable. 2. This warranty shall not apply to any product which has been subjected to misuse, abuse, abnormal use, negligence, alteration or accident, or has had its serial number altered or removed. 3. This warranty does not apply to any defects or damage directly or indirectly caused by or resulting from the use of unauthorized replacement parts and/or service performed by unauthorized personnel. 4. This warranty does not apply to the software driver that accompanies this product. This warranty is made expressly in lieu of all other w…

Text truncated - open the document above for the full version.

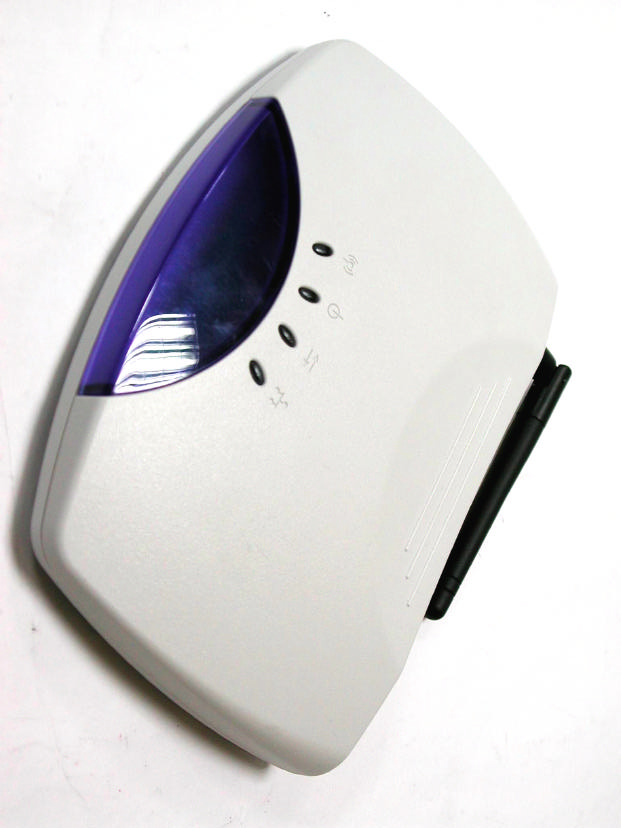

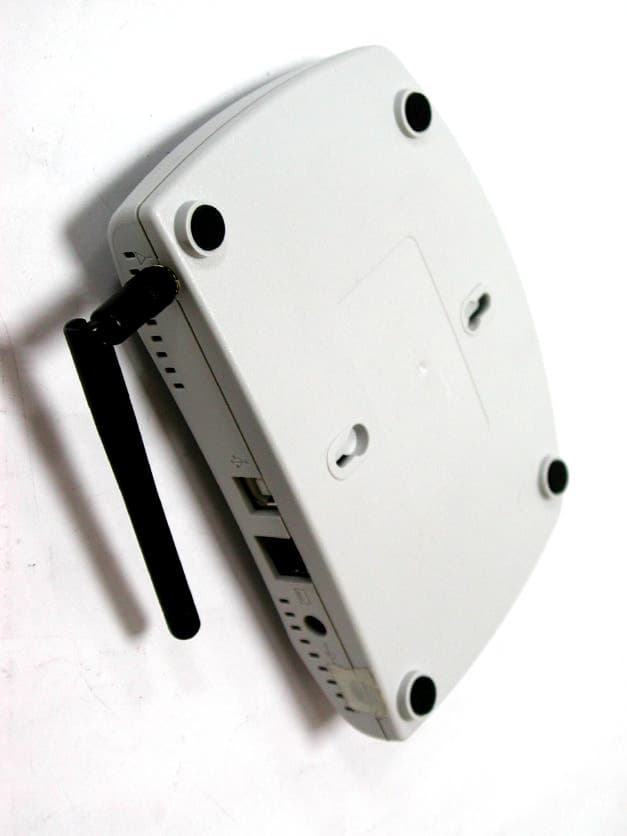

External Photos of Wireless LAN Access Point 1/3 FCC ID: PB6-02102 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless LAN Access Point 2/3 FCC ID: PB6-02102 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 External Photos of Wireless LAN Access Point 3/3 FCC ID: PB6-02102 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

LABEL Location:

Internal Photos of Wireless LAN Access Point 1/4 FCC ID: PB6-02102 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless LAN Access Point 2/4 FCC ID: PB6-02102 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless LAN Access Point 3/4 FCC ID: PB6-02102 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Internal Photos of Wireless LAN Access Point 4/4 FCC ID: PB6-02102 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Training Research Co., Ltd. No. 255, Nan-yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel: 886-2-26935155 Fax: 886-2-26934440 e-mail: [email protected] 1 of 2 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT Granted FCC ID : PB6-02102 Product name : Wireless LAN Access Point Model name : A14 Classification : Mobile Device (i) Under normal use condition, the antenna is at least 20cm away from the user; (ii) Warning statement for keeping 20cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Frequency Range : 2.412 GHz ~ 2.462GHz Supported Channel : 11 Channel Modulation Skill : DBPSK, DQPSK, CCK Power Type : By the Power Adaptor Mfg.: Touch Electronic Co., Ltd. M/N: SA070507 I/P: 100-240Vac, 50-60Hz; 0.4A O/P: 5Vdc, 10W Power Cable : 180cm long, non-shielded, no ferrite core Training Research Co., Ltd. No. 255, Nan-yang Street, Shijr City, Taipei Hsien 221, Taiwan Tel: 886-2-26935155 Fax: 886-2-26934440 e-mail: [email protected] 2 of 2 TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition / August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 22 22 /10765.3 )20(4 585.1399.119 4 cmmW R PG S − ×= × == ππ Estimated safe separation: cm PG R88.3 4 585.1399.119 4 = × == ππ Remarks: "The safe estimated separation that the user must maintain from the antenna is at least 3.88cm." Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 ( dB antenna gain / 10 ) G = Log -1 (2 / 10) = 1.585

Test Report -------------------------------------------------------------------------------1/40 Report No.: T6915550, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of Wireless LAN Access Point Applicant:TeLLUS Group Corporation Applicant:5F, No. 24-2, Industrial E Rd. IV, addressScience-BasedIndustrial Park, Hsinchu,Taiwan EUT: Wireless LAN Access Point Model: A14 FCC ID: PB6-02102 Report No.:T6915550 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 No. 255, Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------2/40 Report No.: T6915550, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 CERTIFICATION We here by verify that: The test data, data evaluation, test procedures and equipment configurations shown in this report were made mainly in accordance with the procedures given in ANSI C63.4 (1992) as a reference. All test were conducted by Training Research Co., Ltd., 255 Nanyang Street, Shijr, Taipei Hsien 221, Taiwan, R.O.C. Also, we attest to the accuracy of each. We further submit that the energy emitted by the sample EUT tested as described in the report is in compliance with the technical requirements set forth in the FCC Rules Part 15 Subpart B (Declaration of Conformity) and C Section 15.247. Product Name:Wireless LAN Access Point Model Name:A14 FCC ID:PB6-02102 Report No.:T6915550 Test Date:April 11, 2003 Prepared by:Approved by: Jack TsaiFrank Tsai Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. NVLAP LAB CODE: 200174-0 Test Report -------------------------------------------------------------------------------3/40 Report No.: T6915550, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Federal Communications Commission Declaration of Conformity (DoC) For the Following Equipment: Product name:Wireless LAN Access Point Model name:A14 Trade name:TeLLUS Is herewith confirmed and found to comply with the requirements of CFR 47 part15 Subpart B - Unintentional Radiators regulation. The results of electromagnetic mission evaluation are shown in the report number : T6915550 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation ManufacturerUSA local representative Company name: TeLLUS Group CorporationTo be determined Computer address: 5F, No 24-2, Industrial E. Rd. IV, Science-Based Industrial Park, Hsinchu, Taiwan ZIP / Postal code 300 Contact person: Elvan Yang Title: R&D Manager Internet e-mail address: [email protected] Tel / Fax: 886-2-5780275 /886-2-5780279 Test Report -------------------------------------------------------------------------------4/40 Report No.: T6915550, FCC Part 15 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents Declaration of Conformity (DoC) ............................................................................................ 3 I.GENERAL......................................................................................................................... 6 1.1 Introduction.................................................................................................................. 6 1.2 Description of EUT ....................................................................................................... 6 1.3 Test method .................................................................................................................. 6 1.4 Description of Support Equipment ................................................................................. 7 1.5 Configuration of System Under Test .............................................................................. 9 1.6 Verify the Frequency and Channel................................................................................ 11 1.7 Test Procedure ............................................................................................................ 12 1.8 Location of the Test Site ............................................................................................... 12 1.9 General Test Condition ................................................................................................. 12 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators....................... 13 III. Section 15.203 : Antenna Requirement............................................................................. 14 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units................... 15 4.1 Test Condition & Setup ................................................................................................ 15 4.2 List of Test Instruments ................................................................................................ 15 4.3 Test Result of Conducted Emissions ............................................................................. 16 Table 1 Conducted emissions of Channel 01 .............................................................. 16 Table 2 Conducted emissions of Channel 06 .............................................................. 17 Table 3 Conductedemissions of Channel 11 .............................................................. 17 Table 4 Conducted emissions of Standby mode ......................................................... 18 V.Section 15.247(a) : Technical Description of the EUT.........................................…

Text truncated - open the document above for the full version.

Test Setup Photos ------------------------------------------------------------------------- 1/3 FCC ID: PB6-02102 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Conducted Test Setup Placement: (Photographs) Front View of the Test Configuration Rear View of the Test Configuration Test Setup Photos ------------------------------------------------------------------------- 2/3 FCC ID: PB6-02102 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Unintentional) Front View of Unintentional Rear View of Unintentional Test Setup Photos ------------------------------------------------------------------------- 3/3 FCC ID: PB6-02102 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Setup Placement: (Intentional) Front View of Intentional Rear View of Intentional
