PB6-03071Wireless LAN CardBus Adapter

Wireless LAN CardBus Adapter User’s Manual Ver 1.0 1 Copyright © 2001 by manufacturer. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions The content described in this manual may be improved or changed at any time and it is subject to be changed without notice. Manufacturer assumes no responsibility for errors contained herein or for direct, indirect, special, incidental or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if manufacturer of its suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device will accept any interference received, including interference that may cause undesired operation. FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user need to correct the interference at his area. If the equipment causes interference to radio or television reception, try to correct the interference by using one or more of the following measures: y Plug the equipment into an outlet that is on a different circuit from the television or radio. y Change the direction of the television or radio antenna until the interference disappears. y Move the equipment to one side or the other of the television or radio. y Move the equipment farther away from the television or radio. To assure continued compliance, any changes or modifications not expressly approved by manufacturer could void the user’s authority to operate the equipment. 2 FCC Radiation Exposure Statement This equipment complies with the FCC radiation exposure limits set forth for an uncontrolled environment. This device has been tested for compliance with FCC RF Exposure (SAR) limits in typical laptop configurations. This transmitter must not be co-located or operating in conjunction withany other antenna or transmitter 3 LIMITED WARRANTY This product is warranted by manufacturer to be free from defects in material and workmanship for one (1) year from the date of purchase, unless otherwise stated. During this period if this product is found to be defective in material or workmanship, manufacturer or one of its authorized service facilities will at its option either repair or replace this product without charge, subject to the following conditions, limitations and exclusions: 1. This warranty extends to the original consumer purchaser only and is not assignable or transferable. 2. This warranty shall not apply to any product which has been subjected to misuse, abuse, abnormal use, negligence, alteration or accident, or has had its serial number altered or removed. 3. This warranty does not apply to any defects or damage directly or indirectly caused by or resulting from the use of unauthorized replacement parts and/or service performed by unauthorized personnel. 4. This warranty does not apply to the software driver that accompanies this product. This warranty is made expressly in lieu of all other warranties, expressed or implied, including but not limited to any implied warranty of merchantability of fitness for a particular purpose, and all other obligations on the part of Manufacturer provided, however, that if the disclaimer of implied warranties is ineffective under applicable law, the duration of any implied warranties arising by operation of law shall be limited to one (1) year from the date of purchase or such longer period as may be required by applicable law. Manufacturer hereby disclaims any and all liabilities for consequential and incidental damages arising out of or in connection with any breach of this warranty or any other claim with respect to this product, including but not limited to claims of negligence, strict liability in tort or breach of contract. 4 Table of Contents 1. INTRODUCTION..................................................................................................................... 5 1.1 Features................................................................................................................................5 1.2 Applications ........................................................................................................................ 5 1.3 Wireless LAN System...................................................................................................... 6 1.3.1 802.11 Ad-Hoc Configuration ................................................................................... 6 1.3.2 Infrastructure Configuration ...................................................................................... 6 2. INSTALLATION...................................................................................................................... 9 2.1 Product Kit.......................................................................................................................... 9 2.2 PC’s Minimum Requirements........................................................................................ 9 2.3 Installing the Utility and Driver ..…

Text truncated - open the document above for the full version.

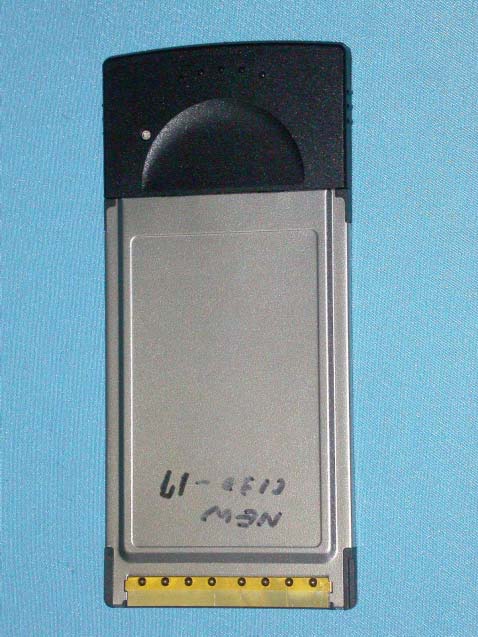

Company : Tellus Group Corp. Page : 1 of 2 Product : Wireless LAN CardBus Adapter Model : C130 Company : Tellus Group Corp. Page : 2 of 2 Product : Wireless LAN CardBus Adapter Model : C130

Company: Tellus Group Corp. Model: C130 Product: Wireless LAN CardBus Adapter Wireless LAN CardBus Adapter Model No: C130 FCC IDPB6-03071 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company : Tellus Group Corp. Page : 1 of 4 Product : Wireless LAN CardBus Adapter Model : C130 Company : Tellus Group Corp. Page : 2 of 4 Product : Wireless LAN CardBus Adapter Model : C130 Company : Tellus Group Corp. Page : 3 of 4 Product : Wireless LAN CardBus Adapter Model : C130 Company : Tellus Group Corp. Page : 4 of 4 Product : Wireless LAN CardBus Adapter Model : C130

Description of Operation EUT is a Wireless LAN CardBus Adapter with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK,DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on PCB provided diversity function to improve the receiving function. This Wireless LAN CardBus Adapter is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) radio transmission, the Wireless LAN CardBus Adapter transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

Report No. : ER/2003/90009 Page : 1 of 32 TEST REPORT Equipment Under Test : Wireless LAN Cardbus Adapter Model No. : C130 FCC ID : PB6-03071 Applicant Tellus Group Corp. 5F, No. 24-2 Industrial E. Rd. IV, Science-Based Industrial Address of Applicant : Park, Hsinchu, Taiwan, R.O.C Date of Receipt : 2003.10.24 Date of Test(s) : 2003.10.29-2003.10.30 Date of Issue : 2003.10.31 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1 , C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan E&E Services or testing done by SGS Taiwan E&E Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan E&E Services in writing. Tested by : Dikin Yang Date : 2003.10.31 Approved by : Robert Chang Date : 2003.10.31 Report No. : ER/2003/90009 Page : 2 of 32 Contents 1. General Information 1.1 Testing Laboratory 3 1.2 Details of Applicant 3 1.3 Description of EUT(s) 3 1.4 Test Environment 4 1.5 Operation description 4 1.6 The SAR Measurement System 4 1.7 System Components 6 1.8 SAR System Verification 8 1.9 Tissue Simulant Fluid for the Frequency Band 2.4 to 2.5 GHz 8 1.10 Test Standards and Limits 9 2. Instruments List 11 3. Summary of Results 12 4. Measurements 13 4.1 Edge-on position, lowest channel 13 4.2 Edge-on position, middle channel 14 4.3 Edge-on position, highest channel 15 4.4 End-on position, lowest channel 16 4.5 End-on position, middle channel 17 4.6 End-on position, highest channel 18 4.7 System Performance Validation 19 APPENDIX 1. Photographs of Test Setup 20 2. Photographs of EUT 24 3. Probe Calibration certificate 26 4. Uncertainty Analysis 30 5. Phantom description 31 6. System Validation from Original equipment supplier 32 Report No. : ER/2003/90009 Page : 3 of 32 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. ( FCC Registration number: 573967 ) 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-2698 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Applicant : Tellus Group Corp. Address : 5F, No. 24-2 Industrial E. Rd. IV, Science-Based Industrial Park, Hsinchu, Taiwan R.O.C 1.3 Description of EUT(s) Equipment Type Wireless LAN Cardbus Adapter Test Procedure FCC OET Bulletin 65, Supplement C TX Frequency range 2412-2462 MHz FCC ID PB6-03071 Model(s) C130 802.11b Mode RF Conducted Output Power 19.32 dBm(2412MHz) 19.44 dBm(2437MHz) 19.51 dBm(2462MHz) Serial No. Pre-Production Report No. : ER/2003/90009 Page : 4 of 32 Antenna Type Integral Battery Type(s) From PCMCIA slot 3.3V/5V Host Laptop PC(s) Tested TOSHIBA Libretto L2/060TNML (S/N:PAL2060TNML ) Max. SAR Measured (1g) 0.137 W/kg 1.4 Test Environment Ambient temperature : 21.9° C Tissue Simulating Liquid : 21° C- 23° C Relative Humidity : 60 % 1.5 Operation Configuration Configuration 1: “ Edge-on” placement; edge of the PC at 90° and at a distance of 1.5 cm from the base of the phantom (Fig.2 & Fig.3 & Fig.4) Configuration 2: “End-on” placement; Bottom of the Pc is paralleled and at a distance of 0.0 cm from the base of the phantom, but 0.5 cm Spacing between EUT & Planar Phantom. (Fig.5 & Fig.6 & Fig.7) 1.6 The SAR Measurement System A photograph of the SAR measurement System is given in Fig. a. This SAR Measurement System uses a Computer-controlled 3-D stepper motor system ( Speag Dasy 4 professional system ). A Model ET3DV6 1759 E-field probe is used to determine the internal electric fields. The SAR can be obtained from the equation SAR= σ (|Ei| 2 )/ ρ where σ and ρ are the conductivity and mass density of the tissue-simulant. The DASY4 system for performing compliance tests consists of the following items: • A standard high precision 6-axis robot (Staubli RX family) with controller, teach pendant and software. An arm extension for accommodating the data acquisition electronics (DAE). • A dosimetric probe, i.e., an isotropic E-field probe optimized and calibrated for usage in tissue simulating liquid. The probe is equipped with an optical surface detector system. Report No. : ER/2003/90009 Page : 5 of 32 • A data acquisition electronics (DAE) which performs the signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection, etc. The unit is battery powered with standard or rechargeable batteries. The signal is optically transmitted to the EOC. Fig. a The microwave circuit arrangement used for SAR system verification • The Electro-optical converter (EOC) performs the conversion between optical and electrical of the signals for the digital communication to the DAE and for the analog signal from the optical surface detection. The EOC is connected to the measurement server. • The function of the measurement server is to perform the time critical tasks such as signal filtering, control of the robot operation and fast movement interrupts. • A probe alignment unit which improves the (absolute) accuracy of the probe positioning. • A computer operating Windows 2000 or Windows XP. • DASY4 software. • Remote control with teach pendant and additional circuitry for robot safety such as warning lamps, etc. • The SAM twin phantom enabling testing left-hand and right-hand usage. • The device holder for handheld mobile phones. Report No. : ER/2003/90009 Page : 6 of 32 • Tissue simulating liquid mixed according to the…

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：PB6-03071 Report No.：EC03-09-008FRF Page 1 of 42 RF TEST REPORT Product Name ： Wireless LAN CardBus Adapter Model Number ： C130 Applicant ： Tellus Group Corp. Address ： 5F, No. 24-2, Industrial E.Rd. IV, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. Received Date ： Jun. 27, 2003 Tested Date ： Jun. 27~Sept. 08, 2003 Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：PB6-03071 Report No.：EC03-09-008FRF Page 2 of 42 Test Report Certification Product Name : Wireless LAN CardBus Adapter Model Number : C130 Applicant : Tellus Group Corp. Measurement Standard : 47 CFR Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-2001 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：PB6-03071 Report No.：EC03-09-008FRF Page 3 of 42 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION ................................................................................................... 5 1.1 General Statement ................................................................................................................. 5 1.2 General Description of EUT & Power .................................................................................. 5 1.3 Description of Peripherals..................................................................................................... 6 1.4 EUT & Peripherals Setup Diagram....................................................................................... 7 1.5 EUT Operating Condition.....................................................................................................7 1.6 Description of Test Site ........................................................................................................ 8 1.7 Summary of Test Results ...................................................................................................... 8 2. CONDUCTED POWERLINE TEST....................................................................................... 9 2.1 Test Equipments.................................................................................................................... 9 2.2 Test Setup.............................................................................................................................. 9 2.3 Conducted Power Line Emission Limit ................................................................................ 10 2.4 Test Procedure....................................................................................................................... 10 2.5 Uncertainty of Conducted Emission ..................................................................................... 10 2.6 Conducted RF Voltage Measurement ................................................................................... 11 2.7 Photos of Conduction Test .................................................................................................... 12 3. RADIATED EMISSION TEST ................................................................................................ 13 3.1 Test Equipments.................................................................................................................... 13 3.2 Test Setup.............................................................................................................................. 13 3.3 Radiation Limit ..................................................................................................................... 14 3.4 Test Procedures ..................................................................................................................... 15 3.5 Uncertainty of Radiated Emission ........................................................................................ 15 3.6 Radiated RF Noise Measurement ......................................................................................... 16-28 3.7 Photos of Open Site .............................................................................................................. 29-30 4. 6dB BANDWIDTH MEASUREMENT ................................................................................... 31 4.1 Test Equipments.................................................................................................................... 31 4.2 Test Setup.............................................................................................................................. 31 4.3 Limits of 6dB Bandwidth Measurement ............................................................................... 31 4.4 Test Procedure....................................................................................................................... 31 4.5 Uncertainty of Conducted Emission ..................................................................................... 31 4.6 Test…

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PB6-03071 Report No.EC03-09-008FRF Page 12 of 44 2.7 Photos of Conduction Test Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PB6-03071 Report No.EC03-09-008FRF Page 29 of 44 3.7 Photos of Open Site Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID PB6-03071 Report No.EC03-09-008FRF Page 30 of 44
