PC3GM-170TFT LCD Monitor

Distributed by : FCC NOTICE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TOW CONDITION: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. -Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. CONTENTS 1. Package Contents 2. Monitor Parts 3. Connecting to PC 4. Features 5. OSD Menu functions 6. Specification 7. AV OSD function (optional) 8. Dimension 9. USB function (optional) 10. Recommended Use 11. Troubleshooting 3 Thank you for your selection of new TFT LCD Monitor. Please take a few minutes to read this User’s manual for the best performance of this monitor. Information in this manual is subject to change without prior notice for improving design, function and etc. IBM, DOS, PC and VGA are trademarks of International Business Machines Corporation. 4 5 6 8 9 14 16 19 20 21 22 54 Package Contents Your TFT-LCD monitor box should contain the following : STANDARD PARTS •TFT-LCD monitor •DC Power adapter -Connects to DC IN port on the base of monitor •Power cord -Connects wall outlet to DC Power adapter •D-SUB 15pin video cable -Connects PC to LCD monitor •Stereo audio cable -Connects PC sound card to audio input port on the base of monitor •User's manual OPTIONAL PARTS •USB upstream cable -Connects PC to USB ports on the base of monitor •Video cables (Composite, S-video) •Audio cable for AV monitor 8. USB Down stream connector 9. USB Up stream connector 10. IR sensor for remote control 1. Power switch 2. Speaker hole 3. OSD button 4. Power input connector 5. VGA input connector 6. Audio OUT jack 7. Audio IN jack * 6. 8. 9. 10 parts are optional FRONTSIDE REAR 1 2 3 BA A B 45 67 8 9 Monitor Parts 10 76 Connecting to PC To attach your TFT-LCD monitor to your system, follow the instructions hereunder 1. Connect the small DC power cord from the base of the monitor to the head (For first timeinstallation, this step will be completed by the factory) 2. Connect 15-pin D-SUB cable to the connector or display card of your computersystem. Tighten all the screws 3. Connect 15-pin D-SUB cable to the appropriate connectors on the back of themonitor head 4. Connect AC adapter cable to the power input connectors on the back of the monitor base 5. Connect one end of the power cord to the AC adapter and the other end to the power outlet 6. Turn on the monitor 7. To complete the setup •Adjustment of the H/V Position controls may be required to complete setup of your TFT-LCD monitor. For a full description of these OSD controls, refer to OSD menu functions •Your monitor has two 3 Watt speakers. Please connect the Audio IN jack to the Line out jack of your PC's sound card A. set up your computer system to : 1280 x 1024 resolution @ 60Hz. B. Use the following OSD controls -Auto adjust control -Phase 89 Features TFT-LCD (Thin film transistor -liquid crystal display) The 17”/18.1”inch panel and hard coating(3H),anti-glare treatment of the front polarizerenables low reflection, anti-static, high – resolution and high-contrast characteristics. Plug-and-Play Compatible This TFT-LCD monitor conforms to the VESA(Video Electronics Standards Association) standard and DDC1/DDC2B.A picture adjustment function makes it possible to adjust the image quality to match the input signal. An automatic size adjustment function is provided Auto-setup control on OSD screen adjust image position, horizontal size or fine settings. Environmentally Friendly The power consumption can be reduced by using this TFT-LCD monitor in combination of a computer that conforms to the VESA DPMS(Display Power Management Signaling) standard. Desk space can be used effectively due to the 30 cm depth. VESA standard wall mounting This TFT-LCD monitor has the VESA (Video Electronics Standards Association) standard wall mounting holes Monitor head can be mounted on the wall using a VESA-compliant wall mount. OSD menu functions OSD (On-Screen-Display) control buttons functions as follows : To access OSD Menu, press MENU button EXIT SELECT MENU ADJUST MENU : Menu on/move button -Show OSD menu on the screen -Moves the highlighted area to select one of the functions SELECT : Input select button (available in AV monitor) -Allows the user to select the current signal from the following choice : analog RGB input, Composite video input, S-video input DOWN : Adjust button -Moves the bar left to decrease the adjustment -Enter the submenu UP:Adjust button -Moves the bar right to increase the adjustment. -Enter the submenu EXIT : Menu OFF button -Exit the main menu or submenu 1.Press the MENU button to display the main menu shown below 2.Press the MENU button to move the highlighted area to select menu 3…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA 2. LCD CONTROLLER 7. OSD, LED BOARD 1. LCD PANEL 5. INVERTER CN1 J1 J2 CN3CN4 S-VIDEO COMP P1 3. LCD CONN. CN5 4. SIGNAL CABLE 6. INVERTER CABLE 8. OSD and LED CABLE CN1 9. VGA CONN 10. DC ADAPTER System Block Diagram

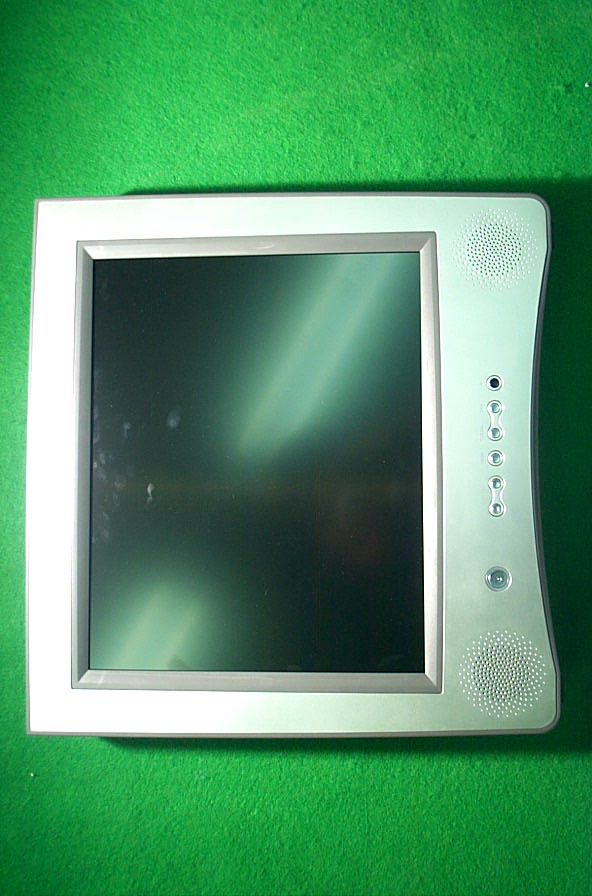

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-01151 FCC ID : PC3GM-170 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01151 FCC ID : PC3GM-170

SK TECH CO., LTD. Page 1 of 1 SKT SKTOS-01151 FCC ID : PC3GM-170 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER 2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. FCC ID : PC3GM-170 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SK TECH CO., LTD. Page 1 of 7 SKT SKTOS-01151 FCC ID : PC3GM-170 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 7 SKT SKTOS-01151 FCC ID : PC3GM-170 SK TECH CO., LTD. Page 3 of 7 SKT SKTOS-01151 FCC ID : PC3GM-170 SK TECH CO., LTD. Page 4 of 7 SKT SKTOS-01151 FCC ID : PC3GM-170 SK TECH CO., LTD. Page 5 of 7 SKT SKTOS-01151 FCC ID : PC3GM-170 SK TECH CO., LTD. Page 6 of 7 SKT SKTOS-01151 FCC ID : PC3GM-170 SK TECH CO., LTD. Page 7 of 7 SKT SKTOS-01151 FCC ID : PC3GM-170

SK TECH CO., LTD. Page 1 of 13 SKT SKTOS-01151 FCC ID : PC3GM-170 Certificate of Compliance Test Report No.: SKTOS-01151 NVLAP CODE : 200220-0 Applicant: GTT Co., Ltd. Applicant Address: Suite 509, Unitechvil, 1141-2, Paeksok-dong, ilsan-gu, Koyang-Shi, Kyounggi-do, 411,722, Korea Product: TFT LCD Monitor FCC ID: PC3GM-170 Model No.: GM-170 Receipt No.: SKE20011208-862 Date of receipt: Dec. 08, 2001 Date of Issue: Dec. 13, 2001 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 1992 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by:Y.H.Kang Tested by:K.W.Song/Engineer Approved by: J.Y.Hyun /Lab.Manager Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 13 SKT SKTOS-01151 FCC ID : PC3GM-170 Contents Contents 2 List of Tables 2 List of Figures 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 7 5. EMISSION Test 8 5.1 Conducted Emissions 8 5.2 Radiated Emissions 12 List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Conducted Emissions 11 Table 3 Test Data, Radiated Emissions 13 List of Figures Figure 1 Spectral Diagram, LINE-PE 9 Figure 2 Spectral Diagram, Neutral-PE 10 SK TECH CO., LTD. Page 3 of 13 SKT SKTOS-01151 FCC ID : PC3GM-170 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ANSI C63.4/1992 for measurement of radio interference. SK TECH CO., LTD. Page 4 of 13 SKT SKTOS-01151 FCC ID : PC3GM-170 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment l Conducted Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS 10 862970/019 02.2002 Artificial Mains Network ESH2-Z5 834549/011 10.2002 EMI Receiver ESHS10 835871/002 10.2002 Artificial Mains Network ESH3-Z5 836679/018 10.2002 Conducted Cable N/A N/A 11.2002 l Radiated Emissions Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 02.2002 EMI Receiver ESVS 10 834468/008 10.2002 Spectrum Analyzer R3361A 11730187 10.2002 Amplifier 8447F 3113A05153 05.2002 Log Periodic Antenna UHALP9107 1819 02.2002 Biconical Antenna BBA9106 91031626 02.2002 Open Site Cable N/A N/A N/A Antenna Mast 5907 N/A N/A Antenna & Turntable controller 5906 N/A N/A Amp & Receiver connection cable N/A N/A N/A Amp & Spectrum connection cable N/A N/A N/A 50 Switcher MP59B M93083 N/A 2.3 Test Date Date of Application : Dec. 08, 2001 Date of Test : Dec. 10, 2001 ~ Dec. 11, 2001 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 13 SKT SKTOS-01151 FCC ID : PC3GM-170 3. Description of the tested samples The EUT is the TFT LCD Monitor. 3.1 Rating and Physical Characteristics - Power supply : DC 12V - Power consumption : Max. 45W Standby : 4W 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 13 SKT SKTOS-01151 FCC ID : PC3GM-170 4. Measurement Conditions Operating of EUT voltage is 12V DC supplied by the adaptor which is structural element for EUT. ( Adaptor Input Voltage : AC 120V, 60Hz) 4.1 Modes of Operation The EUT was in the following operation mode during all testing; EUT is connected with PC by video interface cable. Test is made on the mode of scrolling “H” and playing MP3 file. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Personal Computer LG R70 103KI00189 N/A PS/2 Keyboard JING MOLD LKB-01027 10209670 N/A PS/2 Mouse LOGITECH M-S48a LZU04508022 DoC USB Keyboard Sejin SKM-4170U N/A N/A USB Mouse Daemin DFS-2001U N/A N/A Speaker FAN HAI CMK-720 N/A N/A Adapter (for EUT) AULT Korea PW10 N/A N/A SK TECH CO., LTD. Page 7 of 13 SKT SKTOS-01151 FCC ID : PC3GM-170 4.3 Type of Used Cables Description Length Type of shield Manufacturer Remark PC Power Cable 1.5m Non-Shield None AC/DC Adapter Cable 1.8m Non-Shield None For EUT Video interface Cable 1.7m Shield None For EUT Audio Cable 1.2m Non-Shield None For EUT USB Cable 1.0m Non-Shield None For EUT A/V Cable 1.2m Non-Shield None For EUT S-Video Cable 1.2m Non-Shield None For EUT USB Keyboard Cable 1.2m Non-Shield None USB Mouse Cable 1.2m Non-Shield None PS/2 Keyboard Cable 1.2m Non-Shield None PS/2 Moue Cable 1.2m Non-Shield None 4.4 Test Setup The test setup photographs showed the external supply connections and interfaces. 4.5 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = 1.9dB Expanded uncertainty U = KUc K = 2 U = 3.8dB 2) …

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTOS-01151 FCC ID : PC3GM-170 Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTOS-01151 FCC ID : PC3GM-170 Photograph 2: Setup for Radiated Emissions
