PC6YFW-0001Single-Mode Cellular CDMA Card

Growell Telecom Co., Ltd.

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Jan 29, 2001
Application Purpose: Original Equipment
Date of Application: Nov 21, 2000
Equipment Note: Single-Mode Cellular CDMA Card
Frequency Range: 824.70000000 - 848.22000000
Company: Growell Telecom Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Attestation Statements

November 20, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: YISO TELECOM CO. LTD. FCC ID: PC6YFW-0001 Part 22 Certification Gentlemen: Attached herewith, on behalf of YISO TELECOM CO. LTD. is an application for Part 22 Certification of the following Single-Mode Cellular CDMA Card: FCC ID: PC6YFW-0001 TRADE / MODEL(s): FREEWING YFW-0001 EUT TYPE: Non-Broadcast Transmitter Held to Ear (TNE) Tx Freq. Range: 824.70-848.31 MHz Rx Freq. Range: 869.70-893.31 MHz Max. RF Output Power: 0.231 W ERP CDMA (23.633 dBm) Attached is the Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report, RF Warning Statement Location and User Manual RF Warning page, FCC ID label and location, test setup photographs, internal / external / SAR photographs, block diagrams (confidential), schematic diagrams (confidential), operational / circuit description (confidential), parts list & tune-up procedure (confidential), antenna specs (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Sung Hyun Lee, Wireless Comm. Lab. Manager / R&D YISO TELECOM CO. LTD. 261 Yangjae-dong, Seocho-ku, Seoul, Korea Tel: 82-2-576- 1209 Fax:82-2-576-1065 YISO TELECOM November 20, 2000 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in al matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Name : Sung Hyun Lee Title : Manager Company name : YISO Telecom co.Ltd 261 Yangjae-dong, Seocho-ku, Seoul, Korea Tel: 82-2-576-1209 Fax: 82-2-576- 1065 YISO TELECOM November 20, 2000 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A FCC ID.: PC6YFW-0001 Section 2.97 (a) (b)-Statement of Compliance Dear Sirs: This equipment has been tested in accordance with the requirements contained in the appropriate Commission regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that equipment complies with the appropriate standard. Each unit manufactured, imported, or marked, as defined in the commission’s regulation, will conform to the samples tested within the variations that can be expected due to production and tested on a statistical basis. I further certify that the necessary measurements were made by: PCTEST Engineering Laboratory, Inc. 6660-Bdobbin Road Columbia, MD 21045 Sincerely, Name : Sung Hyun Lee Title : Manager Company name : YISO Telecom co.Ltd

Cover Letter(s)

January 10, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Errol Chang SUBJECT: Yiso Telecom Co., Ltd. FCC ID: PC6YFW-0001 731 Confirmation No.: EA99344 Correspondence Reference No.: 17656 Request for Tech. Info.: 1/09/01 Dear Errol: Transmitted herewith, on behalf of Yiso Telecom Co., Ltd., is an amendment in response to the request for technical information dated January 9, 2001. 1. We confirm that the heading or title for the RF exposure info/instructions, “Body- worn Operation” should be revised and will be corrected to “Operating Requirements” (see attached). We trust this information is sufficient to issue the grant ASAP. If you have any further questions, please do not hesitate to contact us. cc: Yiso Telecom Co., Ltd.

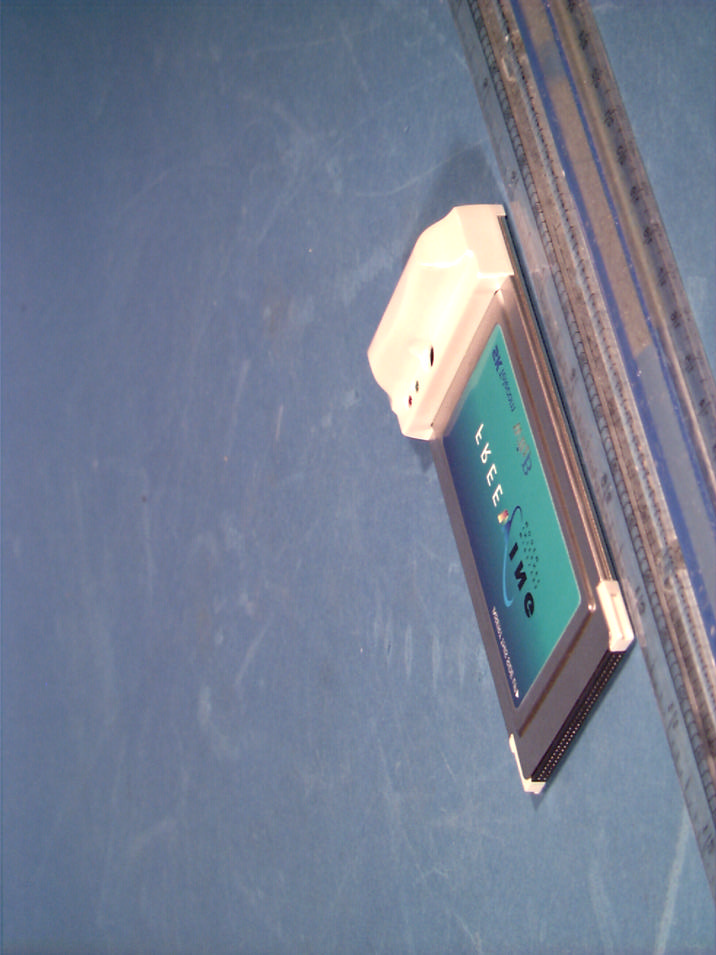

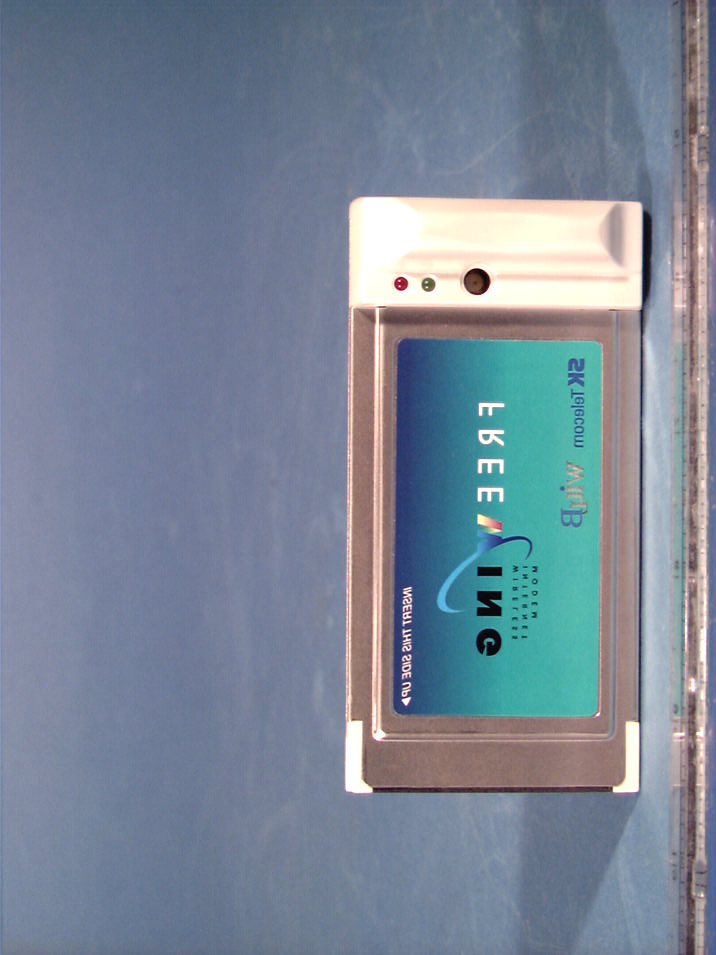

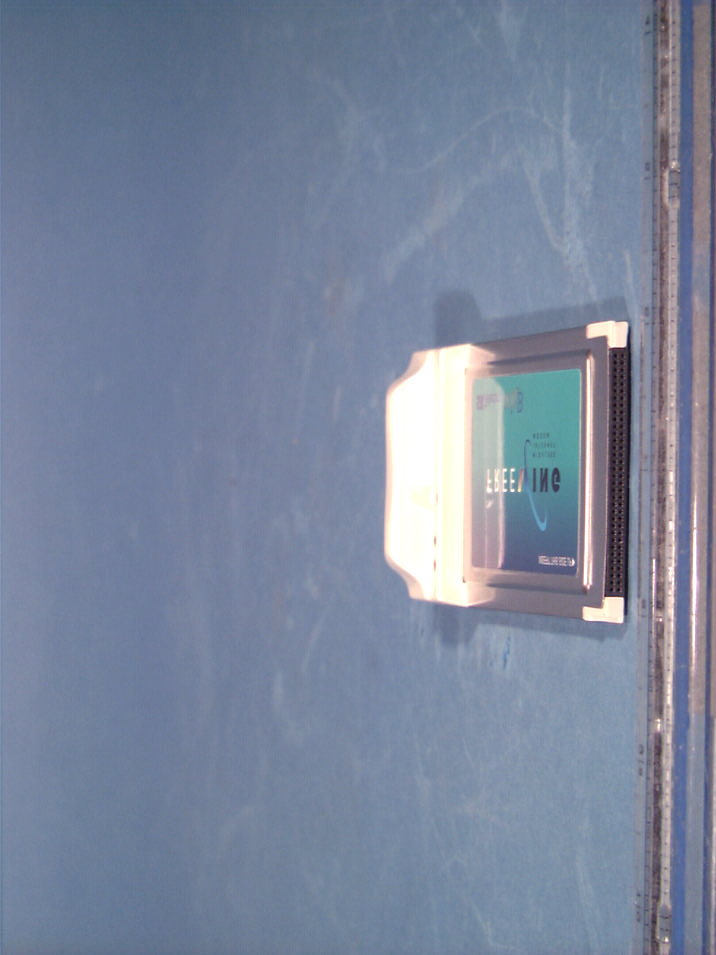

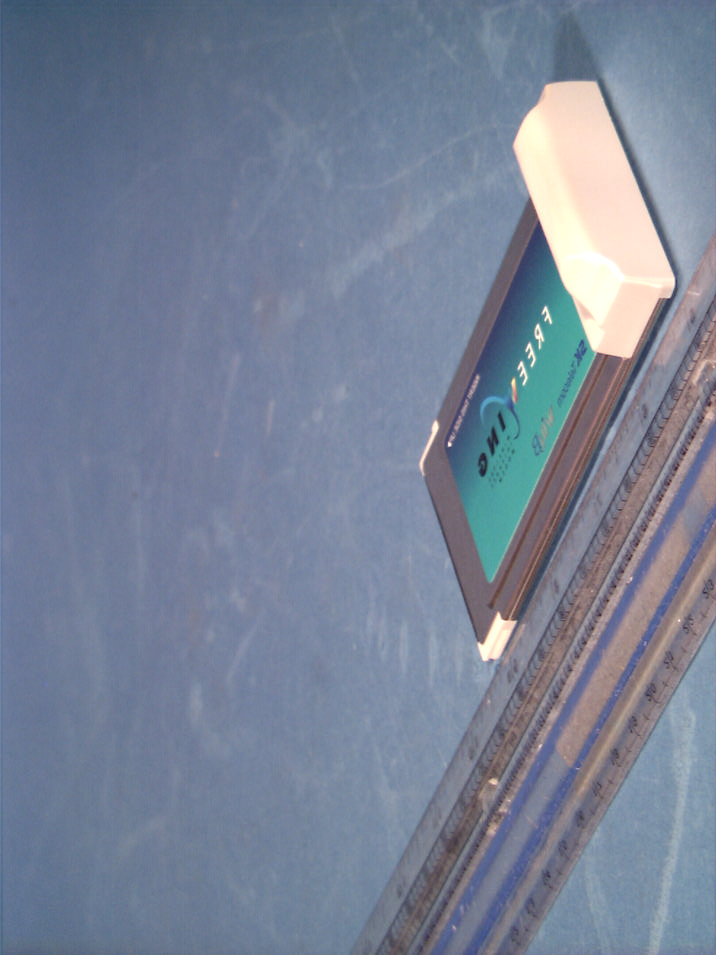

External Photos

© 2000 PCTEST Lab FCC ID: PC6YFW-0001 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 YISO TELECOM Single-Mode CDMA PCMCIA Card © 2000 PCTEST Lab FCC ID: PC6YFW-0001 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 YISO TELECOM Single-Mode CDMA PCMCIA Card © 2000 PCTEST Lab FCC ID: PC6YFW-0001 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 YISO TELECOM Single-Mode CDMA PCMCIA Card © 2000 PCTEST Lab FCC ID: PC6YFW-0001 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 YISO TELECOM Single-Mode CDMA PCMCIA Card © 2000 PCTEST Lab FCC ID: PC6YFW-0001 (Tx 824-849 MHz) NVLAP Lab Code: 100431-0 YISO TELECOM Single-Mode CDMA PCMCIA Card

ID Label/Location Info

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) 261 Yangjae-dong, Seocho-ku, Seoul, Korea Tel : 82 – 2 – 576 – 1209 Fax : 82 – 2 – 576 – 1065 IDENTIFICATION LABEL With regard to The FCC Rule Part 2.983 According to the requirement section 2.925 and 2.926, the sample Label shown below shall be permanently affixed at a conspicuous Location on the device supplied to the user and be readily visible to The purchaser at the time of purchase. CDMA Cellular PCMCIA CARD MODEL : YFW-0001 FCC ID : PC6YFW-0001 Serial No. : (pre-production) MADE IN KOREA YISO TELECOM CO. LTD

Internal Photos

RF Exposure Info

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) YISO TELECOM CO. LTD. Dates of Tests: November 20, 2000 249 Yangjae-dog, Seocho-ku, Test Report S/N: SAR.201120580.PC6 Seoul, KOREA 137-894 Test Site: PCTEST Lab, Columbia, MD USA Atnn: Mr. Sung Hyun Lee, Wireless Comm. Lab. Manager / R&D FCC ID PC6YFW-0001 APPLICANT YISO TELECOM CO. LTD. EUT Type: Single-Mode Cellular CDMA PCMCIA Card Tx Frequency: 824.70 – 848.31 MHz Rx Frequency: 869.70 – 893.31 MHz Max. RF Output Power: 0.231 W ERP (23.633 dBm) Max. SAR Measurement: 0.375mW/g Peak CDMA Body SAR Trade Name/Model(s): FREEWING YFW-0001 FCC Classification: Non-Broadcast Transmitter (TNB) Application Type: Certification Serial Number: n/a (pre production) FCC Rule Part(s): 2.1093; ET Docket 96.326 This wireless portable device has been shown to be compliant with localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). 201120PC6.PC6 SAR Measurement Report FCC Part 22 Certification © 2000 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUES 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY-WORN TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-15 14.1 SAR TEST EQUIPMENT LIST 16 15.1 CONCLUSION 17 16.1 REFERENCES 18 Test Report S/N: SAR.201120580.PC6 SAR Measurement Report Test Dates: November 20, 2000 FCC Part 22 Certification FCC ID: PC6YFW-0001 (Tx 824-849 MHz) © 2000 PCTEST Lab YISO TELECOM Single-Mode CDMA PCMCIA Card 1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: YISO TELECOM CO. LTD. Address: 249 Yangjae-dong, Seocho-ku, Seoul, KOREA 137-894 Attention: Mr. Sung Hyun Lee, Wireless Communication Lab. Manager / R&D • EUT Type: Single-Mode Cellular CDMA PCMCIA Card • Trade Name: FREEWING • Model(s): YFW-0001 • FCC Identifier: PC6YFW-0001 • S/N: Pre-production • Tx Frequency: 824.70 – 848.31 MHz • Rx Frequency: 869.70 – 893.31 MHz • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s): § 2.1093, Docket 96-326 • Modulation(s): CDMA • Max. RF Output Power: 0.231 W ERP (23.633 dBm) • Max. SAR Measurement: 0.375mW/g Peak CDMA Body SAR • Antenna Type: Helical (λ/4) • Dates of Tests: November 20, 2000 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.201120580.PC6 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.201120580.PC6 SAR Measurement Report Test Dates: November 20, 2000 FCC Part 22 Certification FCC ID: PC6YFW-0001 (Tx 824-849 MHz) © 2000 PCTEST Lab YISO TELECOM Single-Mode CDMA PCMCIA Card 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (diss…

Text truncated - open the document above for the full version.

RF Exposure Info

YISO Telecom FCC ID:PC6YFW-0001 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.201 mW/g, SAR (10g): 0.0917 mW/g YISO Telecom Co., Ltd. CDMA Single Band PCMCIA Card Model:YFW-0001 Cellular CDMA Ch.1013 [824.70MHz]; Body SAR from EUT side of notebook PC Conducted Power = 23.0dBm; Spacing = 0.5cm from flat phantom to card Test Date = 11-20-2000 SAR Tot [mW/g] 1.90E-2 5.70E-2 9.50E-2 1.33E-1 1.71E-1 PCTEST Engineering Laboratory, Inc. YISO Telecom FCC ID:PC6YFW-0001 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.375 mW/g, SAR (10g): 0.189 mW/g YISO Telecom Co., Ltd. CDMA Single Band PCMCIA Card Model:YFW-0001 Cellular CDMA Ch.0383 [836.49MHz]; Body SAR from EUT side of notebook PC Conducted Power = 23.0dBm; Spacing = 0.5cm from flat phantom to card Test Date = 11-20-2000 SAR Tot [mW/g] 3.40E-2 1.02E-1 1.70E-1 2.38E-1 3.06E-1 PCTEST Engineering Laboratory, Inc. YISO Telecom FCC ID:PC6YFW-0001 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.273 mW/g, SAR (10g): 0.144 mW/g YISO Telecom Co., Ltd. CDMA Single Band PCMCIA Card Model:YFW-0001 Cellular CDMA Ch.0777 [848.31MHz]; Body SAR from EUT side of notebook PC Conducted Power = 23.0dBm; Spacing = 0.5cm from flat phantom to card Test Date = 11-20-2000 SAR Tot [mW/g] 3.30E-2 9.90E-2 1.65E-1 2.31E-1 2.97E-1 PCTEST Engineering Laboratory, Inc. YISO Telecom FCC ID:PC6YFW-0001 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.115 mW/g, SAR (10g): 0.0895 mW/g YISO Telecom Co., Ltd. CDMA Single Band PCMCIA Card Model:YFW-0001 Cellular CDMA Ch.1013 [824.70MHz]; Body SAR from flat bottom notebook PC Conducted Power = 23.0dBm; Spacing = 0.5cm from flat phantom to card, touching notebook bottom Test Date = 11-20-2000 SAR Tot [mW/g] 8.00E-3 2.40E-2 4.00E-2 5.60E-2 7.20E-2 PCTEST Engineering Laboratory, Inc. YISO Telecom FCC ID:PC6YFW-0001 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.100 mW/g, SAR (10g): 0.0723 mW/g YISO Telecom Co., Ltd. CDMA Single Band PCMCIA Card Model:YFW-0001 Cellular CDMA Ch.0383 [836.49MHz]; Body SAR from flat bottom notebook PC Conducted Power = 23.0dBm; Spacing = 0.5cm from flat phantom to card, touching notebook bottom Test Date = 11-20-2000 SAR Tot [mW/g] 1.20E-2 3.60E-2 6.00E-2 8.40E-2 1.08E-1 PCTEST Engineering Laboratory, Inc. YISO Telecom FCC ID:PC6YFW-0001 -- CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.101 mW/g, SAR (10g): 0.0725 mW/g YISO Telecom Co., Ltd. CDMA Single Band PCMCIA Card Model:YFW-0001 Cellular CDMA Ch.0777 [848.31MHz]; Body SAR from flat bottom notebook PC Conducted Power = 23.0dBm; Spacing = 0.5cm from flat phantom to card, touching notebook bottom Test Date = 11-20-2000 SAR Tot [mW/g] 9.10E-3 2.73E-2 4.55E-2 6.37E-2 8.19E-2 PCTEST Engineering Laboratory, Inc.

RF Exposure Info

For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.5 cm. from the body. To maintain compliance with FCC RF exposure guidelines, use only belt-clips, holsters or similar accessories that maintain a 0.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure guidelines, and should be avoided. WARNING! Read this information before using your phone

RF Exposure Info

Probe ET3DV5 SN:1370 Manufactured: February 1999 Calibrated: February 2000 Calibrated for System DASY3 Page 1 of 8 ET3DV5 SN:1370 Introduction The performance of all probes is measured before delivery. This includes an assessment of the characteristic parameters, receiving patterns as a function of frequency, frequency response and relative accuracy. Furthermore, each probe is tested in use according to a dosimetric assessment protocol. The sensitivity parameters (NormX, NormY, NormZ), the diode compresion parameter (DCP) and the conversion factor (ConvF) of the probe and some of the measurement diagrams are given in the following. The performance of the individual probes varies slightly due to tolerances arising from the manufacturing process. Since the lines are highly resistive (several MOhms), the offset and noise problem is greatly increased if signals in the low μ V range are measured. Accurate measurement below 10 μW/g are possible if the following precautions are taken. 1) check the current grounding with the multimeter 1 , i.e., low noise levels, 2) compensate the current offset 1 , 3) use long integration time (approx. 10 seconds), 4) calibrate 1 before each measurement, 5) persons should avoid moving around the lab while measuring. Since the field distortion caused by the supporting material and the sheath is quite high in the θ direction, the receiving pattern is poor in air. However, the distortion in tissue equivalent material is much less because of its high dielectricity. In addition, the fields induced in the phantoms by dipole structures close to the body are dominently parallel to the surface. Thus, the error due to non-isotropy is much better than 1 dB for dosimetric assessments. The probes are calibrated in the TEM cell ifi 110 although the field distribution in the cell is not very uniform and the frequency response is not very flat. To ensure consistency, a strict protocol is followed. The conversion factor (ConF) between this calibration and the measurement in the tissue simulation solution is performed by comparison with temperature measurements and computer simulations. This conversion factor is only valid for the specified tissue simulating liquids at the specified frequencies. If measurements have to be performed in solutions with other electrical properties or at other frequencies, the conversion factor has to be assessed by the same procedure. As the probes have been constructed with printed resistive lines on ceramic substrates (thick film technique), the probe is very delicate with respect to mechanical shocks. Attention: Do not drop the probe or let the probe collide with any solid object. Never let the robot move without first activating the emergency stop feature (i.e., without first turning the data acquisition electronics on). 1 Feature of the DASY Software Tool. Fig 1: Due to the field distortion caused by the supporting material, the probe has two charac- teristic directions, referred to as angle ψ and θ . Page 2 of 8 ET3DV5 SN:1370 DASY3 - Parameters of Probe: ET3DV5 SN:1370 Sensitivity in Free Space NormX1.58μV/(V/m) 2 NormY1.64μV/(V/m) 2 NormZ1.80μV/(V/m) 2 Diode Compression DCP X96mV DCP Y96mV DCP Z96mV Sensitivity in Tissue Simulating Liquid 450 MHzConvF X6.5extrapolated ε r = 48 ± 5% ConvF Y6.5extrapolated σ =0.50 ± 10%mho/m ConvF Z6.5extrapolated(brain tissue simulating liquid) 900 MHz ConvF X6.0± 10% ε r = 42.5 ± 5% ConvF Y6.0± 10% σ =0.86 ± 10%mho/m ConvF Z6.0± 10%(brain tissue simulating liquid) 1500 MHz ConvF X5.4interpolated ε r = 41 ± 5% ConvF Y5.4interpolated σ =1.32 ± 10%mho/m ConvF Z5.4interpolated(brain tissue simulating liquid) 1800 MHz ConvF X5.1± 10% ε r = 41 ± 5% ConvF Y5.1± 10% σ =1.69 ± 10%mho/m ConvF Z5.1± 10%(brain tissue simulating liquid) Sensor Offset Probe Tip to Sensor Center2.7mm Surface to Probe Tip1.6 ± 0.2mm Page 3 of 8 ET3DV5 SN:1370 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV5 SN:1370 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 5 of 8 ET3DV5 SN:1370 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22, R26 ) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22R26 Page 6 of 8 ET3DV5 SN:1370 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -3 -2 -1 0 1 0.00010.0010.010.1110100 mW/cm 3 errror[dB] not compensated diode characteristic compensated relative accuracy Page 7 of 8 ET3DV5 SN:1370 Conversion Factor Assessment Receiving Pattern (φ) ( in brain tissue, z = 5 mm ) -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 900 MHz1800 MHz f = 900 MHz, WG R9 0.00 0.05 0.10 0.15 0.20 0.25 0.30 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 0.00 0.50 1.00 1.50 2.00 2.50 020…

Text truncated - open the document above for the full version.

RF Exposure Info

835MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1370 -- Probe Cal Date 02/00 Med. Parameters 835 MHz Muscle: σ = 0.95 mho/m ε r = 56.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.18 mW/g, SAR (10g): 1.43 mW/g 835MHz Muscle Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 2.21E-1 6.63E-1 1.10E+0 1.55E+0 1.99E+0 PCTEST Engineering Laboratory, Inc.

RF Exposure Info

December 18, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Errol Chang SUBJECT: Yiso Telecom Co., Ltd. FCC ID: PC6YFW-0001 731 Confirmation No.: EA99344 Correspondence Reference No.: 17430 Request for Tech. Info.: 12/15/00 Dear Errol: Transmitted herewith, on behalf of Yiso Telecom Co., Ltd., is an amendment provided in response to the request for technical information dated December 15, 2000. 1. Please find attached the revised summary data tables. 2. Attached is the revised RF Exposure statement, which will be placed towards the front location in the users manual. We trust this information is sufficient to issue the grant ASAP. If you have any further questions, please do not hesitate to contact us. cc: Yiso Telecom Co., Ltd.

RF Exposure Info

Test Report S/N: SAR.201120580.PC6 SAR Measurement Report Test Dates: November 20, 2000 FCC Part 22 Certification FCC ID: PC6YFW-0001 (Tx 824-849 MHz) © 2000 PCTEST Lab YISO TELECOM Single-Mode CDMA PCMCIA Card 14 13.1 SAR TEST DATA SUMMARY (Continued) Ambient TEMPERATURE (°C) 18.7 Relative HUMIDITY (%) 54.0 Atmospheric PRESSURE (kPa) 99.6 Mixture Type: 800MHz Muscle Dielectric Constant: 56.2 Conductivity: 0.95 13.2 Measurement Results (CDMA Body SAR from side) FREQUENCY Modulation POWER * Separation Antenna SAR MHz Ch. (dBm) Distance (cm)** Position (W/kg) 824.70 1013 CDMA 23.0 0.5 cm Fixed 0.201 836.49 0383 CDMA 23.0 0.5 cm Fixed 0.375 848.31 0777 CDMA 23.0 0.5 cm Fixed 0.273 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population Body 1.6 W/kg (mW/g) averaged over 1 gram NOTES: 1. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3. Battery Type x Standard o Extended 4. * Power Measured x Conducted o EIRP o ERP 5. SAR Measurement System x SPEAG o IDX 6. SAR Configuration o Head x Body o Hand 7. ** Test Configuration (bystander) Figure 17. Body SAR Test Setup Test Report S/N: SAR.201120580.PC6 SAR Measurement Report Test Dates: November 20, 2000 FCC Part 22 Certification FCC ID: PC6YFW-0001 (Tx 824-849 MHz) © 2000 PCTEST Lab YISO TELECOM Single-Mode CDMA PCMCIA Card 15 13.1 SAR TEST DATA SUMMARY (Continued) Ambient TEMPERATURE (°C) 18.7 Relative HUMIDITY (%) 54.0 Atmospheric PRESSURE (kPa) 99.6 Mixture Type: 800MHz Muscle Dielectric Constant: 56.2 Conductivity: 0.95 13.3 Measurement Results (CDMA Body SAR from bottom) FREQUENCY Modulation POWER * Separation Antenna SAR MHz Ch. (dBm) Distance (cm)** Position (W/kg) 824.70 1013 CDMA 23.0 0.5 cm Out 0.115 836.49 0383 CDMA 23.0 0.5 cm Out 0.100 848.31 0777 CDMA 23.0 0.5 cm Out 0.101 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population Body 1.6 W/kg (mW/g) averaged over 1 gram NOTES: 1. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3. Battery Type x Standard o Extended 4. * Power Measured x Conducted o EIRP o ERP 5. SAR Measurement System x SPEAG o IDX 6. SAR Configuration o Head x Body o Hand 7. ** Test Configuration (lap-mounted) Figure 18. Body SAR Test Setup

RF Exposure Info

Text truncated - open the document above for the full version.
