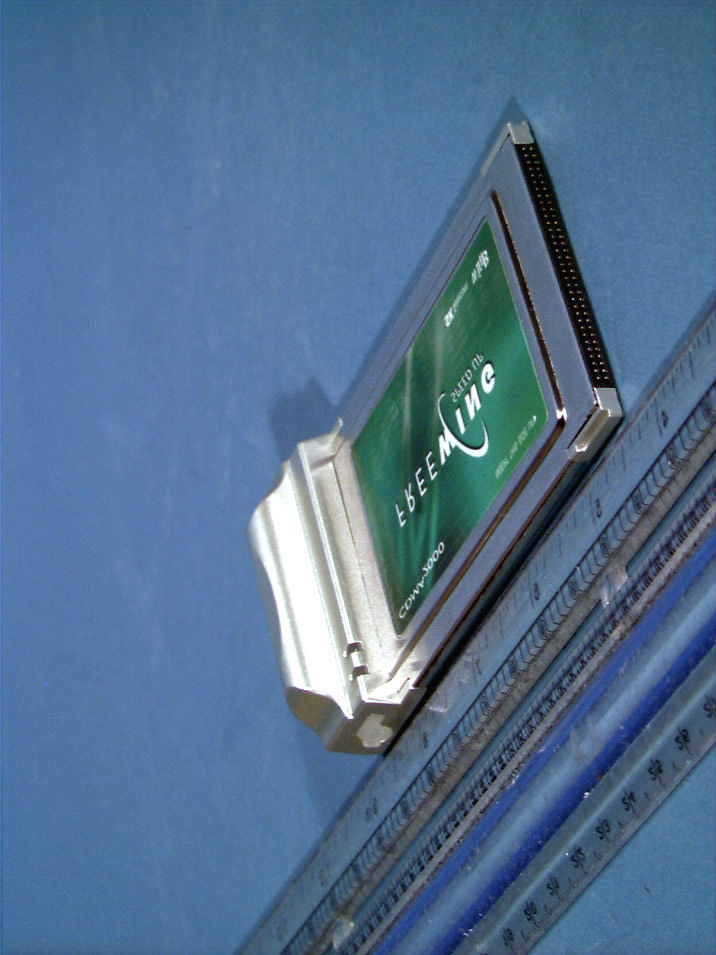

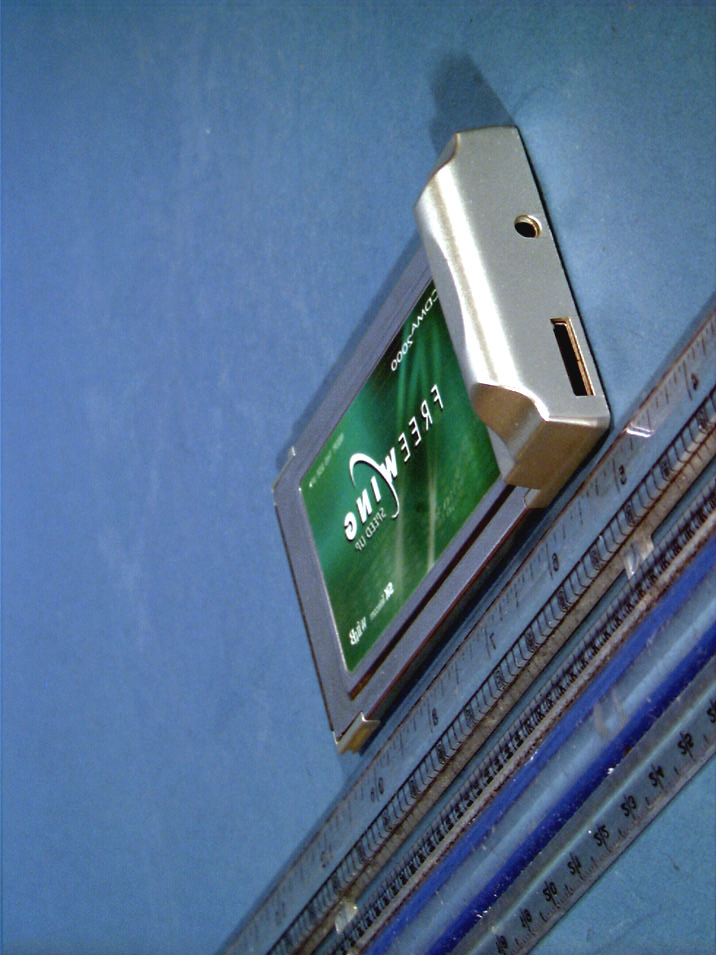

PC6YM-1031KCDMA Wireless Modem PC Card (PCMCIA)

October 17, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: YISO TELECOM CO., LTD. FCC ID: PC6YM-1031K Part 22 Certification Gentlemen: Attached herewith, on behalf of YISO TELCOM CO., LTD. is an application for Part 22 Certification of the following Single-Mode Cellular CDMA Phone: FCC ID: YISO TELCOM CO., LTD. TRADE / MODEL(s): FREEWING / YM-1031K EUT TYPE: Non-Broadcast transmitter Held to Ear (TNE) Tx Freq. Range: 824.70 — 848.31 MHz Rx Freq. Range: 869.70 — 893.31 MHz Max. RF Output Power: 0.311 W ERP CDMA (24.933 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: YISO TELECOM CO., LTD.

December 14, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: Yiso Telecom Co., Ltd. FCC ID: PC6YM-1031K 731 Confirmation No.: EA102780 Correspondence Reference No.: 21485 Request for Tech. Info.: 12/13/01 Dear Andy: Transmitted herewith, on behalf of Yiso Telecom Co., Ltd., is an amendment provided in response to the request for technical information dated December 13, 2001. 1. Please find attached the Z-axis scan SAR Data for the highest SAR. 2. Our probe is calibrated at 1900MHz for both brain and muscle. Please find the attached calibration information. Since our phantom is not glycol proof we used a brain simulating tissue with the same permittivity as the new standard but with a higher conductivity. This will lead to an over estimation of SAR. 3. Please find attached the liquid temperatures during all test and validations. 4. We would like to inform that we recalculated the SAR values at 55.19 & 0.975, listed below are the following measurement. a. 824.70 0.978 b. 836.49 1.20 c. 848.31 1.05 5. We would like to confirm that the phantom thickness is 2mm. 6. Please find attached the revised Operational Description. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Standard Telecom Co., Ltd.

© 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA)

© 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA)

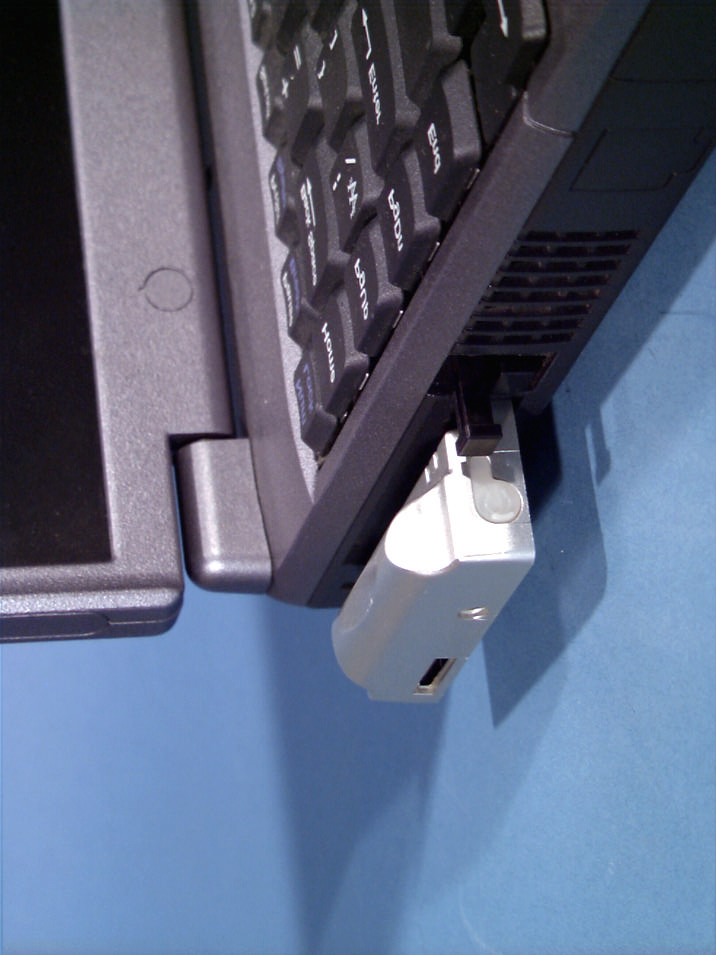

YISO FCC ID: PC6YM-1031K -- Cellular CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.973 mW/g, SAR (10g): 0.367 mW/g YISO Cellular CDMA PCMCIA wireless modem card Model: YM-1031K Cellular CDMA Ch.1013 [824.70MHz]; Flat Phantom (PCMCIA card side of notebook PC parallel to phantom) Conducted Power = 23.0dBm; Spacing = 1.0cm from flat phantom to EUT Test Date -- 10/16/2001 SAR Tot [mW/g] 3.20E-3 9.60E-3 1.60E-2 2.24E-2 2.88E-2 PCTEST Engineering Laboratory, Inc. YISO FCC ID: PC6YM-1031K -- Cellular CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.19 mW/g, SAR (10g): 0.568 mW/g YISO Cellular CDMA PCMCIA wireless modem card Model: YM-1031K Cellular CDMA Ch.0383 [836.49MHz]; Flat Phantom (PCMCIA card side of notebook PC parallel to phantom) Conducted Power = 23.0dBm; Spacing = 1.0cm from flat phantom to EUT Test Date -- 10/16/2001 SAR Tot [mW/g] 2.02E-1 6.07E-1 1.01E+0 1.42E+0 1.82E+0 PCTEST Engineering Laboratory, Inc. YISO FCC ID: PC6YM-1031K -- Cellular CDMA Body SAR Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.05 mW/g, SAR (10g): 0.435 mW/g YISO Cellular CDMA PCMCIA wireless modem card Model: YM-1031K Cellular CDMA Ch.0777 [848.31MHz]; Flat Phantom (PCMCIA card side of notebook PC parallel to phantom) Conducted Power = 23.0dBm; Spacing = 1.0cm from flat phantom to EUT Test Date -- 10/16/2001 SAR Tot [mW/g] 2.87E-2 8.61E-2 1.44E-1 2.01E-1 2.58E-1 PCTEST Engineering Laboratory, Inc.

© 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA)

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) YISO TELECOM CO., LTD. Dates of Tests: Oct. 16-17,2001 249 Yangjae-dog, Seocho-ku Test Report S/N: SAR.211016598.PC6 Seoul, KOREA 137-894 Test Site: PCTEST Lab, Columbia, MD USA Attn: Mr. Sung Hyun Lee, Wireless Comm. Lab. Manager/ R&D FCC ID PC6YM-1031K APPLICANT YISO TELECOM CO. LTD. EUT Type: Single-Mode Cellular CDMA PCMCIA Card Tx Frequency: 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.311 W ERP CDMA (24.933 dBm) Max. SAR Measurement: 1.19mW/g CDMA Body SAR Trade Name/Model(s): YM-1031K FCC Classification: Non-Broadcast Transmitter (TNB) FCC Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C [July 2001] Application Type: Certification This wireless portable device has been shown to be capable of continued compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 and IEEE Std. 1528 (Draft Aug.2000). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210511292.BEJ SAR Measurement Report © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 HEAD SAR TEST POSITIONS OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-22 14.1 SAR TEST EQUIPMENT LIST 23 15.1 CONCLUSION 24 16.1 REFERENCES 25 Test Report S/N: SAR.211016598.PC6 SAR Measurement Report Test Date(s): OCT. 16-17,2001 © 2001 PCTEST Lab SAMSUNG FCC ID: PC6YM-1031K (Model: YM-1031K) 1 Single-Mode Cellular CDMA PCMCIA Card SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: YISO TELECOM CO., LTD. Address: 249 Yangjae-dong, Seocho-ku Seoul, KOREA 137-894 Attention: Mr. Sung Hyun Lee, Wireless Communication Lab. Manager / R&D • EUT Type: Single-Mode Cellular CDMA PCMCIA Card • Trade Name / Model: YM-1031K • FCC IDENTIFIER: PC6YM-1031K • Tx Frequency: 824.70 — 848.31 MHz (CDMA) • Rx Frequency: 869.70 — 893.31 MHz (CDMA) • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • Modulation(s): CDMA • F C C R u l e P a r t ( s ) : §2.1093, OET Bulletin 65, Supplement C (July 2001) • Max. RF Output Power: 0.311 W ERP - CDMA (24.933 dBm) • Max SAR Measurement: 1.19mW/g CDMA Body SAR • Application Type: Certification • Dates of Tests: Oct. 16-17, 2001 Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.211016598.PC6 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.211016598.PC6 SAR Measurement Report Test Date(s): OCT. 16-17,2001 © 2001 PCTEST Lab SAMSUNG FCC ID: PC6YM-1031K (Model: YM-1031K) 2 Single-Mode Cellular CDMA PCMCIA Card 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[5] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (dV) of a given density ( ρ ). It is also defined as the rate of RF energy absor…

Text truncated - open the document above for the full version.

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV6 SN:1560 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 8 ET3DV6 SN:1560 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) ET3DV6 SN:1560 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 8 Conversion Factor Assessment Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 ET3DV6 SN:1560 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 8 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 8 of 8

835MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.15 mW/g, SAR (10g): 1.45 mW/g 835MHz Muscle Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid [10/16/2001] SAR Tot [mW/g] 2.16E-1 6.45E-1 1.08E+0 1.51E+0 1.94E+0 PCTEST Engineering Laboratory, Inc.

December 14, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Andy Leimer SUBJECT: Yiso Telecom Co., Ltd. FCC ID: PC6YM-1031K 731 Confirmation No.: EA102780 Correspondence Reference No.: 21485 Request for Tech. Info.: 12/13/01 Dear Andy: Transmitted herewith, on behalf of Yiso Telecom Co., Ltd., is an amendment provided in response to the request for technical information dated December 13, 2001. 1. Please find attached the Z-axis scan SAR Data for the highest SAR. 2. Our probe is calibrated at 1900MHz for both brain and muscle. Please find the attached calibration information. Since our phantom is not glycol proof we used a brain simulating tissue with the same permittivity as the new standard but with a higher conductivity. This will lead to an over estimation of SAR. 3. Please find attached the liquid temperatures during all test and validations. 4. We would like to inform that we recalculated the SAR values at 55.19 & 0.975, listed below are the following measurement. a. 824.70 0.978 b. 836.49 1.20 c. 848.31 1.05 5. We would like to confirm that the phantom thickness is 2mm. 6. Please find attached the revised Operational Description. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Standard Telecom Co., Ltd.

Test Report S/N: SAR.211016598.PC6 SAR Measurement Report Test Date(s): OCT. 16-17,2001 © 2001 PCTEST Lab SAMSUNG FCC ID: PC6YM-1031K (Model: YM-1031K) 1 4 Single-Mode Cellular CDMA PCMCIA Card 13.1 SAR TEST DATA SUMMARY (Continued) Ambient TEMPERATURE (°C) 22.4 Relative HUMIDITY (%) 60.1 Atmospheric PRESSURE (kPa) 99.6 Mixture Type: 835MHz Muscle Dielectric Constant: 55.2 Measured Depth of Simulating Tissue: 15.5 cm Conductivity: 0.97 Measured Tissue TEMPERATURE (°C) 22.2 13.2 Measurement Results (Cellular CDMA Body SAR w/o Holster) FREQUENCY Modulation Begin / End POWER* Separation Antenna SAR MHz Ch. (dBm) Battery Distance (cm)** Position (W/kg) 824.70 1013 CDMA 23.2 23.0 Standard 1.0 [without Holster] Fixed 0.973 836.49 0383 CDMA 23.3 23.0 Standard 1.0 [without Holster] Fixed 1.190 848.31 0777 CDMA 23.2 23.0 Standard 1.0 [without Holster] Fixed 1.050 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population Brain 1.6 W/kg (mW/g) averaged over 1 gram NOTES: 1. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3. * Power Measured ⌧ Conducted † EIRP † ERP 4. SAR Measurement System ⌧ SPEAG † IDX Phantom configuration ⌧ Flat Phantom 5. SAR Configuration † Head ⌧ Body † Hand 6. ** Test Configuration † Holster ⌧ Without Holster Spacing = 2.0cm from flat phantom to the back top & base of phone, 1.7cm from flat phantom to retracted antenna, & 1.0cm from flat phantom to extended antenna. The worst-case spacing of 1.0cm is noted and specified in the User’s Manual on the RF Exposure Warning page. Figure 26. Body SAR Test Setup

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification YISO TELECOM CO., LTD. Dates of Tests: Oct. 16-17, 2001 249 Yangjae-dog, Seocho-ku, Test Report S/N: 22.211016600.PC6 Seoul, KOREA 137-894 Test Site: PCTEST Lab, Columbia MD Attn: Mr. Sung Hyun Lee, Wireless Comm. Lab Manager/R&D FCC ID PC6YM-1031K APPLICANT YISO TELECOM CO., LTD. Classification: Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): §22.901(d), §2 EUT Type: CDMA Wireless Modem PC Card (PCMCIA) Trade Name/Model(s): YISO/ YM-1031 Tx Frequency Range: 824.70 ~ 848.31 MHz (CDMA) Rx Frequency Range: 869.70 ~ 893.31 MHz (CDMA) Max. RF Output Power: 0.311W ERP CDMA (24.933 dBm) Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 211016600.PC6 Certification © 2001 PCTEST Engineering Laboratory, Inc. FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS PER §2.1033(d) 3 4.1 DESCRIPTION OF TESTS 4-6 5.1 EFFECTIVE RADIATED POWER OUTPUT 7-8 6.1 RADIATED MEASUREMENTS 9-14 7.1 FREQUENCY STABILITY 15-16 8.1 PLOTS OF EMISSIONS 17 9.1 LIST OF TEST EQUIPMENT 18 10.1 SAMPLE CALCULATIONS 19 11.1 CONCLUSION 20 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: CIRCUIT DIAGRAMS & DESCRIPTION ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 22.211016600.PC6 FCC Part 22 Test Dates: Oct. 16-17, 2001 Certification © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) 1 CDMA Wireless Modem PC Card (PCMCIA) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033(a) General Information Applicant Name: YISO TELECOM CO., LTD. Address: 249 Yangjae-dog, Seocho-ku Seoul, KOREA 137-894 Attention: Mr. Sung Hyun Lee, Wireless Comm. Lab. Manager / R&D • FCC ID: PC6YM-1031K • Trade Name/Model(s): YISO/ YM-1031K • Quantity: Quantity production is planned • Emission Designator: 40K0F8W, 40K0F1D, 1M25F9W • Tx Frequency Range: 824.70 ~ 848.31 MHz (CDMA) • Rx Frequency Range: 869.70 ~ 893.31 MHz (CDMA) • Equipment Class: Non-Broadcast Station Transmitter (TNB) • Equipment Type: CDMA Wireless Modem PC Card (PCMCIA) • Modulation: CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • Max. RF Output Power: 0.311W ERP CDMA (24.933 dBm) • FCC Rule Part(s): §22.901(d), §2 • Power Source: From Host Computer • Dates of Tests: Oct. 16-17, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.211016600.PC6 Test Report S/N: 22.211016600.PC6 FCC Part 22 Test Dates: Oct. 16-17, 2001 Certification © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) 2 CDMA Wireless Modem PC Card (PCMCIA) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable, 3-meters from the receive antenna. The receive antenna height and turntable rotations was adjusted for the highest reading on the receive spectrum analyzer. A half- wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This level was recorded. For readings above 1 GHZ, the above procedure would be repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: 22.211016600.PC6 FCC Part 22 Test Dates: Oct. 16-17, 2001 Certification © 2001 PCTEST Lab FCC ID: PC6YM-1031K (Model: YM-1031K) 3 CDMA Wireless Modem PC Card (PCMCIA) 3.1 INSERTS PER Function of Active Devices (Confidential) The Function of active devices is shown in Attac…

Text truncated - open the document above for the full version.
