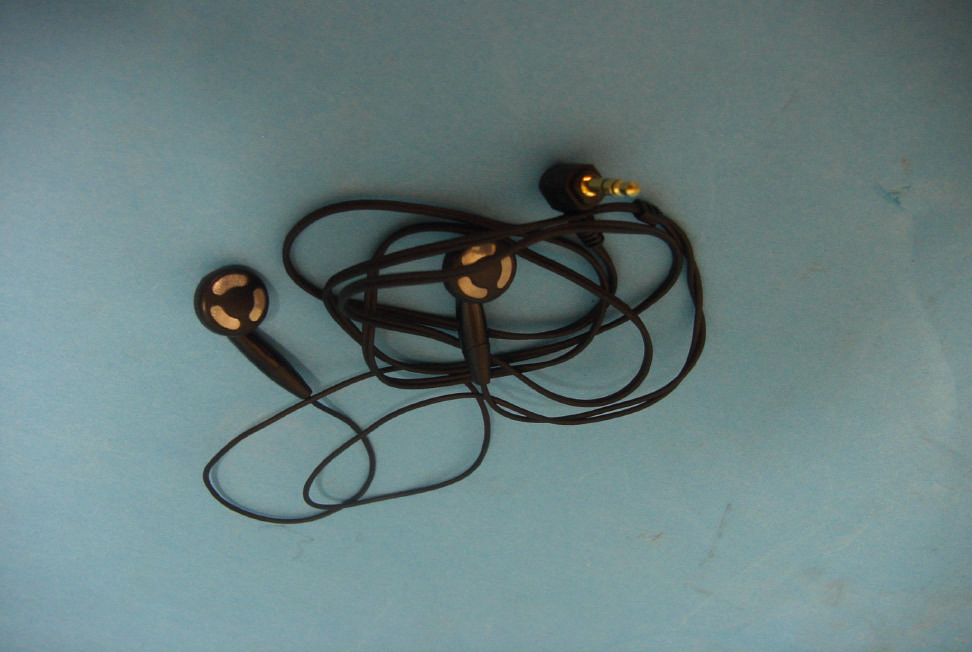

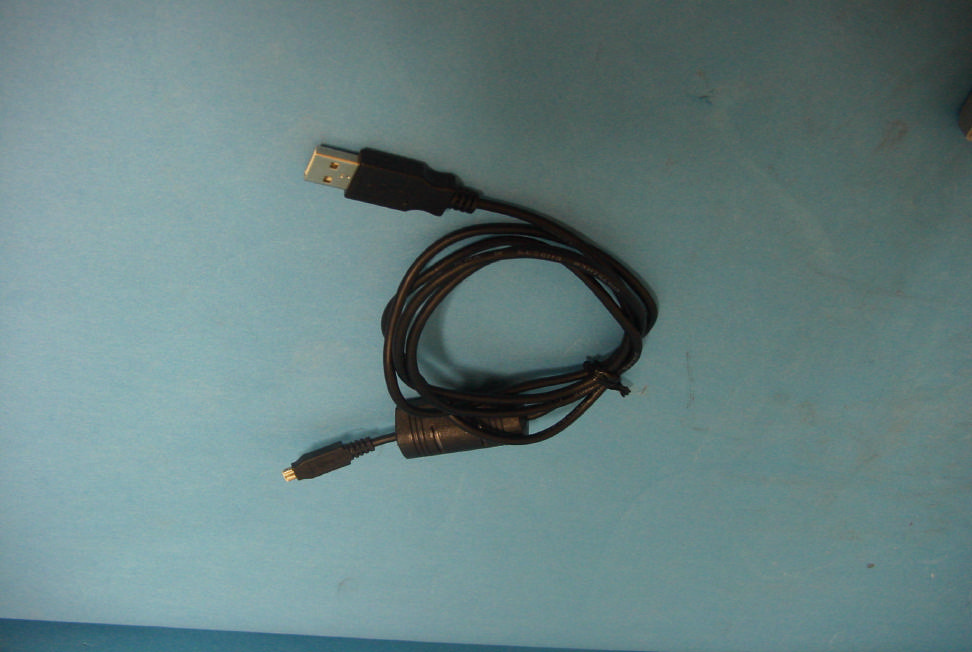

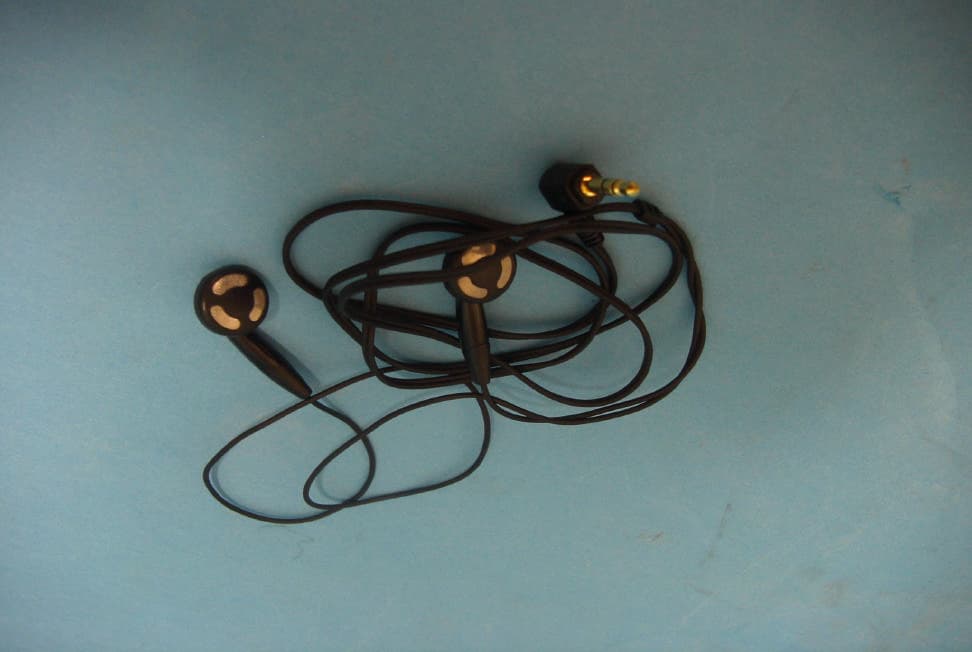

PCMAR210MP3 Player

Page 2 Welcome to the DUAL-Play Experience Page 3 Included with Your DUAL-Play Page 3 PC System Requirements Page 4 DUAL-Play Hardware Overview Page 6 Software CD Contents Page 7 Installing the M • ANY Loader Page 9 Getting Started with DUAL-Play Page 10 Using the M • ANY Loader Page 13 How to download files to DUAL-Play Page 14 Operating the DUAL-Play(Stand-alone with headphones)Page 15 Inserting the DUAL-Play into a Cassette DeckPage 16 DUAL-Play Cassette Deck Operation Page 17 Audible.com Content Playback Operation Page 19 Handling and Storing Instructions Page 20 Battery and Charger (AC and DC charger) Usage Page 22 Troubleshooting Problems Page 24 Installing the USB Drive Page 25 Warranty Service Page 26 Voice Recording, Music Encoding CONTENTS 1 Congratulations on your purchase of the DUAL-Play portable digital player - the only playeron the market specifically designed to play digital music on any standard analog cassette deckwith high fidelity sound and without the need for cumbersome and inconvenient wiredadapters. The DUAL-Play contains 32 / 64 / 128MB of on-board memory that is easilyexpandable to via the MultiMediaCard (MMC) flash memory slot. The DUAL-Play wasdesigned with a programmable, upgradeable Digital Signal Processor (DSP) to support newaudio formats and digital rights management systems. Please check the Hyan Won website atwww.m-any.com for the latest software upgrades and accessories. You are now ready to enjoy the world of digital audio with the most versatile digital audio player on the market today. WELCOME TO THE DUAL-Play EXPERIENCE 2 The following components are included with your DUAL-Play:A. AC Battery ChargerB. DC Car Battery Charger / Charger Connection Cable (Option)C. 2 Ni-MH Rechargeable BatteriesD. Software CDE. USB Connection CableF. Carrying CaseG. EarphonesH. Owner's ManualNote : Accessories and optional items are subject to change. Please check www.m-any.com for the latest in DUAL-Play accessories and software upgrades. INCLUDED WITH YOUR DUAL-PlayThe following PC specifications are required for DUAL-Playcompatibility:Microsoft ® Windows ® 98, ME or 2000 Operating System CD-ROM Drive with digital audio extraction supportPentium (or compatible) 200MHz or higher processor32MB RAM (64MB for Windows ® ME or 2000) or greater 32MB free Hard Disk Space (more for digital audio file storage)Sound cardUSB port capability PC SYSTEM REQUIREMENTS 3 AC Battery Charger Ni-MH RechargeableBatteries DC Car Battery Charger(Option) Software CD Carrying Case Earphones USB Connection Cable Your DUAL-Play has the following hardware features : Top and side panelTop and Side PanelA. Battery Cover : Slide the cover on top of the unit away from the control buttons to open, and then insert your rechargeable DUAL-Play battery. B. Memory Card Slot : A removable MultiMediaCard TM (MMC) flash memory card (sold separately) enables your DUAL-Play to expand its memory capacityand store more audio files. MMC memory cards are insertedcompletely into the unit with the gold contacts facing downward andpositioned facing the back of the player. C. Power Switch : Powers your DUAL-Play on and off as well as enabling the Hold feature, which disables the on-board controls. D. Earphones Audio Output : Connects your earphones for stereo output. E. Remote Control Slot : Connects remote control. F. USB Port Connector : Connects your DUAL-Play to your computer for fast, efficient file transfers at speeds up to 2.5 Mbps. G. Charger Connector : The DC/AC charger and cable allow users to play DUAL-Play when battery is discharged. * In case of voice or MP3 encoding models the power switch has REC/ON/OFF position. The REC position disables button control like aHOLD function. DUAL-Play HARDWARE OVERVIEW 4 Removable Memory CardThe DUAL-Play is compatible with MultiMediaCard TM (MMC) removable flash memory (sold separately), which enables your DUAL-Play to expand its memorycapacity and store more audio content. When inserting or removing a MMC card,make sure the DUAL-Play is OFF or the memory card may be damaged. MMCflash memory cards are inserted completely into the unit with the gold contactsfacing downward and positioned facing the back of the player. Note : When an MMC card is not used, the MMC cover that comes with the unit must beused and fully inserted into the player to prevent damage to the internal MMC slot.If there is an error reading the MMC card (such as error code 4), briefly remove theMMC card, check that it is oriented properly (gold contacts facing the back of theplayer and down) and then re-insert it into the player while the player is stillconnected to the PC. DUAL-Play HARDWARE OVERVIEW 5 A. Battery CoverG. Charger ConnectorF. USB Port ConnectorD. Earphones Audio OutputE. Remote Control SlotC. Power Switch(HOLD/ON/OFF) *B. Memory Card Slot INSTALLING THE M • ANY Loader 7 In order for the DUAL-Play and your PC to communicate and transferdigital files, you must first install the M • ANY Loader by completing the following steps:1. Insert the M • ANY Loader CD into the CD-ROM drive. The following screen should display: Note : If the setup file is executed automatically, follow the install program instructions. If the setup file is not executed automatically, browse the installation CD anddouble click on the install.exe file on the CD-ROM file directory. (Example"D:\install.exe", where D: is your CD-ROM drive) You can locate these files bygoing to your Windows Start menu, and then Run. 2. Click on the M • ANY Loader button. The following page will display. 3. Click on the Next button. The following page will display. 6 Application Function M • ANY Loader Transfer digital audio files to/from DUAL-Play Windows Media Player Manage audio files Audible Manager Download, playback of and transfer of Audible.com content to DUAL-Play* * Requires latest version Audible Manager software downloaded via included software CD and Internet download. Connect to the Internet, insert theSoftware CD, then sel…

Text truncated - open the document above for the full version.

ID Label Sample & Location Information Hyun Won Inc. Model Name : AR-210 MEMORY: 64M/128M/256M BATT: Ni-Mn Input: DC 1.2V This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PCMAR210 Made in Korea

IST EMC LAB. 1 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 02-IST-027/FB Date of issue : Feb. 21, 2002. Model / Type No. Kind of product Brand name Applicant Manufacturer Address : AR-210 : MP3 Player : DUAL Play : Hyun Won Inc. : Hyun Won Inc. : 333-1, Shindae-Ri, Kumho-Eup, Youngcheon-City, Kyoungbuk, Korea. Test result according to the regulation(s) n Positive o Negative at page 3. This test report without appendix consists of 20 pages. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. IST EMC LAB. 2 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Environmental Conditions Test Conditions Equipment under Test Test Result Test-setups (Photos ) Test-setup (Figures) Summary 2 3 3 4~5 6 7 8~10 11~12 20 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 13~15 16~19 C) Appendix IST EMC LAB. 3 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. ENVIRONMENTAL CONDITIONS Temperature Humidity Atmospheric pressure 8 46 % 1003 mbar IST EMC LAB. 4 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jun. 16, 2001 861742/015 3725/2 LISN EMCO Jul. 30, 2001 9101-2068 KNW-407 LISN Hyup-Rip Jul. 26, 2001 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 13, 2001 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : Y.J.Kim / Research Engineer IST EMC Lab. IST EMC LAB. 5 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Location : Open Site No. 1 Open Site No. 2 Open Site No. 3 Distance : 3 meters 10 meters Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESVP Test Receiver Rohde & Schwarz Jun. 12, 2001 861744/018 VULB 9160 Antenna Schwarzbeck Jun. 04, 2001 3048 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement procedures Radiated measurements were in accordance with ANSI C63.4-1992 “Method of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurements were performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a EMI/Field Intensity Meter. The measurements were made with the detector set for “quasi-peak” within a bandwidth of 120kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : Y.J.Kim / Research Engineer IST EMC Lab. IST EMC LAB. 6 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description The Equipment Under Test (EUT) is the MP3 Player of Hyun Won Inc. Outer dimensions 100.4(W) x 63.8(H) x 12.0(D) (mm) Weight 55g(including the batteries 66g) Power requirements DC 1.2V, Ni-Mn battery Flash memory 64MB On-board(expandable to 256MB though) Multi Media Card(MMC) Slot Singnal to Noise Ratio 90dB Effective maximum output 5mW Frequency Range 20Hz ~ 20kHz PC Interface USB(Universal Serial Bus) File download speed down to 2.5Mbps internal memory, 900Kbps MMC PC OS Windows 98, ME, 2000 EUT Type : Table-Top. Floor-Standing. Table-Top and Floor-Standing(Combination). Operation – mode of the E.U.T. : The equipment under test was operated during the measu…

Text truncated - open the document above for the full version.

Play : Radiated Emission 30MHz ~ 1000MHz Files download : Radiated Emission 30MHz ~ 1000MHz Files download : Conducted Emission 450kHz ~ 30MHz
