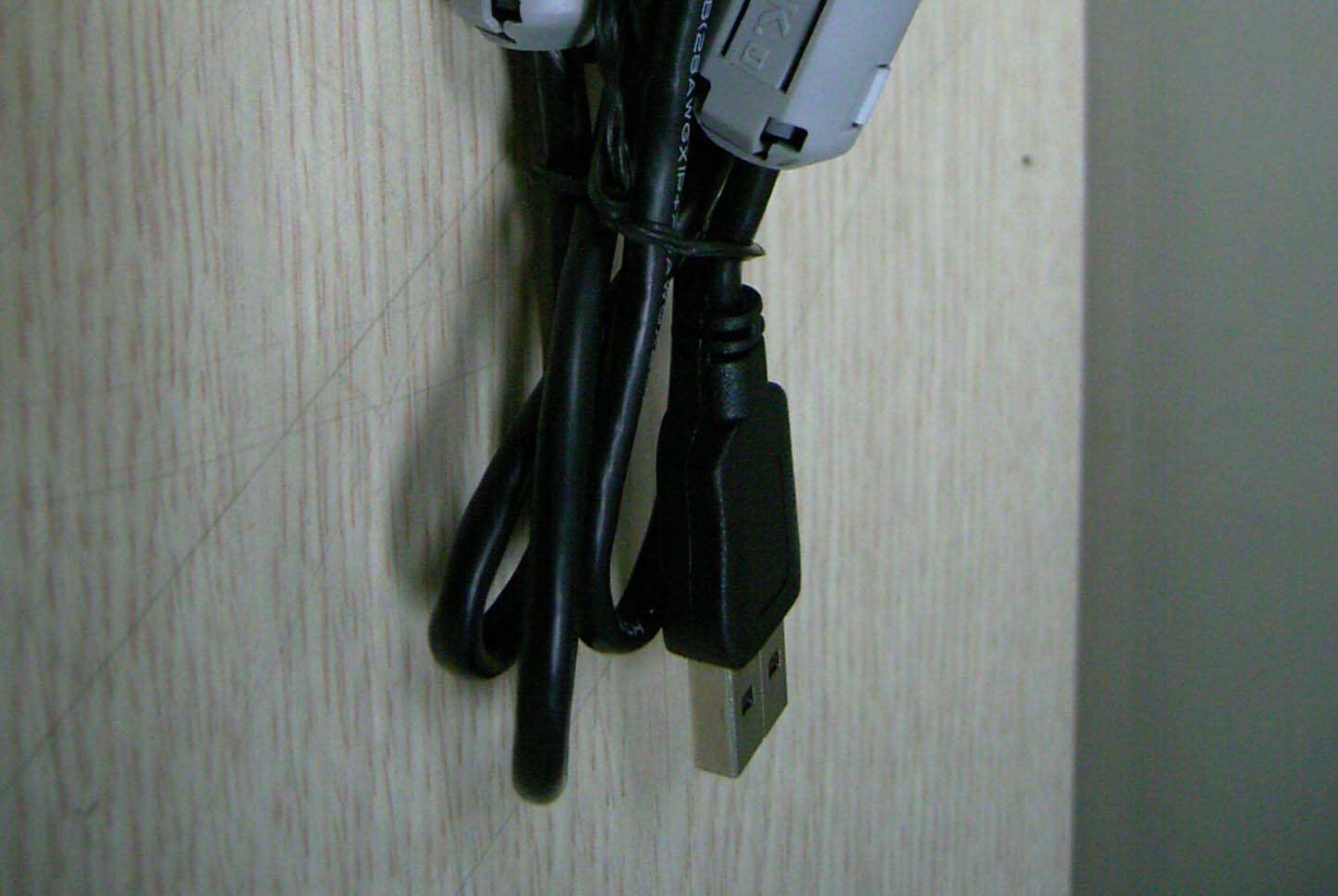

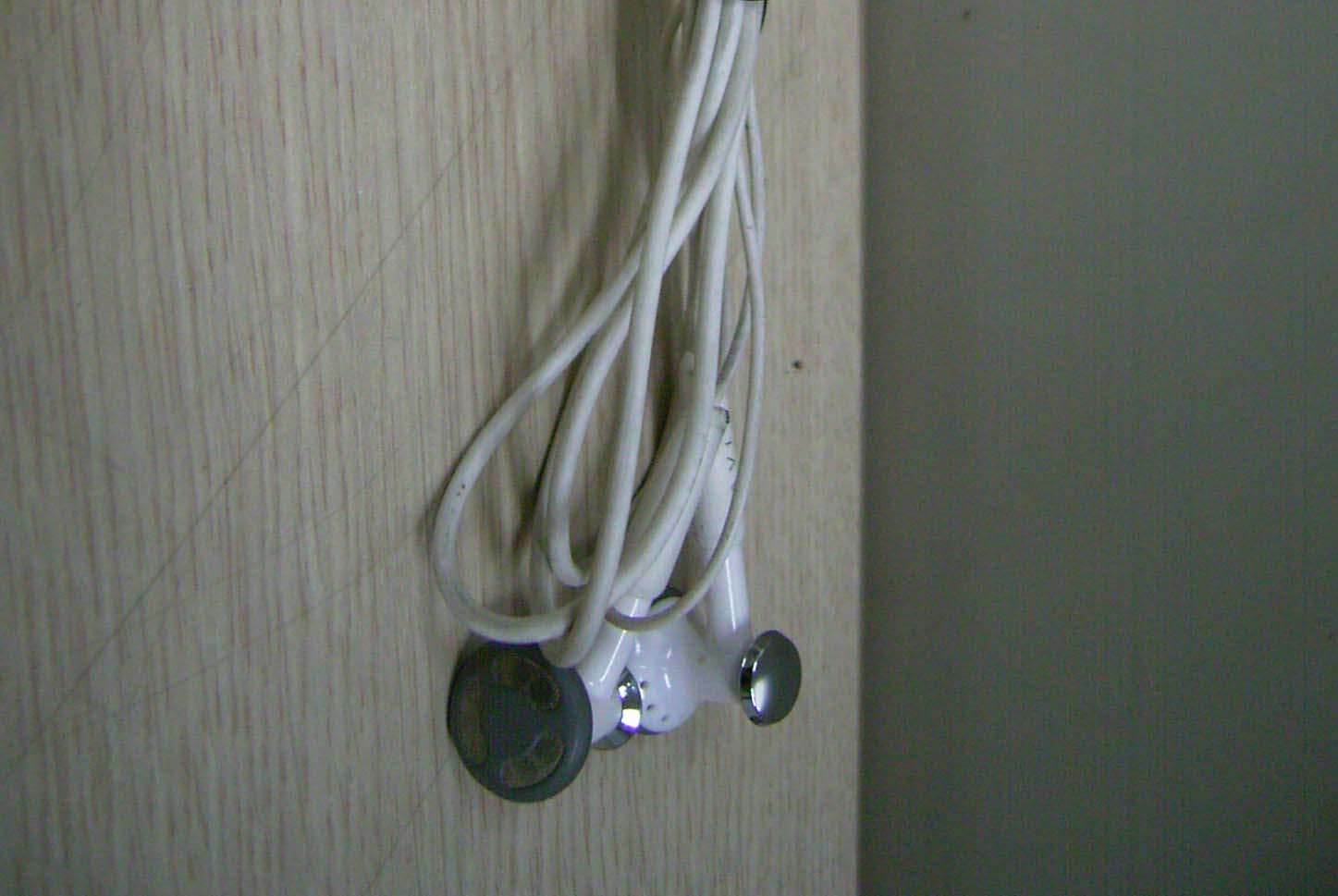

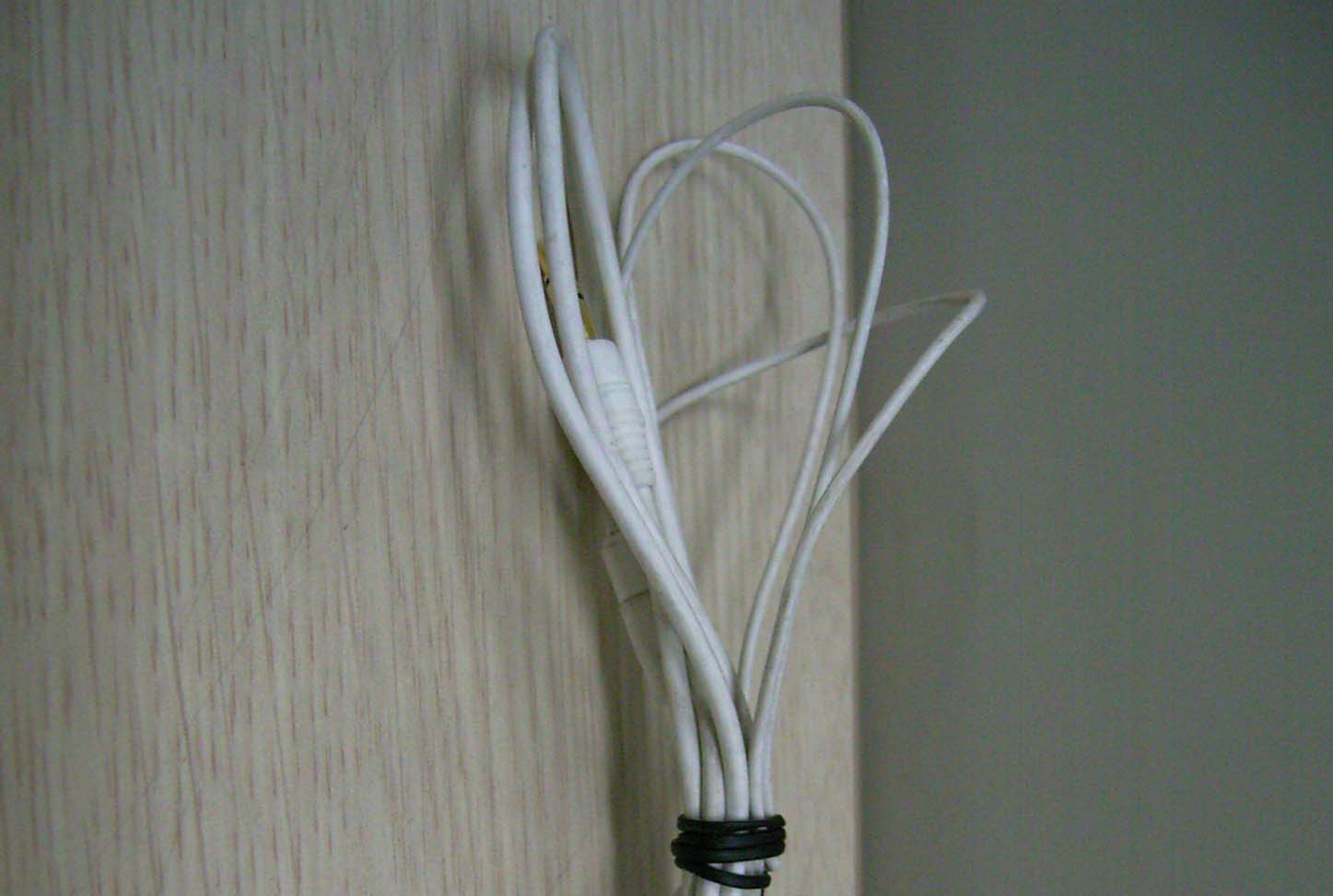

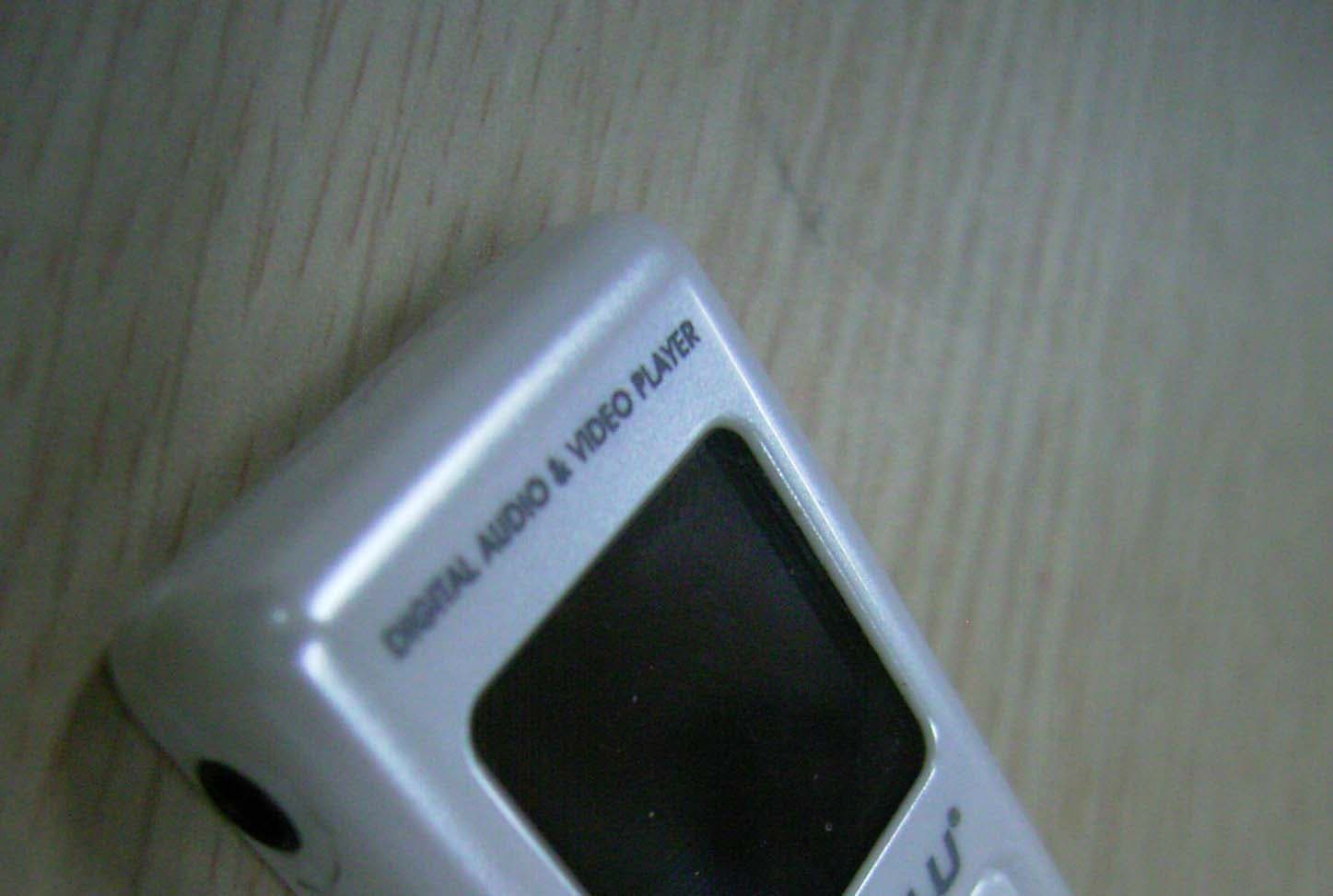

PCMDAH-2100Digital Audio Player

http://www.mobiblu.com User’s Manual Please read this user’s manual carefully before getting started. Recharge the built-in battery using the USB cable supplied with thedevice before getting started. P/N : SAF210M0B1 http://www.mobiblu.com Safety Precautions/ Special Features/ Specifications/Accessories/ Location of Controls/ Buttons/ Display/Power/ Recharge/ Connection with PC/Disconnection from PC Getting Started Power on / Power off / Modes/ Navigation / Hold/ Listening to Music/ File Selection/ Section Repeat/Folder Setting for Play/ EQ/ Tempo/ Delete File/Movie Recorder Voice Recording/ Music RecordingListening to Recorded Files View Image Album Basic Functions 24 Page 3 Page 30 Page 40 Page 48 Page Player View Text Reader FM Radio/ Territory/ Scan Frequency/ SaveChannel/Preset Mode/ Delete Channel/ Recordingprogram Setting System Program System Requirement/ Driver for Windows 98SE/Converter/ AVI Maker/ Converting File/ FileDownload-Upload/ Format This may not be a trouble!FCC RF INTERFERENCE STATEMENTWarranty Card Support FM Radio 52 Page 50 Page 62 Page 66 Page 80 Page Setting System 4 Safety Precautions Getting Started Safety PrecautionsSpecial FeaturesSpecificationsAccessoriesLocation of ControlsButtonsDisplayPowerRechargeConnection with PCDisconnection from PC 479 1011131517192021 The user may be in danger of death or a major injury if he/shedoes not use the device in conformity with the provisionsstated in this mark. The user may be subject to a major injury if he/she does notconform to the provisions disclosed in this mark. The user may be subject to a minor injury or propertydamage when he/she does not conform to the provisionsof this mark. Carefully read this part before using the device. The Safety Precautions are classified into three categories; Danger,Warning and Caution. We are not responsible for any damage or loss if the device was notused in conformity with these precautionary provisions. Getting Started 6 Safety Precautions Getting Started 5 Safety Precautions Getting Started Don’t disassemble ormodify the device at yourown discretion. Don’t put theDevice close toany heating deviceor under directsunlight. It may explode. Avoid the Device from dropping or receivingexcessive shock. It maydamage the Device. Fire orelectric shock may take placewith the damaged Device. Don’t touch the device with a wet hand. Don’t use the earphone setwhile riding a bicycle ormotorcycle,or drivinga car. Distributing music files withoutauthorization is against copyrightlaw. Continuous recharge after thecompletion of battery recharge maydamage the product. Listening to sound sources with a highvolume may cause ahearing disorder. Never use anychemical or cleanserto clean the devicethis may damagethe surface of thedevice. The manufacturer is not responsiblefor any damaged data stored in thedevice if the device error wascaused by the user’scarelessness. The data storedin the device may be deleted ordamaged during A/S. Avoid humidity and dustyareas Immediately reset the devicewhen it generates excessiveheat or if there is a burningsmell, and then contact ourA/S agent for repair. Keep the device away from children’s access.Parental attention isadvised for children’suse. DANGER DANGER Take a good care to avoid the headphone or earphonefrom being caught betweendoors. 7 Special Features Getting Started 8 Special Features Getting Started 1. Voice Record / MP3 Play The device enables you to record voice (voice recorder) whilingenjoying MP3 files (MP3 Player). 3. Movie Enjoy movies and music video’s with the device. 4. Digital Interface (USB 2.0) Using a USB cable, the device can communicate with a PC for transferringMP3 files, Recorded files and e-mail. 5. Auto Power Off The power automatically goes off after a preset period of time when nobutton manipulation has been made. 6. FM – Listening & Recording You can scan for FM programs both manually and automatically to listen toand record programs you desire. 7. Removable Disk Driver The device can be used also as a removable disk for file transferring. 8. Repeat You can listen to files and folders repeatedly. 9. Section-repeat In playing a file, you can listen to a certain streaming range repeatedly. 10. Fast Search You can easily find a certain part in the file you are listening to. 11. EQ setting Select the sound tone you desire among, NORMAL, CLASSIC, JAZZ, POP,ROCK, DANCE and ULTRA BASS. 12. Monitoring Recorded Files You can monitor what you are recording with the aid of an earphone. 13. Firmware Upgrade Through upgrading the firmware in the device, you can keep your deviceupdated for new functions and file types. 2. View Text / Image You can view both texts and images. 10 Getting Started Accessories 9 Specifications Getting Started Functions FM Tuner Audio Supporting Files USB FM Frequency Range Headset Output S/N RatioAntenna FrequencyCharacteristics Headset OutputS/N Ratio Supporting file types Bit RateDownload speed 30Mbps (USB Ver 2.0)Audio: 12hoursVideo: 4hours-5 ~70 Li-Polymer 87.5MHz ~ 108.0MHzMax. 7mW (16 ) at Max. Volume 50dBHeadset/earphone code antenna 20Hz ~ 20KHzMax. 15mW (16 ) at Max. Volume 90dB MP3, WMA, OGG, JPEG, TXT, AVI MP3 : 8~320Kbps, WMA : 32~192KbpsOGG : Q0~ Q10 Specifications Items Recording period Max. Playback hours Operating Temperature Size (W*H*D) Weight (battery inclusive) Battery (built-in) Voice: 1,040 minutes (with256MB/ at 32Kbps) USB Cable Line-in Cable Earphone Program CD User’s Manual The depicted images of below accessories may look slightly differentto their actual looks. The accessories of below lineup can be changed without priornotice. Portable Case 31mm x 65mm x 14mm31g Neck Strap 12 Location of Controls Getting Started 11 Location of Controls Getting Started Front Side Top/Bottom LCD FF REW Volume Navigation/ MENU Earphoneport Power, Play, Pause,Rec. Start Mode Change, A-B RESET Neck Strap Hook Rec. Rec. Stop HOLD USB Port 14 Buttons Getting Started 13 Buttons Getting Started Power ON/OFFPlay/ Pause Mo…

Text truncated - open the document above for the full version.

DAH-2100 BLOCK DIAGRAM

4th Floor, e-Venture Building, 74-2, Shincheon 3-dong, Dong-gu, Deagu-City, South Korea Tel : 82.53.743.7200 / Fax : 82.53.743.2112 www.mobiblu.com Factory April 17, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize IST Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by IST Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing IST Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; : 333-1 Shindea-Ri, Kumho-Eup, YoungCheon-City, Kyoungbuk, South Korea http://www.mobiBLU.com e-mail : [email protected] 4th Floor, e-Venture Building, 74-2, Shincheon 3-dong, Dong-gu, Deagu-City, South Korea Tel : 82.53.743.7200 / Fax : 82.53.743.2112 www.mobiblu.com Factory e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Yong Seog Ko / Director GQM(Global Quality Management) Dept. Hyun Won Inc. : 333-1 Shindea-Ri, Kumho-Eup, YoungCheon-City, Kyoungbuk, South Korea http://www.mobiBLU.com e-mail : [email protected]

ID Label Sample & Location Information

IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 06-IST-0265 1 of 25 Certification of Compliance CFR 47 Part 15 Subpart B Test Report File No. : 06-IST-0265 Date of Issue : June 8, 2006 Model(s) : DAH-2100 Kind of Product : Digital Audio Player FCC ID : PCMDAH-2100 Applicant : HYUN WON INC. Address : 4th Floor, e-Venture Center, 74-2 Shinchen3-dong, Dong Gu, Daegu City, South Korea Manufacturer : HYUN WON INC. Address : 4th Floor, e-Venture Center, 74-2 Shinchen3-dong, Dong Gu, Daegu City, South Korea Test Result ■ Positive □ Negative Reviewed By Approved By S.J.CHO / EMC Group Manager J.H.LEE / Chief Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart B – Unintentional Radiators, Class B. - The test report with appendix consists of 25 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 2004. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 06-IST-0265 2 of 25 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental conditions, Power used, Product information 3 Descriptions of test Conducted Emission 4 Radiated Emission 5 Measurement Uncertainty Calculations 6 Equipment Under Test 7 Test Set-Up (Figure) 8 Summary 9 ■ Test Conditions and Data - Emissions ◆ Conducted Emissions 0.15MHz - 30MHz Applicable Test Conditions / Data and Plots 10-12 ◆ Radiated Emissions 30MHz - 1GHz Applicable Test Conditions / Data and Plots 13-19 Appendix A. The Photos of Test Setup 20-23 B. The Photos of Equipment Under Test 24-25 Note: IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 06-IST-0265 3 of 25 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. (FCC Filing Lab.) 80, Jeil-Ri, Yangji-Myun, Yongin-City Kyonggi-Do, 449-860, Korea TEL : +82 31 333 9018 FAX : +82 31 333 9019 ENVIRONMENTAL CONDITIONS Temperature 11 °C Humidity 43 % Atmospheric pressure 1013 mbar POWER SUPPLY SYSTEM USED Power supply system AC 120Vac, 60Hz (Refer to the product information) PRODUCT INFORMATION The Equipment Under Test(EUT) is MP3 PLAYER of HYUN WON INC. (FCC ID : PCMDAH-2001) LCD Display: 3.5-inch TFT LCD, 320x240 pixels. 16.7Milion Colors File Formats: Divx3.11/4/5. XviD,MPEG1(VCD),MPEG2(DVD), MPEG4(WMV and ASF: transcoding software) up to 720x576 pixels, 30 f/s, 8Mbps Bit rate VIDEO: Bookmark/resume/Video Subtitles AUDIO: File Formats: MP3(8~320Kbps),WMA, Ogg Vorbis(Up to Q10), AC3, AAC ID3 Tag Support/Sound Spectrometer RECORD: Recording (Direct Encoding): MP3 Recording Source: Voice(Built-in Mic.), FM Radio(Direct) FM RADIO: FM Frequency Range: 76MHz-108MHz(Global/International FM Ready) POWER: Built-in Rechargeable Lithium Ion Battery Adaptor: Input-AC 100V to 240V, Output-DC 5V 2A SYSTEM REQUIREMENT Microsoft Windows XP/2000, Mac OS, Linux SIZE & WEIGHT Dimensions: 92.6mm Χ81mm Χ24.6mm Weight: approx. 259g(8.8 oz.) - EMC suppression device is not used during the test . - Please refer to user’s manual. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 06-IST-0265 4 of 25 < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80 ≥ 80 80 40 ≥ 80 Measuring apparatus Mains Filter Mains Rear side Equipment under test Coaxial cable A rtificial mains network Screened room Non-metallic support 80 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.15MHz to 30MHz using a ESH2-Z5 LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of 10KHz or for "quasi-peak" & “Average” within a bandwidth of 9KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1m X 1.5m wooden table 80cm height is placed 40cm away from the vertical wall and 1.5m away from the other wall of the shielded room. The ESCS30 and ESH2-Z5 LISN are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80cm from the LISN and powered from the ESH2-Z5 LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the ESH2-Z5 LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling to a 1m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the ESCS30 receiver to determine the frequency producing the maximum emission from the EUT. The frequency producing the maximum level was reexamined using Quasi-Peak mode by manual measurement, after scanned by automatic Peak mode for frequency range from 0.15 to 30MHz. The bandwidth of the receiver was set to 10kHz. The EUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. < Side View > IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 06-IST-0265 5 of 25 DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for "quasi-peak" within a bandwidth of 120KHz. - Procedure of Test Preliminary measurements were made at 3 meter using bi-log antennas, and spectrum analyzer to determine the frequency producing the max. emission in anec…
