PCMDAH-1700MP3 Player

Appendix E. Block Diagram E05.0415.FCC.220N, Page 1 of 1 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0

Appendix C. External Photographs E05.0415.FCC.220N, Page 1 of 1 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Front View of EUT Rear View of EUT

Appendix A. FCC ID Label and Location E05.0415.FCC.220N, Page 1 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. Hyun Won Inc. MP3 Player FCC ID : PCMDAH-1700 Model No. : DAH-1700 POWER : Lithium Polymer Battery 459 mAh, DC 3.7 V Serial No. : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer : Hyun Won Inc. Made in Korea Appendix A. FCC ID Label and Location E05.0415.FCC.220N, Page 2 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

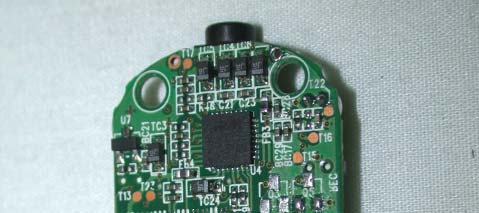

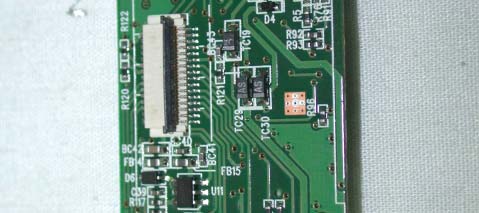

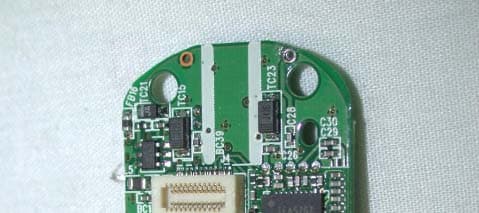

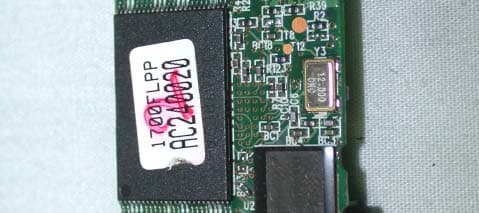

Appendix D. Internal Photographs E05.0415.FCC.220N, Page 1 of 8 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Inside View of EUT I Inside View of EUT II Appendix D. Internal Photographs E05.0415.FCC.220N, Page 2 of 8 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side View of Main Board Appendix D. Internal Photographs E05.0415.FCC.220N, Page 3 of 8 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Solder side View of Main Board Appendix D. Internal Photographs E05.0415.FCC.220N, Page 4 of 8 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side View of Sub Board Appendix D. Internal Photographs E05.0415.FCC.220N, Page 5 of 8 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Solder side View of Sub Board Appendix D. Internal Photographs E05.0415.FCC.220N, Page 6 of 8 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Component side View of LCD Board Solder side View of LCD Board Appendix D. Internal Photographs E05.0415.FCC.220N, Page 7 of 8 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 View of USB Cable View of Audio Cable Appendix D. Internal Photographs E05.0415.FCC.220N, Page 8 of 8 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 View of Ear Phone Inside View of Battery

FCC TEST REPORT E05.0415.FCC.220N, Page 5 of 16 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 2.1 General Remark The tested model name is DAH-1700. This model has memory chip-set of 128 MB, 256 MB, 512 MB and 1GB. Only, differences are capacity of memory chip-sets. The tested memory is inside memory chip-set of 1GB. Because this memory chip-set is worst case investigated during the test. 2.2 Equipment Description The Equipment Under Test (EUT) is the Hyun Won Inc., Model: DAH-1700. 2.3 General Specification Class Items Specification FM Frequency Range 76 MHz – 108.0 MHz Headset Output Left 7 mW + Right 7 mW (16) Max. Volume S/N ratio 50 dB FM Tuner Antenna Headset / Earphone code antenna Frequency Characteristic 20 Hz ~ 20 kHz Headset Output Left 20 mW + Right 20 mW (16) Max. Volume Audio S/N ratio 90 dB File Type MP3, WMA, OGG, WAV, ASF, JPEG, MPEG4 File Bit Rate MP3 : 8 kbps – 320 kbps, VBR WMA : 32 – 192 kbps OGG : Q – 1 – Q10 WAV : MS – ADPCM USB Download Speed 40 Mbps Recording hours 1040 minutes for voice recording Max. Playback hours Audio : approx. 12 hours Video : approx. 3 hours Operational Temperature - 5 °C – 70 °C Display 65000 Color OLED Size (W * H * D mm) 58 * 28 * 22 Weight(g) 35 (Battery inclusive) Battery Lithium Polymer (built – in type)

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This MP3 Player Model DAH-1700 has been tested in accordance with the measurement procedures specified in ANSI C63.4-2001 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Yo Han, Park / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea PRODUCT : MP3 Player MODEL/TYPE NO : DAH-1700 FCC ID : PCMDAH-1700 APPLICANT : Hyun Won Inc. 4 th Floor, e-Venture Center, 74-2, Shinchen 3-Dong, Dong-Gu, Daegu City, South Korea Attn.: Jeong Hwan, Ma / Assistant Manager FCC CLASSIFICATION: Class B personal computers and peripherals FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : Hyun Won TEST REPORT No. : E05.0415.FCC.220N DATES OF TEST : April 13 – April 15, 2005 DATES OF ISSUE : April 15, 2005 TEST LABORATORY : ETL Inc. ( FCC Registration Number : 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 FCC TEST REPORT E05.0415.FCC.220N, Page 2 of 16 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual FCC TEST REPORT E05.0415.FCC.220N, Page 3 of 16 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : MP3 Player z Model Number : DAH-1700 z FCC ID : PCMDAH-1700 z S/N : N/A z FCC Rule Part(s) : FCC Part 15 Subpart B z Test Procedure : ANSI C63.4-2001 z FCC Classification : Class B personal computers and peripherals z Dates of Tests : April 15, 2005 z Place of Tests : ETL Inc. EMC Testing Lab. (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 z Test Report No. : E05.0415.FCC.220N Applicant Name : Hyun Won Inc. Address : 4 th Floor, e-Venture Center, 74-2, Shinchen 3-Dong, Dong-Gu, Daegu City, South Korea Attention : Jeong Hwan, Ma / Assistant Manager FCC TEST REPORT E05.0415.FCC.220N, Page 4 of 16 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2001 and CISPR publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2001 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in the america national standard for method of measurement of radio-noise emission from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz (ANSI C.63.4-2001) was used in determining radiated and conducted emissions from the Hyun Won Inc., Model: DAH-1700. FCC TEST REPORT E05.0415.FCC.220N, Page 5 of 16 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 2.1 General Remark The tested model name is DAH-1700. This model has memory chip-set of 128 MB, 256 MB, 512 MB and 1GB. Only, differences are capacity of memory chip-sets. The tested memory is inside memory chip-set of 1GB. Because this memory chip-set is worst case investigated during the test. 2.2 Equipment Description The Equipment Under Test (EUT) is the Hyun Won Inc., Model: DAH-1700. 2.3 General Specification Class Items Specification FM Frequency Range 76 MHz – 108.0 MHz Headset Output Left…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs E05.0415.FCC.220N, Page 1 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Conducted Emission Test Setup Appendix B. Test Setup Photographs E05.0415.FCC.220N, Page 2 of 2 Head Office : # 371-51 Kasan-Dong, Keumcheon-ku, Seoul, 153-803, Korea / Tel : 82-2-858-0786, Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea /Tel:82-31-885-0072, Fax:82-31-885-0074 Form NO: ETL(E)004A4001201-0 Radiated Emission Test Setup
