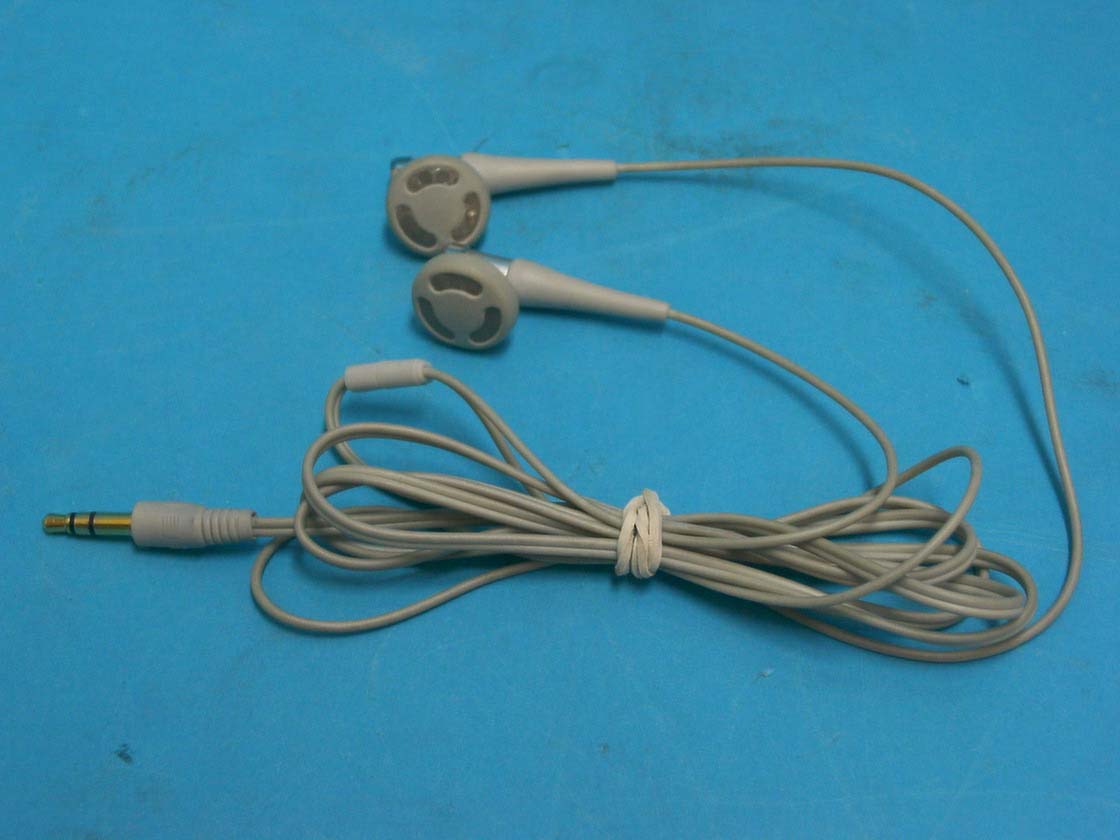

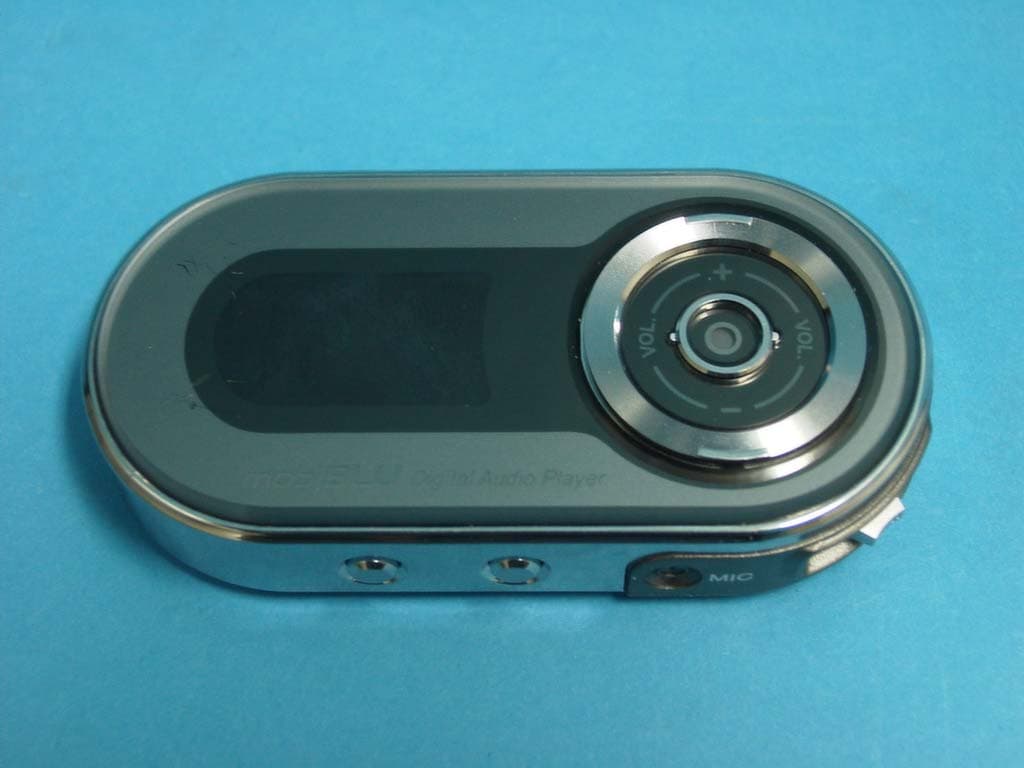

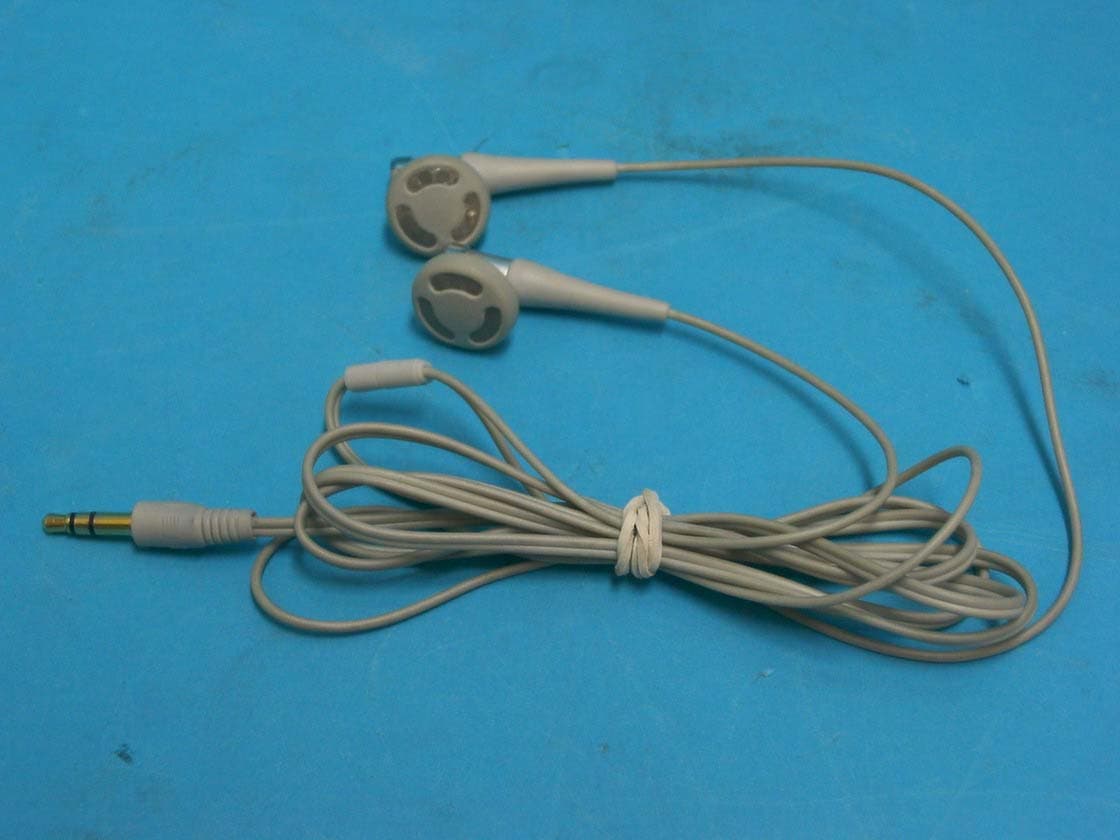

PCMDAH1300MP3 Player

DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300 DAH-1300DAH-1300 Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD Digital Audio Player(MP3+WMA) Voice Recorder FM Radio Negative Graphic LCD User Manual www.mobiblu.com P/N : M1000-031118 Safety Warnings and Cautions Please be aware of these safety instructions and use the product properly in order to prevent risks of injury or damages. Avoid exposing the product to directsunlight (High temperatures appliedto the product may cause damage.) Avoid placing the product under highmoisture or dust level (It cause damageto the product.) Avoid dropping or causing impact theproduct. (It may cause serious damageto the product.) Do not touch or connect the productwith wet hands or if you are in contactwith water.. (This may cause electricshocks when the power is connected.) Special Features of the Product Polished Simple DesignThe World Best Multi-Codec PlayerQuality enhancements have been made including an upgradedGraphic LCD with Negative Graphic display.Mass Storage: You don’t need the software CD anymore. Take theconvenience of direct recognition by the PC using Mass Storagefunction by connecting only. Firmware Upgrade: Enjoy the advantage of advanced product with thefirmware upgrade function. FM Radio: You can also listen to the FM radio anywhere in the world.Functions include auto-search and user defined pre-set frequencies. Preset EQ & User EQ 1.2: Feel the differences using the five stages ofpreset sound qualities and two user-defined sound qualities: Normal Rock Jazz Classic Pop User EQ1 User EQ2 Use the convenient study-support function of the product with theadvanced Linguistic-Repeat system. Safety Warnings and Cautions Do not use any chemical or detergentfor cleaning the products as it maydiscolour or strip the product surface. Never disassemble, repair or rebuild.Contact the support department ifthere are faults with the product. Do not press on the LCD panel withany sharp objects. (This may scratchor damage the product and may voidthe product warranty) Keep the product away from areaswhere extreme vibrations ormagnets exist. Contents 1 My Multiformat Digital Audio Player Thank you for purchasing our portable digital audio player.The product is a Multi Purpose Digital Audio Player that is easy to us and stylishin design and is complemented by a built-in FM Radio and a voice recordingfunction. The player is equipped with ‘solid state’ internal memory and a displaysystem with negative graphic LCD for even better on screen clarity. Benefitingfrom Plug & Play technology installation CD’s are not required for most PCUsers*, combined with this the unit can also be used as a mass storage devicefor all those ‘important or not so important’ files. (*Provided drivers will be requiredfor Win98/SE users, also all users will need to use CD for future OS updates.)Now we invite you to the new Digital Audio World! 12345681112141721222324252728303334353849515253 My Multiformat Digital Audio Player What is a Digital Audio Player?Product SpecificationsPC System Requirements and Accessories Hardware DescriptionsAbout Power SupplySoftware Installation Connecting the Player to a PC using a USB CableSeparating the USB cable from the PlayerFile Download/Upload OS Update & FormatLCD DISPLAY IllustrationPower On /OFFMusic ListeningVolume ControlMusi…

Text truncated - open the document above for the full version.

DAH-1300 Block Diagram DCDC USB DRIVER CODEC MAIN CHIP PROCESSER S5L840F EAR PHONE LCD DISPLAY FM MODULE 1.5V ALKLINE BATTERY PC USB DRIVER 3.3V REGULATOR XC6209P332MR FLASH MEMORY MIC D0 ~ D7 D0 ~ D7L / R 2.0V REGULATOR XC6209P202MR D0 ~ D7 3.3V 2.0V 3.3V DM / DP USB 5V 3.3V 3.3V CRYSTAL 32.768KHz

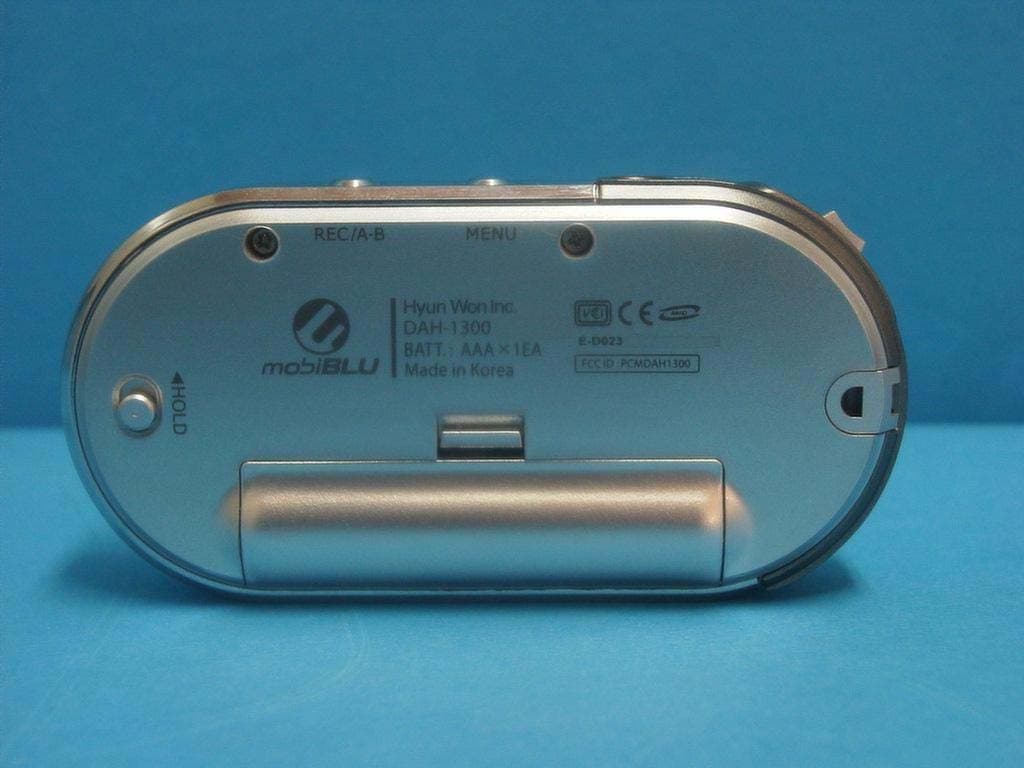

ID Label Sample & Location Information

IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0154 1 of 24 Certification of Compliance CFR 47 Part 15 Subpart B Test Report File No. : 05-IST-0154 Date of Issue : March 31, 2005 Model(s) : DAH-1300 Kind of Product : MP3 PLAYER Applicant : Hyun Won Inc. Address : 333-1, Shindae-Ri, Kumho-Eup, Youngcheon-City, Kyoungbuk, South Korea Manufacturer : Hyun Won Inc. Address : 333-1, Shindae-Ri, Kumho-Eup, Youngcheon-City, Kyoungbuk, South Korea Test Result ■ Positive □ Negative Reviewed By Approved By S.J.CHO / EMC Group Manager J.H.LEE / Chief Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart B – Unintentional Radiators, Class B. - The test report with appendix consists of 24 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 2003. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0154 2 of 24 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental conditions, Power used, Product information 3 Descriptions of test Conducted Emission 4 Radiated Emission 5 Equipment Under Test 6 Summary 7 ■ Test Conditions and Data - Emissions ◆ Conducted Emissions 0.15MHz - 30MHz Applicable Test Conditions / Data and Plots 8-10 ◆ Radiated Emissions 30MHz - 1GHz Applicable Test Conditions / Data and Plots 11-19 Appendix A. The Photos of Test Setup 20-22 B. The Photos of Equipment Under Test 23-24 Note : IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0154 3 of 24 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. (FCC Filing Lab.) San 21-8, Goan-Ri, Baekam-Myun, Yongin-City Kyonggi-Do, 449-860, Korea TEL : +82 31 333 4093 FAX : +82 31 333 4094 ENVIRONMENTAL CONDITIONS Temperature 18 °C Humidity 39 % Atmospheric pressure 1014 mbar POWER SUPPLY SYSTEM USED Power supply system AC 120Vac, 60Hz(PC Power) (Refer to the product information) PRODUCT INFORMATION - EMC suppression device is not used during the test . - Please refer to user’s manual. Category Item Specification FM Frequency Range 87.5MHz~108.0MHz Headphone output Max. 10mW(16Ω) at max. volume S/N 50dB FM TUNER Antenna Headphone/earphone cord antenna Frequency Characteristics 20Hz~20KHz Headphone output Max. 10mW(16Ω) at max. volume Audio S/N 90dB File type MP3, WMA, ADPCM File Support Bit Rate MP3:8Kbps or higher/WMA:32Kbps or higher USB Download speed 7.8Mbps(USB Version 1.1) Memory 512MB Max. play time Approximately 12 hours Recording time Voice recording 1040min(based on 256MB, When the recording Mode is 32kbps) Dimension(WxHxD) 80x40x15.5mm Weight(without battery) 35g(without battery) LCD Negative Graphic LCD Battery Alkaline 1.5V AAAx1 IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0154 4 of 24 < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80 ≥ 80 80 40 ≥ 80 Measuring apparatus Mains Filter Mains Front side Equipment under test Coaxial cable Artificial mains networ k Screened room Non-metallic support 80 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of 10KHz or for "quasi-peak" & “Average” within a bandwidth of 9KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1m X 1.5m wooden table 80cm height is placed 40cm away from the vertical wall and 1.5m away from the other wall of the shielded room. The R/S ESH3-Z5 and EMCO 3825/2 LISN are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80cm from the LISN and powered from the EMCO LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the EMCO LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling to a 1m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the R/S receiver to determine the frequency producing the maximum emission from the EUT. The frequency producing the maximum level was reexamined using Quasi-Peak mode by manual measurement, after scanned by automatic Peak mode for frequency range from 0.15 to 30MHz. The bandwidth of the receiver was set to 10kHz. The EUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. < Side View > IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0154 5 of 24 DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for "quasi-peak" within a bandwidth of 120KHz. - Procedure of Test Preliminary measurements were made at 3 meter using bi-conical and log-periodic antennas, and spectrum analyzer to determine the frequency producing the max. emission in anechoic chamber. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turn-table azimuth and height with respect to the antenna were noted for each freque…
