PCMDAH1500MP3 Player

Page 1 DAH-1500 User’s Manual Sharp-cut organic EL LCD/ 6-mode & user-set EQ/ unlimited folders and file-navigation system/ easy & convenient clock system/ removable disk/ FM radio and recoding/ built-in Li-ion battery/ resume function in second/ easy firmware upgrade Page 2/3 View Index Before starting Page 5 Safety Precautions/ Special Features/ Technical Specifications/ Accessories/ Parts Designations/ Buttons/ LCD/ Recharge/ Power/ Connection with PC/ Disconnection Basic operations Page 23 Power On-Off / Playing Music Convenient Functions Page 27 Navigation/ Hold/ Clock/ Auto Power-off FM Radio Page 33 Listening to FM Radio/ Tuning in Radio Frequency/ Saving FM Frequencies/ Preset Mode/ Deleting Frequencies/ Recording FM Radio Menus Page 43 Menu List/ Menu Buttons/ Mode Change/ Music Set/ Screen Set/ Other Sets Program Page 57 Program CD Installation/ File Download-Upload/ Format Support Page 65 This is not a trouble! Customer Support & After-sales Service Indemnification Warranty Card Page 4/5 1. Before Starting Safety Precautions 6 Special Features 10 Technical Specifications 12 Accessories 13 Parts Designations 14 Buttons 16 LCD 17 Recharge 18 Power 19 Connection with PC 20 Disconnection 21 Page 6/7 Safety Precautions z Avoid humidity or dusty area z Don’t disassemble or modify the product. z Don’t put the product close to any heating device or under direct sunlight z Avoid the product from dropping or excessive shock z Never use any chemical or cleanser. It may damage the surface of product. z Don’t touch the product with a wet hand. z Distributing music files without authorization is against copyright law. z The manufacturer is not responsible for any damaged data saved in the product if the product error was caused by user’s carelessness. The data saved in the product may be damaged in the A/S. z Listening to sound sources in higher volume may cause auditory disorder. z Don’t use earphone set while riding a bicycle or motorcycle, or driving a car. z Immediately reset the product when it generates excessive heat or burning small, and then contact our A/S agent for repair. Page 8/9 Safety Precautions Safety matters for AC adaptor z Don’t open the case of AC adaptor to avoid electric shock. z Please be fully aware of this user’s manual to avoid any unexpected trouble. Warning! Prevent the AC adaptor from contacting water to avoid fire or electric shock. Use enclosed adaptor in the package only to ensure the safety. (Manufacturer is not responsible for any trouble caused by using other adaptors). Note! Use correct outlet socket to connect with the power plug to avoid electric shock. The power plug shall not be exposed outside when it is successfully connected into the socket. Built-in Battery z Don’t use damaged built-in battery or AC adaptor. z Excessive recharge long than specified hours is not allowed to prevent fire. z Fully recharge the battery when trying to use it for the first time or after a long-term disuse. z When the using term gets shorter in comparison with recharging term please replace the battery. z Since the battery supplied with the product is consumable the using hours of it gradually gets shorter. z Any metal parts on DC converter or built-in battery should not be allowed to touch other conductive materials to avoid fire or electric shock. Page 10-11 Special Features Polished & Elegant Design Super compact size (24*24*24mm/ 18g) reveals the highest aesthetic sense! Refined functions along with simple-but-elegant design provide the maximum convenience and mobility. Sharp-cut Organic EL LCD Blue colored self-illuminant organic EL is used as the main screen with optimum harmony between black background and blue texts. This organic EL LCD provides you very sharp-cut color, comfortable-to-eye display and elegant high-end screen quality. 6 Mode & User-set EQ According to music genres it provides 6 selectable modes; Normal/ Rock/ Jazz/ Classic/ X-Live to satisfy your taste as well as user-set mode which enables you set the tone as per your own preference. Unlimited Folders & File Navigation System The product plays every MP3 files saved in multi folders. Those files and folders can be selected and played as if in Windows environment. Easy & Convenient Clock System It also provides Clock function for your convenient life Removable Disk By connecting the product to PC, the Windows system identifies it as a removable disk. No extra effort to install additional software in the PC is required. All other file formats can be saved in the product. FM Radio & Recording Enjoy FM radio with this product as well as digital music files (MP3/WMA)! You can also record your favorite FM programs or songs and save them as music files. Auto tuning and frequency storage are also available. Built-in Li-ion Battery No extra battery is required. This advanced battery system can be easily recharged by only connecting into the USB port in PC. Resume Function in Second Unit Don’t worry about sudden power off. This resume function operating in second unit recovers all previous settings when you turn the power on again. Firmware Upgrade If any modification in the functions is required by manufacturer, you may easily upgrade the firmware by simple manipulation. Page 12-13 Technical Specification Functions Items Specifications FM Tuner FM Frequency Range Headset Output 87.5MHz ~ 108.0MHz Max. 7mW(16Ω) Max Volume S/N Ratio Antenna 50dB Headset/earphone code antenna Audio Frequency Characteristics Headset Output S/N ratio 20Hz ~ 20KHz Max. 7.5mW(16Ω) Max Volume 90dB Supporting Files File format Bit rate MP3, WMA MP3: 8~320Kbps WMA: 32~192Kbps USB Download speed 6Mbps (USB Ver 1.1) Recording period FM radio 1040 minutes (with 256MB/ 48Kbps recording mode) Max. Elapsing period 15 hours Operating Temperature -5°C to 70°C Size (W*H*D) 24 * 24 * 24 (mm) Weight 18 g Battery (Built-in) Li-ion Accessory z Depicted images shown below are provided only for your appreciation and they may be different from real…

Text truncated - open the document above for the full version.

Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Appendix 5 MP3 Player Appendix 5. Block Diagram MPU 충전회로 DAC NAND FLASH 전원회로 POWER/PLAY REW VOL_UP VOL_DOWN KEY_SWITCH Li-ion cell USB POWER USB POWER AUDIO USB Speaker/earphone DAH-1500 블록도 FM Recording FM TUNNER HOLD OLED Ant MENU

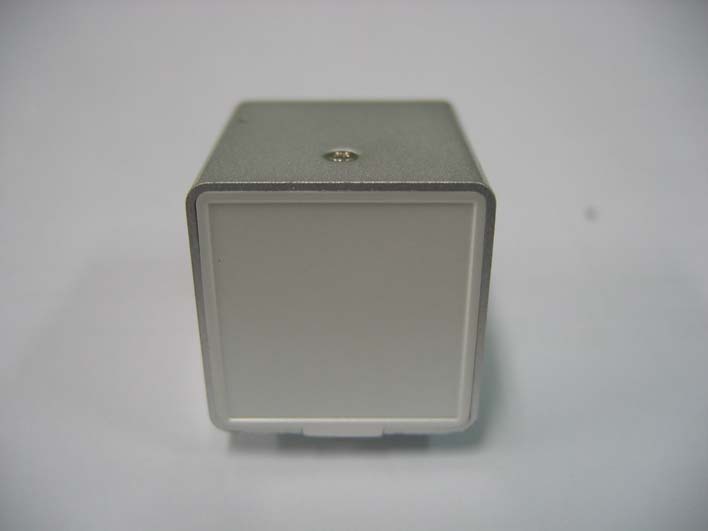

Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Appendix 3 MP3 Player Appendix 3. Photographs of EUT Front of EUT Rear of EUT

Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Appendix 2 MP3 Player Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) FCC Label This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : DAH-1500 FCC ID : PCMDAH1500 Hyun Won Inc. Made in Korea

Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Appendix 4 MP3 Player Appendix 4. Internal Photographs of EUT Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Appendix 4 MP3 Player Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Appendix 4 MP3 Player Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Appendix 4 MP3 Player

Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Page 5 of 21 MP3 Player 3. Product Information 3.1 Equipment Description Technical Specification Functions Items Specifications FM Tuner FM Frequency Range Headset Output S/N Ratio Antenna 87.5MHz ~ 108.0MHz Max. 7mW(16Ω) Max Volume 50dB Headset/earphone code antenna Audio Frequency Characteristics Headset Output S/N ratio 20Hz ~ 20KHz Max. 7.5mW(16Ω) Max Volume 90dB Supporting Files File format Bit rate MP3, WMA MP3: 8~320Kbps WMA: 32~192Kbps USB Download speed 6Mbps (USB Ver 1.1) Recording period FM radio 1040 minutes (with 256MB/ 48Kbps recording mode) Max. Elapsing period 15 hours Operating Temperature -5 to 70°C°C Size (W*H*D) 24 * 24 * 24 (mm) Weight 18 g Battery (Built-in) Li-ion 3.2 Variations covered by this report Model Difference : N/A Technical Deviation : N/A 3.3 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc.

Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 This report only respoe and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Page 1 of 16 Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF FCC PART15 Subpart B COMPLIANCE PRODUCT : MP3 Player MODEL/TYPE NO : DAH-1500 FCC ID : PCMDAH1500 TRADE NAME : Hyun Won APPLICANT : Hyun Won Inc. 333-1, Shindae-Ri, Kumho-Eup, Youngcheon-City, Kyongbuk, 770-800, Korea FCC CLASSIFICATION : JBP : Part 15 Class B Computer Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B Class B FCC PROCEDURE : Certification DATES OF TEST : March 29, 2005 DATES OF ISSUE : April 1, 2005 TEST REPORT No. : BWS-05-EF-0006 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This MP3 Player has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. April 1, 2005 (Date) Nam, Tae-Hyun Chief Engineer Laboratory Division BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Page 2 of 21 MP3 Player TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~10 6. Test Results 11~19 7. Sample Calculation and Other Information 20 8. Test Equipment List 21 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Page 3 of 21 MP3 Player FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC). 1. General Information Applicant Information Manufacturer Information Company Name : Hyun Won Inc. Company Address : 333-1, Shindae-Ri, Kumho-Eup, Youngcheon-City, Kyongbuk, 770-800, Korea Phone/Fax : Phone : +82-53-743-7200 / Fax : +82-53-743-2112 Company Name : Hyun Won Inc. Company Address : 333-1, Shindae-Ri, Kumho-Eup, Youngcheon-City, Kyongbuk, 770-800, Korea Phone/Fax : Phone : +82-53-743-7200 / Fax : +82-53-743-2112 z EUT Type : MP3 Player z Model Number : DAH-1500 z FCC Identifier : PCMDAH1500 z S/N : Prototype z FCC Rule Part(s) : Part 15 Subpart B Class B z Test Procedure : ANSI C63.4-2003 z Date of Tests : March 29, 2005 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do 464-080, Korea TEL: +82-31-762-0124 FAX: +82-31-762-0126 z Test Report No. : BWS-05-EF-0006 Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Page 4 of 21 MP3 Player 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2003) was used in determining radiated and conducted emissions from the Hyun Won Inc. MP3 Player Model : DAH-1500 . Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Page 5 of 21 MP3 Player 3. Product Information 3.1 Equipment Description Technical Specification Functions Items Specifications FM Tuner FM Frequency Range Headset Output S/N Ratio Antenna 87.5MHz ~ 108.0MHz Max. 7mW(16Ω) Max Volume 50dB Headset/earphone code antenna Audio Frequency Characteristics Headset Output S/N ratio 20Hz ~ 20KHz Max. 7.5mW(16Ω) Max Volume 90dB Supporting Files File format Bit rate MP3, WMA MP3: 8~320Kbps WMA: 32~192Kbps USB Download speed 6Mbps (USB Ver 1.1) Recording period FM radio 1040 minutes (with 256MB/ 48Kbps recording mode) Max. Elapsing period 15 hours Operating Temperature -5 to 70°C°C Size (W*H*D) 24 * 24 * 24 (mm) Weight 18 g Battery (Built-in) Li-ion 3.2 Variations covered by this report Model Difference : N/A Technical Deviation : N/A 3.3 Additional Information Related to Testing Test results apply only to the particular sample tested and functionality described in this test report. This report may be reproduced in full. Partial reproduction may only be made with the written permission of the BWS TECH Inc. Report No: BWS-05-EF-…

Text truncated - open the document above for the full version.

Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Appendix 1 MP3 Player Appendix 1. Test Setup Photographs Conducted Emission Test Setup (Data Read/Write mode) Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Appendix 1 MP3 Player Conducted Emission Test Setup (Charging mode) Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Appendix 1 MP3 Player Radiated Emission Test Setup (Data Read/Write mode) Report No: BWS-05-EF-0006 FCC ID : PCMDAH1500 Date of Test : March 29, 2005 Hyun Won Inc. Appendix 1 MP3 Player Radiated Emission Test Setup (Charging mode)
