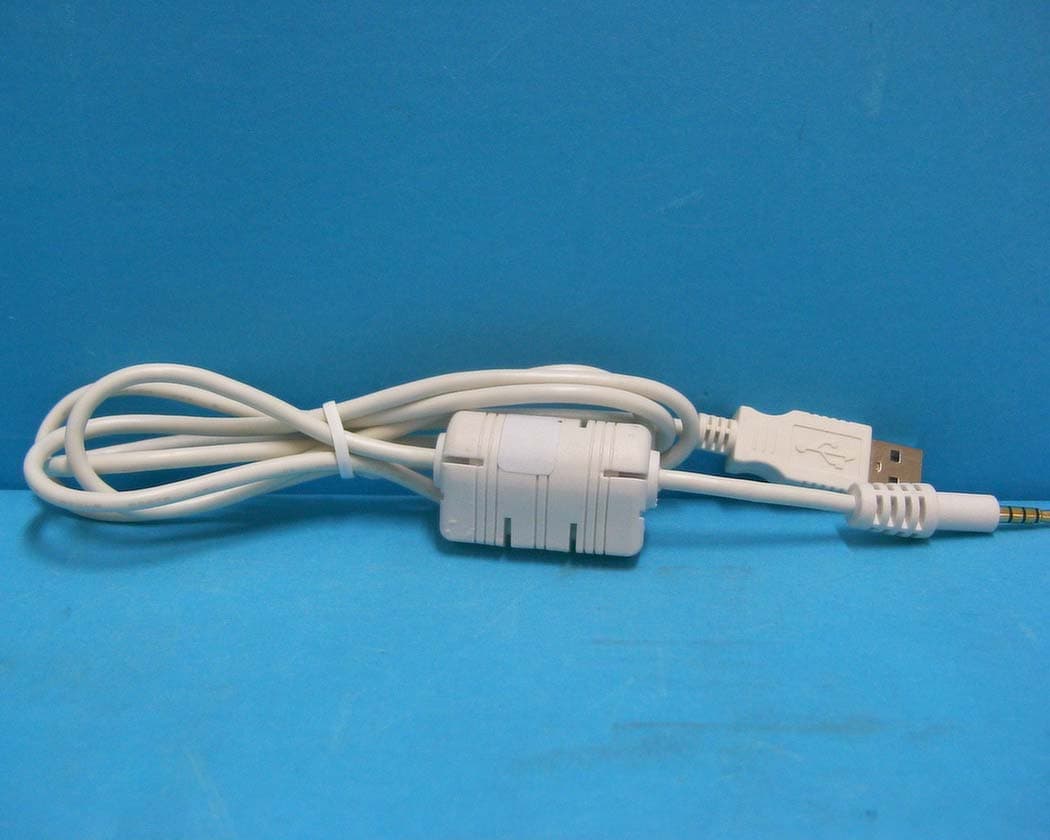

DAH-1500i Users Manual DIGITAL AUDIO PLAYER - CUBE http://www.mobiblu.com SRS is a registered trademark of SRS Labs. WOW Technology is an intellectual property of SRSLabs. View Index Before starting Page 3 Page 22 Page 28 Page 33 Safety Precautions/ Special Features/ Technical Specifications/ Accessories/ Part Specifications/ Buttons/ LCD/ Recharging/ Power/ Connecting to a PC/ Disconnecting the Unit Basic operations Power On-Off / Playing Music/ Navigation (Searching folder during play)/Menu Operations/ Hold/ Clock Play Function Play, Pause/ Selecting Music/ Repeating/ Deleting File Play List Editing Play List/ Playing the List Program Installing the Program CD/Downloading/ Uploading Files/Formatting Support Troubleshooting/ Warranty Card View Index FM Radio Function Page 40 Page 65 Page 72 Listening to the Radio/ Stand by/ Tuning/ Saving FM Frequencies/P-Set Mode/ Recording Radio Program Voice Recording Page 36 Voice Recording/ Playing recorded message Setting Page 48 Menu List/ Menu Buttons/ Mode Change/ Sound Setting/ Display/ Time setting/ Play Mode/ Record Set/ Etc setting 1 Safety Precautions Special Features Technical Specifications Accessories Part Specifications Buttons LCD Display Recharging Power Connecting to a PC Disconnecting the Unit 4 9 11 12 13 15 16 17 18 19 20 Before Starting Safety Precautions Please read carefully before start using the unit. There are 3 different warnings used throughout this manual. We are liable for the accidents and/or damaged caused due to negligent use of the unit. Danger : May cause death or serious injury if ignored Warning : There is a possibility of death of serious injury if ignored Attention : May cause injury or damage to the unit in some cases 06 Safety Precautions Reset the unit immediately if you detect excessive heat is being generated by the unit. Contact an service center. 05 Safety Precautions Avoid humidity and dust. Do not disassemble or modify the product. Keep unit away from heat and direct sunlight. Do not drop the unit. D AN G ER DANGER Using chemical or other cleansers may damage the unit’s surface. Do not touch with wet hands. Do not use earphones while riding a bicycle or motorcycle, or while driving a car. Distributing music files without authorization is against copyright law. Listening to loud music may cause hearing loss. The manufacturer is not responsible for any damages caused to data saved in the unit if caused by user. We do not guarantee that data will not be lost during service or repair. 07 Safety Precautions 08 Safety Precautions To avoid shock do not open the unit. Non-insulated parts in the AC adaptor may cause electric shock. Don t open the adaptor case. Carefully read the manual for instructions on proper use of the AC adaptor. Dont use a damaged built-in battery or AC adaptor. Exceeding the recommended recharging time may cause a fire. Fully recharge the battery before initial use or after a lengthy period of inactivity. When the battery no longer holds its charge despite being fully recharged; it s time to replace it. To avoid fire or electric shock do not allow metal parts on the DC converter to come in contact with conductive materials such as metals, water etc. To prevent fire and electric shock avoid contact with water. Prevent the AC adaptor from contacting water to avoid fire or electric shock. Use enclosed adaptor in the package only to ensure the safety. (Manufacturer is not responsible for any trouble caused by using other adaptors). WARNING Use correct outlet socket to connect with the power plug to avoid electric shock. The power plug shall not be exposed outside when it is successfully connected into the socket. NOTE Safety Matters for AC Adaptor(Optional accessory) Built-in Battery 09 Worlds smallest Mp3 Player Super compact size (24*24*24mm) and weighs only 18 grams.A fully featured MP3/audio player that fits in the palm of you hand! OLED Display Self Emitting Blue OLED Display combined with blue letters brings new beauty to the unit. OLED provides superior sharpness, brilliance and easy to read display. Five Preset EQ modes plus one User-set EQ mode Features 5 preset equalization modes; Normal/ Rock/ Jazz/ Classic/ Pop and you can also customize equalization to suit your sound. File Navigation System and Unlimited Folder Capacity The player can play MP3 files saved in multiple folders. Those files and folders can be selected and played as if in a Windows environment. Easy & Convenient Clock Built in clock keeps you on time. Special Features 10 PC Peripheral Device By connecting the product to PC, the Windows system automatically recognizes it as a removable disk. No additional software needed. It can also be used as storage for other types of files. FM Radio receptor and recorder Enjoy FM radio listening as well as digital music files (MP3/WMA). It can also record your FM programming which allows you to listen to it over and over or to save it on your PC. Built-in Lithium-Polymer Battery No extra battery or recharger is required. This advanced battery system is easily recharged by connecting into the USB port on your PC. Resume Function in Second Unit Settings are automatically restored when the unit is powered ON in case of sudden power down. Firmware Upgradeable Firmware is easily upgradeable to new features and functions. Special Features SRS Function 3D surrounding and superior Base enhances your music listening experience. Voice Recorder Built in high quality microphone allows you to record your voice. 11 Technical Specifications 12 Accessories PUSH USB / Charging Cable Necklace Earphone Cube Crate Protective Case Users Manual Program CD Illustrations may be different from the actual product. Accessories shown below may be different from purchased products to improve quality of the unit. Functions FM Tuner Audio Supporting Files Max. Running Time Operating Temperature Size (W HD) Weight Battery (Built-in) USB FM Frequency Range Headset Output S/N Ratio Antenna Frequency Characterist…

Text truncated - open the document above for the full version.

LiquidCrystalDisplay(OLED) Host Computer DISPLAY 24.000MHz crystal Universal Serial BusConnector BUTTONS Battery Headphones USB & MICROPHONE DCDCConverterComponents HeadphoneConnector STMP3520 AUDIO FM TUNERSTMP3520 Microphone DAH1500i Block Diagram VoltageGenerationCapacitors Button Matrix NAND FLASH Boot ModeSelectFM Tuner MAIN MEMORY

4th Floor, e-Venture Building, 74-2, Shincheon 3-dong, Dong-gu, Deagu-City, South Korea Tel : 82.53.743.7200 / Fax : 82.53.743.2112 www.mobiblu.com Factory : 333-1 Shindea-Ri, Kumho-Eup, YoungCheon-City, Kyoungbuk, South Korea http://www.mobiBLU.com e-mail : [email protected] July 01, 2005 Compliance Certification Service 561F Monterey Road, Morgan Hill, CA 95037 U.S.A. To whom it may concern: We, the undersigned, hereby authorize IST Co., Ltd. To act an our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by IST Co., Ltd., on our behalf shall have the same effect as acts of our own. This letter is an authorization to accept IST Co., Ltd. As the agent for Hyun Won Inc. to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following Hyun Won Inc. product : Product FCC ID MP3 Player PCMDAH1500I Sincerely, Jae hwan, Park General Manager R&D Center Dept. Hyun Won Inc.

1 Helen Zhao Subject:FW: Hyun Won Inc., FCC ID: PCMDAH-1500I, Assessment NO.: AN05T4913, Notice#1 From: sgkim Sent: Wednesday, July 06, 2005 1:14 AM To: Helen Zhao Subject: RE: Hyun Won Inc., FCC ID: PCMDAH-1500I, Assessment NO.: AN05T4913, Notice#1 Dear Helen, The modified exhibits are re-uploaded to your web application. I wish to confirm that the correct FCC ID is 'PCMDAH1500I'. Thanks, S.G.Kim -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Tuesday, July 05, 2005 6:10 PM To: Helen Zhao Subject: Hyun Won Inc., FCC ID: PCMDAH-1500I, Assessment NO.: AN05T4913, Notice#1 Question #1: Please verify FCC ID. The FCC ID listed on form 731 (PCMDAH-1500I) does not agree with that on label format (PCMDAH1500i). Please clarify. Quesiton #2: Please note FCC ID must consist of Arabic numericals, capital letters, or combination thereof, so lower case is not allowed. Please revise all the exhibits to show correct FCC IDs. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

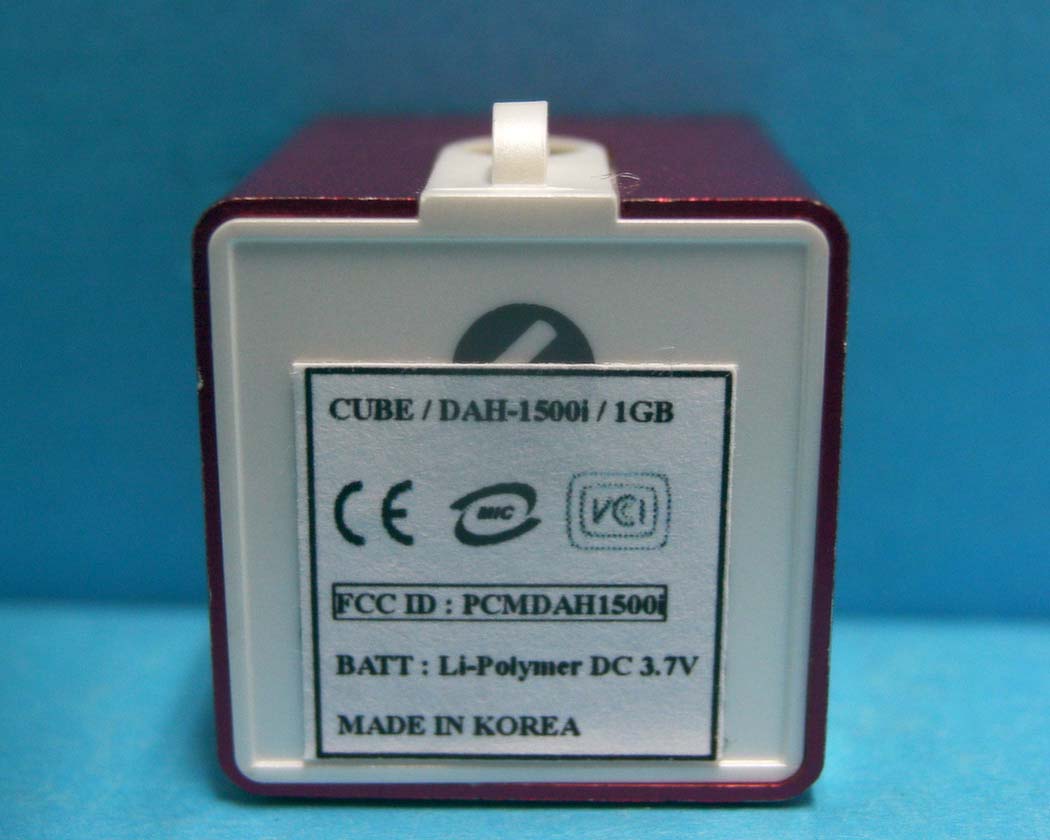

ID Label Sample & Location Information CUBE / DAH-1500i / 1GB FCC ID : PCMDAH1500I BATT : Li-Polymer DC 3.7V MADE IN KOREA

IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0224 1 of 22 Certification of Compliance CFR 47 Part 15 Subpart B Test Report File No. : 05-IST-0224 Date of Issue : June 29, 2005 Model(s) : DAH-1500i Kind of Product : MP3 PLAYER FCC ID : PCMDAH1500I Applicant : Hyun Won Inc. Address : 333-1, Shindae-Ri, Kumho-Eup, Youngcheon-City, Kyoungbuk, South Korea Manufacturer : Hyun Won Inc. Address : 333-1, Shindae-Ri, Kumho-Eup, Youngcheon-City, Kyoungbuk, South Korea Test Result ■ Positive □ Negative Reviewed By Approved By S.J.CHO / EMC Group Manager J.H.LEE / Chief Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart B – Unintentional Radiators, Class B. - The test report with appendix consists of 22 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 2003. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0224 2 of 22 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental conditions, Power used, Product information 3 Descriptions of test Conducted Emission 4 Radiated Emission 5 Equipment Under Test 6 Summary 7 ■ Test Conditions and Data - Emissions ◆ Conducted Emissions 0.15MHz - 30MHz Applicable Test Conditions / Data and Plots 8-10 ◆ Radiated Emissions 30MHz - 1GHz Applicable Test Conditions / Data and Plots 11-17 Appendix A. The Photos of Test Setup 18-20 B. The Photos of Equipment Under Test 21-22 Note : IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0224 3 of 22 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. (FCC Filing Lab.) San 21-8, Goan-Ri, Baekam-Myun, Yongin-City Kyonggi-Do, 449-860, Korea TEL : +82 31 333 4093 FAX : +82 31 333 4094 ENVIRONMENTAL CONDITIONS Temperature 23 °C Humidity 60 % Atmospheric pressure 1005 mbar POWER SUPPLY SYSTEM USED Power supply system AC 120Vac, 60Hz(PC Power) (Refer to the product information) PRODUCT INFORMATION - EMC suppression device is not used during the test . - Please refer to user’s manual. Model Name DAH-1500i FCC ID PCMDAH1500I Category Item Specification FM Frequency Range 87.5MHz~108.0MHz / 76.0MHz ~ 108.0MHz Headphone output Max. 7mW(16) at max. volume S/N Ratio 50dB FM TUNER Antenna Headset/earphone antenna Frequency Characteristics 20Hz~20KHz Headphone output Max. 15mW(16) at max. volume Audio S/N Ratio 90dB File Format MP3, WMA, WMA DRM File Support Bit Rate MP3 : 8 ~ 320Kbps, WMA : 32 ~ 192Kbps USB Download speed 25Mbps(USB Ver. 2.0) Recording Time 520min voice recording(256MB, 64Kbps Recording mode)) Memory 1GB Max. Running time 10 hours Size (WxHxD) 24x24x24mm Weight 18g Operating Temperature -5°C ~ 70°C Battery (Built-in) Li-Polymer IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0224 4 of 22 < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80 ≥ 80 80 40 ≥ 80 Measuring apparatus Mains Filter Mains Front side Equipment under test Coaxial cable Artificial mains networ k Screened room Non-metallic support 80 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of 10KHz or for "quasi-peak" & “Average” within a bandwidth of 9KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1m X 1.5m wooden table 80cm height is placed 40cm away from the vertical wall and 1.5m away from the other wall of the shielded room. The R/S ESH3 and EMCO 3725/2 LISN are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80cm from the LISN and powered from the EMCO LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the EMCO LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling to a 1m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the R/S receiver to determine the frequency producing the maximum emission from the EUT. The frequency producing the maximum level was reexamined using Quasi-Peak mode by manual measurement, after scanned by automatic Peak mode for frequency range from 0.15 to 30MHz. The bandwidth of the receiver was set to 10kHz. The EUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. < Side View > IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0224 5 of 22 DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for "quasi-peak" within a bandwidth of 120KHz. - Procedure of Test Preliminary measurements were made at 3 meter using bi-conical and log-periodic antennas, and spectrum analyzer to determine the frequency producing the max. emission in anechoic chamber. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turn-table azimuth and height with respect to the antenna were noted …
