PCMDAH1900MP3 Player

EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification APPENDIX H : USER’S MANUAL User Manual www.mobiblu.com Playing multitude formats of digital files Music recording (MP3 Direct Encoding) Voice recording FM Radio listening & recording Stop Watch DAH-1900 Download Installation of Program CD File download/upload Format 57 59 62 Customer Support It may not be a trouble! FCC RF INTERFERENCE STATEMENT Warranty card 65 FM Radio Radio listening Searching radio station Storing radio station Deleting stored station Radio recording FM recording Bit rate setting 33 34 35 36 37 38 Menu Button manipulation Menu list Mode Change Setting Recording Display Timer EQ SRS Erase About Stop Watch 41 42 43 44 48 49 50 51 52 54 55 56 Getting Started 1 1 Safety Precaution Special Features Specification Accessories 1 3 6 7 Carefully read this part before using the product. The Safety Precautions are classified into three categories; Danger, Warning and Caution. We are not responsible for any damage or loss from being not in conformity with these precaution provisions. Danger : User may be endangered to death or any major injury when not in conformity with the provisions with this mark. Warning : User may be subject to any major injury when not in conformity with the provisions with this mark. Caution : User may be subject to any minor injury or property damage when not in conformity with the provisions with this mark. SRS is a registered trademark of SRS Labs. WOW Technology is an intellectual property of SRSLabs. Table of Contents 2 Safety Precaution Safety Precaution 1 Avoid humidity or dusty area. Dont disassemble or modify the product. Dont put the product close to any heating device or under direct sunlight. D A N G E R DANGER Never use any chemical or cleanser. It may damage the surface of product. Dont touch the product with a wet hand. Distributing music files without authorization is against copyright law. The manufacturer is not responsible for any damaged data saved in the product if the product error was caused by user s carelessness. Listening to sound sources in higher volume may cause auditory disorder. Dont use earphone set while riding a bicycle, motorcycle, or driving a car. Immediately reset the product when it generates excessive heat or burning small, and then contact our A/S agent for repair. Avoid the product from dropping or excessive shock. Dont carry the product in the pocket with metal parts such as coin or key. It may generate high heat or fire. 4 Special FeaturesSpecial Features 3 Sharp-cut/crisp OLED Blue colored self-illuminant organic EL is used as the main screen with optimum harmony between black background and blue texts. This organic EL LCD provides you very sharp- cut color, comfortable-to-eye display and elegant high-end screen quality. 150-hour of play time The play time of the product is up to 150 hours with one AAA type battery. USB fast transmission USB connection enables you to download/upload files very quickly. Portable/cute size This cute sized product has been designed for the use with only one hand. Voice recording High performance microphone built in the product enable you to use multitude functions for voice recording. Music recording By connecting with CD player, walkman, audio and other sound sources you can record the sources as digital files while you are enjoying them. Firmware Upgrade If any modification in the functions is required by manufacturer, you may easily upgrade the firmware by simple manipulation Removable Disk (Mass Storage) By connecting the product to PC, the Windows system identifies it as a removable disk. No extra effort to install additional software in the PC is required. All other file formats can be saved in the product. FM Radio listening & recording Enjoy FM radio with this product as well as digital music files. You can also record your favorite FM programs as music files. Language-learning Aid With all convenient and essential functions for language-learning such as section- repeat, sectional FF/REW, resumption, bookmark and others the product enables you to study languages very effectively. 6 Specification Special Features 5 Multi-Codec The product support Multi-codec to allow you to enjoy not only MP3 files but also WMA, WAV, OGG, JPEG, MPEG-4 and other media files. MULTI SRS 3D You can now enjoy 3D Surround Stereophonic music with a tiny MP3 player! This SRS function offers you not only 3D Surround music but deep and abundant tone with the aid of enhanced bass. Class FM Tuner Audio File Recording hours Max. Playback hours Operational Temperature Size (W x H x D mm) Weight (g) Battery USB FM Frequency Range Headset Output S/N ratio Antenna Frequency Characteristic Headset Output S/N ratio File Type Bit Rate Downloading Speed 20Mbps 150 hours -5 ~70 40 X 80 X 15.5 (mm) 35 (g) Li-Ion 2080 minutes for voice recording (with 512MB and based on 32Kbps) 87.5MHz ~ 108.0MHz Max. 7mW (16
), at Max. Volume 50dB Headset/ Earphone code antenna 20Hz ~ 20KHz Max. 15mW (16
) Max. Volume 90dB MP3, WMA MP3 : 8~320Kbps, WMA : 32~192Kbps ItemsSpecifications Accessories 7 USB CableEarphonePortable Case User Manual Line-in CableProgram CD Neck strap Depicted images shown below are provided only for your appreciation and they may be different from real products. Hooking up the neck strap with the product Basic Use of the Player 2 2 9 10 11 13 14 15 16 Location of Controls Buttons LCD Battery About Power USB Connection USB Disconnection LCD FF/REW & Vol+/Vol- Hold switch Power/Play/Pause EQ/ Rec/ A-B section repeat USB Port Line-in Port Menu/Navigation Earphone Port 10 Buttons Location of Controls 9 Hole switch Power On/Off File play/ pause Increase/ decrease of volume Hold of all key functions Shift to the previous/next file Searching within the track Search -shift to Up/ Down/ Left/ Right in menu/navigation mode Enter Menu/ Navigation mode Mode set value save Shift to the sub folder in navigation Voice, M…

Text truncated - open the document above for the full version.

EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM 고장 진단 DAH-1900 Block Diagram U6 MICOM(NX5850) U7 CODEC (WM8750) Ear Phone PC U7 Flash Memory (Data storage) 12MHz Line-in Microphone DISPLAY(2AC OLED 128*64) Li-ion 3.7V*1EA RECHARGEABLE BATTERY U5 DC-DC CONVERTER (LT3407) U11 USB Controler (PP2366A) L/R L/R USB(D+/D-) Vccio : 2.85VVCCcore : 1.5V DATA/CLK DATA/CLK DATA/CLK U2 CHARGER (LT4054)

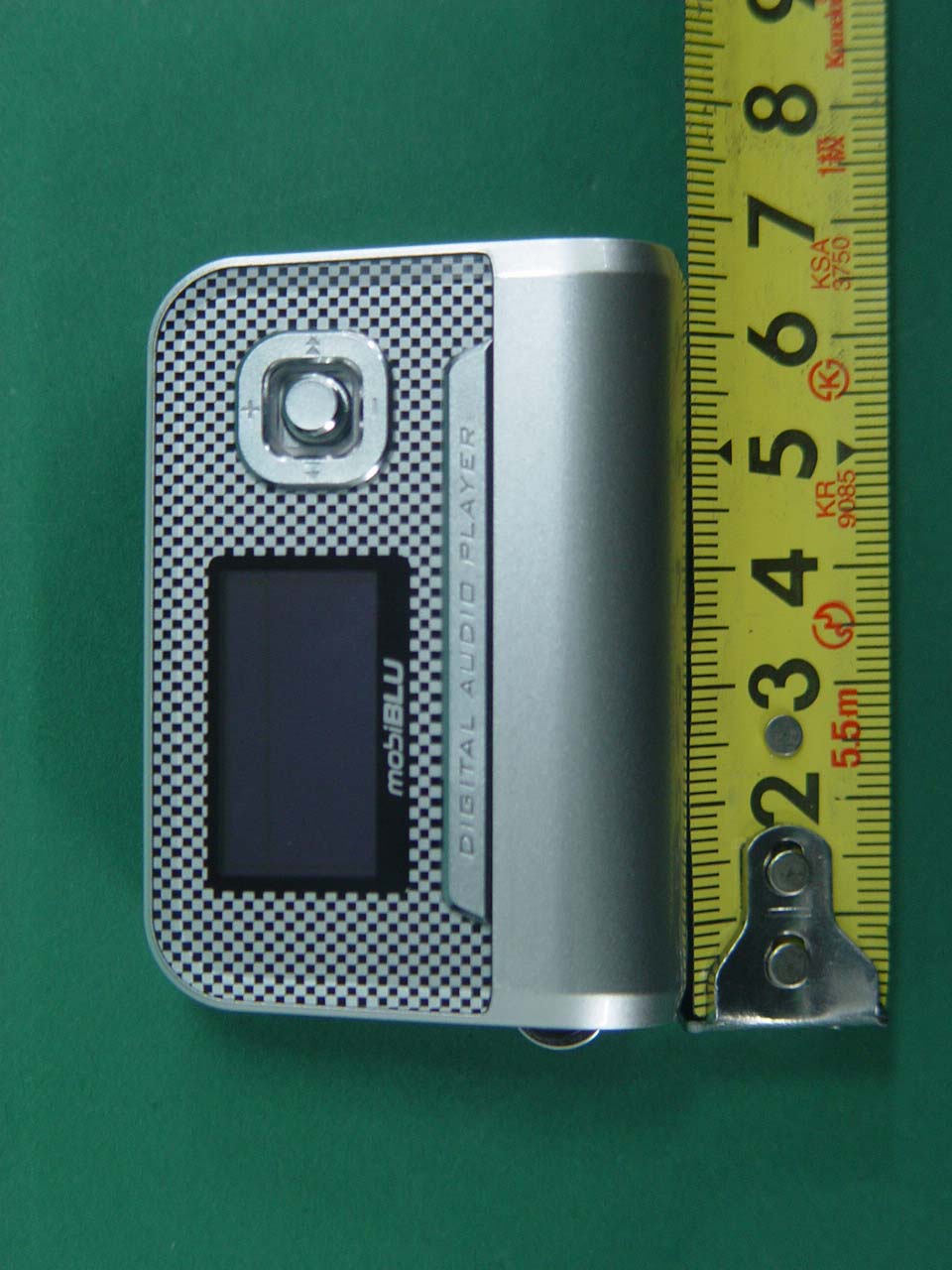

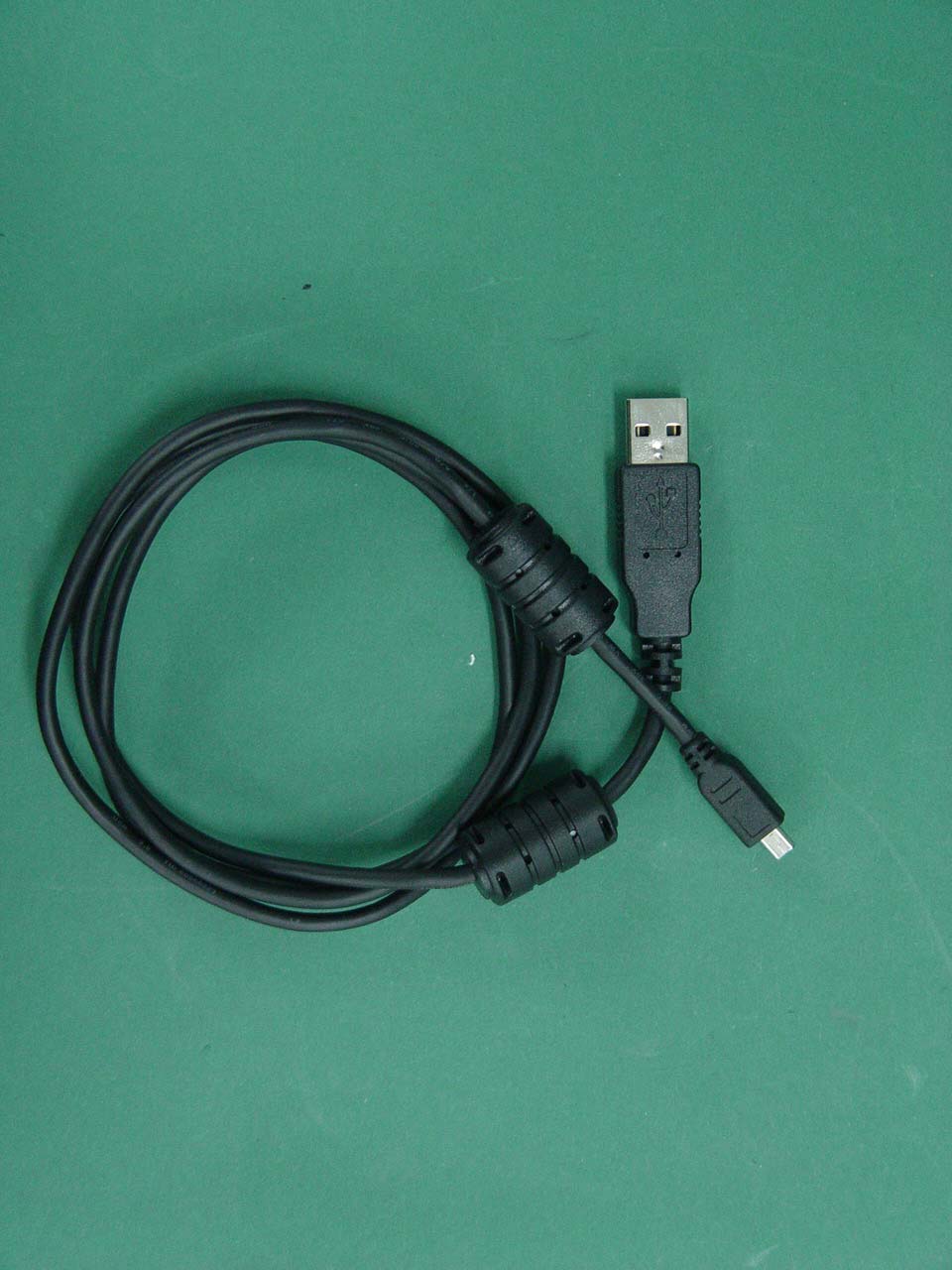

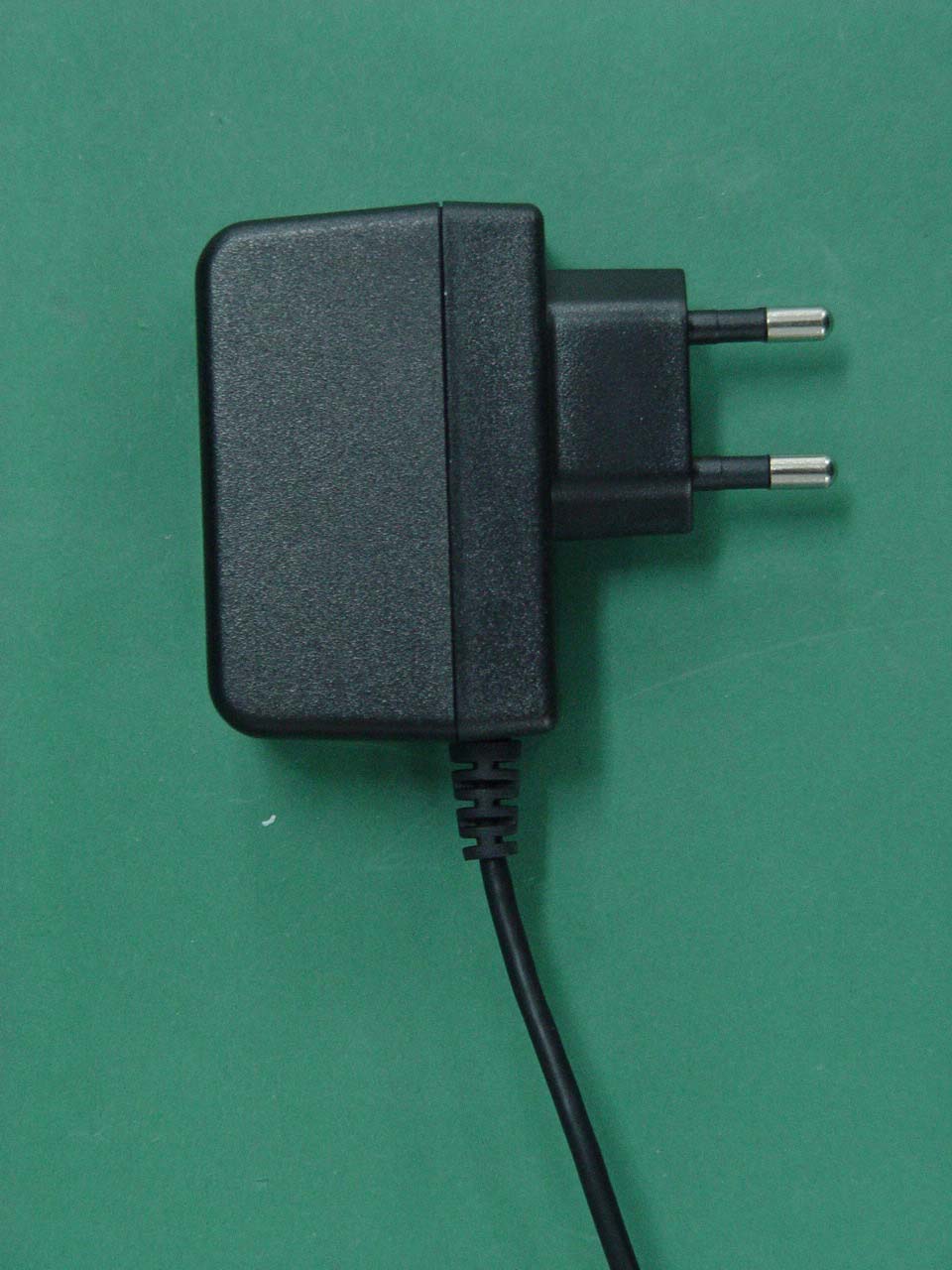

EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification

EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification APPENDIX G : INTERNAL PHOTOGRAPHS EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification

EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification APPENDIX B : PLOTS OF CONDUCTED EMISSIONS EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification -. Operating condition: Charging Mode < Hot line > < Neutral line >

EUT Type : MP3 Player FCC ID : PCMDAH1900 Page 2 of 19 Test Report No.: GETEC-E3-05-082 FCC Class B Certification CONTENTS 1. SCOPE...........................................................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION........................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT USED.....................................................................................................................................6 4. DESCRIPTION OF TESTS.........................................................................................................................................7 4.1 CONDUCTED EMISSION............................................................................................................................................7 4.2 RADIATED EMISSION................................................................................................................................................8 5. CONDUCTED EMISSION..........................................................................................................................................9 5.1 OPERATING ENVIRONMENT.....................................................................................................................................9 5.2 TEST SET-UP..............................................................................................................................................................9 5.3 MEASUREMENT UNCERTAINTY................................................................................................................................9 5.4 LIMIT......................................................................................................................................................................10 5.5 TEST EQUIPMENT USED..........................................................................................................................................10 5.6 TEST DATA FOR CONDUCTED EMISSION................................................................................................................. 11 6. RADIATED EMISSION ............................................................................................................................................12 6.1 OPERATING ENVIRONMENT...................................................................................................................................12 6.2 TEST SET-UP............................................................................................................................................................12 6.3 MEASUREMENT UNCERTAINTY..............................................................................................................................12 6.4 LIMIT......................................................................................................................................................................13 6.5 TEST EQUIPMENT USED..........................................................................................................................................13 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................14 7. SAMPLE CALCULATIONS.....................................................................................................................................18 7.1 EXAMPLE 1 :...........................................................................................................................................................18 7.2 EXAMPLE 2 :...........................................................................................................................................................18 8. RECOMMENDATION & CONCLUSION..............................................................................................................19 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – PLOTS OF CONDUCTED EMISSIONS APPENDIX C – ID SAMPLE LABEL & LOCATION APPENDIX D – BLOCK DIAGRAM APPENDIX E – TEST SET-UP PHOTOGRAPHS APPENDIX F – EXTERNAL PHOTOGRAPHS APPENDIX G – INTERNAL PHOTOGRAPHS APPENDIX H – USER’S MANUAL EUT Type : MP3 Player FCC ID : PCMDAH1900 Page 3 of 19 Test Report No.: GETEC-E3-05-082 FCC Class B Certification 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission . z FCC ID PCMDAH1900 z Equipment Class Class B Computing Device Peripheral z EUT Type MP3 Player z Model No. DAH-1900 z Tra de Na me Hyun Won z Rule Part(s) FCC Part 15 Subpart B z Test Procedure(s) ANSI C63.4 (2003) z Dates of Test December 8, 2005 z Place of Test Gumi College EMC Center z Test Report No. GETEC-E3-05-082 Responsible Party: Hyun Won Inc. Contact Person: Dae – Bong Lee, Deputy General Manager / R&D Center Dept. Manufacturer: 4 th Floor, e-Venture Center, 74-2, Shinchen3-Dong, Dong-Gu, Daegu City, Korea Tel No.: +82-53-743-7200 EUT Type : MP3 Player FCC ID : PCMDAH1900 Page 4 of 19 Test Report No.: GETEC-E3-05-082 FCC Class B Certification 2. Introduction The measurement procedure described in American National Standard for Methods of Measurement of Radio-Nose Emissions From Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ASNI C63.4- 2003) was used in determining radiated and conducted emissions emanating from Hyun Won …

Text truncated - open the document above for the full version.

EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification APPENDIX E : TEST SET UP PHOTOGRAPHS EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification The Conducted Test Picture and Radiated Test Picture show the worst-case configuration and cable placement. „ Conducted Test Picture < Charging Mode> EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification „ Radiated Test Picture < Download Mode> EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification < Line-in Mode> EUT Type: MP3 Player FCC ID : PCMDAH1900 Test Report No.: GETEC-E3-05-082 FCC Class B Certification < Playing mode / FM broadcast receiver mode >
