PCMDAH500MP3 Player

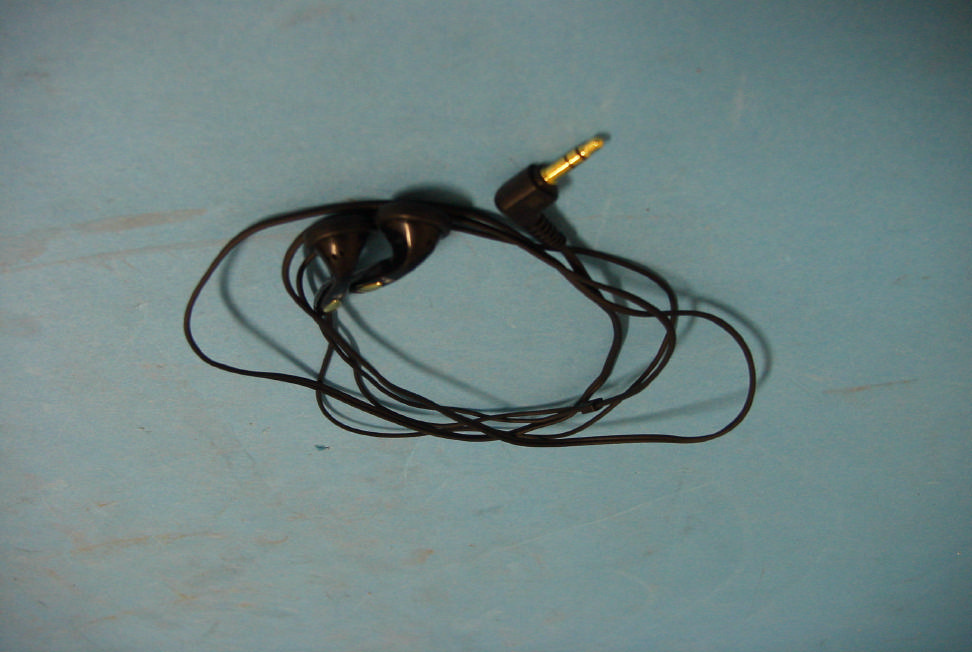

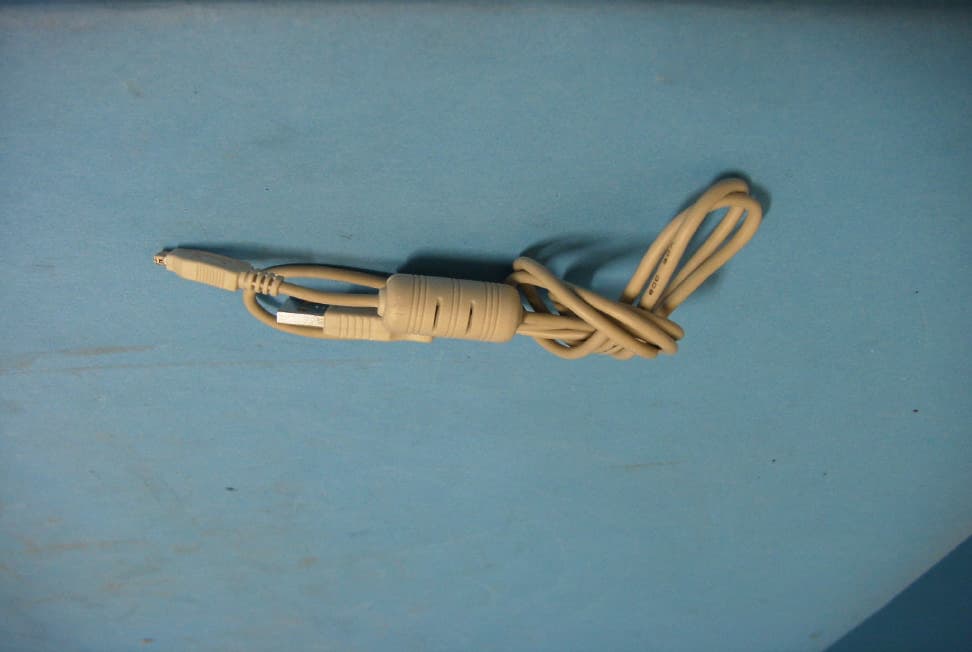

Owner s Manual Phone : 82-54-338-6000 Facsimile : 82-54-337-3075 Homepage : http://www.m-any.com e-mail : [email protected] Shindae-Ri, Kumho-Eup, Youngcheon-City, KyoungBuk 770-803, SouthKorea P/N : FAMA-C01 Voice Recorder & Music Encoder Multi Format Digital Audio Player 1 - Welcome to the Digital Audio World with Ultrasm2 - What is a Digital Audio Player (MP3 Player) 3 - PC System Requirements and Accessory 4 - Product Specification 5 - Installing Software(M -Any Loader Express) 7 - How to connect Ultrasm to your PC 8 - Device Selection as Ultrasm 9 - How to use M-Any Loader Express 11 - How to format the memories of built-in and MMC 13 - How to download files from your PC 15 - How to upload files from Ultrasm 16 - How to Upgrade OS 17 - How to convert ADP(ADPCM) to WAV & MP3 to WMA 18 - Troubleshooting Problems 20 - Getting started with Ultrasm 21 - Ultrasm LCD Display 22 - How to set Language, Repeat & Play Mode 23 - How to set User EQ Mode 24 - How to set EQ MODE and use Fast Searching 25 - How to record Voice and Music 27 - How to erase files without software 28 - How to use Removable battery compartment 29 - Handling and Storing Instructions 30 - LIABILITY FOR DAMAGES TO THE CUSTOMERS 31 - WARRANTY FORM 32 - MANUFACTURER INFORMATION 33 - FCC Compliance Statement Congratulations on your purchase of the Ultrasm.Ultrasm is a Digital Audio Player(more than MP3 player) with specialadditional functions of Voice Recorder & Direct Encoder(directly recorda music from normal audio players through a encoding cable withoutcomputer).The Ultrasm contains 32/64/128/256MB of on-board memory. TheUltrasm also is designed with a programmable and upgradeableDigital Signal Processor(DSP) to support MP3 files as well as newaudio formats and digital rights management systems. Please checkthe Hyun Won website at www.m-any.com for the latest softwareupgrade.You are now ready to enjoy the world of digital audio with the mostversatile digital audio player on the market today. Contents Welcome to the Digital Audio World with Ultrasm 1 What is a Digital Audio Player (MP3 Player) ? PC System Requirements and Accessory A. Software CD The following PC specifications are required for Ultrasm compatibility Microsoft Windows98, ME, 2000 or XP Operating SystemCD-ROM Drive with digital audio extraction supportPentium (or compatible) 200MHz or higher processor32MB RAM (64MB for Windows ME or 2000) or greater128MB free Hard Disk Space (more for digital audio file storage)USB port capability MP3 is a well known, high quality digital audio format. MP3 files can be compressed up to 12 times the original wave file size.MP3 is one of Audio Formats and 'MPEG Audio Layer-3'.MPEG(an expert group who researches for audio/video compression) is theacronym for Moving Picture Experts Group.This group has developed compression systems used for video data. The MPEGcompression system includes a subsystem to compress sound, called MPEGaudio Layer-3. We know it by its abbreviation, MP3. WMA(Windows Media Audio code) is the highest quality in terms of a sound andmusic. WMA provides all type of the best sounds from 8kHz to 48 kHz. WMA filescan be compressed up to 50% the original MP3 file size and can sound as goodas an MP3 file.What is a Digital Audio Player (MP3 Player) ?MP3 Player is a portable digital audio Player that plays MP3 files without requiringthe use of tapes or CDs.MP3 Player is a palm sized audio device that uses nomoving parts for playback and lets you enjoy high qualitysound that uses MPEG1 Layer 3 compression methodfor quality internet audio. MP3 Player uses one or two flash memory cards, whichare expandable to up to 256MB. You can make your own CD quality MP3 files from CDor WAV making use of the MP3 encoder software ordirect encoding system built in the device of Ultrasm. Ultrasm Accessory B. Earphone C. Owner's Manual D. Line-in Cable(Direct Encoding Cable) H. Carrying Case I. A/C Charger G. USB Cable Note Accessories and optional items are subject to change. Please checkwww.m-any.com for the latest in Ultrasm accessories and softwareupgrades. E. AAA 1.5v battery 1EA F. 1.2v Rechargeable Ni- MH battery EA CD Data MP3 Data 1/12 Compression Internet PC Digital audio file Digital audio file Digital Audio Player 1/2 Compression WMA Data 2 3 Digital Audio Player Normal Audio Player Model Name : UltrasmBasic Function : Digital Audio File Playback, Voice Recording, Direct MP3 Encoding Memory(On-board) : 32/64/128/256MB,Dimension (WxHxD) : 54x77x9.8mmWeight (except battery) : 55gPower Supply : 1.2V Rechargeable Ni-MH or Normal AAA 1EAEarphone Output : 7mW maxs/n Ratio : 90dBFrequency Response: 20Hz ~ 20KhzPC Interface : USB ConnectionOther features- Voice recording : 8hours & 40 minutes (128MB)- Direct encoding : 2hours (128MB)- Multi CODEC Support : MP3, WMA, ADPCM and other format by O/S upgrade - High speed file transfer(USB Port) : Max. 2.5Mbps- Play time : 8~10hours(Ni-MH 1EA + AAA 1EA)- Firmware Upgrade Solution using TI chip- EL LCD Solution- Dual Power Supply : Rechargeable battery inside of the body and Removable AAA battery compartment Product Specification 4 Installing Software(M -Any Loader Express)In order for the Ultrasm and your PC to communicate and transfer digitalfiles, you must first install the M-Any Loader Express by completing thefollowing steps:1. Insert the M-Any Loader Express CD into the CD-ROM drive. The following screen should display: 2. Follow the directions when the setup program is being automatically installed. If the program is not installed automatically, search for the install.exe file in the CD ROM drive and double click on it. 5 Installing Software(M -Any Loader Express)3. Please click the icon indicated by arrow on each screen then you complete the installation process. 4. When the installation is completed, the icon, 'M-Any Loader Express' will show up on the background screen. Note If a rebooting message displays during setup, install again after rebootingthe computer. ➡ ➡ ➡ N…

Text truncated - open the document above for the full version.

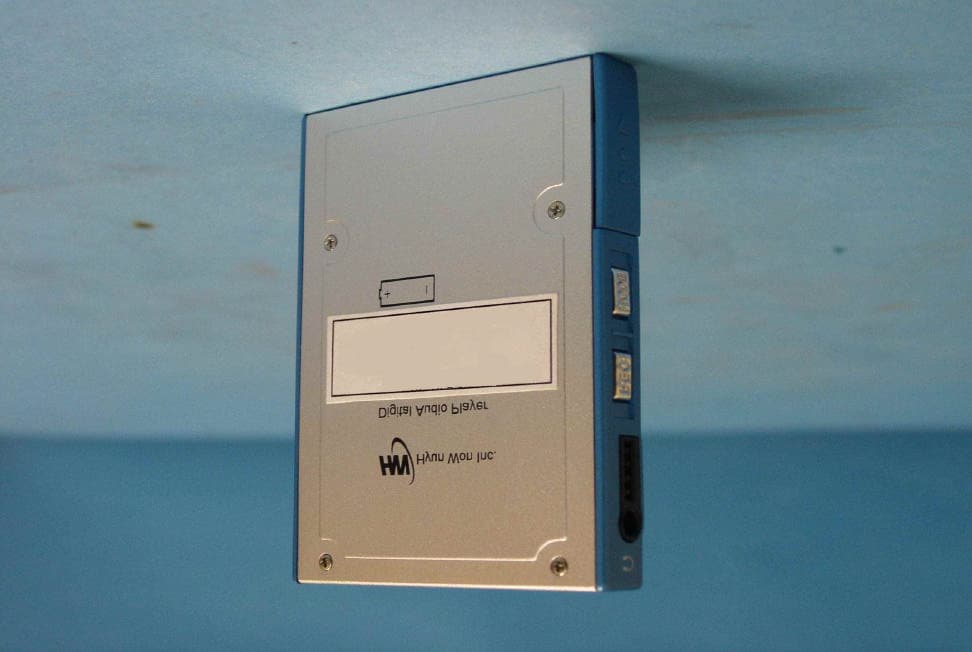

ID Label Sample & Location Information Hyun Won Inc. Model Name : DAH-500 MEMORY: 64M/128M/256M BATT: Ni-Mn Input: DC 1.2V This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PCMDAH500 Made in Korea

IST EMC LAB. 1 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 01-IST-184/FB Date of issue : Dec. 26, 2001. Model / Type No. Kind of product Bran name Applicant Manufacturer Address : DAH-500 : MP3 Player : Ultrasm : Hyun Won Inc. : Hyun Won Inc. : 333-1, Shindae-Ri, Kumho-Eup, Youngcheon-City, Kyoungbuk, Korea. Test result according to the regulation(s) n Positive o Negative at page 3. This test report without appendix consists of 20 pages. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. IST EMC LAB. 2 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Environmental Conditions Test Conditions Equipment under Test Test Result Test-setups (Photos ) Test-setup (Figures) Summary 2 3 3 4~5 6 7 8~10 11~12 20 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 13~15 16~19 C) Appendix IST EMC LAB. 3 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. ENVIRONMENTAL CONDITIONS Temperature Humidity Atmospheric pressure 9 36 % 1008 mbar IST EMC LAB. 4 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jun. 16, 2001 861742/015 3725/2 LISN EMCO Jul. 30, 2001 9101-2068 KNW-407 LISN Hyup-Rip Jul. 26, 2001 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 13, 2001 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50Ω/50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : Y.J.Kim / Research Engineer IST EMC Lab. IST EMC LAB. 5 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Location : Open Site No. 1 Open Site No. 2 Open Site No. 3 Distance : 3 meters 10 meters Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESVP Test Receiver Rohde & Schwarz Jun. 12, 2001 861744/018 VULB 9160 Antenna Schwarzbeck Jun. 04, 2001 3048 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement procedures Radiated measurements were in accordance with ANSI C63.4-1992 “Method of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurements were performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a EMI/Field Intensity Meter. The measurements were made with the detector set for “quasi-peak” within a bandwidth of 120kHz. All used test-instruments as well as the test-accessories are calibrated regularly. Test engineer : Y.J.Kim / Research Engineer IST EMC Lab. IST EMC LAB. 6 20 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description The Equipment Under Test (EUT) is the MP3 Player of Hyun Won Inc. Flash Memory 32MB On-board(expandable to 256MB though) Size 50(W) x 70(H) x 10(D) (mm) Battery DC 1.2V [Ni-Mn battery] Battery Life Approximately 10hours of playback time Signal to Noise Ratio 90dB Interface Port Universal Serial Bus(USB) Earphon output 7mW File Download Speed Up to 2.5 Mbps internal memory Weight 55g EUT Type : Table-Top. Floor-Standing. Table-Top and Floor-Standing(Combination). Operation – mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions : Standby. Operational Condition : - Download files from PC to EUT. - Play Configu…

Text truncated - open the document above for the full version.

Play : Radiated Emission 30MHz ~ 1000MHz Files download : Radiated Emission 30MHz ~ 1000MHz Files download : Conducted Emission 450kHz ~ 30MHz
