PCSHERCULES868305Industrial Radio Remote Control

Operation Instruction for – Hercules Joystick series Waist harness model ISO 9001:2000 Jan 2005 Your value-added selection3e 2 Table of Contents Introduction .....................................................................................3 Hercules Features .....................................................................................3 Hercules Specifications .....................................................................................4 How to Turn on Transmitter ......................................................................................5 How to Turn off Transmitter .....................................................................................5 How to Install Receiver .....................................................................................5 User¡¦s Reminder .....................................................................................7 Function Checking/Maintaining Steps ........................................................................8 Trouble Shooting .....................................................................................8 Hercules Dimension Layout .....................................................................................10 Hercules Wiring Diagram .....................................................................................11 Limited One Year Warranty .....................................................................................13 Note: The device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference , and (2) This device must not accept any interference received, including interference that may cause undesired operation. The FCC require the user to be notified that any changes or modifications made to this device that are not expressly approved by 3e may avoid the user's authority to operate the equipment. To comply with FCC RF explosure requirement, this device and its antenna must no be co-located or operating in conjunction with any other antenna or transmitter. Your value-added selection3e 3 Introduction Suitable for multi applications, we made Hercules joystick type remote controller serves, it’s proper purpose in every single place... Hercules Joystick type remote controller could be used for almost all of the environments, design fit to ergonomic which could release the strain from neck after long time operation. We offered different models for selection to meet your need. A suitable tool could always save your time, money and energy. Hercules took the latest technology with long-life, stable components, made operation simple and easy, shorten the shut down time to get more profit Hercules Features ¾ Light weight, wireless transmitter took PC & PA casing material, enclosure up to IP65, strong shock proof, water / dust resistance, internal antenna design avoid possible damage, waist-belt could release pain through long time usage. ¾ Receiver casing enclosure up to IP67, dust / water / ultraviolet rays resisted, instant connector saves time in installation and repair easily; interruption free perfectly. ¾ European made industrial-used joystick, operation life reached million times, power-saved design as easily replace 6pcs of AA1.5V batteries once. ¾ Custom-made request accepted if standard models still could not reach your need. System Features in 4R ‹ Raise the production efficiency, simple instructions to reduce time-waste, also could keep manufacture continuously. ‹ Reduce manpower – operator could hang up hook by own without extra help. ‹ Remove handling from dangerous environment as heat, strong acid, alkali... ‹ Replaced & upgraded cabin into motive function, prime cost for manufacture and maintenance saved. Hercules – Your reliable tool, efficient partner in work side !! Your value-added selection3e 4 Hercules specifications Frequency range: 868MHz ( 20 channels ) Frequency range: 868MHz ( 20 channels ) Frequency control: Quartz crystals Frequency control: Quartz crystals Channel spacing : 60KHz Channel spacing : 60KHz Output power: less than 10mW Output power: less than 10mW Operation temperature: -10°C~ +70°C Operation temperature: 0°C~ +70°C Ratio output voltage: 0 ~ 10V (coordinate w/ inverter) Antenna impedance: 50Ω Ratio output current: 0 ~ 1A (coordinate w/ hydraulic valve) Adjustment method: F1D Mix transmitting: > 60dBc Security code: 256 sets Security code: 256 sets Responds time < 50mS Responds time < 50mS Enclosure level: IP67 Enclosure level: IP65 Contact capacity: 250V 10A Contact capacity: 250V 10A Operation voltage: - DC12V,24V (for mobile hydraulic crane used) - AC-110V / 220V / 380V ~415V, 50 / 60Hz (for crane used) - Adapter needs to be exchanged Power Supply : - DC 9V Battery ( 1.5V AA x 6PS ) Weight: 1,430g – Box 2 Weight: 1480g Dimension: 200mm L x 265mm W x 95mm H Dimension: 230mm L x 153mm W x 185mm H RECEIVER TRANSMITTER Your value-added selection3e 6 How To Turn On Transmitter ( 1 ) Power on receiver. ( 2 ) Push any toggle switch and release OR push any axis-fingertip joystick and release to operate ( 3 ) And simply push R1 toggle switch to on & release ( 4 ) Now Hercules is ready for operation. How to Turn Off Transmitter ( 1 ) Push-down EMS button, then pull out the power-on key. The EMS stop button is with dual protections, every motion will be terminated in 0.1 sec. ( 2 ) Always pull out power-on key after transmitter is no usage. ( 3 ) shut down receiver. How to install receiver Tools: long nose plier diagonal cutting plier cross head screwdriver hexagonal head wrench mulitmeter electric drill cable and feeder Steps: (a) Ensure the original wired-control operates normally (b) Switch off the main power of crane before installation (c) Receiver must be installed in a stable & easy-seen location (d) Installation location shall keep away from motor, relays, cables, large adapter, high voltage equipment or screen which may intermit the electric w…

Text truncated - open the document above for the full version.

1 Helen Zhao Subject:FW: 3-Elite Join Industrial Pte Ltd, FCC ID: PCSHERCULES868305, Assessment NO.: AN05T4664, Notice#1 User Manual.pdfFCC ID Label Location.PDF Test Report_02.pdfCover Letter.PDF Dear Helen, Attached please find the new "FCC ID Label Location" (for Q#1) , "Cover Letter" (for Q#2) ,"User Manual" (for Q#3) and "Test report" (for Q#4). Any questions please feel free to contact with me. Best regards, Joe > -----Original Message----- > From: Compliance Certification Services [mailto:[email protected]] > Sent: Thursday, March 24, 2005 12:17 PM > Subject: 3-Elite Join Industrial Pte Ltd, FCC ID: PCSHERCULES868305, > Assessment NO.: AN05T4664, Notice#1 > > > Question #1: Question #1: Based upon FCC15.19(a)(3)(4), all other devices shall > bear compliance statement in a conspicuous location on the device > unless the device is smaller than palm size. The FCC ID label format > submitted in this filing does not comply with this, please revise. > > Question #2: The proposed FCC ID (PCSHERCULES868305) consists of 18 > alpha-numeric characters, exceeds the maximum 17 alpha-numeric > characters as allowed by FCC. Please revise FCC ID label format, Agent > authorization letter, and Test report, etc. > > Question #3: Non-colocation restriction statement is not necessary for > remote control devices. You can remove this statement from the user manual. > > Question #4: Please revisit the bandwidth plot of channel 20 in the test > report part 2 of 2. The wrong markers caused an incorrect result. Please > revise the test report. > > Best Regards, > Helen Zhao > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 30 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. > >

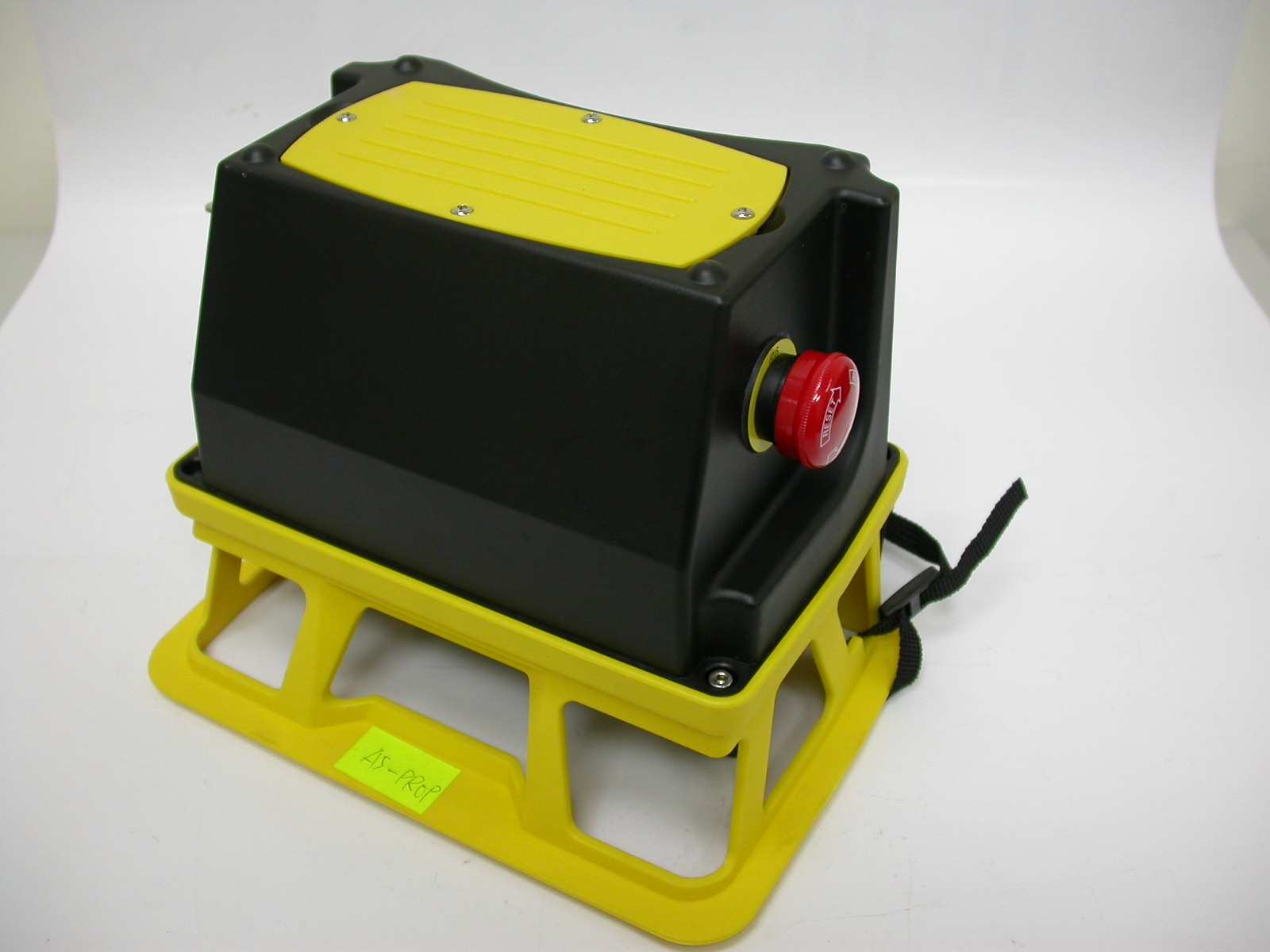

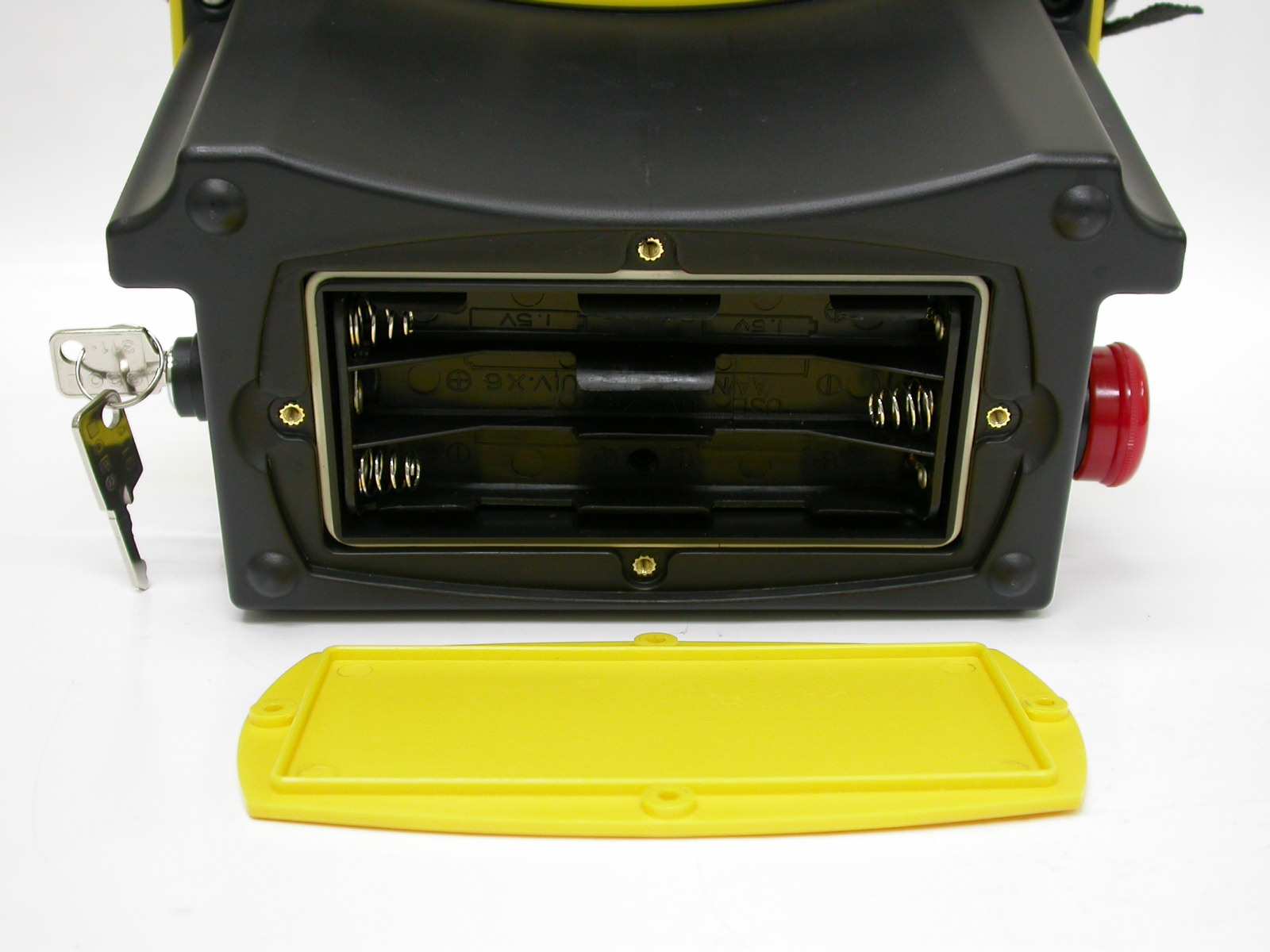

ETC Report No.: ET94S-01-155-03 Page A1 of A2 FCC ID: PCSHERCULES8680305 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT ETC Report No.: ET94S-01-155-03 Page A2 of A2 FCC ID: PCSHERCULES8680305 3. Outside view 3 of EUT

ETC Report No.: ET94S-01-155-03 Page B1 of B6 FCC ID: PCSHERCULES8680305 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: ET94S-01-155-03 Page B2 of B6 FCC ID: PCSHERCULES8680305 3. Inside View 3 of EUT 4. Inside View 4 of EUT ETC Report No.: ET94S-01-155-03 Page B3 of B6 FCC ID: PCSHERCULES8680305 5. Inside View 5 of EUT 6. Inside View 6 of EUT ETC Report No.: ET94S-01-155-03 Page B4 of B6 FCC ID: PCSHERCULES8680305 7. Inside View 7 of EUT 8. Front view of PCB1 ETC Report No.: ET94S-01-155-03 Page B5 of B6 FCC ID: PCSHERCULES8680305 9. Rear view of PCB1 10. Front view of PCB2 ETC Report No.: ET94S-01-155-03 Page B6 of B6 FCC ID: PCSHERCULES8680305 11. Rear view of PCB2

ETC Report No. : ET94S-01-155-03 Sheet 1 of 34 Sheets FCC ID: PCSHERCULES868305 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: ET94S-01-155-03 Client: 3-Elite Join Industrial Pte Ltd Product: Industrial Radio Remote Control Trade Name: Hercules Model No.: A5-PROP FCC ID: PCSHERCULES868305 Manufacturer/supplier: 3-Elite Join Industrial Pte Ltd Date test item received: 2005/01/24 Date test campaign completed: 2005/03/17 Date of issue: 2005/03/18 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 34 pages Total number of pages of photos: External photos 2 pages Internal photos 6 pages Setup photos 2 pages Test Engineer Checked By Approved By Lee-Ying Hsu Joe Hsieh Tsung-Ching Lin ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333 TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : ET94S-01-155-03 Sheet 2 of 34 Sheets FCC ID: PCSHERCULES868305 Rev. No 1.0 TEST REPORT CERTIFICATION Client : 3-Elite Join Industrial Pte Ltd (Representative Office) Address : 5F-7 , No. 4, Lane 609, Sec 5 Chung Hsin Road, Sanchung City, Taipei Hsien, Taiwan Manufacturer : 3-Elite Join Industrial Pte Ltd Address : 5F-7 , No. 4, Lane 609, Sec 5 Chung Hsin Road, Sanchung City, Taipei Hsien, Taiwan EUT : Industrial Radio Remote Control Trade name : Hercules Model No. : A5-PROP Power Source : 9V DC Regulations applied : FCC 47 CFR, Part 15 Subpart C (2004) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TüV Product Service 2 ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA 5 FCC Registration Number: 90588, 91094, 91095 NVLAP Lab Code 200133-0 ETC Report No. : ET94S-01-155-03 Sheet 3 of 34 Sheets FCC ID: PCSHERCULES868305 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ......................................................................................................................................4 1.1 P RODUCT D ESCRIPTION .................................................................................................................................................4 1.2 C HARACTERISTICS OF D EVICE :......................................................................................................................................4 1.3 T EST M ETHODOLOGY ....................................................................................................................................................4 1.4 T EST F ACILITY ...............................................................................................................................................................4 2. DEFINITION AND LIMITS........................................................................................................................................5 2.1 D EFINITION ....................................................................................................................................................................5 2.2 RESTRICTED BANDS OF OPERATION...............................................................................................................................5 2.3 LIMITATION....................................................................................................................................................................6 2.4 L ABELING R EQUIREMENT ..............................................................................................................................................7 2.5 U SER I NFORMATION .......................................................................................................................................................7 3. RADIATED EMISSION MEASUREMENT..............................................................................................................8 3.1 A PPLICABLE S TANDARD .................................................................................................................................................8 3.2 M EASUREMENT P ROCEDURE .........................................................................................................................................8 3.3 T EST D ATA ..................................................................................................................................................................10 3.4 FIELD STRENGTH CALCULATION..................................................................................................................................20 3.5 RADIATED TEST EQUIPMENT.......................................................................................................................................20 3.6 M EASURING I NSTRUMENT S ETUP ......................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : ET94S-01-155-03 Sheet 28 of 34 Sheets FCC ID: PCSHERCULES868305 Rev. No 1.0 4. BANDWIDTH OF EMISSION 4.1 Applicable Standard Plot Graphic of Bandwidth Per FCC rule § 15.231(c), the permitted emission bandwidth is no wider than 0.25%of the center frequency for devices operating above 70 MHz and below 900 MHz. For devices operating above 900 MHz, the emission shall be no wider than 0.5% of the center frequency. Bandwidth is determined at the points 20 dB down from the modulated carrier. 4.2 Test Equipment Equipment Manufacturer Model No. Next Cal. Date Spectrum Analyzer Agilent 8564EC Sep. 16,2005 4.3 Test Result 4.3.1 CH 01 Test Date : Feb. 25, 2005 Temperature : 20 °C Humidity : 70 ％ Center Frequency 868.00 MHz FCC Limit 868.000 MHz × 0.25% ＝ 2170.000 kHz Bandwidth of Emission 563.3 kHz Chart Page 29 Result PASS 4.3.2 CH 20 Test Date : Feb. 25, 2005 Temperature : 20 °C Humidity : 70 ％ Center Frequency 869.140 MHz FCC Limit 869.140 MHz ×0.25%＝2172.850 kHz Bandwidth of Emission 550.0 kHz Chart Page 30 Result PASS ETC Report No. : ET94S-01-155-03 Sheet 29 of 34 Sheets FCC ID: PCSHERCULES868305 Rev. No 1.0 CH 1 ETC Report No. : ET94S-01-155-03 Sheet 30 of 34 Sheets FCC ID: PCSHERCULES868305 Rev. No 1.0 CH 20 ETC Report No. : ET94S-01-155-03 Sheet 31 of 34 Sheets FCC ID: PCSHERCULES868305 Rev. No 1.0 5. CONDUCTED EMISSION MEASUREMENT This EUT is excused from investigation of conducted emission, for it is powered by battery only. According to § 15.207 (d), measurements to demonstrate compliance with the conducted limits are not required for devices which only employ battery power for operation and which do not operate from the AC power lines or contain provisions for operation while connected to the AC power lines. ETC Report No. : ET94S-01-155-03 Sheet 32 of 34 Sheets FCC ID: PCSHERCULES868305 Rev. No 1.0 6. LIMIT OF TRANSMISSION TIME 6.1 Applicable Standard According to 15.231(a)(1), a manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. 6.2 Active Time CH 01 This transmitter is operated by manual and active time is 0.867 second after being released. Note : Please refer to page 33 for chart CH 20 This transmitter is operated by manual and active time is 0.933 second after being released. Note : Please refer to page 34 for chart ETC Report No. : ET94S-01-155-03 Sheet 33 of 34 Sheets FCC ID: PCSHERCULES868305 Rev. No 1.0 CH 1 ETC Report No. : ET94S-01-155-03 Sheet 34 of 34 Sheets FCC ID: PCSHERCULES868305 Rev. No 1.0 CH 20

ETC Report No.:ET94S-01-155-03 Sheet 1 of 2 Sheets FCC ID: PCSHERCULES8680305 1. Radiated Measurement Photos ETC Report No.:ET94S-01-155-03 Sheet 2 of 2 Sheets FCC ID: PCSHERCULES8680305
