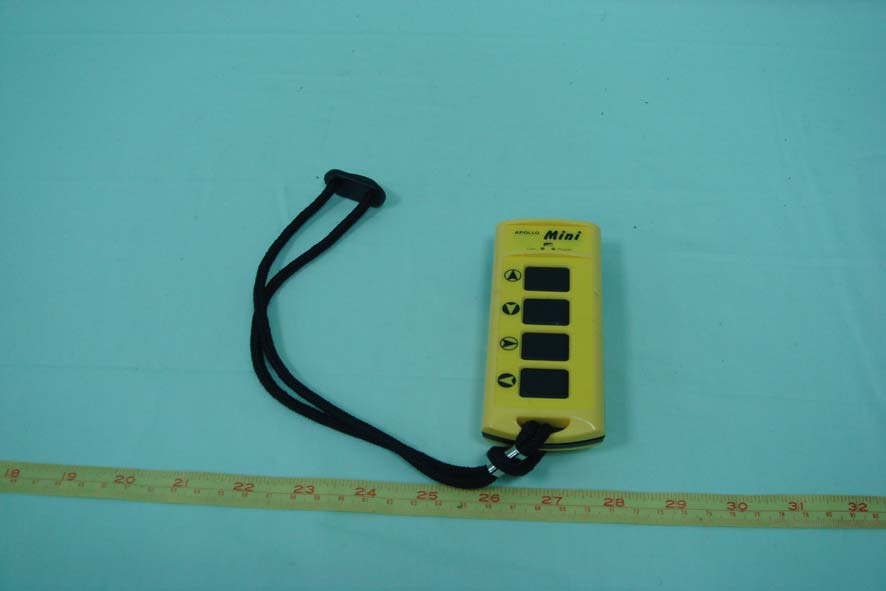

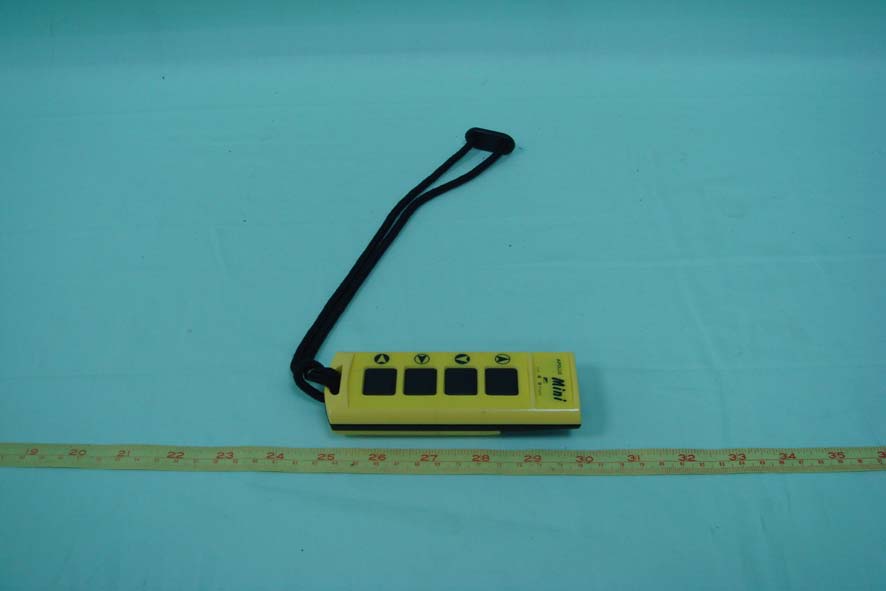

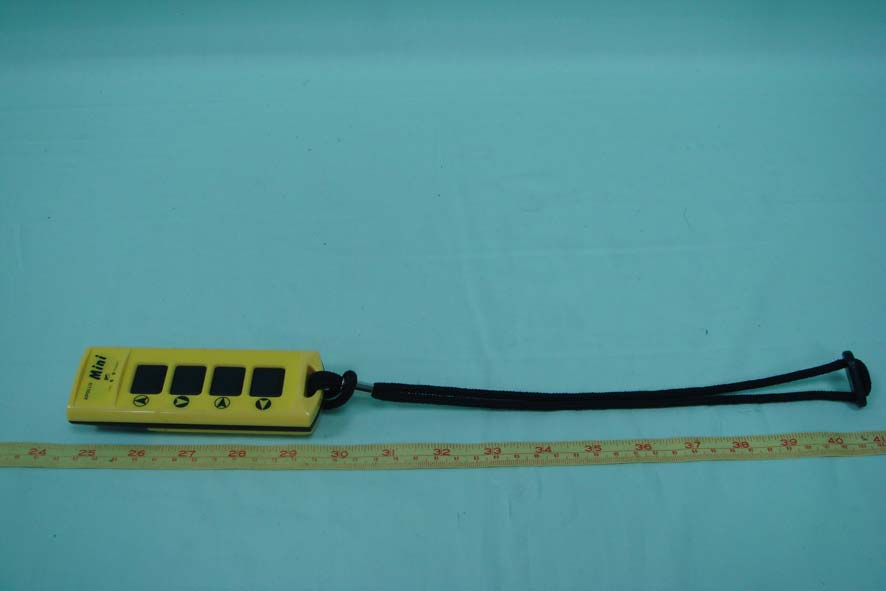

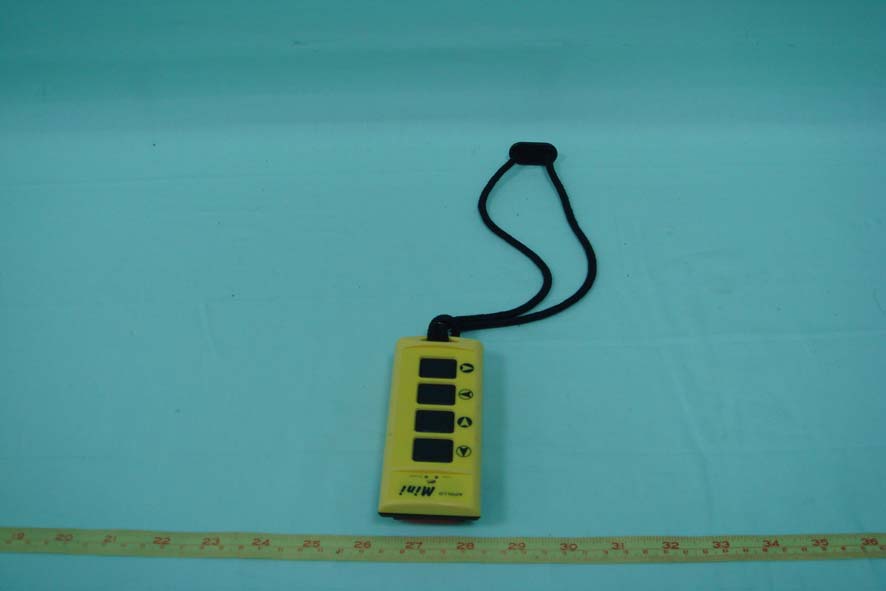

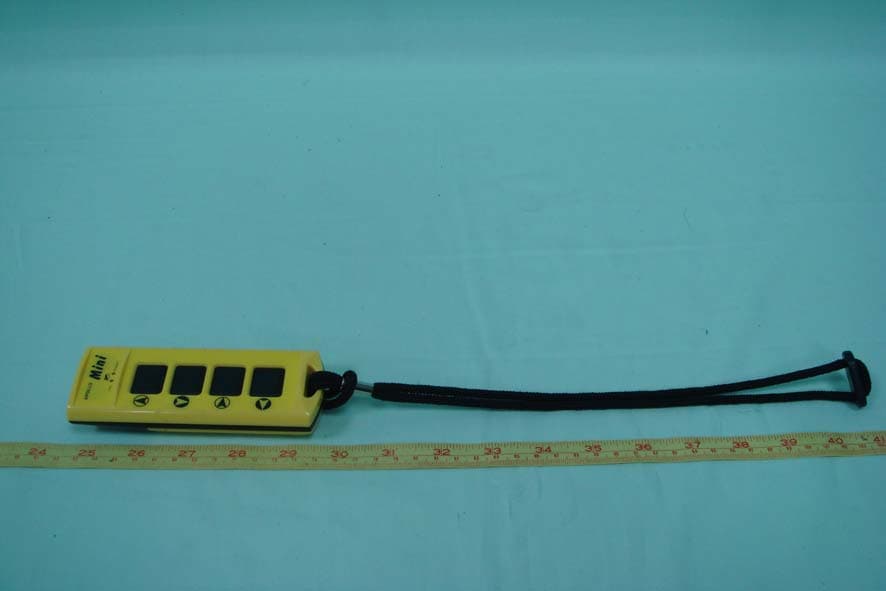

PCSMINI02132008Industrial radio remote controller

Mini RADIO REMOTE CONTROL AC version Please read the handbook carefully before operation to avoid any dangerous or damage may be incurred Dec 2007 HANDBOOK MiniMini TABLE Of CONTENTS 1. Introduction........................................................................................................................2 1.1 Features...................................................................................................................2 2. Models................................................................................................................................2 3. Transmitter.........................................................................................................................2 3.1 Technical data........................................................................................................2 3.2 Indicator................................................................................................................3 3.3 Power on steps.....................................................................................................3 3.4 Power off steps.....................................................................................................3 4. Receiver.............................................................................................................................4 4.1 Technical data........................................................................................................4 4.2 Indicator.................................................................................................................4 4.3 Installation notes....................................................................................................5 4.4 Receiver installation illustration..............................................................................5 5. Trouble shooting-TX...........................................................................................................6 6. Trouble shooting-RX..........................................................................................................6 7. Parts list.............................................................................................................................7 8. Wiriing diagram..................................................................................................................7 9. Warranty.............................................................................................................................10 INTRODUCTION 1 MiniMini INTRODUCTION ( 2) buttons ( 3) buttons 1 step, 1 step, MINI 20 MINI30C C All models are equipped with RED EMS stop ( push type ) ※ 1. INTRODUCTION 1.1 FEATURES: 1. Pocket-size transmitter, light ,more handy for operation. 2. ABS +PC transmitter housing, water/shock/dust proof. 3. Transmitter 2-4 functions equipped with a push type emergency STOP button . 4. Receiver with 4-LED, quick, simple judgement for operation status & after services. INTRODUCTION 2. MODELS 3.1 TECHNICAL DATA: Operation distance: 100M ( open space ) Frequency : FM 412~437Mhz for FCC/ 433Mhz for CE Output power : < 10mW Response time: 100mS Antenna: internal type oo Temparature: 0C~+70C Source supply:1.5V(AA)*2pcs or rechargable nickel battery Enclosure: IP65 Material: Industrial ABS + PC Address code : 256 sets Weight : 95 g ( excluding batteries ) Size: 124x48x25mm 3. TRANSMITTER 2 unit: mm 126 5029 MiniMini 3.3 POWER-ON STEPS: ( 1 ) Power on receiver. ( 2 ) PUSH up the RED stop button to power on the transmitter. ( 3 ) Press any button and release, now MINI is ready to operate ( now receiver power LED lights GREEN ) POWER-OFF STEPS： ( 1 ) Push down the RED stop button . 3.4 CAUTION: Please take out the batteries if long term period NOT operation. 3.2 INDICATOR: power off Indicator lights off ( EMS OFF ) stand-by ( power on ) RED/GREEN both indicators are NOT lighting ( EMS ON ) operation GREEN indicator light blinking power low RED indicator light blinking ( when button pressed ) Power LED s/no. label inside of casing EMS stop battery AA*2 function-button OFF ON 4 MiniMini 4. RECEIVER 4.1 TECHNICAL DATA: Frequency : 412~437Mhz for FCC/ 433Mhz for CE Sensitivity of RF:-110dBm Antenna : internal type oo Operation Temperature : -10C~+75C Source Voltage: 9-30V DC Enclosure: IP65 Consumption: <12W Security Code: 256sets Weight: 270g ( excluding cable ) protection: short protection Color: Grey BOX 1.2 204 12165 Frequency LIGHT RED lighting when TX pressed ( in operation ) Light OFF when button released (without operation ) blinking irregularly when interference incurred RED light Data LIGHT OFF lighting when TX* is pressed ( in operation ), RED when button released RED light blinking fastly when ID codes incorrect. Operation LIGHT GREEN lighting when power on Light OFF when EMS stop pressed or power off Power LIGHT Green lights when power on Iillustrationdescription 4.2 INDICATOR: TX*: transmitter S/No. ID LABEL: Each MINI unit has its own s/no. ID label which defines the device's type, ID, service number ( S/No. ), and channel. For any inquiry please advise your supplier the S/NO. for a faster service. ! Always read the manual before oper ting and follow the safety instructions. 5 MiniMini 4.3 INSTALLATION NOTES: ( 1 ) Ensure the original wired control of equipment works. ( 2 ) Shut down equipment main power source before installation. ( 3 ) Mount in a firmed site where the receiver can be seen easily by operator. ( 4 ) Keep away the mounted site from motors relays, cables, high voltage wiring and devices, or the protrusion of building where crane moves. Select a firmed site without metal shield. ( 5 ) Ensure the wiring layout correctly and safely ( 6 ) Test each function to be sure each output has the same function as wired control ( 7 ) Put the wired pendant if has in safe position Dimension of receiver (Box 1.1) 204 108 5 8.5 5 5 90 121 90 65 70 189 188 70 189 hole 8mm dia x 4 insert rubber absorber in position screw…
