PCV402S2406DKMicrowave Combination Oven

1 IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS Users are cautioned that maintenance and repairs should be performed by a Merrychef authorized service agent using genuine Merrychef replacement parts. Merrychef will have no obligation with respect to any product that has been improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which has been modified or repaired using unauthorized parts or by unauthorized service agents. For a list of authorized service agents, please refer to the inside back page of this booklet. The information contained herein ( including design and parts specifications ) may be superseded and is subject to change without notice. Installation and operating instructions MAI MENUKEY2 This oven is a pre-production prototype model intended for use in field trials only, it must not be sold 2 Safety instructions............................................. 3 Installation instructions ...................................... 6 Introduction .......................................................8 Main features................................................9-10 Using the oven for the first time ....................... 11 Operating instructions: Manual mode .............. 12 Operating instructions: Program mode ......13-17 MenuKey: Changing oven programs ................ 18 Daily cleaning.............................................19-20 Technical specification ..................................... 21 a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumalate on sealing surfaces. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the (1) door ( bent ) (2) hinges and latches ( broken or loosened ) (3) door seals and sealing surfaces. d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel PLEASE READ THE FOLLOWING SAFETY INSTRUCTIONS CAREFULLY Merrychef USA 2227 Welbilt Boulevard New Port Richey FL 34655 Phone: 1-(727) 375-1944 Fax: 1-(727) 569-1574 e-mail: [email protected] 3 When using electrical appliances basic safety precau- tions should be followed, including the following: WARNING To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” FOUND ON PAGE 2. 3. This appliance must be grounded. Connect only to a properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 4. 4. Install or locate this appliance only in accordance with the provided installation instructions 5. Some products such as whole eggs and sealed containers — for example, closed jars — may ex- plode and should not be heated in this oven. 6. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. 7. This appliance should not be used by children. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair or adjustment. 10 Do not cover or block any openings on the appli- ance including air vents/filters and steam outlet. 11 Do not store this appliance outdoors. Do not use this product near water —– for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like. 12. Do not immerse the cord or plug in water. 13. Keep the cord away from heated surfaces. 14. Do not let cord hang over edge of table or coun- ter. 15. Either: i)When cleaning surfaces of door and oven that comes together on closing the door, use only mild non-abrasive soaps, or detergents applied with a sponge or soft cloth. ii)When separate cleaning instructions are provided, see door surface cleaning instructions on page 19 & 20. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS iii) If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord , or shut off power at the fuse or circuit breaker panel. iv) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. 17. DO NOT operate using microwave only or combination function without food or liquid inside the oven as this may result in overheating and may cause damage. 18. NEVER remove the exterior of the oven. 19. NEVER remove any fixed internal parts of the oven. 20. NEVER tamper with the control panel, door, seals, or any other part oven. 21. DO NOT obstruct air vents/filters or steam outlet. 22. NEVER hang dish towels or cloths on any part of the oven. 23. If the door seals are damaged, the oven must be repaired by an approved Service Agent. 24. If the power cable is damaged in any way it MUST be replaced by an approved Service Agent. 25. When handling hot liquids, foods, and containers, care should be taken to avoid scalds and burns. 26. When heating liquids using microwave only or combination function, the contents should be stirred prior to heating to avoid eruptive boiling. 27. Feeding bottles and baby food jars should be opened when heating, the conte…

Text truncated - open the document above for the full version.

COOLING FAN MOTOR FILTER RELAY BOARD STIRRER STIRRER MOTOR STIRRER STIRRER MOTOR FILTER TRANSFORMER MAGNETRON TRANSFORMER FILTER MAGNETRON MEMBRANE PANEL MENU KEY 20 MHz CRYSTAL OSCILLATOR DISPLAY LOGIC BOARD TRANSFORMER FILTER SPEED CONTROL CONVECTION MOTOR HEATER ELEMENTS FILTER L1 L2 E TEMPERATURE SENSORS MERRYCHEF 402S BLOCK DIAGRAM FCC ID: PCV402S2086DK * & PCV402S2406DK* Note: * above denotes optional characters used to i dentify customer specific (cosmetic) model variants .

Merrychef 402S Series Microwave Assisted Impinger Oven FCC ID: PCV402S2086DK* and PCV402S2406DK* Letter of Correspondence 26 September 2005 American Telecommunications Certification Body, Inc 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: RE: New Merrychef Product – Request for Grant of Equipment Authorization. FCC ID: PCV402S2086DK* and PCV402S2406DK* Please be advised that Merrychef Limited wish to introduce a new commercial Oven Appliance. The new model has the generic name ‘Merrychef ‘402S’ and is a Microwave Assisted Impinger Oven which combines high speed fan assisted convection heating and microwave energy to produce very rapid cooking of the food product. A Grant of Equipment Authorization is requested for evaluation of compliance with the relevant CFR 47 (FCC Part 18) rules for conducted and radiated emissions. The two models to be assessed are configured for 208Volt 60Hz and 240Volt 60Hz nominal mains supply. Both models are identical except for the internal connections to the voltage tappings of the mains transformers and the resistance of the convection heater elements. Support documentation will be provided for your evaluation. Please note that * above denotes additional characters may be included in the Merrychef part number to identify customer specific cosmetic variants. Yours sincerely Paul Harrison Approvals Engineer Merrychef 402S Series Microwave Assisted Impinger Oven FCC ID: PCV402S2086DK* and PCV402S2406DK* Letter of Correspondence - Manufacturing Changes 26 September 2005 American Telecommunications Certification Body, Inc 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: RE: New Merrychef Product – Request for Grant of Equipment Authorization. FCC ID: PCV402S2086DK* and PCV402S2406DK* Manufacturing Changes Please be advised that the Merrychef appliances tested for compliance with FCC rules are prototype units constructed using fabricated parts. It is proposed that later production units will be fabricated from tooled manufacturing equipment. Some changes to the cosmetic appearance of the appliance are expected. Yours sincerely Paul Harrison Approvals Engineer

Mealstream 402S Series Microwave Assisted Impinger Oven FCC ID: PCV402S2086DK* and PCV402S2406DK* Confidentiality Request 26 September 2005 American Telecommunications Certification Body, Inc 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: RE: New Merrychef Product – Request for Grant of Equipment Authorization. FCC ID: PCV402S2086DK* and PCV402S2406DK* Please be advised that the following sections of this request for FCC Grant of Equipment Authorization are to be held confidential on behalf of Merrychef Limited. Schematics The application contains technical information, which Merrychef Limited deems to be trade secrets and proprietary. If made public this information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours sincerely Paul Harrison Approvals Engineer

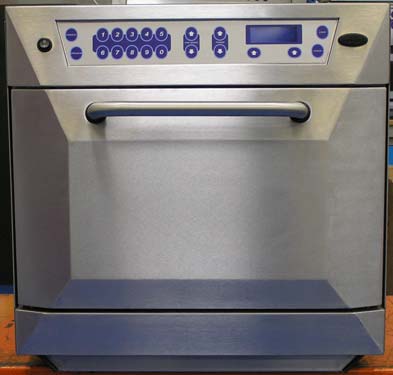

MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK* and PCV402S2406DK* External Photos Front Rear Left Hand Side Note: * above denotes optional characters used to identify customer specific (cosmetic) model variants.

MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN Models 402S2086DK* and 402S2406DK* 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK and PCV402S2406DK FCC ID/ Rating Labels - Issue 2 Note: * above denotes optional characters used to identify customer specific (cosmetic) model variants. Ge- neric Supply Voltage Fre-quency Phase/Supply Control Type Rev * Type * Country/Region * 402S VVV F P C R TT ZZ Voltage (ac) Code 200 = 200 208 = 208 220-230 = 220 230-240 = 240 Hz Code 50 = 5 60 = 6 Phase Arrangement Code L + N + E (30 Amp) = A L1 + L2 + N + E = B 2 P + Gnd (20 Amps) = C 2 P + Gnd (30 Amps) = D Type Code Electronic with menu key = K 1 GM = General Market nn = Customer specific (cosmetic variant) Country Code United Kingdom = UK USA = US Europe = EU Etc........... PCV 402S VVV F P C R TT ZZ MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN Model Numbers 402S2086DK* and 402S2406DK* (* denotes optional characters used to identify customer specific (cosmetic) model variants, see below) 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK and PCV402S2406DK FCC ID/ Merrychef Part Number Breakdown - Issue 2

MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK* and PCV402S2406DK* Internal Photos Front Right Hand Side Top Rear Note: * above denotes optional characters used to identify customer specific (cosmetic) model variants. MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK* and PCV402S2406DK* Internal Photos Left Hand Side Note: * above denotes optional characters used to identify customer specific (cosmetic) model variants. MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK* and PCV402S2406DK* Internal Photos RELAY BOARD LOGIC BOARD Note: * above denotes optional characters used to identify customer specific (cosmetic) model variants.

MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK* and PCV402S2406DK* Operational Description Note: * above denotes optional characters used to identify customer specific (cosmetic) model variants. The Merrychef “402S” (FCC ID: PCV402S2086DK* and PCV402S2406DK*) is a Microwave Assisted Impinger Oven intended for commercial use in Quick Service Restaurants (QSR’s). It is used to either reheat or prime cook food. The oven has two heat sources available: a multi- element resistive heater located behind the main cavity and two magnetrons which launch/ produce microwave energy from the sides of the cavity. A variable high-speed convection fan circulates the hot air energy into the main cavity through impinger plates located at the top and bottom of the cavity. Microwave energy is stirred by a rotating antenna located behind a sealed cover on each side of the cavity. The oven includes a recirculation filter which reduces the emission of smoke and grease particles during cooking. A micro-controller facilitates control of the oven and allows for specific convection fan speeds, microwave powers, cavity temperatures or pre-programmed combinations to be enabled via the user interface keypad and alphanumeric display. Microwave Power 0% to 100% in 10% steps Convection Fan Speed 10% to 100% in 5% steps Cavity Temperature 212 - 525°F /100 – 275 °C in 1° steps. The combination of high velocity hot air impingement and microwave energy provides very rapid cooking of the food product together with a traditional cooking result. Microwave leakage is prevented by utilising a welded cavity and a door with an intrusive 1/4 wave trap system. The door is monitored by a primary and secondary interlock system.

MAI / IMPINGER 402S2406DK1GMUS Bill of Materials LevelPt. No.Description line 1Description line 2QTY 1SA101BASE MAIN ASSEMBLYIMPINGER/MAI 1 2SA317BASE SUB-ASSEMBLYISSUE 1 1 3LSA317BASE SUB-ASSYLABOUR ONLY VALUE 1 332Z1070 2000 X 1000 X 1.0MM SS430 BASTAINLESS STEEL SHEET 0.005 332Z1053 2000 X 1000 X 0.9MM 430S17 DP1VC1 STAINLESS STEEL SHEET 0.042 332Z1038 2000 X 1000 X 1.5MM 430 S15 BASTAINLESS STEEL SHEET 0.333 2SA209OVEN SUPPORT ASSY 208V 60Hz 1 3DV0525 CAVITY SUPPORTISSUE 1 1 330Z0997 FILTER 16A411.10.5736 UL MARKED 2 330Z1298 CAPACITOR - MOTOR START - 2uF(RS 196-4731) 1 231Z4016 M5 FLANGE NUT(MAG NUT) 8 231Z4030 M4 HEX FLANGE NUT 2 231Z1242 12X3MM AB EXPANDED NEOPRENEREF NO. AEN1 (6 MT ROLL) 2 231Z3080 M4X10 S/S POZI PAN 4 231Z5019 M4 SHAKEPROOF WASHER 4 231Z3012 NO.6 X 1 S/TAP SCRW 2 231Z0038 FASTON TAB 2 231Z3068 NO6 1/4 S/T SCREWTYPE AB 2 2SA201COOLING FAN SUB-ASSEMBLY 1 331Z5056 M4 EXT-SHAKEPROOF WASHER BZP4MWTEOZ 4 330Z1296 INLET RINGEBM 2588-2-4013 1 330Z1295 MAGNETRON COOLING FANEBM R2E 190-A026-25 1 3SA301COOLING FAN MOUNT ASSEMBLYISSUE 1 1 3SA302AIR FILTERISSUE 1 2 389T0040 4BA CRIMP LUG 16-14 1 331Z3004 M4X10 PAN POZI SCREWBZP 4 331Z5017 WASHER - 3/16in CLAMPING 4 331Z3136 M4x8 HEX HEAD S/STEEL SCREWSTAINLESS STEEL 8 331Z5004 M4 STEEL FLAT WASHERFORM A BZP 8 331Z5019 M4 SHAKEPROOF WASHER 4 2SA210MOTOR CONTROLLER ASSY 1 3DV0062 BRACKET - MOTOR CONTROLLERISSUE 2 1 3DV0087 CLIP - MOTOR CONTROLLERISSUE 1 2 330Z1293 MOTOR SPEED CONTROLLERSIEMENS 6SL3211-0AB17-5BA0 1 31480002 DURO STRIPDSC1(20030040) 0.1 3309610TAB AMP 0.250 DIA 4.3 FIXINGSERIES 140596 1 331Z3067 N08 X 3/8 S/T SCREW 2 1SA102EXTERIOR PANELS 1 2DV0037 LOWER TRIM PANELISSUE 2 1 3LDV0037 LOWER TRIM PANELLABOUR ONLY VALUE 1 332Z1053 2000 X 1000 X 0.9MM 430S17 DP1VC1 STAINLESS STEEL SHEET 0.067 2DV0038 GREASE TRAYISSUE 3 1 3LDV0038 GREASE TRAYLABOUR ONLY VALUE 1 332Z1045 2000 X 1000 X 0.9MM 304S15 BASTAINLESS STEEL SHEET 0.045 2DV0081 GREASE TRAY LIFTING HOOKISSUE 1 1 3LDV0081 GREASE TRAY LIFTING HOOKLABOUR ONLY VALUE 1 332Z1051 2500 X 1250 X 1.5MM 430S17 2BSTAINLESS STEEL SHEET 0.005 2DV0091 SIDE PANEL LHISSUE 1 1 3LDV0091 SIDE PANEL - OUTER LHLABOUR ONLY VALUE 1 332Z1053 2000 X 1000 X 0.9MM 430S17 DP1VC1 STAINLESS STEEL SHEET 0.125 2DV0092 SIDE PANEL RHISSUE 1 1 3LDV0092 SIDE PANEL - OUTER RHLABOUR ONLY VALUE 1 332Z1053 2000 X 1000 X 0.9MM 430S17 DP1VC1 STAINLESS STEEL SHEET 0.125 2DV0596 VENT CAPISSUE 1 1 3LDV0596 VENT PLATELABOUR ONLY VALUE 1 332Z1045 2000 X 1000 X 0.9MM 304S15 BASTAINLESS STEEL SHEET 0.002 231Z3080 M4X10 S/S POZI PAN 32 2DV0040 COOLING DUCT REAR RH MAGNETRONISSUE 1 1 3LDV0040 REAR DUCTING - RHLABOUR ONLY VALUE 1 332Z1045 2000 X 1000 X 0.9MM 304S15 BASTAINLESS STEEL SHEET 0.033 2DV0039 COOLING DUCT REAR LH MAGNETRONISSUE 1 1 SA2-09 ASSY SA2-01 ASSY SA2-10 ASSY Page1 MAI / IMPINGER 402S2406DK1GMUS Bill of Materials LevelPt. No.Description line 1Description line 2QTY 3LDV0039 REAR DUCTING - LHLABOUR ONLY VALUE 1 332Z1045 2000 X 1000 X 0.9MM 304S15 BASTAINLESS STEEL SHEET 0.033 2DV0094 TOP PANELISSUE 1 1 3LDV0094 TOP PANELLABOUR ONLY VALUE 1 332Z1053 2000 X 1000 X 0.9MM 430S17 DP1VC1 STAINLESS STEEL SHEET 0.333 2SA329REAR PANEL ASSYISSUE 1 1 1SA103CAVITY HARDWARE 1 2SA215IMPINGER PLATE LOWER SUB-ASSY 1 3DV0097 LOWER IMPINGER PLATEISSUE 1 1 4LDV0097 IMPINGER PLATE - LOWERLABOUR ONLY VALUE 1 432Z5205 BLACK VITREOUS + OXIDE BLASTEDPROCESS FOR DV0097 1 3DV0060 FIXING NUT UPPER IMP PLATEISSUE 2 1 3DV0061 THUMB NUT UPPER IMP PLATEISSUE 2 1 2SA211IMPINGER PLATE UPPER ASSY 1 3SA316UPPER IMPINGER PLATEISSUE 1 1 4LSA316IMPINGER PLATE - UPPERLABOUR ONLY VALUE 1 432Z5206 BLACK VITREOUS + OXIDE BLASTEDPROCESS FOR SA316 1 3DV0060 FIXING NUT UPPER IMP PLATEISSUE 2 2 3DV0061 THUMB NUT UPPER IMP PLATEISSUE 2 2 2DV0491 RACK FOR IMPINGER (VITREOUS)ISSUE 4 1 1SA104DOOR ASSEMBLY 1 2DV0501 DOOR SKINISSUE 2 1 332Z1053 2000 X 1000 X 0.9MM 430S17 DP1VC1 STAINLESS STEEL SHEET 0.167 3LDV0501 OUTER SKINLABOUR ONLY VALUE 1 2DV0504 DOOR CHOKEISSUE 3 1 3LDV0504 CHOKELABOUR ONLY VALUE (ISSUE 1) 1 332Z5207 BLACK VITREOUS + OXIDE BLASTEDPROCESS FOR DV0504 1 2SA327DOOR INNER ASSEMBLYISSUE 1 1 3LSA327DOOR INNER ASSEMBLYLABOUR ONLY VALUE (ISSUE 1) 1 332Z5208 BLACK VITREOUS + OXIDE BLASTEDPROCESS FOR SA327 1 232Z1066 HANDLE FOR MEALSTREAM 402DIE-PAT P47-1012 1 2DV0516 DOOR SEAL SETISSUE 1 1 3DV0045 DOORSEAL - HORIZONTAL2 3DV0046 DOORSEAL - VERTICAL2 240C0942 CAVITY INSULATION SETM/STREAM-CUT PIECES ISSUE 2 1 2101876M5X16 HEX HD SCWBZP 6 231Z4013 M5 STEEL FULL NUT 6 231Z5009 M5 STEEL WASHER 12 231Z5012 M5 EXT SHAKEPROOF WASHER 6 2105005M3 CAGE NUTS/S 8 231Z3094 M3X12 CSK POZI HD A2STAINLESS STEEL 8 231Z4030 M4 HEX FLANGE NUT 16 21090501/4 X 20 UNC X 3/4 HEX SCREWST/ST A2 2 2104054M6 X 20 MUDGUARD WASHERST/ST 2 231Z5005 M6 S/C SPLIT WASHER 2 1SA105CONTROL BOX ASSY 1 2SA216WIRING LOOM ASSY 1 331Z0425 RED WIRE 14SWG44A0111-14-2 (300) 25.78 331Z0511 AMP TAG 6.33MM FOR 14 AWG WIREAMP 63688-1 UL APPROVED 99 331Z0011 BOOT CLEAR 0.25018046099 331Z0112 WHITE HT CABLE EPDEPD 09638D 0.8 331Z0108 YELLOW/GREEN WIRE44A0111-18-45 (300) 0.8 331Z0529 RING TERMINAL 9.5MMFARNELL 7356498 10 3SA218DISPLAY CONNECTOR LEAD ASSY 1 430Z1070 TWISTED THREE CABLE 22 GAUGERED/BLUE/YELL 44A0131-22-2/4/60.35 430Z0374 CRIMP TERMINAL143 116 3 430Z1301 CRIMP HOUSING 6-WAY 0.1"FARNELL 143-129 1 430Z1303 D-TYPE PLUG 9-WAYFARNELL 698 064 1 3SA219DOOR CLOSED LEAD ASSY 1 430Z1069 TWISTED PAIR CABLE 22 GAUGEBLACK/WHITE 44A0121-22-0/9 0.7 431Z0511 AMP TAG 6.33MM FOR 14 AWG WIREAMP 63688-1 UL APPROVED 2 SA2-11 ASSY SA2-16 ASSY SA2-15 ASSY Page2 MAI / IMPINGER 402S2406DK1GMUS Bill of Materials LevelPt. No.Description line 1Description line 2QTY 431Z0011 BOOT CLEAR 0.2501804602 430Z0374 CRIMP TERMINAL143 116 2 430Z0373 MOLEX CONNECTOR143 126 1 311M0117 DC VOLTAGE CONNECTOR 10 WAYPHS-MC-11639 1 311Z0298 15 WAY 0.1 RIBBON CABLE ASSYPHS-MC-11768 ISSUE 2 1 3SA220MOTOR SIGNAL LEAD ASSY 1 430Z1070 TWISTED THREE CABLE 22 GAUGERED/BLUE/YELL 44A0131-22-2/4/61.3 430Z0374 CRIMP TERMINAL143 116 …

Text truncated - open the document above for the full version.

MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK* and PCV402S2406DK* RF Exposure Warning Labels Note: * above denotes optional characters used to identify customer specific (cosmetic) model variants. In case of Radio or Television Interference This equipment generates and uses radio frequency energy and if not installed and operated correctly, in strict accordance with the manufacturer’s instructions, may cause harmful interference to authorized radio communication services. It has been type tested and found to comply with the limits for Part 18.307 conducted emissions for non-consumer equipment and Part 18.305 radiated emissions, which are designed to provide reasonable protection against such interference. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: 1) Re-orientate the receiving antenna. 2) Relocate the microwave with respect to the receiver. 3) Plug the microwave into a different outlet so that the receiver and microwave are on different branch circuits. If necessary the user should consult the dealer or an experienced radio/ television technician for additional suggestions. Note: Modifications should only be carried out by the manufacturer or authorized representative to ensure continuing conformance. MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK* and PCV402S2406DK* Extract from User Manual

MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK* and PCV402S2406DK* TEST SET-UP PHOTOGRAPHS Equipment Under Test Note: * above denotes optional characters used to identify customer specific (cosmetic) model variants. MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK* and PCV402S2406DK* TEST SET-UP PHOTOGRAPHS Conducted Emissions Radiated Emissions - Pre-scan Note: * above denotes optional characters used to identify customer specific (cosmetic) model variants. MERRYCHEF “402S” MICROWAVE ASSISTED IMPINGER OVEN 208 Volts, 60Hz and 240 Volts, 60Hz FCC ID: PCV402S2086DK* and PCV402S2406DK* TEST SET-UP PHOTOGRAPHS Radiated Emissions - Open Area Test Site Note: * above denotes optional characters used to identify customer specific (cosmetic) model variants.
