PD8X323Bluetooth Keyboard

User’Manual USER’SMANUALOFTHE BLUETOOTHKEYBOARDCASE Model:X323 FCC ID:PD8X323 BTKeyboardCase 2 OperationInstructionoftheIpadKeyboardCase: StepIPlaceyourIpadintothecase SlideyouriPadintothecase ClosetheVelcroStraptopreventtheiPadfromslippingout Placethecasetoacomfortableposition BTKeyboardCase 3 StepIITurnthekeyboardon YouwillfindtheOn/OffswitchandBluetoothButtonontherighttopsideofthekeyboard *Thebuilt-inlithiumbatterywillsupport120hourscontinuouslytypingwhenfully charged.PleasechargethekeyboardwiththeUSBcableincluded. *Turnthepowerbuttononandyoucanstartusingthekeyboard. A:Capitallight *WhenthelettersarelockedinCapitalmode,thiswhitelightwillbeon B:Powerlight *Whenthekeyboardisbatterylow,theyellowlightwillblink. *Whenthekeyboardisbeingcharged,thislightwilllightoninredcolor. *Whenthekeyboardbatteryisfullycharged,thislightwilllightoningreencolor. C:Bluetoothlight *WhentheBluetoothbuttonisactivatedandduringpairingbetweenthekeyboardand youripad,thislightwillblinkuntilthekeyboardandipadissuccessfullypaired. On/OffSwitch BluetoothButton BTKeyboardCase 4 StepIIIPairthekeyboardtoyourIpad PresstheBluetoothkeytosendtheBluetoothsignal. TurnyouriPadonandtap“Settings”---“General”---“Bluetooth” SlidetheBluetoothto“On”andyouriPadwillstarttosearchforBluetoothdevices Whenitfindsthe“Bluetoothkeyboard”,tapitandbeginpairing. Enterthepasswordshowedonthebluewindowandpressthe“Enter”keyonthekeyboard StepIIIisonlyneededfortheinitialsetup.Afteryourfirstsuccessfulconnection,the keyboardwillconnectautomaticallytoyourIpadwhenyouturnthepoweron.You mayneedtotaponthekeystowakeitupfromhibernatemode. BTKeyboardCase 5 AbouttheKeyboard BTKeyboardCase 6 TechnicalSpecificationOfTheProduct: BluetoothSpecification：Version3.0 OperationCurrent：<1.5mA StandbyCurrent:<0.5mA OperationVoltage：3.7V ChargingVoltage:DC5V BatteryType:LithiumBattery Chargingperiod：2hours(Forthefirsttime,pleasechargefor12hours) TroubleShooting： IfyouareunabletoconnectthekeyboardtoyourIpad,pleasetrythefollowing: Checkifthebatteryislow.Whenthebatteryislow,somekeyswillreactslowlyand evenwon’twork.Then,youshouldchargethebattery. Checkthepowerswitch,makesureitison.Whenitison,thepowerlightontheright topofthekeyboardwillflashfortwoseconds RestarttheBluetoothswitch,makesureyourIpadcanfindthisdevice Ensurethepasswordforpairingiscorrect. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Aug.15, 2014 Federal Communication Commission Authorization and Evaluation Division FCC ID: PD8X323 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, SHENZHEN CTECH SCIENCE & TECHNOLOGY CO.LTD. Contact person: Zhou ShengLiang Title: Manager

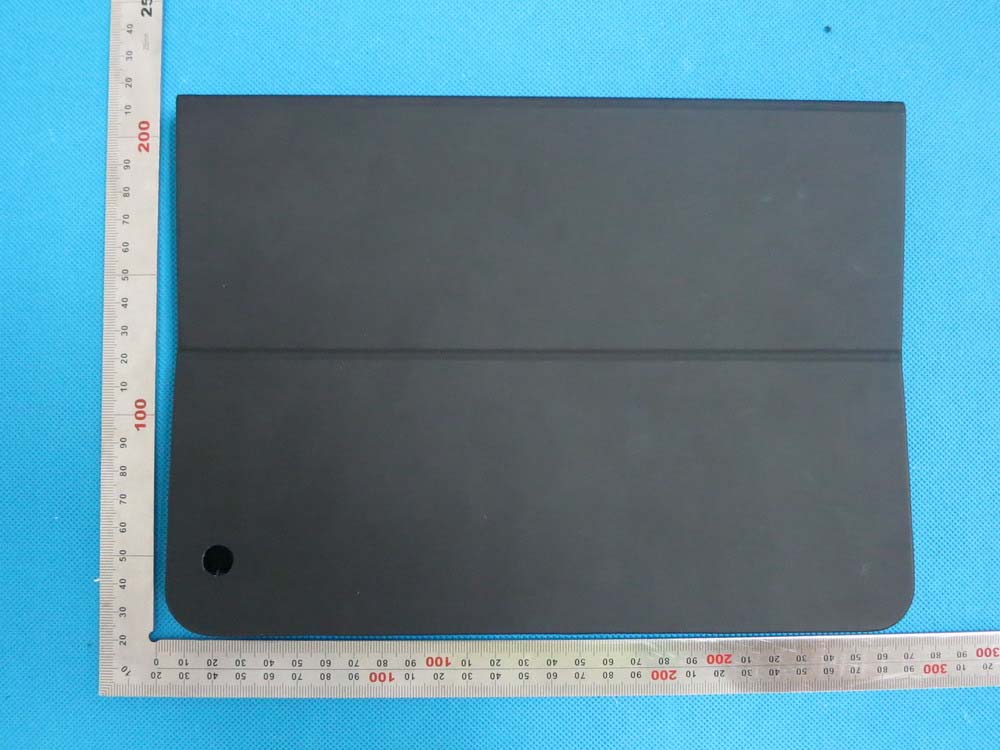

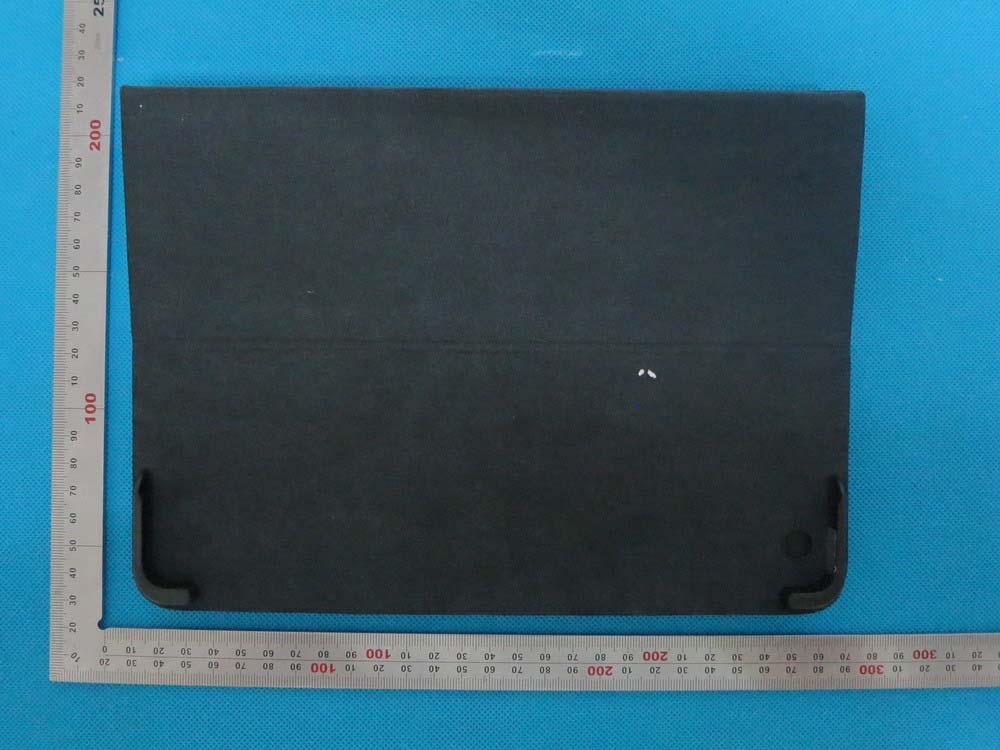

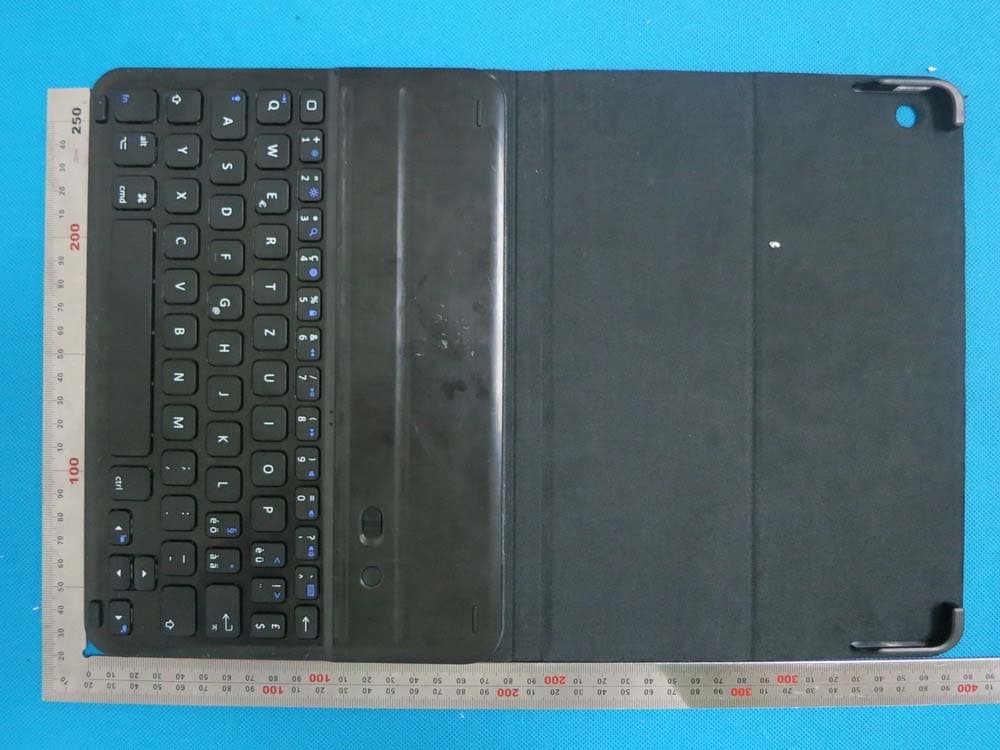

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: PD8X323

Internal Photos OPEN VIEW OF EUT-1 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 BT Antenna
