PD8X7004Bluetooth Keyboard

Bluetooth Keyboard Model Name:X7004 FCC ID: PD8X7004 BT Keyboard Case 2 User’ Manual USER’S MANUAL OF THE BLUETOOTH KEYBOARD BT Keyboard Case 3 Welcome Congratulations on selecting the Ultra-Flat Bluetooth Keyboard, it’s super slim size with 78 keys. Advanced patent on less noise and adopt latex spring circle and scissor structure, This creative and easy-to-use Bluetooth Keyboard will bring you the novel feeling of wireless transmitting. Overview BT Keyboard Case 4 Pair the keyboard to your Tablet Press the Bluetooth key to send the Bluetooth signal. Turn your tablet on and tap “Settings”---“General”---“Bluetooth” Slide the Bluetooth to “On” and your tablet will start to search for Bluetooth devices When it finds the “Bluetooth keyboard”, tap it and begin pairing. Enter the password showed on the blue window and press the “Enter” key on the keyboard This step is only needed for the initial setup. After your first successful connection, the keyboard will connect automatically to your tablet when you turn the power on. You may need to tap on the keys to wake it up from hibernate mode. BT Keyboard Case 5 Technical Specification Of The Product: Bluetooth Specification：Version 3.0 Range of Frequency: 2.4GHZ Operation Current： <5.0mA Standby Current: 2.5 mA Operation Voltage： 3.0-5.0V Battery Type: 2 AAA batteries Trouble Shooting： If you are unable to connect the keyboard to your tablet, please try the following:  Check if the battery is low. When the battery is low, some keys will react slowly and even won’t work. Then, you should change the battery.  Restart the Bluetooth switch, make sure your tablet can find this device  Ensure the password for pairing is correct. Important Regulatory Information This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Aug. 16, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: PD8X7004 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, SHENZHEN CTECH SCIENCE & TECHNOLOGY CO.LTD. Contact person: Wen Hai Title: Manager

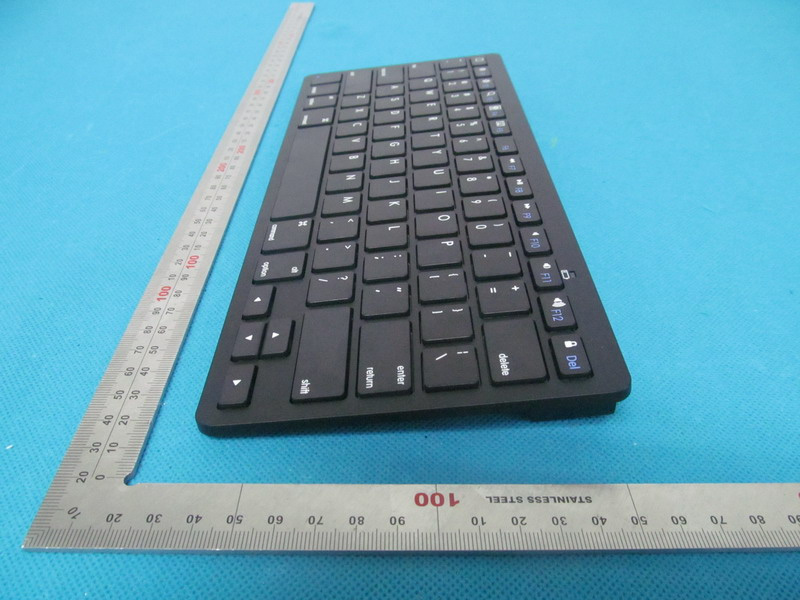

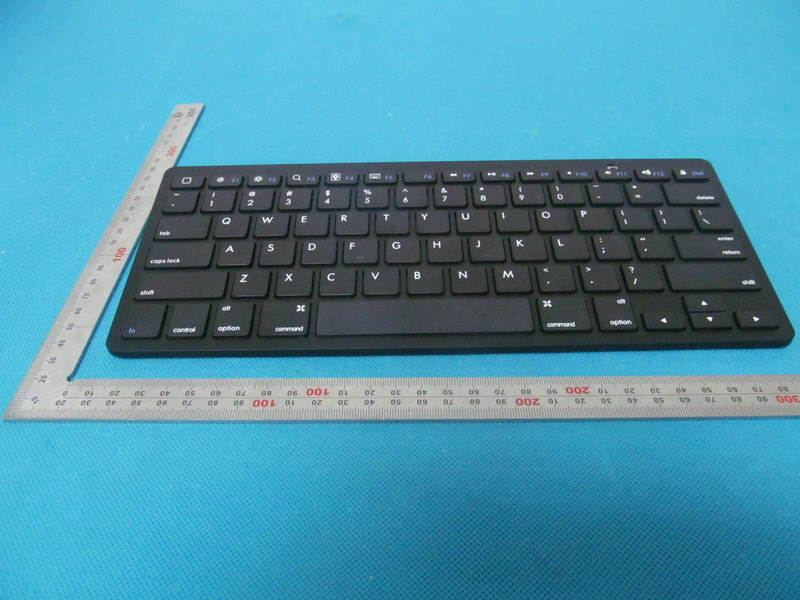

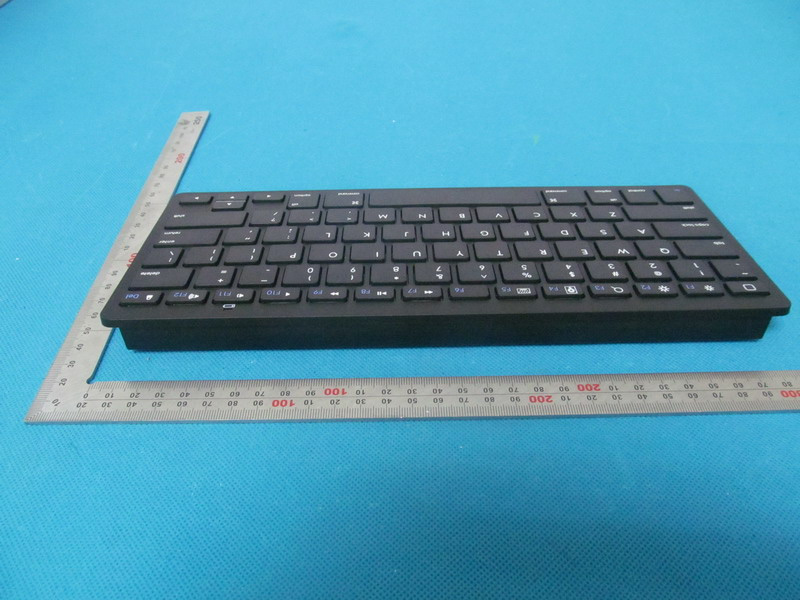

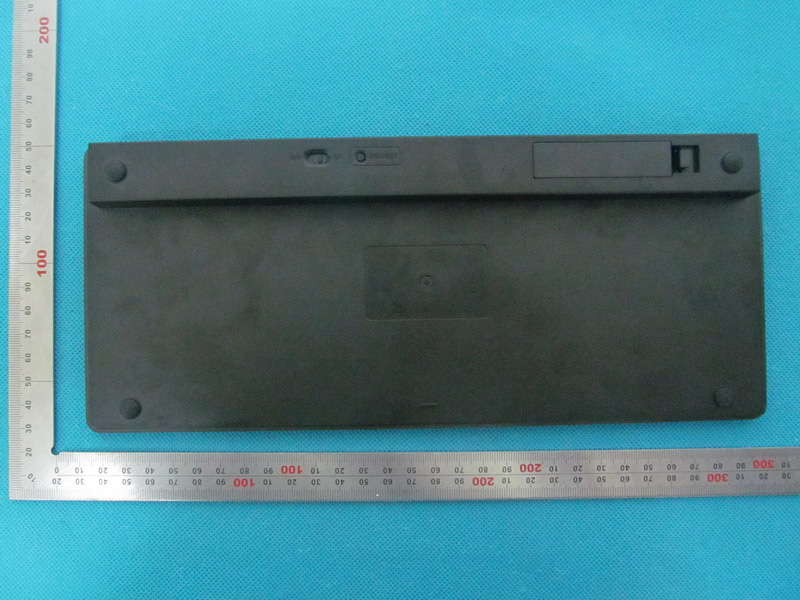

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Bluetooth Keyboard Model: X7004 FCC ID: PD8X7004 X7001， X7002. X7003， X7005，X7006，X7007， X008，X7009

Internal Photos OPEN VIEW OF EUT‐1 INTERNAL VIEW OF EUT‐1 BT Antenna INTERNAL VIEW OF EUT‐2 INTERNAL VIEW OF EUT‐3

Report No.: AGC00005130802FE03 Page 1 of 45 FCC Test Report Report No.: AGC00005130802FE03 FCC ID : PD8X7004 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth Keyboard BRAND NAME : N/A MODEL NAME : X7004,X7001,X7002,X7003,X7005,X7006,X7007,X7008,X7009 CLIENT : SHENZHEN CTECH SCIENCE & TECHNOLOGY CO.LTD. DATE OF ISSUE : Aug.16,2013 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00005130802FE03 Page 2 of 45 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Aug.16,2013 Valid Original Report Report No.: AGC00005130802FE03 Page 3 of 45 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ............................................................................................................ 5 2. GENERAL INFORMATION ........................................................................................................................ 6 2.1. PRODUCT DESCRIPTION ................................................................................................................. 6 2.2. TABLE OF CARRIER FREQUENCYS ................................................................................................ 6 2.3. RECEIVER INPUT BANDWIDTH ....................................................................................................... 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE .................................................................. 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................. 8 2.7. TEST METHODOLOGY ...................................................................................................................... 8 2.8. SPECIAL ACCESSORIES .................................................................................................................. 8 2.9. EQUIPMENT MODIFICATIONS .......................................................................................................... 8 3. MEASUREMENT UNCERTAINTY ............................................................................................................. 9 4. DESCRIPTION OF TEST MODES ............................................................................................................. 9 5. SYSTEM TEST CONFIGURATION .......................................................................................................... 10 5.1. CONFIGURATION OF EUT SYSTEM ............................................................................................... 10 5.2. EQUIPMENT USED IN EUT SYSTEM .............................................................................................. 10 5.3. SUMMARY OF TEST RESULTS ....................................................................................................... 10 6. TEST FACILITY ........................................................................................................................................ 11 7. PEAK OUTPUT POWER .......................................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ...................................................................................................... 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................. 12 7.3. LIMITS AND MEASUREMENT RESULT ........................................................................................... 13 8. 20DB BANDWIDTH .................................................................................................................................. 14 8.1. MEASUREMENT PROCEDURE ...................................................................................................... 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................. 14 8.3. LIMITS AND MEASUREMENT RESULTS ........................................................................................ 14 9. CONDUCTED SPURIOUS EMISSION ..................................................................................................... 17 9.1. MEASUREMENT PROCEDURE ...................................................................................................... 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ............................................................. 17 9.3. MEASUREMENT EQUIPMENT USED ............................................................................................. 17 9.4. LIMITS AND MEASUREMENT RESULT ........................................................................................... 17 10. RADIATED EMISSION ........................................................................................................................... 21 10.1. MEASUREMENT PROCEDURE .................................................................................................... 21 10.2. TEST SETUP .................................................................................................................................. 23 Report No.: AGC00005130802FE03 Page 4 of 45 10.3. TEST RESULT ................................................................................................................................ 24 11. BAND EDGE EMISSION ........................................................................................................................ 28 11.1. MEASUREMENT PROCEDURE ..................................................................................................... 28 11.2. TEST SET-UP ..................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos FCC RADIATED EMISSION TEST SETUP
