PD8X71Bluetooth remote shutter

User manul Bluetooth remote shutter Model name:X71 FCC ID:PD8X71 1.Product description Bluetooth remote shutter X71 , newfashioned product with remote control shutter by bluetooth connection. This product design is colorful and with small size ,also convenient for carrying.Product battery type is CR2025 button cell can use more than half year.X71 can suitable for Apple system. 2.Product Appearance Keycap indicator light 3.Operation instruction Power and Mode -Press “on”switch three seconds and the blue light will shine, it is paired last device automatically this time(in this mode device cannot be found, only can connect the last pair of mobile phone) -Press “on” five seconds , red and blue light shine and enter pairing mode. Click the pair name ###### and connect the device. If it is not to connected device more than 3 minutes would off automatically. Off:press “on”switch 5 minutes later, indicator will shine three times and the device can be out off work. Noticed: If the camera function can not be used normally in Android mobile-phone, please download the software camera 360 on mobile market. After installation please set the camera shutter into increase volume. 4.Functions and Parameters Product function : remote shutter Suitable system: Ios and Android Use time:half year Battery type: button cell, detachable and changeable CR2025 Battery type number:CR2025 5.Procuct and accessory 1- Bluetooth Remote Shutter 1- User Manual 1- Battery 6.FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

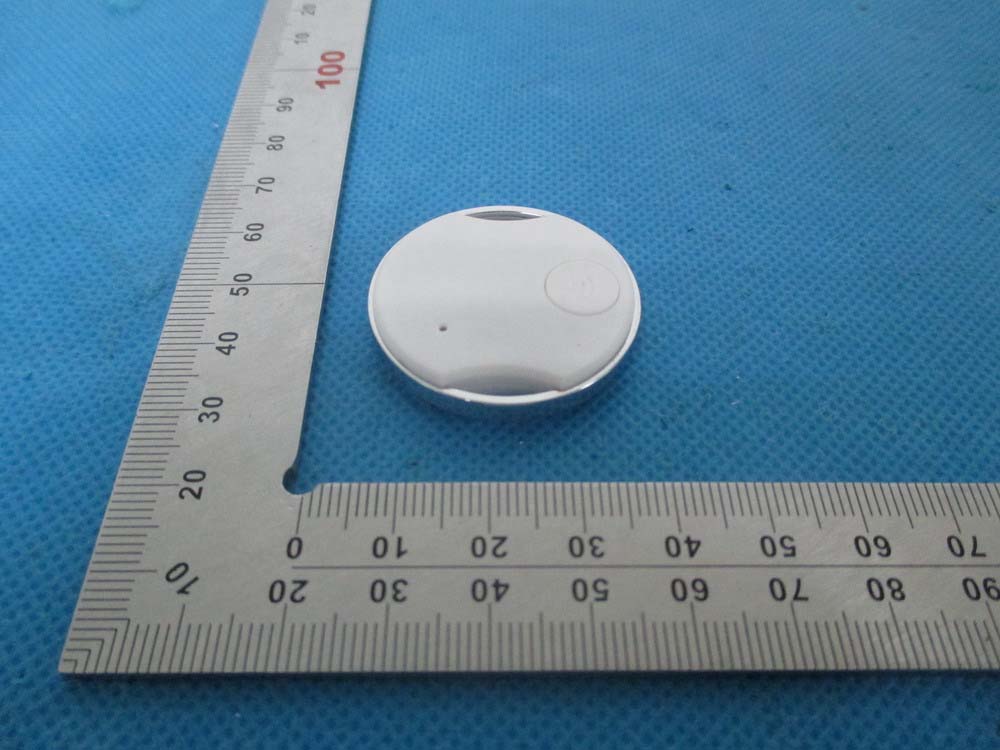

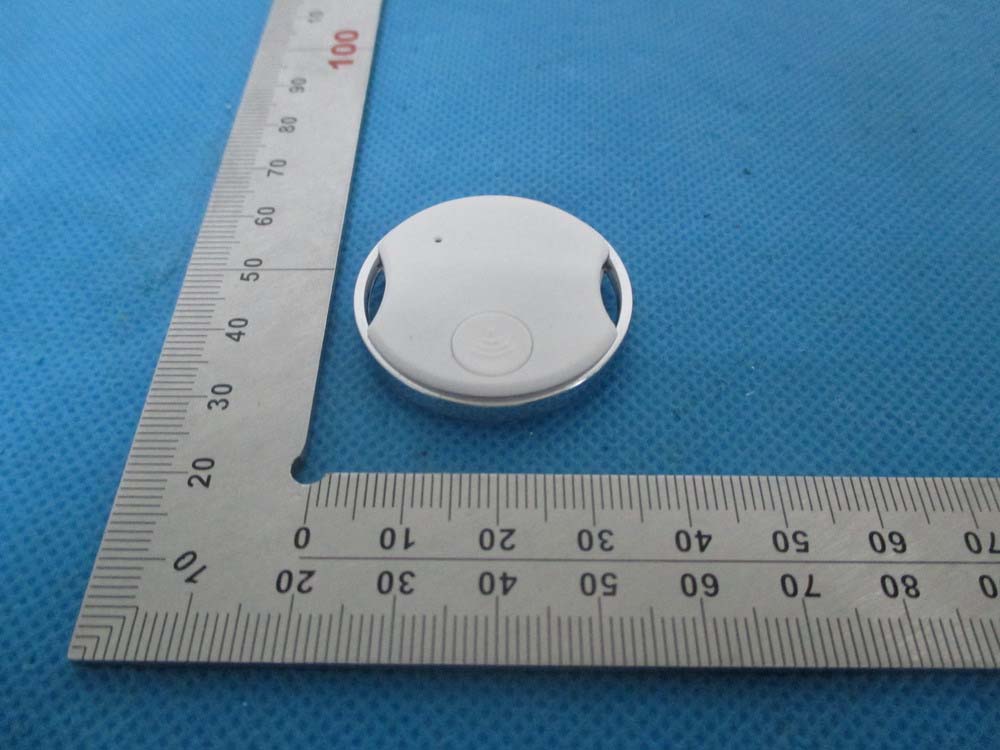

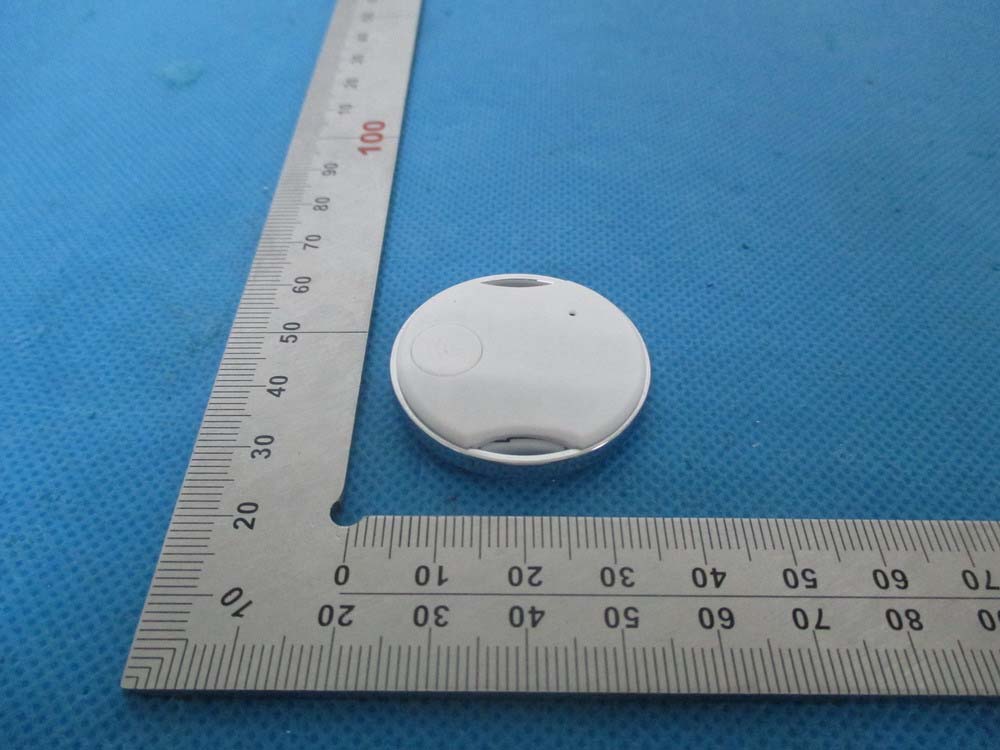

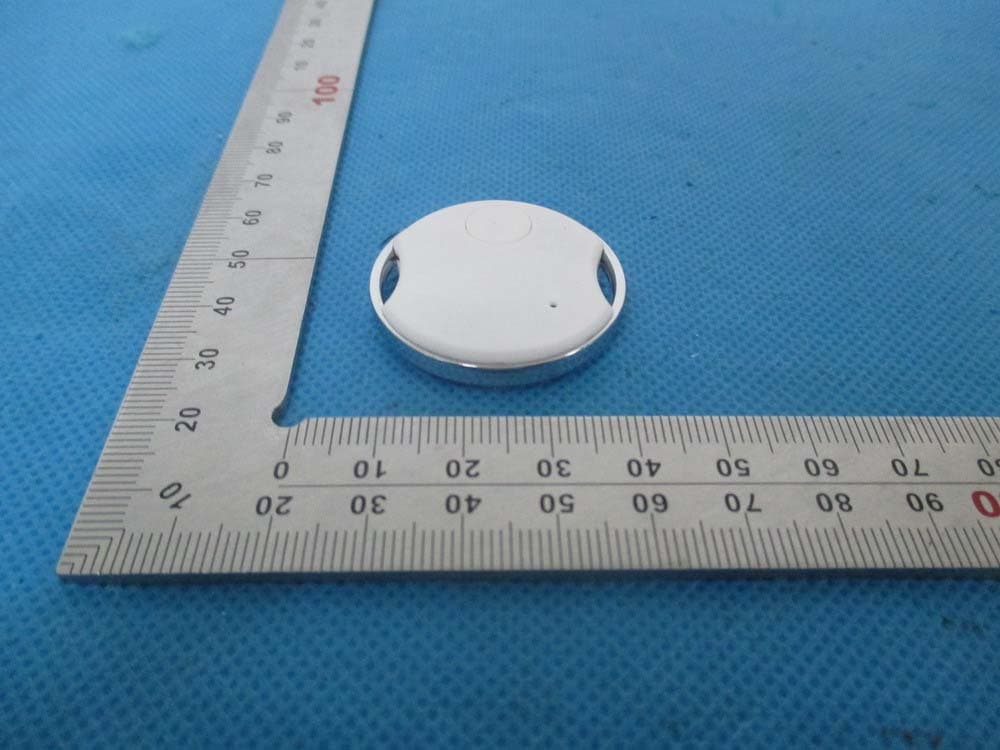

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Bluetooth remote shutter Model: X71 FCC ID: PD8X71 X71A,X72,X73,X74, X75,X76,X77,X78,X79

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 BT Antenna

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC RADIATED EMISSION TEST SETUP
