PD8X9001Bluetooth Keyboard

User’S Manual USER’S MANUAL OF THE BLUETOOTH KEYBOARD CASE FCC ID: PD8X9001 Keyboard Case 2 Operation Instruction of the iPad Keyboard Case: 1、Place the case to a comfortable position. This Keyboard can be 360°rotated with multi-view angle available. 2、You will find the On/Off switch and Bluetooth Button on the right bottom side of the keyboard. *The built-in lithium battery will support 120 hours continuously typing when fully charged. Please charge the keyboard with the USB cable included. *Turn the power button on and you can start using the keyboard. A: Capital light * When the letters are locked in Capital mode, this white light will be on B: Power light * When the keyboard is battery low, the yellow light will blink. * When the keyboard is being charged, this light will light on in red color. * When the keyboard battery is fully charged, this light will light on in green color. C: Bluetooth light * When the Bluetooth button is activated and during pairing between the keyboard and your iPad, this light will blink until the keyboard and iPad is successfully paired. On/Off Switch Bluetooth Button Keyboard Case 3 Step III Pair the keyboard to your iPad Press the Bluetooth key to send the Bluetooth signal. Turn your iPad on and tap “Settings”---“General”---“Bluetooth” Slide the Bluetooth to “On” and your iPad will start to search for Bluetooth devices When it finds the “Bluetooth Keyboard Case”, tap it and begin pairing. Enter the password showed on the blue window and press the “Enter” key on the keyboard Step III is only needed for the initial setup. After your first successful connection, the keyboard will connect automatically to your iPad when you turn the power on. You may need to tap on the keys to wake it up from hibernate mode. Keyboard Case 4 About the Keyboard + Language Switch + C Copy + V Paste + X Cut + Z Redo + To the top of the text + To the end of the text + Delete the whole line Shift + Select text rightward Shift + Select text leftward Shift + Select text upward Shift + Select text downward Keyboard Case 5 Technical Specification Of The Product: Bluetooth Specification：Version 3.0 Operation Current： <1.5mA Standby Current: <0.5mA Operation Voltage： 3.7V Charging Voltage: 110-240V Battery Type: Lithium Battery Charging period： 2hours (For the first time, please charge for 12 hours) Trouble Shooting： If you are unable to connect the keyboard to your iPad, please try the following: z Check if the battery is low. When the battery is low, some keys will react slowly and even won’t work. Then, you should charge the battery. z Check the power switch, make sure it is on. When it is on, the power light on the right bottom of the keyboard will flash for two seconds z Restart the Bluetooth switch, make sure your iPad can find this device z Ensure the password for pairing is correct. IMPORTANT REGULATORY INFORMATION This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Aug.28, 2012 Federal Communication Commission Authorization and Evaluation Division FCC ID: PD8X9001 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, SHENZHEN CTECH SCIENCE & TECHNOLOGY DEVELOPMENT CO., LTD. Contact: Wen Hai

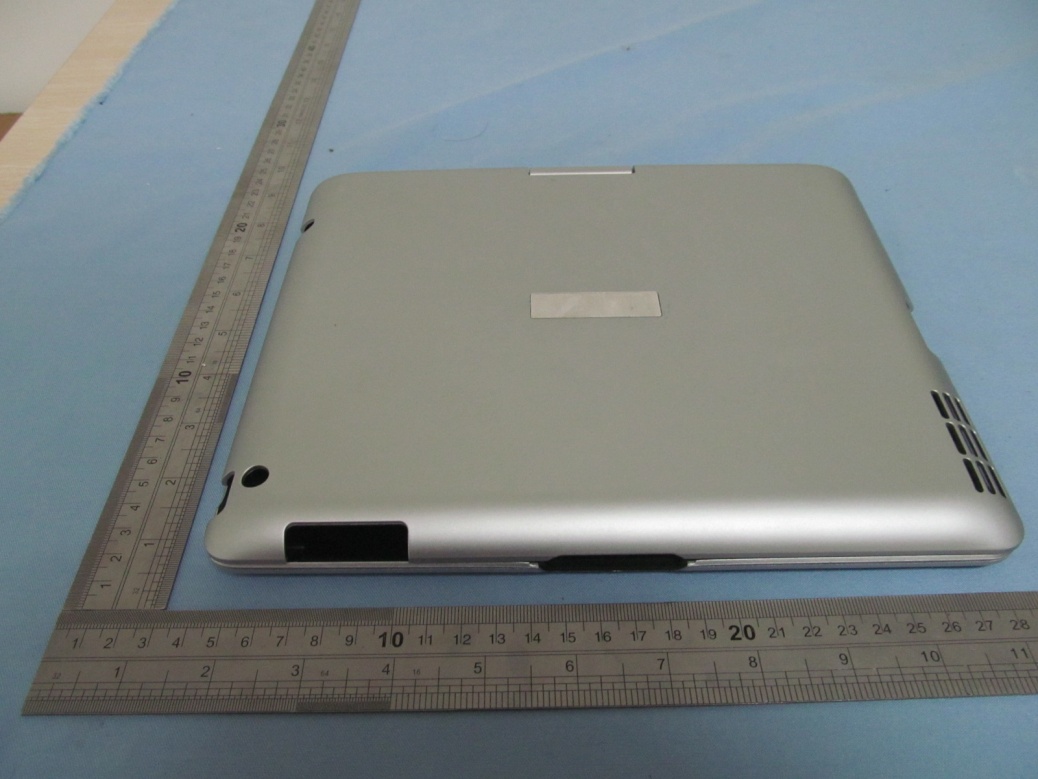

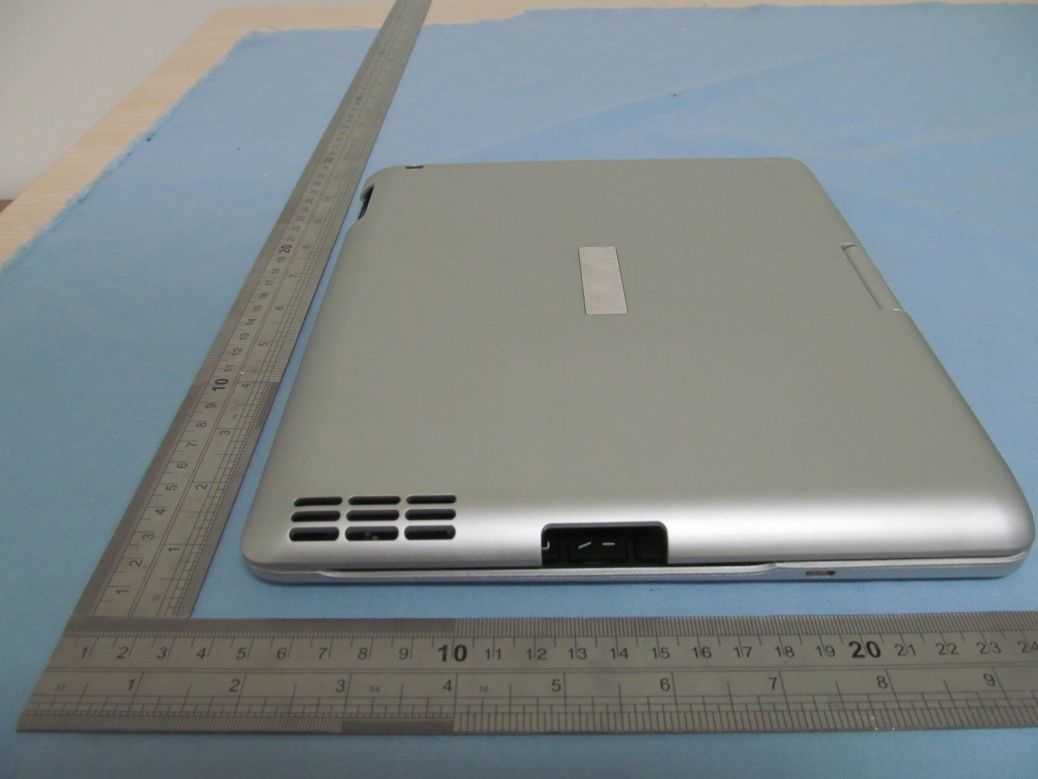

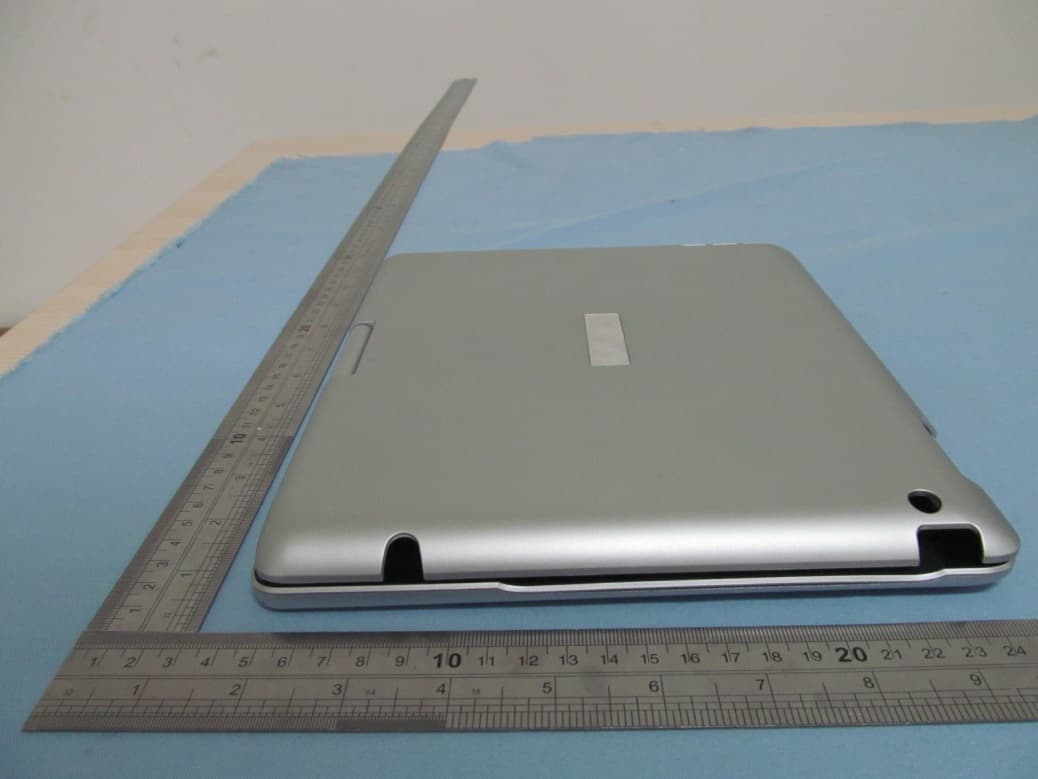

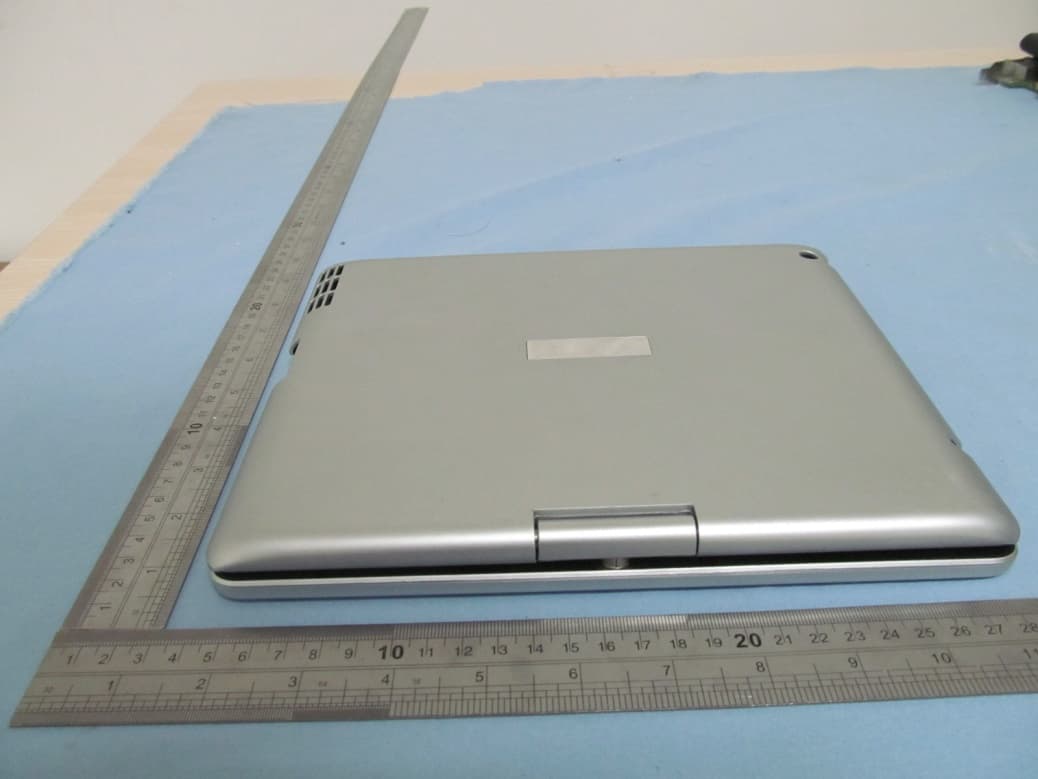

PHOTOGRAPHS OF THE EUT WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT

Lable&Lable Location Bluetooth Keyboard FCC ID:PD8X9001 Model Name: X9001,X9002,X9003,X9004,X9005,X9006,X9007,X9008,X9009

OPEN VIEW OF EUT FRONT VIEW OF PCB BACK VIEW OF PCB Bluetooth Antenna

FCC Test Report Report No.: AGC020120802‐1F2 FCC ID : PD8X9001 PRODUCT DESIGNATION : Bluetooth Keyboard BRAND NAME : N/A MODEL NAME : X9001,X9002,X9003,X9004,X9005,X9006,X9007,X9008,X9009 CLIENT : SHENZHEN CTECH SCIENCE & TECHNOLOGY CO. LTD DATE OF ISSUE : Aug.27, 2012 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC020120802-1F2 Page 1 of 42 VERIFICATION OF COMPLIANCE Applicant SHENZHEN CTECH SCIENCE & TECHNOLOGY CO. LTD B-511.Shennan Garden, Kexing Road, Nanshan District，Shenzhen , China Manufacturer FLAGSHIP INDUSTRIAL DESIGN CO.,LTD A-302.Shennan Garden,Kexing Road,Nanshan District,Shenzhen,China Product Designation Bluetooth Keyboard Brand Name N/A Test Model X9001 Series Model X9002,X9003,X9004,X9005,X9006,X9007,X9008,X9009 Model Difference All the same except for the color and appearance, and the main tested model is X9001 FCC ID PD8X9001 Report Number AGC020120802-1F2 Date of Test Aug.20, 2012 to Aug.23, 2012 WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance (Shenzhen) Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.247. Test By: Bart Xie Aug.27, 2012 Reviewed By: Forrest Lei Aug.27, 2012 Authorized By: Solger Zhang Aug.27, 2012 Report No.: AGC020120802-1F2 Page 2 of 42 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 PRODUCT DESCRIPTION ....................................................................................................................... 4 1.2 TABLE OF CARRIER FREQUENCYS ..................................................................................................... 4 1.3 RECEIVER INPUT BANDWIDTH ............................................................................................................. 5 1.4 EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ...................................................................... 6 1.5 EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ....................................................... 6 1.6 RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................. 6 1.7 TEST METHODOLOGY ........................................................................................................................... 6 1.8 MEASUREMENT UNCERTAINTY ........................................................................................................... 6 1.9 TEST FACILITY ........................................................................................................................................ 7 1.10 SPECIAL ACCESSORIES ..................................................................................................................... 7 1.11 EQUIPMENT MODIFICATIONS ............................................................................................................. 7 2. SYSTEM TEST CONFIGURATION ............................................................................................................... 8 2.1 CONFIGURATION OF TESTED SYSTEM ............................................................................................... 8 2.2 EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 8 3. SUMMARY OF TEST RESULTS ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 9 5. PEAK OUTPUT POWER ............................................................................................................................. 10 5.1 MEASUREMENT PROCEDURE ............................................................................................................ 10 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 10 5.3 MEASUREMENT EQUIPMENT USED ................................................................................................... 11 5.4 LIMITS AND MEASUREMENT RESULT ................................................................................................ 11 6. 20 DB BANDWIDTH .................................................................................................................................... 12 6.1 MEASUREMENT PROCEDURE ............................................................................................................ 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 12 6.3 MEASUREMENT EQUIPMENT USED .................................................................................................. 12 6.4 LIMITS AND MEASUREMENT RESULTS ............................................................................................. 12 7. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 14 7.1 MEASUREMENT PROCEDURE ............................................................................................................ 14 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 14 7.3 MEASUREMENT EQUIPMENT USED ........................................................................................…

Text truncated - open the document above for the full version.

PHOTOGRAPHS OF THE TEST SETUP CONDUCTED EMISSION RADIATED EMISSION
