PDNRA-2GSM 900/1800/1900 Communicator w/WLAN, BT

Microsoft Corporation
GSM 900/1800/1900 Communicator w/WLAN, BT - FCC ID PDNRA-2 - Microsoft Corporation
Click to zoom

Application Details

Equipment Class
PCE - PCS Licensed Transmitter held to ear
Date of Grant
Sep 07, 2004
Application Purpose
Original Equipment
Date of Application
Jul 05, 2004
Equipment Note
GSM 900/1800/1900 Communicator w/WLAN, BT
Frequency Range
1850.20000000 - 1909.80000000
Company
Microsoft Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Nokia 9500 Communicator User Guide 9230978 DRAFT file:///C:/USERS/MODEServer/tkoikkal/864507/RA-2_Erin/en/i ssue_1/ra-2_erin_en-us_1.xml Page 1 Jul 2, 2004 11:32:12 AM DECLARATION OF CONFORMITYWe, NOKIA CORPORATION declare under our sole responsibility that the product RA-2/RA-3 is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found from www.nokia.com/phones/declaration_of_conformity/ . Copyright © 2004 Nokia. All rights reserved.Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the priorwritten permission of Nokia is prohibited.Copyright © 2004 Nokia. All rights reserved.Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior w ritten permission of Nokia is prohibited.Nokia, Nokia Connecting People, Xpress-on and Pop-port are trademarks or registered trademarks of Nokia Corporation. Other prod uct and company names mentioned herein may be trademarks or tradenames of their respective owners.Nokia tune is a sound mark of Nokia Corporation. This product includes software licensed from Symbian Software Ltd (c) 1998-2004. Symbian and Symbian OS are trademarks of Symbi an Ltd. This software is based in part of the work of the FreeType Team. This product is covered by one or more of the following patent s: United States Patent 5,155,805, United States Patent 5,325,479, United States Patent 5,159,668, United States Patent 2232861 and France Patent 90 05 712. Java is a trademark of Sun Microsystems, Inc. Bluetooth is a registered trademark of Bluetooth SIG, Inc.RealPlayer, and the RealPlayer logo are trademarks or registered trademarks of RealNetworks, Inc.USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR INFORMATION (i) GENERATED BY AND OBTAINED WITHOUT CHARGE FROM A CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE, AND (ii) FOR PERSONAL USE ONLY; AND (B) OTHER USES SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, L.L.C.Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the prod ucts described in this document without prior notice.Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or i ndirect damages howsoever caused. file:///C:/USERS/MODEServer/tkoikkal/864507/RA-2_Erin/en/i ssue_1/ra-2_erin_en-us_1.xml Page 2 Jul 2, 2004 11:32:12 AM The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either exp ress or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior noticeThe availability of particular products may vary by region. Please check with the Nokia dealer nearest to you. Export ControlsThis device may contain commodities, technology or software subject to export laws and regulations from the US and other countr ies. Diversion contrary to law is prohibited.FCC/INDUSTRY CANADA NOTICEYour device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, conta ct your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmf ul interference. 9230978/Issue 1 file:///C:/USERS/MODEServer/tkoikkal/864507/RA-2_Erin/en/i ssue_1/ra-2_erin_en-us_1.xml Page 3 Jul 2, 2004 11:32:12 AM ContentsFor your safety.......................................................7ABOUT YOUR DEVICE......................................................................8NETWORK SERVICES.......................................................................8Shared memory.............................................................................8Enhancements, batteries, and chargers................................9Getting started.................................................... 10Installing the SIM card, battery, and memory card .........10 Charging the battery.................................................................11Switching the device on and off............................................11First start-up................................................................................12Keys and connectors..................................................................13Communicator interface..........................................................13Cover phone.................................................................................16Instructions in your device......................................................17Using the CD-ROM.......................................................................17Nokia support on the Web......................................................17 Your communicator...........................................18Personalizing your device.......................................................18Volume control............................................................................19Nokia PC Suite..............................................................................20#MISSING.......................................................................................20Backup............................................................................................21Data transfer................................................................................21Synchronisation........................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

1 (2) FCC ID: PDNRA-2 Nokia response to FCC questions: FCC ID: PDNRA-2 Qu. 1) Please describe all collocated simultaneous transmission conditions including BT. Can WLAN and BT transmit at the same time? Response : WLAN and BT cannot transmit simultaneously. GSM 1900, GPRS 1900 or EGPRS 1900 can transmit simultaneously with either WLAN or BT. Qu. 2) Please detail the transmission for the GSM test results in the summary table including the GSM mode (GSM, EGPRS, GPRS), and number of time slots. Response : Below are modified Summary tables, in which are detailed the SAR values and radiated power levels for all the measured transmit modes giving the highest values (Note that EGPRS mode was not measured, because maximum averaged output power is more than 2 dB lower in EGPRS mode than in GPRS mode). 1.2.1 Head Configuration Mode Ch / f (MHz) EIRP Position SAR limit (1g avg) Measured SAR value (1g avg) Result 1-slot GSM1900 512/1850.2 31.47 dBm Left, Tilt 1.6 W/kg 0.86 W/kg PASSED WLAN2450 1/2412.0 23.15 dBm Left, Cheek 1.6 W/kg 0.06 W/kg PASSED 1-slot GSM1900 + WLAN2450 - - - 1.6 W/kg 0.92 W/kg * PASSED * This value is an overestimate of SAR since the maxima for GSM1900 and WLAN do not occur in either the same location or for the same test configuration. 1.2.2 Body Worn Configuration Mode Ch / f (MHz) EIRP Separation distance SAR limit (1g avg) Measured SAR value (1g avg) Result 2-slot GPRS1900 810/1909.8 29.40 dBm 1.5 cm 1.6 W/kg 1.22 W/kg PASSED WLAN2450 13/2472.0 23.58 dBm 1.5 cm 1.6 W/kg 0.31 W/kg PASSED 2-slot GPRS1900 + WLAN2450 - - 1.5 cm 1.6 W/kg 1.53 W/kg ** PASSED ** This value is an overestimate of SAR since the maxima for GSM1900 and WLAN do not occur in the same location. 2 (2) FCC ID: PDNRA-2 Qu. 3) Please demonstrate that the device was working at maximum power during SAR testing. Normally this includes measurement of power. It appears that power values were simply taken from the EMC report. Please include the measured power of the WLAN transmitter during SAR testing. Response: The device was set to maximum power level for SAR measurements. As the device does not have an external RF connector, it was not possible to make conducted measurements of the output power. As a result, only radiated power (EIRP) levels were measured. EIRP values were measured by Natlabs (Hyvinkaa, Finland) and Cetecom (Saarbrucken, Germany) and were not repeated during SAR measurements because the SAR lab is not able to measure radiated power. The product was not reconfigured between EMC, EIRP and SAR tests and was carefully packaged for transportation between the various test labs. The power settings are stored in digital memory and were the same for EMC, EIRP and SAR tests. Radiated power levels for 1-slot GSM1900 are given in the EMC report. The attachment (Output power report 2_3666-02-01_04 RA-2) contains the radiated power results for WLAN and 2-slot GPRS1900. For your convenience, radiated output powers (dBm) are given in the table below: Low channel Mid channel High channel WLAN 23.82 23.69 23.58 1-slot GSM1900 31.47 30.29 28.82 2-slot GPRS190029.5 29.4 29.4

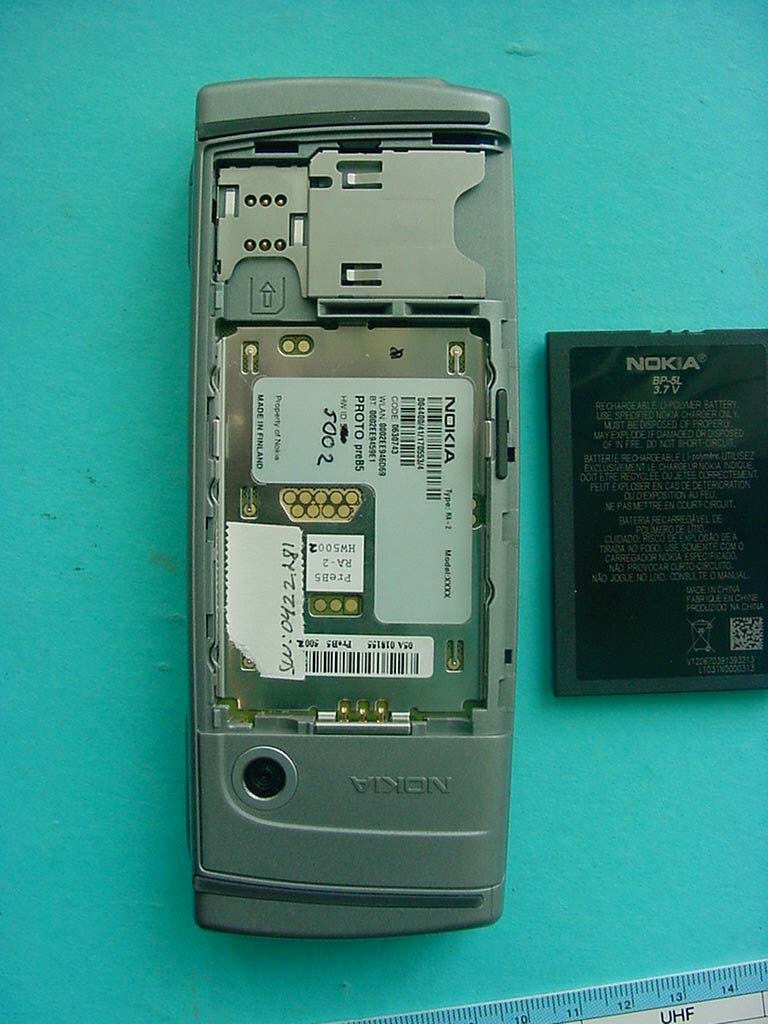

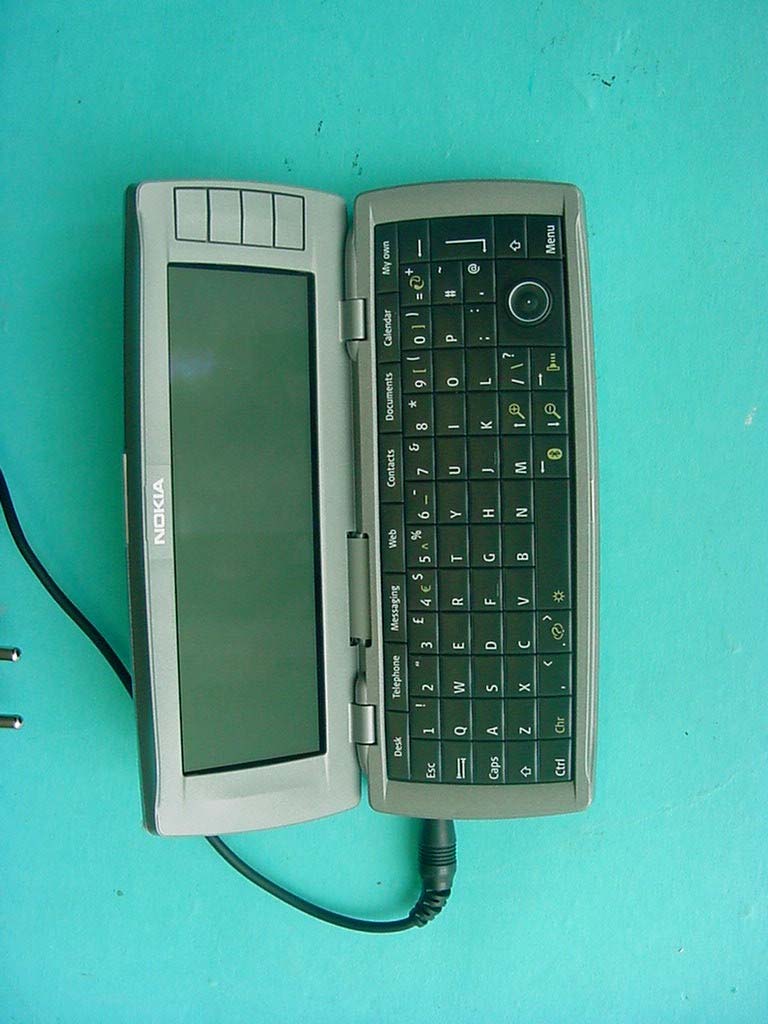

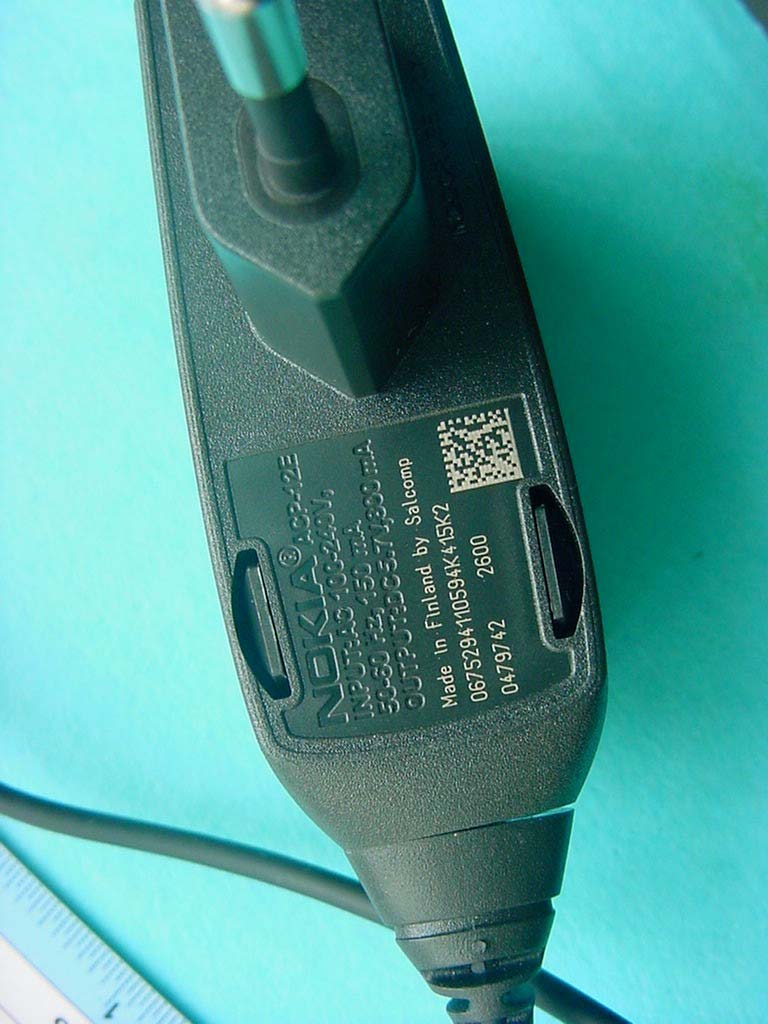

External Photos

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC14issue test report consist of 15 PagesPage 1 (15) Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Anechoic chamber registration no.: 3463 (IC) Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Photographs to Test Report No.: 2-3666-01-01/04 FCC Part 15.247 / CANADA RSS-210 RA-2 FCC ID: PDNRA-2 IC : 661R-RA2 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 2 (15) Photographs of the equipment CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 3 (15) Photographs of the equipment CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 4 (15) Photographs of the equipment CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 5 (15) Photographs CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 6 (15) Photographs CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 7 (15) Photographs CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 8 (15) Photographs

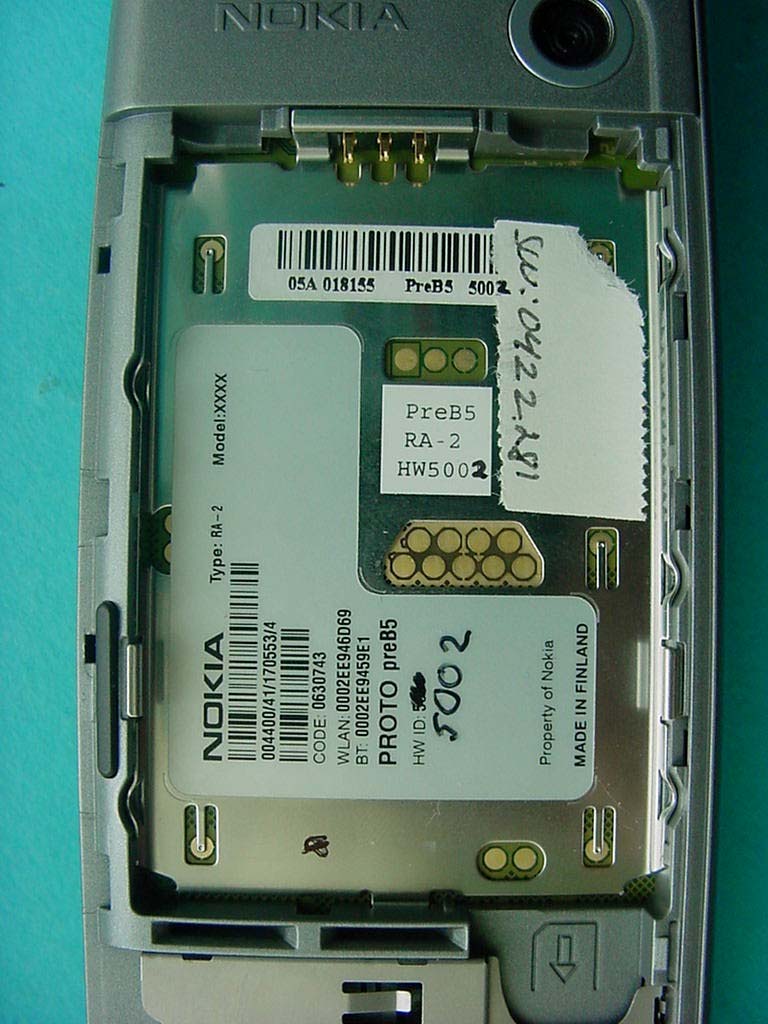

ID Label/Location Info

18. June 2004 Exhibit 01: Type Label FCC ID: PDNRA-2 IC:661R-RA2 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 18. June 2004 Exhibit 01: Type Label Position FCC ID: PDNRA-2 IC:661R-RA2 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved.

Internal Photos

CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 9 (15) Photographs CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 10 (15) Photographs CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 11 (15) Photographs CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 12 (15) Photographs CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 13 (15) Photographs CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 14 (15) Photographs CETECOM ICT Services GmbH Test report no.:2-3666-01-01/04Issue date: 2004-06-23 Page 15 (15) Photographs

RF Exposure Info

Oulu ____________________________________________________________________________ SAR Report Oulu_SAR0426_01 Applicant: Nokia Corporation Type:RA-2 Copyright  2004 TCC Oulu 2/21 CONTENTS 1. SUMMARY OF SAR TEST REPORT............................................................................................................................................. 4 1.1 TEST DETAILS.............................................................................................................................................................................4 1.2 MAXIMUM RESULTS....................................................................................................................................................................4 1.2.1 Head Configuration........................................................................................................................................................ 4 1.2.2 Body Worn Configuration ............................................................................................................................................ 4 1.2.3 Maximum Drift ................................................................................................................................................................ 4 1.2.4 Measurement Uncertainty ........................................................................................................................................... 4 2. DESCRIPTION OF THE DEVICE UNDER TEST (DUT) ............................................................................................................... 5 2.1 PICTURE OF DEVICE....................................................................................................................................................................5 2.2 DESCRIPTION OF THE ANTENNA..................................................................................................................................................6 3. TEST CONDITIONS ..................................................................................................................................................................... 6 3.1 TEMPERATURE AND HUMIDITY....................................................................................................................................................6 3.2 TEST SIGNAL, FREQUENCIES, AND OUTPUT POWER....................................................................................................................6 4. DESCRIPTION OF THE TEST EQUIPMENT ............................................................................................................................... 6 4.1 MEASUREMENT SYSTEM AND COMPONENTS.................................................................................................................................6 4.1.1 Isotropic E-field probe ET3DV6 ................................................................................................................................... 8 4.2 PHANTOMS................................................................................................................................................................................8 4.3 SIMULATING LIQUIDS.................................................................................................................................................................8 4.3.1 Liquid recipes................................................................................................................................................................... 9 4.3.2 Verification of the System ............................................................................................................................................ 9 4.3.3 Tissue simulants used in the measurements ...................................................................................................... 11 5. DESCRIPTION OF THE TEST PROCEDURE ............................................................................................................................. 12 5.1 DEVICE HOLDER....................................................................................................................................................................... 12 5.2 TEST POSITIONS...................................................................................................................................................................... 12 5.2.1 Against Phantom Head.............................................................................................................................................. 12 5.2.2 Body Worn Configuration ......................................................................................................................................... 13 5.3 SCAN PROCEDURES.................................................................................................................................................................. 14 5.4 SAR AVERAGING METHODS..................................................................................................................................................... 14 6. MEASUREMENT UNCERTAINTY .............................................................................................................................................. 15 7. RESULTS .................................................................................................................................................................................... 16 APPENDIX A: VALIDATION SCANS .................................................................................................................................................. 18 APPENDIX B: MEASUREMENT SCANS.............................................................................................................................................. 19 Oulu ____________________________________________________________________________ SAR Report Oulu_SAR0426_01 Applicant: Nokia Corporati…

Text truncated - open the document above for the full version.

Test Report

Identification: T04-048A-EMC Product compliance test EMC-measurements Page: 1 of 30 EMC Laboratory MS-Word2000 Test results are valid for the tested unit only. This report shall not be reproduced except in full NATLABS Oy Trade reg. Nr:: Tel: +358 20 475 2600 EMC Laboratory 1871439-4 Fax: +358 20 475 2719 P.O. Box 677 Email: [email protected] FIN-05801 Hyvinkää, Finland GSM1900 test report for RA-2 Report Date: June 12, 2004 Signatures: Tested by: _______________________________ Marko Turkkila Testing Engineer Contents approved: _______________________________ Tomi Nyberg Laboratory Manager Identification: T04-048A-EMC Product compliance test EMC-measurements Page: 2 of 30 EMC Laboratory MS-Word2000 Test results are valid for the tested unit only. This report shall not be reproduced except in full NATLABS Oy Trade reg. Nr:: Tel: +358 20 475 2600 EMC Laboratory 1871439-4 Fax: +358 20 475 2719 P.O. Box 677 Email: [email protected] FIN-05801 Hyvinkää, Finland CONTENTS 1 LABORATORY INFORMATION....................................................................................... 4 2 CUSTOMER INFORMATION ............................................................................................ 4 3 SUMMARY OF TEST RESULTS ....................................................................................... 5 4 EUT INFORMATION .......................................................................................................... 6 4.1 EUT description ............................................................................................................6 5 EUT TEST SETUPS ............................................................................................................. 7 6 APPLICABLE STANDARDS .............................................................................................. 7 7 RADIATED RF OUTPUT POWER ..................................................................................... 8 7.1 Test setup....................................................................................................................... 8 7.2 Test method ................................................................................................................... 9 7.3 EUT operation mode ..................................................................................................... 9 7.4 Limit .............................................................................................................................. 9 7.5 Results ......................................................................................................................... 10 8 99% OCCUPIED BANDWIDTH ....................................................................................... 12 8.1 Test setup..................................................................................................................... 12 8.2 EUT operation mode ................................................................................................... 12 8.3 Results ......................................................................................................................... 13 8.4 Screen shots ................................................................................................................. 14 9 BAND-EDGE COMPLIANCE........................................................................................... 17 9.1 Test setup..................................................................................................................... 17 9.2 EUT operation mode ................................................................................................... 17 9.3 Limit ............................................................................................................................ 18 9.4 Results ......................................................................................................................... 18 9.5 Screen shots ................................................................................................................. 19 10 RADIATED SPURIOUS EMISSIONS .............................................................................. 21 10.1 Test setup..................................................................................................................... 21 10.2 Test method ................................................................................................................. 22 10.3 EUT operation mode ................................................................................................... 22 10.4 Limit ............................................................................................................................ 22 10.5 Results ......................................................................................................................... 23 Identification: T04-048A-EMC Product compliance test EMC-measurements Page: 3 of 30 EMC Laboratory MS-Word2000 Test results are valid for the tested unit only. This report shall not be reproduced except in full NATLABS Oy Trade reg. Nr:: Tel: +358 20 475 2600 EMC Laboratory 1871439-4 Fax: +358 20 475 2719 P.O. Box 677 Email: [email protected] FIN-05801 Hyvinkää, Finland 11 FREQUENCY STABILITY, TEMPERATURE VARIATION ......................................... 25 11.1 Test setup..................................................................................................................... 25 11.2 EUT operation mode ................................................................................................... 25 11.3 Limit ............................................................................................................................ 25 11.4 Test method ................................................................................................................. 26 11.5 Results ...................................................................................................................…

Text truncated - open the document above for the full version.

Test Report

CETECOM ICT Services GmbH Radio Satellite Communication UntertĂĽrkheimer StraĂźe 6-10 . D-66117 SaarbrĂĽcken Telefon: +49 (0)681 598-0 Telefax: -9075 RSC14 issued test report consists of 14 Pages Page 1 (14) Recognized by the Federal Communications Commission Anechoic chamber registration no: 90462 (FCC) Anechoic chamber registration no: 3436 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 2-3666-02-01/04 Output power WLAN and PCS 1900 RA-2 FCC ID: PDNRA-2 IC : 661R-RA2 CETECOM – ICT Services GmbH UntertĂĽrkheimerstr. 6-10 66117 SaarbrĂĽcken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 CETECOM ICT Services GmbH Test report nr.:2-3666-02-01/04 Issue date: 2004-07-02 Page 2 (14) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test report no.:2-3666-02-01/04 Issue date:2004-07-02 Page 3 (14) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Technical responsibility for area of testing : 2004-07-02 RSC 8411 Berg M.. Date Section Name Signature Technical responsibility for area of testing : 2004-07-02 RSC8412 Hausknecht D. Date Section Name Signature CETECOM ICT Services GmbH Test report no.:2-3666-02-01/04 Issue date:2004-07-02 Page 4 (14) 1.2 Testing laboratory CETECOM ICT Services GmbH UntertĂĽrkheimer StraĂźe 6 - 10 66117 SaarbrĂĽcken Germany Telefone : + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory DAR-registration number : TTI-P-G-081/94-D0 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3 Details of applicant Name : Nokia Corporation Street : P.O.Box 68 City : Fin-33721 Tampere Country : Finland Telephone: +358 (0) 718 04 6800 Telefax : Contact : Mr. Janne Ilkka Telephone: +358 (0)50 38 38 783 1.3 Application details Date of receipt of application : 2004-06-25 Date of receipt of test item : 2004-06-29 Date of test : 2004-07-02 CETECOM ICT Services GmbH Test report no.:2-3666-02-01/04 Issue date:2004-07-02 Page 5 (14) 1.4 Test item Type of equipment: GSM / PCS Mobile Handset ( GSM 900/1800/PCS 1900) with Wlan 802.11b Type name: RA-2 / Nokia 9500 Communicator Manufacturer: Nokia Corporation Address: Keilalahdentie 4 City: Fin-02150 Espoo Country: Finland Frequency: WLAN 2412 to 2462 MHz / GSM 1900 1850.2 to 1909.8 MHz Type of modulation: WLAN: 17M0P7D (DSSS) / GSM: 300KGXW / 200KQ7W Number of channels: WLAN: 11 GSM: 300 Antenna: Integral antenna Power supply (normal): 3,7V DC Li-Polymer Battery Output power GSM 1900: EIRP: 29.5 dBm / 891.3 mW Output power WLAN : EIRP: 23.82 dBm / 241 mW Transmitter Spurious (worst case) Not tested Receiver Spurious (worst case) Not tested FCC ID: PDNRA-2 Certification No. IC: 661R-RA2 Open Area Test Site IC No.: 3436 IC Standards RSS210 Issue 5 November 2001 ATTESTATION: DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Laboratory Manager : 2004-06-23 RSC 8411 Berg M. Date Section Name Signature 1.6 Test standards: FCC Part 15 §15.247 / CANADA RSS-210 FCC Part 24 ( RSS132, Issue 1, RSS133, Issue 2, Rev. 1) Test set-up: We measured at 11 Mbit/s (DSSS) We also used special test software to set the samples in the required modes. CETECOM ICT Services GmbH Test report no.:2-3666-02-01/04 Issue date:2004-07-02 Page 6 (14) 2 Technical test 2.1 Summary of test results For Part 15: The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 25 GHz in semi-anechoic chambers. The EUT is positioned on a non-conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1987 clause 15 and ANSI C63.4-1992 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test setups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analyzers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4-1992 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 9 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna >1GHz: Average, RBW 1MHz, VBW 10 Hz, wave-guide horn All measurement settings are according to FCC 15.35, 15.205, 15.209, 15.247 and the „Measurement guidelines for DSSS systems“. No de…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Hasnain Syed(Director, EMC, SI and RF Compliance)
[email protected]425-707-1039Fax: 425-706-7329

Technical Contact

Nokia CorporationJanne Ilkka
[email protected]+358 7180 08000

Sinitaival 5 · Tampere · Finland

Test Firm

Intertek ETL Semko OyTuomo Hahl
[email protected]358-10-424-6200Fax: 358-10-424-6201

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz682.00 mW300KG7W0.1 ppm
