PDNRM-626GSM/WCDMA cellular phone w/BT and WLAN

Nokia E7 User Guide 9223790 Issue 1 CyanCyanMagentaMagentaYellowYellowBlackBlack Contents Safety3 Start using your device4 About this user guide4 Use the in-device user guide4 Get started4 Keys and parts4 Change the volume of a call, song, or video6 Lock or unlock the keys and screen7 Flashlight7 Insert or remove the SIM card7 Charge your device8 Switch the device on or off9 Nokia account and Nokia's Ovi services9 Device set-up9 Touch screen actions10 Keyboard shortcuts11 Interactive home screen elements12 Predefined home screens12 Call a phone number13 Search for a contact13 Save phone numbers and mail addresses13 Send a message13 Mail14 About Mail14 Add a mailbox14 Use separate calendars for work and free time15 Navigate to a destination15 Personalise your device16 Personalise your tones16 Personalise the home screen16 Add items to the home screen16 Install Nokia Ovi Suite on your PC17 Visit Nokia's Ovi Store18 Back up files18 Connect a USB mass storage device18 Find more help19 Support19 Keep your device software and applications up to date19 Access codes20 Protect the environment21 Save energy21 Recycle21 Product and safety information21 2 www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack Safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, near medical equipment, fuel, chemicals, or blasting areas. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product. CHARGERS AND OTHER ACCESSORIES Use only chargers and other accessories approved by Nokia for use with this device. Do not connect incompatible products. KEEP YOUR DEVICE DRY Your device is not water- resistant. Keep it dry. GLASS PARTS The front cover of the device is made of glass. This glass can break if the device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel. PROTECT YOUR HEARING Listen to a headset at a moderate level, and do not hold the device near your ear when the loudspeaker is in use. 3 www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack Start using your device 1Insert the SIM card. See "Insert or remove the SIM card", p. 7. 2Charge the battery. See "Charge the battery", p. 8. 3Press the power key. See "Switch the device on or off", p. 9. 4Follow the displayed start-up instructions: •Accept to receive Nokia tips to find out what you can do with your device. •Register a Nokia account, so you can access all Nokia's Ovi services. See "Nokia account and Nokia's Ovi services", p. 9. •Copy your personal content from your previous Nokia device to your new device. See "Device set- up", p. 9. 5Personalise the home screen or main menu. See "Personalise your device", p. 16. About this user guide This short user guide helps you get started with your device. With a short printed user guide, Nokia helps save energy and paper. Your device contains a complete in-device user guide, which you can refer to for additional information about your device. To read the in-device user guide, select Menu > Applications > User guide. For even more support information, go to www.nokia.com/support, or using a mobile device, nokia.mobi/support. Use the in-device user guide Select Menu > Applications > User guide. Open the user guide from an application Select Options > User guide. This is not available for every application. Search the user guide When the user guide is open, select Options > Search, and enter a letter or a word in the search field. Switch between the user guide and an application Press and hold the menu key, swipe left or right, and select the desired application. indicates a link to a web page. Links to related topics may be at the end of instructions. Get started Keys and parts Top 1Nokia AV connector (3.5 mm) 2Power key 3HDMI™ connector 4Charging indicator 5USB connector 4 www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack Front 1Earpiece 2Light sensor 3Menu key 4Secondary camera lens Back 1Camera flash 2Camera lens 3Loudspeaker 4Microphone Sides 1Lock switch 2SIM card slot 3Volume/Zoom key 4Camera key Bottom 1Microphone Keyboard Your device has a full keyboard. To open the keyboard, push the touch screen up. The display rotates automatically from portrait to landscape when you open the keyboard. 5 www.nokia.com/support CyanCyanMagentaMagentaYellowYellowBlackBlack 1 Function key. To insert special characters printed at the top of keys, press the function key, and then press the corresponding key. To enter several special characters in a row, press the function key twice. To return to normal mode, press the function key. 2 Shift key. To switch between the upper and lower case modes, press the shift key twice. To enter a single upper case letter in lower case mode, or a single lower case letter in upper case mode, press the shift key, and then press the desired alphabet key. 3Sym key. To insert special characters not shown on the keyboard, press the sym key, and select the desired character. To change the writing language, press and hold the shift key, and then press the sym key, and select the desired language. 4Space key 5 Backspace key. To delete a character, press the backspace key. To delete several characters, press and hold the backspace key. Insert a variation of a letter You can insert, for example, letters with accents. To insert á…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Elektroniikkatie 10 FIN-90590 OULU FINLAND Tel. +358 7180 08000 Fax. +358 7180 47222 November 9, 2010 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: PDNRM-626 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Kare Oksanen Product Certification Officer DQD/DC, Oulu

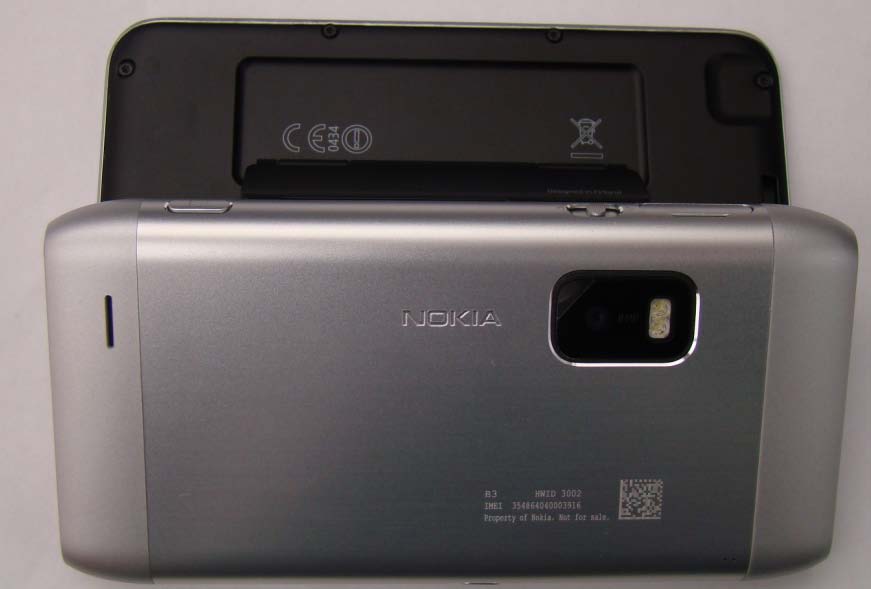

2 Nov 2010 External Photos FCC ID: PDNRM-626 Exhibit 03 IC: 661R-RM626 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 2 Nov 2010 External Photos FCC ID: PDNRM-626 Exhibit 03 IC: 661R-RM626 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 2 Nov 2010 External Photos FCC ID: PDNRM-626 Exhibit 03 IC: 661R-RM626 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved.

9 November 2010 Label Exhibit 1 Applicant: Nokia Corporation FCC ID: PDNRM-626 IC: 661E-RM626 Copyright © 2010 Nokia. All rights reserved.

2 Nov 2010 Internal Photos FCC ID: PDNRM-626 Exhibit 09 IC: 661R-RM626 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 2 Nov 2010 Internal Photos FCC ID: PDNRM-626 Exhibit 09 IC: 661R-RM626 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 2 Nov 2010 Internal Photos FCC ID: PDNRM-626 Exhibit 09 IC: 661R-RM626 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 2 Nov 2010 Internal Photos FCC ID: PDNRM-626 Exhibit 09 IC: 661R-RM626 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 2 Nov 2010 Internal Photos FCC ID: PDNRM-626 Exhibit 09 IC: 661R-RM626 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved.

FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-626_38.docx Copyright © TCC Nokia 1 (29) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-626_38.docx Date of Report: 05-Nov-2010 Number of pages: 29 Customer’s Contact person: Huhtala Tero Testing laboratory: TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC listing no.: IC recognition no.: 533467 661V-1 Customer: Nokia Corporation P.O. Box 68 Sinitaival 5 FIN-33721 TAMPERE, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 46880 Tested devices/ accessories: Smartphone RM-626 / Dummy Batt SF-218T / AC Charger AC-10E / Headset WH-205 FCC ID: PDNRM-626 IC: 661R-RM626 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards RSS-GEN (Issue 2, June 2007) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Anni Manninen, System Specialist, EMC FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-626_38.docx Copyright © TCC Nokia 2 (29) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 03-Sep-2010 Testing completed 07-Oct-2010 The customer's contact person Huhtala Tero Test Plan referred to T:\Projects\RM-626\TestPlan\RS_testplan_RM- 626_EMC_FCC_SAR.xls Notes Document name FCC15C_RM-626_38.docx 1.1. EUT and Accessory Information The EUT is a 9-band (GSM850/900/1800/1900 and WCDMA Band I/II(1900)/IV(1700)/V(850)/VIII) mobile phone with GPRS, EGPRS, Bluetooth and WLAN. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SN HW MV SW DUT Smartphone RM-626 004402132063326 2100 012.002 14994 Dummy Batt SF-218T GR2721023 proto 15013 Smartphone RM-626 004402132064142 2100 012.002 14992 AC Charger AC-10E 3997910313062200 561ö0675408 CE 14995 Headset WH-205 0730405024211800 820 CE 15009 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power PASSED 15.247(d) A8.5 Band edge compliance of RF emissions NP 15.247(d) A8.5 Spurious RF conducted emissions PASSED 15.247(d), 15.209 A8.5 Spurious radiated emissions NP 15.207 7.2.2 AC powerline conducted emissions PASSED 15.247(a)(1) A8.1 (a) 20 dB bandwidth PASSED 15.247(a)(1) A8.1 (b) Carrier frequency separation PASSED 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies PASSED 15.247(a)(1)(iii) A8.1 (d) Time of occupancy PASSED WLAN: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (4) Conducted peak output power NP 15.247(d) A8.5 Band edge compliance of RF emissions NP 15.247(d) A8.5 Spurious RF conducted emissions NP 15.247(d), 15.209 A8.5 Spurious radiated emissions NP 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(2) A8.2 (a) 6 dB bandwidth NP 15.247(e) A8.2 (b) Power spectral density NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Salo Laboratory. FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-626_38.docx Copyright © TCC Nokia 3 (29) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report.............................................. 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Test setups.................................................................................................................. 4 2.1. Conducted RF test setup .......................................................................................................4 2.2. AC powerline conducted emissions test setup.......................................................................4 2.3. Radiated test setup ................................................................................................................4 3. Conducted peak output power (FCC §15.247(b)(1), RSS-210 A8.4 (2)) .................. 5 3.1. Test method and limit .............................................................................................................5 3.2. Bluetooth Test results ............................................................................................................6 4. Spurious RF conducted emissions (FCC §15.247(d), RSS-A8.5)............................ 9 4.1. Test method and limit .............................................................................................................9 4.2. Bluetooth Test results ..........................................................................................................10 5. AC powerline conducted emissions (FCC …

Text truncated - open the document above for the full version.

FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-626_01.docx Copyright © TCC Nokia 1 (16) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-626_01.docx Date of Report: 09-Nov-2010 Number of pages: 16 Customer’s Contact person: Tero Huhtala Testing laboratory: TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Customer: Nokia Corporation P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC listing no.: IC recognition no.: 533467 661V-1 Tested devices/ accessories: Smartphone RM-626 / AC Charger AC-10E / Headset WH-205 FCC ID: PDNRM-626 IC: 661R-RM626 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards, RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Sami Lehtonen, System Specialist, EMC FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-626_01.docx Copyright © TCC Nokia 2 (16) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 14-Sep-2010 Testing completed 27-Sep-2010 The customer's contact person Tero Huhtala Test Plan referred to T:\Projects\RM-626\TestPlan\RS_testplan_RM- 626_EMC_FCC_SAR.xls Notes - Document name T:\Projects\RM-626\EMC\FCC15C_RM-626_01.docx 1.1. EUT and Accessory Information The EUT is a 9-band (GSM850/900/1800/1900) and WCDMA Band (I/II(1900)/IV(1700)/V(850)/VIII/) mobile phone with GPRS, EGPRS, HSDPA, HSUPA and WLAN and Bluetooth. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SNHWMV SW DUT Smartphone RM-626 004402132064142 2100 012.002 14992 AC Charger AC-10E 3997910313062200561ö0675408 CE 14995 Headset WH-205 0730405024211800820 CE 15009 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power NP 15.247(d) A8.5 Band edge compliance of RF emissions PASSED 15.247(d) A8.5 Spurious RF conducted emissions NP 15.247(d), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(1) A8.1 (a) 20 dB bandwidth NP 15.247(a)(1) A8.1 (b) Carrier frequency separation NP 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies NP 15.247(a)(1)(iii) A8.1 (d) Time of occupancy NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. CONTENTS 1. Summary for FCC Part 15C Compliance Test Report .............................................. 2 1.1. EUT and Accessory Information ............................................................................................. 2 1.2. Summary of Test Results ........................................................................................................ 2 2. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) ....................................................................................... 4 2.2. Test method and limit .............................................................................................................. 4 2.3. Bluetooth Test results ............................................................................................................. 5 3. Spurious radiated emissions (FCC §15.247(d), §15.209, RSS-210 A8.5) ......................................................................... 9 3.2. Test method and limit .............................................................................................................. 9 3.3. Bluetooth Test results ........................................................................................................... 11 4. Test Equipment ......................................................................................................... 15 4.1. Conducted measurements .................................................................................................... 15 4.2. Radiated measurements ....................................................................................................... 15 FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-626_01.docx Copyright © TCC Nokia 3 (16) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 2. Band edge compliance of RF emissions (FCC §15.247(d), RSS-210 A8.5) EUT with DUT number RM-626, DUT 14992 Accessories with DUT numbers AC-10E, DUT 14995 ; WH-205, DUT 15009 Operation Voltage [V] / [Hz] 115 / 60 Results PASSED Remarks - Temp [ o C] / Humidity [%RH] / Air Pressure [kPa] 20 / 59 / 100.2 Date of measurements 27-Sep-2010 Measured by Teuvo Miettinen 2.1.1 Test Setup Communication Tester EUT Tower / table controller Receiver 2.2. Test method and limit The measurement is made according to Public notice DA 00-705 and IC standard RSS-210. The measurement results are obtaine…

Text truncated - open the document above for the full version.

FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-626_37.docx Copyright © TCC Nokia 1 (14) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-626_37.docx Date of Report: 05-Nov-2010 Number of pages: 14 Customer’s Contact person: Tero Huhtala Testing laboratory: TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC listing no.: IC recognition no.: 533467 661V-1 Customer: Nokia Corporation P.O. Box 68 Sinitaival 5 FIN-33721 TAMPERE, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 46880 Tested devices/ accessories: Phone RM-626 / Dummy Batt SF-218T FCC ID: PDNRM-626 IC: 661R-RM626 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards RSS-GEN (Issue 2, June 2007) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Anni Manninen, System Specialist, EMC FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-626_37.docx Copyright © TCC Nokia 2 (14) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 21-Oct-2010 Testing completed 28-Oct-2010 The customer's contact person Tero Huhtala Test Plan referred to T:\Projects\RM-626\TestPlan\RS_testplan_RM-626_CR_HW3003.xls Notes - Document name FCC15C_RM-626_37.docx 1.1. EUT and Accessory Information The EUT is a 9-band (GSM850/900/1800/1900 and WCDMA Band I/II(1900)/IV(1700)/V(850)/VIII) mobile phone with GPRS, EGPRS, Bluetooth and WLAN. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-626 354864040004617 3003 - 013.005 15308 Dummy Batt SF-218T GR2721023 proto 15013 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power PASSED 15.247(d) A8.5 Band edge compliance of RF emissions NP 15.247(d) A8.5 Spurious RF conducted emissions PASSED 15.247(d), 15.209 A8.5 Spurious radiated emissions NP 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(1) A8.1 (a) 20 dB bandwidth NP 15.247(a)(1) A8.1 (b) Carrier frequency separation NP 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies NP 15.247(a)(1)(iii) A8.1 (d) Time of occupancy NP WLAN: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (4) Conducted peak output power NP 15.247(d) A8.5 Band edge compliance of RF emissions NP 15.247(d) A8.5 Spurious RF conducted emissions NP 15.247(d), 15.209 A8.5 Spurious radiated emissions NP 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(2) A8.2 (a) 6 dB bandwidth NP 15.247(e) A8.2 (b) Power spectral density NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Salo Laboratory. FCC Part 15C Compliance Test Report / Template Version 12.0 FCC15C_RM-626_37.docx Copyright © TCC Nokia 3 (14) TCC Nokia Salo Laboratory P.O. Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report.............................................. 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Test setups.................................................................................................................. 4 2.1. Conducted RF test setup .......................................................................................................4 2.2. AC powerline conducted emissions test setup.......................................................................4 2.3. Radiated test setup ................................................................................................................4 3. Conducted peak output power (FCC §15.247(b)(1), RSS-210 A8.4 (2)) .................. 5 3.1. Test method and limit .............................................................................................................5 3.2. Bluetooth Test results ............................................................................................................6 4. Spurious RF conducted emissions (FCC §15.247(d), RSS-A8.5)............................ 9 4.1. Test method and limit .............................................................................................................9 4.2. Bluetooth Test results ..........................................................................................................10 5. Test Equipment......................................................................................................... 13 5.1. Conducted measurements ...................................................................................................13 5.2. …

Text truncated - open the document above for the full version.

FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-626_14.docx Copyright © TCC Nokia 1 (14) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC Part 15C Compliance Test Report Test Report no.: FCC15C_RM-626_14.docx Date of Report: 28-Oct-2010 Number of pages: 14 Customer’s Contact person: Tero Huhtala Testing laboratory: TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Customer: Nokia Corporation P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC listing no.: IC recognition no.: 533467 661V-1 Tested devices/ accessories: Phone RM-626 / Headset WH-205 / AC-Charger AC-10E FCC ID: PYARM-626 IC: 661V-RM626 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards, RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Sami Lehtonen, System Specialist, EMC FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15C_RM-626_14.docx Copyright © TCC Nokia 2 (14) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 21-Oct-2010 Testing completed 26-Oct-2010 The customer's contact person Tero Huhtala Test Plan referred to T:\Projects\RM-626\TestPlan\RS_testplan_RM-626_CR_HW3003.xls Notes - Document name T:\Projects\RM-626\EMC\FCC15C_RM-626_14.docx 1.1. EUT and Accessory Information The EUT is a 9-band (GSM850/900/1800/1900) and WCDMA Band (I/II(1900)/IV(1700)/V(850)/VIII/) mobile phone with GPRS, EGPRS, HSDPA, HSUPA and WLAN and Bluetooth. Bluetooth and WLAN are tested with maximum rated TX power. Product Type SNHWMV SW DUT Phone RM-626 354864040002769 3003 - 013.005 15305 Headset WH-205 06943230212x1R99368 CE 15295 AC-Charger AC-10E 3997918367100500351ö0675408 CE 15290 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8.4 (2) Conducted peak output power NP 15.247(d) A8.5 Band edge compliance of RF emissions PASSED 15.247(d) A8.5 Spurious RF conducted emissions NP 15.247(d), 15.209 A8.5 Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions NP 15.247(a)(1) A8.1 (a) 20 dB bandwidth NP 15.247(a)(1) A8.1 (b) Carrier frequency separation NP 15.247(a)(1)(iii) A8.1 (d) Number of hopping frequencies NP 15.247(a)(1)(iii) A8.1 (d) Time of occupancy NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. CONTENTS 1. S…

Text truncated - open the document above for the full version.
