PFK-RT32-03Remote Flash Control Transceiver

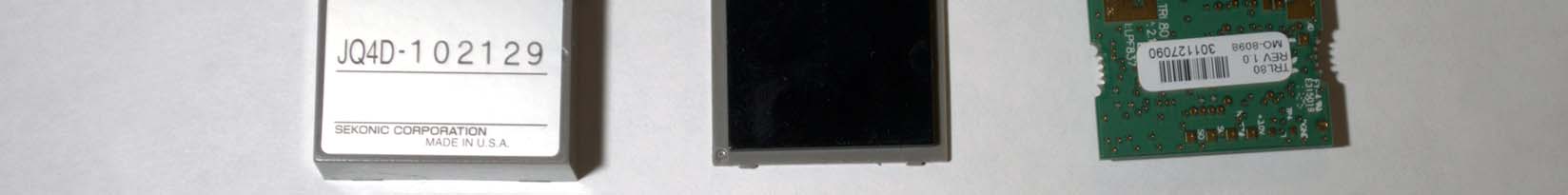

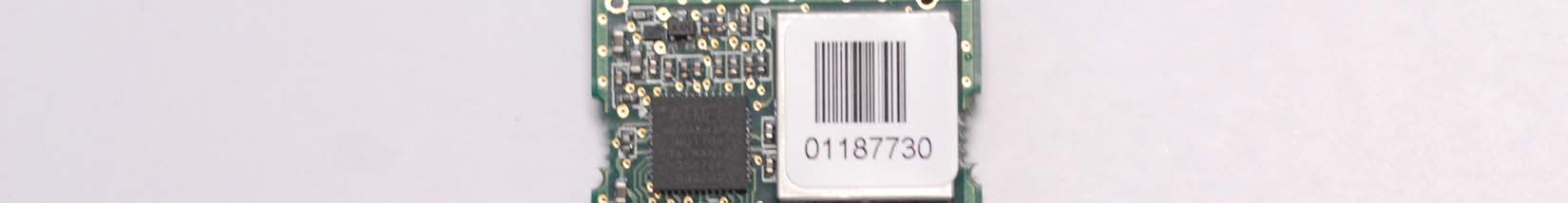

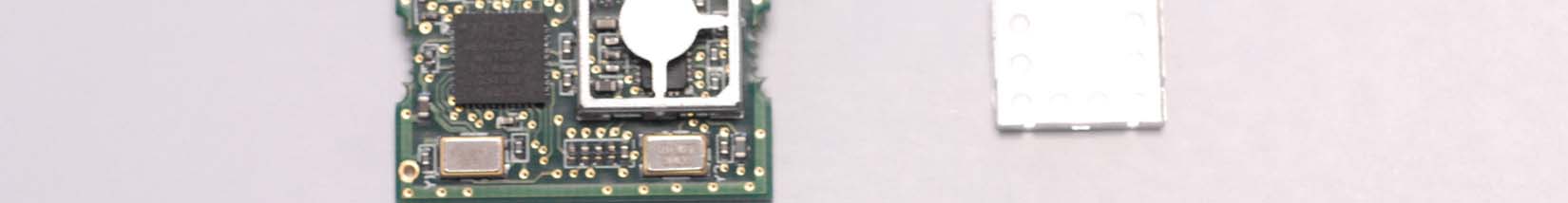

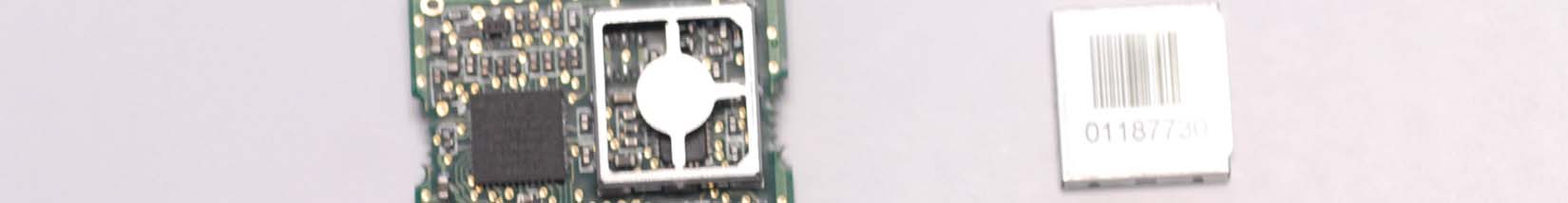

L-758D/L-758CINE The module installation method 08.04.2008 L-758D/L-758CINE L-758DR L-758D/L-758CINE The module installation method It removes. Module install L-758 difference L-758DR L-758D L-758CINE

（2：1） （1：1） アウトライン化 （2：1） アウトライン化 （1：1） ＪＱ７Ｄ９７０２０－００ 電装シール／下 ２０１１／０９ ／０６ FCC ID : PFK-RT32-03 IC : 3916A-RT3203 JQ7D- FCC ID : PFK-RT32-03 IC : 3916A-RT3203 JQ7D- C-500R Label attached position. Same as FCC/IC version. Label attached position. / Ｌ-358 d position. C version. ached / Label attached position. Same as FCC/IC version. Ｌ-758 d C （2：1） （1：1） アウトライン化 （2：1） アウトライン化 （1：1） ＪＱ７Ｄ９７０２０－００ 電装シール／下 ２０１１／０９ ／０６ FCC ID : PFK-RT32-03 IC : 3916A-RT3203 JQ7D- FCC ID : PFK-RT32-03 IC : 3916A-RT3203 JQ7D- アウトライン化 （2：1） （2：1） ＪＱ７Ｄ１２０１０－００ 銘板／１ ２０１１／０９／０６ FCC ID : PFK-RT32-03 IC : 3916A -RT3203 FCC ID : PFK-RT32-03 IC : 3916A -RT3203 （1：1） アウトライン化 （1：1） （1：1）（2：1） MADE IN PHILIPPINES L-758DR FCC ID:PFK- RT32- 03 IC:3916A- RT3203 MADE IN PHILIPPINES L-758DR FCC ID:PFK- RT32- 03 IC:3916A-RT3203 アウトライン化 （1：1） アウトライン化 （2：1） ＪＨ１２１２１５３－０３ 銘板／２ ２０１２／０２／１５

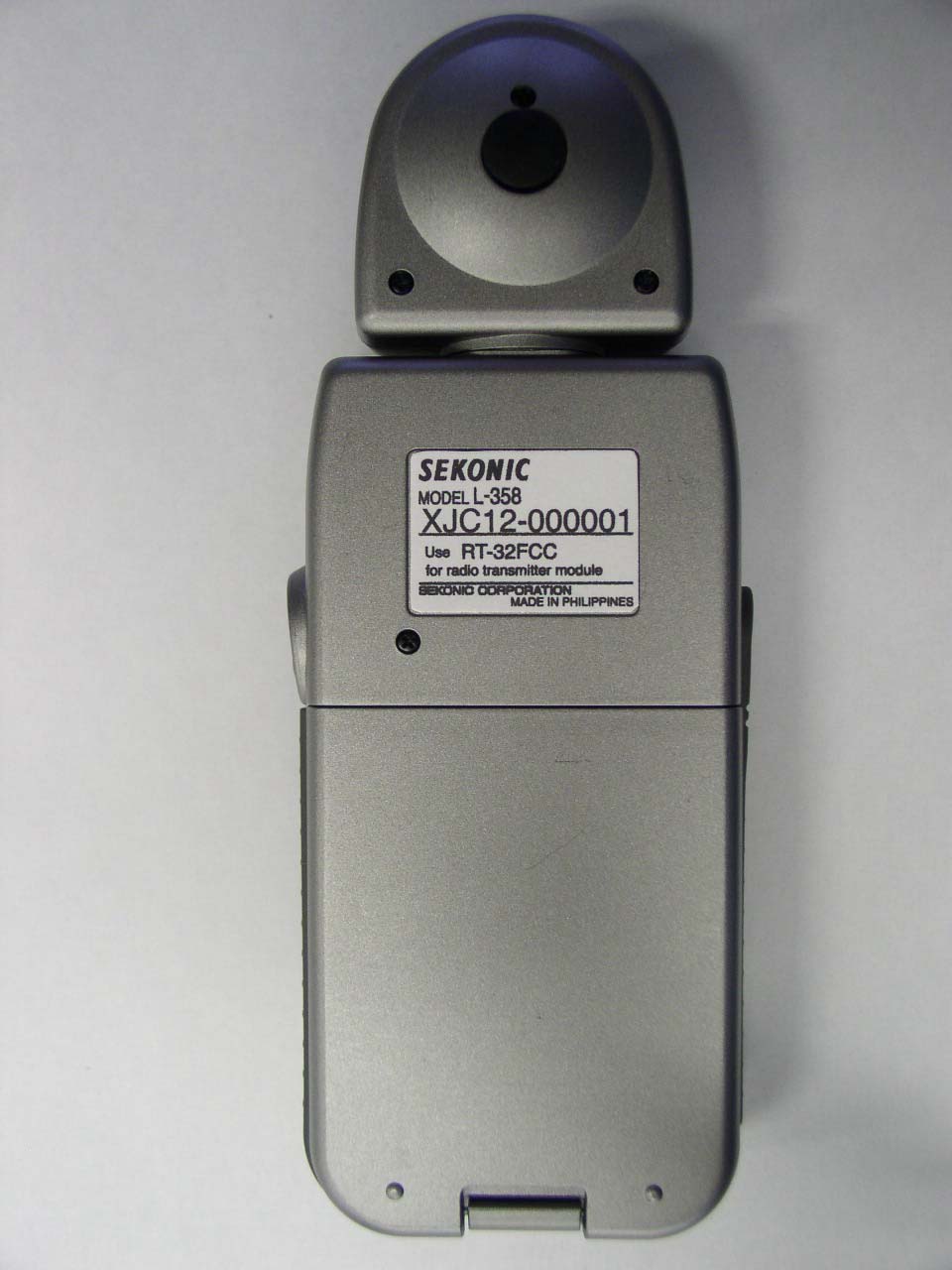

Retlif Testing Laboratories, Test Report R-5534N-1, LPA Design, Inc. FCC ID: PFK-RT32-03, IC: 3916A-RT3203 Technical Information MODULE MANUFACTURER APPLICANT Name: LPA Design, Inc. Name: Sekonic Corporation Address: 21 Gregory Drive, Suite 140 Address: 7-24-14, Oizumi Gakuen Cho, Nerima-ku, Tokyo 178-8686 Japan City, State, Zip: South Burlington, VT 05403 TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C, Section 15.231 Radio Standards Specification, RSS-210, Issue 8, December 2010 and RSS-GEN, Issue 3, December 2010 TEST PROCEDURE: ANSI C63.4:2003 Test Sample Description TEST SAMPLE: Sekonic Radio Transmitter Module BRANDNAME(s): Sekonic MODEL: RT-32CTL FCC ID: PFK-RT32-03 IC : 3916A-RT3203 TYPE: Wireless Flash Control POWER REQUIREMENTS: 3VDC via battery powered Host Exposure Meter FREQUENCY OF OPERATION: 340MHz to 354MHz Purpose: The purpose of this test program was to demonstrate compliance of the RT-32CTL Radio Module when installed in the Sekonic Exposure Meters referenced below in order to obtain Limited Modular Certification of the RT-32CTL Radio Module. Sekonic Meters Description Manufacturer Part Number Model Number Exposure Meter Sekonic JC12-264205 L-358 Exposure Meter Sekonic JH31-106919 L-758D Color Meter Sekonic JS22-060042 C-500R Page 2 of 99 Retlif Testing Laboratories, Test Report R-5534N-1, LPA Design, Inc. FCC ID: PFK-RT32-03, IC: 3916A-RT3203 Tests Performed The test methods performed on the Sekonic Radio Transmitter are shown below: FCC Part 15, Subpart C Industry Canada RSS-210 Issue 7, June 2007 Industry Canada RSS-GEN Issue 2, June 2007 Test Method 15.231(b) A1.1.2(1) N/A Field Strength of Fundamental Emissions 15.231(b)(2) A1.1.2(2) 4.5 Duty Cycle Determination 15.231(b)(3) A1.1.2(3) N/A Field Strength of Spurious Emissions 15.231(c) A1.1.3 N/A Bandwidth of Emission N/A N/A 4.10 Receiver Spurious Emissions General Test Requirements 1. The measurement procedures of ANSI C63.4:2003 were utilized as specified in FCC Part 15, Subpart C, Section 15.31(a)(3) and IC RSS-GEN Section 4.1. 2. All radiated emissions measurements were performed on an Open Area Test Site (OATS), listed with the FCC and IC, in accordance with FCC Section 15.31(d) and IC Section 4.2. 3. The level of the fundamental field strength was recorded with a new battery installed in the EUT, in accordance with FCC Section 15.231(e) and IC Section 4.3(e). 4. All measurements were performed at the specified 3 meter test distance as required by FCC Section 15.31(f) and IC Section 7.25. 5. The EUT was rotated throughout 360 degrees for all radiated emissions measurements as specified in FCC Section 15.31(f)(5) and IC Section 4.3(h). 6. All readily accessible EUT controls were adjusted in such a manner as to maximize the level of emissions in accordance with FCC Section 15.31(g) and IC Section 4.3(h). 7. Appropriate accessories were attached to all EUT ports during the performance of radiated emissions measurements as required by FCC Section 15.31(i) and IC Section 4.3(d). 8. The EUT operated over the frequency range of 340 MHz to 354 MHz. A total range of 14 MHz. Testing was performed with the device operating at a. 3 frequencies, 1 at the top, 1 in the middle and 1 at the bottom of the range of operation in accordance with FCC Section 15.31(m) and IC Section 4.3(f)(g). 9. The frequency spectrum was investigated from the lowest frequency generated in the device up to the 10 th harmonic of the highest fundamental frequency in accordance with FCC Section 15.33(a)(1) and IC Section 4.9. 10. All measurements were taken with a peak detector function as specified in FCC Section 15.35(a) and IC Section 4.4. The duty cycle, calculated in accordance with FCC Section 15.35(c) and IC Section 4.5, was applied to the peak readings in order to obtain the average value of emissions. The peak value of emissions was verified to meet the 20 dB requirement of FCC Section 15.35(b) and IC Section 7.2.1. Page 3 of 99 Retlif Testing Laboratories, Test Report R-5534N-1, LPA Design, Inc. FCC ID: PFK-RT32-03, IC: 3916A-RT3203 Certification and Signatures We certify that this report is a true representation of the results obtained from the tests of the equipment stated. We further certify that the measurements shown in this report were made in accordance with the procedures indicated and vouch for the qualifications of all Retlif Testing Laboratories personnel taking them. Scott Wentworth Branch Manager NVLAP Approved Signatory Todd Hannemann Laboratory Supervisor iNARTE Certified ATL-0255-T Non-Warranty Provision The testing services have been performed, findings obtained and reports prepared in accordance with generally accepted laboratory principles and practices. This warranty is in lieu of all others, either expressed or implied. Non-Endorsement This test report contains only findings and results arrived at after employing the specific test procedures and standards listed herein. It is not intended to constitute a recommendation, endorsement or certification of the product or material tested. This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Page 4 of 99 Retlif Testing Laboratories, Test Report R-5534N-1, LPA Design, Inc. FCC ID: PFK-RT32-03, IC: 3916A-RT3203 Revision History Revisions to this document are listed below; the latest revised document supersedes all previous issues of this document. Revision Date Pages Affected - December 21, 2011 Original Release Page 5 of 99 Retlif Testing Laboratories, Test Report R-5534N-1, LPA Design, Inc. FCC ID: PFK-RT32-03, IC: 3916A-RT3203 Requirements and Test Results Requirement: FCC Section 15.231(a) - Periodic operation in the band 40.66 - 40.7 MHz and above 70 MHz The provisions of this Section are restricted to periodic operation within the band 40.66-40.7 MHz and above 70 MHz. Except as shown in Paragraph (e) of this Section, the intentional radiator is restricted to the transmissions of a cont…

Text truncated - open the document above for the full version.

Retlif Testing Laboratories, Test Report R-5534N-1, LPA Design, Inc. FCC ID: PFK-RT32-03, IC: 3916A-RT3203 Radio Transmitter with Exposure Meter, Model: L-358 Horizontal Antenna Polarization, 30 to 1000 MHz Radio Transmitter with Exposure Meter, Model: L-358 Vertical Antenna Polarization, 30 to 1000 MHz Page 51 of 99 Retlif Testing Laboratories, Test Report R-5534N-1, LPA Design, Inc. FCC ID: PFK-RT32-03, IC: 3916A-RT3203 Radio Transmitter with Exposure Meter, Model: L-358 Horizontal Antenna Polarization, 1 to 4 GHz Radio Transmitter with Exposure Meter, Model: L-358 Vertical Antenna Polarization, 1 to 4 GHz Page 52 of 99 Retlif Testing Laboratories, Test Report R-5534N-1, LPA Design, Inc. FCC ID: PFK-RT32-03, IC: 3916A-RT3203 Radio Transmitter with Exposure Meter, Model: L-758D Horizontal Antenna Polarization, 30 to 1000 MHz Radio Transmitter with Exposure Meter, Model: L-758D Vertical Antenna Polarization, 30 to 1000 MHz Page 53 of 99 Retlif Testing Laboratories, Test Report R-5534N-1, LPA Design, Inc. FCC ID: PFK-RT32-03, IC: 3916A-RT3203 Radio Transmitter with Exposure Meter, Model: L-758D Horizontal Antenna Polarization, 1 to 4 GHz Radio Transmitter with Exposure Meter, Model: L-758D Vertical Antenna Polarization, 1 to 4 GHz Page 54 of 99 Retlif Testing Laboratories, Test Report R-5534N-1, LPA Design, Inc. FCC ID: PFK-RT32-03, IC: 3916A-RT3203 Radio Transmitter with Color Meter, Model: C-500R Horizontal Antenna Polarization, 30 to 1000 MHz Radio Transmitter with Color Meter, Model: C-500R Vertical Antenna Polarization, 30 to 1000 MHz Page 55 of 99 Retlif Testing Laboratories, Test Report R-5534N-1, LPA Design, Inc. FCC ID: PFK-RT32-03, IC: 3916A-RT3203 Radio Transmitter with Color Meter, Model: C-500R Horizontal Antenna Polarization, 1 to 4 GHz Radio Transmitter with Color Meter, Model: C-500R Vertical Antenna Polarization, 1 to 4 GHz Page 56 of 99
