PG4SD201SD201 Acess Applicance

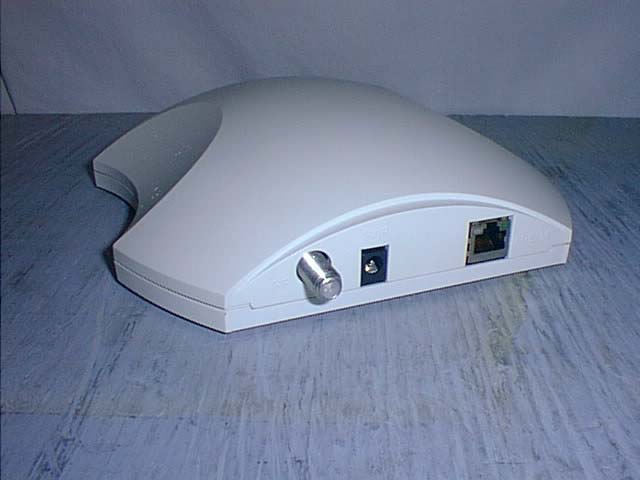

Series 6000 SD200 Access Appliance User’s Guide Revision 0.6 Feb 2002 601004-001 Warning: This product may not be exported outside the United States and Canada without authorization from the U.S. Department of Commerce, Bureau of Export Administration. Any export or re-export by the purchaser, directly or indirectly, in contravention of U.S. Export Administration Regulation is prohibited. This document may not be reproduced, in whole or part, without the written permission of coaXmedia, Inc. The contents of this document are subject to change without notice. coaXmedia, Inc. assumes no liability for damages resulting from the use of this product or for the information contained in this manual. coaXmedia and the coaXmedia logo are trademarks of coaXmedia, Inc. All trademarked products mentioned in this document are trademarks of their respective companies. © Copyright 2001 coaXmedia, Inc. All rights reserved. Printed in U.S.A. Limited Warranty coaXmedia guarantees that every SD-Series Access Appliance will be free from physical defects in material and workmanship under normal use for one (1) year from the date of purchase. If the product is determined to be defective during the warranty period, please call coaXmedia’s or your equipment provider’s Customer Support to obtain a Returned Material Authorization (RMA) number. The RMA number should be clearly marked on the outside of the package, when it is shipped. If returned product is determined to be functioning properly, a nominal processing fee may be charged to cover shipping and handling. This product contains no end-user serviceable parts; authorized technicians should perform all service. IN NO EVENT WILL COAXMEDIA BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAMAGES ARISING OUT OF THE USE, INABILITY TO USE, OR PERFORMANCE OF THE COAXMEDIA PRODUCT (S), ITS ACCOMPANYING SOFTWARE, OR DOCUMENTATION, INCLUDING WITHOUT LIMITATION DAMAGES FOR LOSS OF BUSINESS PROFITS OR BUSINESS INTERRUPTION, BASED UPON PRINCIPLES OF CONTRACT, WARRANTY, NEGLIGENCE, STRICT LIABILITY OR OTHER TORT, BREACH OF ANY STATUTORY DUTY, PRINCIPLES OF INDEMNITY OR CONTRIBUTION, EVEN IF COAXMEDIA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Furthermore, coaXmedia makes no warranty or representation (expressed, implied, or statutory) with respect to its products, accompanying software, or documentation, or to their use, as well as disclaims against their quality, performance, merchantability, or fitness for any particular purpose. Therein, coaXmedia does not warranty that the products will be error free or will operate without interruption. coaXmedia reserves the right to revise or update its products, software, or documentation without obligation to notify any individual or entity. FCC Compliance The coaXmedia access appliance has been tested and found to comply with the limits for a Class B personal computer and peripherals, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit off and on, the user is encouraged to try to correct the interference by one of more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or experienced radio/TV technician for help. Warning: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authorization to operate this equipment. Canadian Compliance This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme NMB-003 Canada. coaXmedia Series 6000 Table of Contents i Table of Contents Table of Contents.....................................................................i 1Contact Information.........................................................1 1.1Support........................................................................1 1.2Sales............................................................................1 1.3The coaXmedia Web Page................................................1 2Important Rules for Safe Operation...................................2 2.1Service.........................................................................3 3Introduction.....................................................................4 3.1Features........................................................................4 3.2What You Have..............................................................5 3.3What You Need..............................................................5 3.3.1Building Requirements...............................................5 3.3.2Personal Computer Requirements.................................5 Using this Guide......................................................................6 4About the Access Appliance...............................................7 4.1Front Panel....................................................................7 4.2Rear Panel.....................................................................8 5Installing the Access Appliance.........................................9 5.1Overview.......................................................................9 5.1.1Before Installing........................................................9 5.1.2Building Requirements...............................…

Text truncated - open the document above for the full version.

coaXmedia 1220 Oak Industrial Lane Suite B CUMMING, GA 30041 Mr. Barry Quinlan Curtis-Straus LLC March 26 th , 2002 527 Great Road Littleton, MA 01460 Subject: Confidentiality request. Dear Mr. Quinlan, CoaXmedia would like to formally request that all schematics and block diagrams submitted in conjunction with the certification of our product (FCC ID: PG4SD201) be withheld from public disclosure. This request is made under provisions of Section 0.457(d) of the Commission’s rules, and Section 552(b)(4) of the Freedom of Information Act, Trade Secrets. Without the disclosed information, competitive organizations would take considerably more time to assess and develop a workable competitive product. Regards. Dave Collins. VP of Operations.

408010-001 Product Label 4.00 2.00 1220 Oak Industrial Lane CUMMING GA 30041 ACCESS APPLIANCE MADE IN USA coaXmedia ACCESS APPLIANCE: Note: 1.Silver metalized polyester material with non glare finish and pressure sensitive adhesive on back. BRADY THT-55-428 or equivalent. 2.Labels to be supplied in form specified by Purchase Order (Roll, Sheet..etc). 3.Printing to be black permanent color except "X" in coaXmedia which is PMS208. 4.The font for all UL markings is Helvetica Condensed Black except for the trademark R, which is Helvetica Condensed Medium 5.The minimum height of the UL registered trademark R shall be 3/64 of an inch. When the overall diameter of the UL Mark is less than 3/8 of an inch, the trademark may be omitted if it is not legible to the naked eye. 7.Camera ready UL mark can be downloaded from http://www.ul.com/mark/index.html 1:1 Scale Rev A, 12-10-01 This device works ONLY where coaXmedia services are provided E218190 1220 Oak Industrial Lane, Cumming, GA 30041 408010-001 SD20X-001 Unit Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) must accept any interference received, including interference that may cause undesired operation. Model :SD201 This class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme Canadienne n o NMB-003 . FCC ID: PG4SD201 Label Information Label Location Note: SD20X Housing Bottom View coaXmedia ACCESS APPLIANCE: BarCode Code 39 FIG 1 1220 Oak Industrial Lane CUMMING GA 30041 ACCESS APPLIANCE MADE IN USA This device works ONLY where coaXmedia services are provided E218190 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) must accept any interference received, including interference that may cause undesired operation. This class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de classe B est conforme à la norme Canadienne n o NMB-003 . S/N XXXXXXXXXXXXXXMAC XXXXXXXXXXXX Model :SD201 FCC ID: PG4SD201

Theory of operation: The user’s computer is connected to the Access Appliance through its Ethernet port. After processing by the digital section, the data from the user’s computer is BPSK or QPSK modulated on a 810MHz carrier. The resulting upstream signal is amplified, filtered and then transmitted over the coaxial cable. The upstream symbol rate is 12MS/s. Simultaneously the access appliance receives and demodulates the downstream signal from coaXmedia’s broadband gateway. The 22.5MS/s QPSK downstream signal is centered at 906MHz. The demodulated data is decoded by the Access appliance digital section and sent to the user’s computer via the Ethernet interface.

RF Emissions Test Report To Determine Compliance With: FCC, Part 15 Rules and Regulations Model number: SD201 March 22, 2002 Manufacturer: coaXmedia 1220 Oak Industrial Lane Suite B Cumming, GA 30041 EMC Testing Laboratories, Inc. authorizes the above company to reproduce this report provided it is reproduced in its entirety EMC Testing Lab. (770) 781-9228 Test report no. 02-136A Page 2 2 o o f f 1 1 8 8 Contents Section General Information ....................................................................... 1 Test Summary.................................................................................. 2 Standard Reference ........................................................................ 3 Test Method .......................................................................... 4 Radiated Emissions Measurements ................................................ 5 Conducted Emissions Measurements .............................................. 6 Test Configuration ...................................................................... 7 EMC Testing Lab. (770) 781-9228 Test report no. 02-136A Page 3 3 o o f f 1 1 8 8 Section 1 General Information Manufacturer: coaXmedia 1220 Oak Industrial Lane Suite B Cumming, GA 30041 Manufacturer representative: Mr. Stephane Chapeau Equipment covered by this report: Model no. SD201 Options covered by this report: None Equipment serial no. Prototype Test specifications: To determine compliance with: FCC, Part 15, Subpart B Rules and Regulations, Class B Test report number: 02-136A Test commenced: March 21, 2002 Test completed: March 21, 2002 Test engineer: Kent Stewart Test Facility: The test facility used to perform these tests is on file with the FCC under file 31040/SIT, 1300F2 and located at: EMC Testing Laboratories, Inc. 2420 Oak Street West Cumming, GA. 30041-6456 EMC Testing Lab. (770) 781-9228 Test report no. 02-136A Page 4 4 o o f f 1 1 8 8 Section 2 Test report summary sheet 1 of 4 Summary: Tests Results FCC, Part 15, Class B, Radiated emissions: Pass FCC, Part 15, Class B, Conducted emissions: Pass 1- The product(s) covered by this report was found to comply with the Class B limits of the FCC, Part 15, Subpart B Rules and Regulations. 2- The minimum margin of compliance was –6.0 dBμv/m at 0.46 Mhz followed by –6.8 dBμv/m at 240.0 Mhz. 3- The test results apply only to the products identified on the test report. Product description: The product(s) covered by this report consisted of a model SD201, Internet access appliance (modem) allowing high speed Internet connectivity over existing building coaxial distribution systems. The EUT connects to a personal computer via USB or Ethernet connection. The enclosure is constructed of plastic with overall dimensions measuring 18.2cm wide by 4cm high by 20.3cm deep and houses the following components judged as critical: 1. A printed wiring board, manufactured by coaXmedia, part no. 311006-002, Rev. A. Test configuration: The equipment under test (EUT) was set-up and configured as specified by the manufacturer as follows: EMC Testing Lab. (770) 781-9228 Test report no. 02-136A Page 5 5 o o f f 1 1 8 8 Test report summary sheet 2 of 4 1- The EUT was connected to the following support peripherals: A) A printer, manufactured by Hewlett Packard, model 660C, serial number SG5BE1C151, FCC ID: B94C2164X. B) A USB Switch Interface, manufactured by Crick Software, model Crick USB Switch Box. C) A laptop computer, manufactured by Toshiba, part no. PS171U-11K93H, serial no. Y024923CU, FCC DOC marked. NOTE: The following peripheral equipment was positioned away from the EUT: D) A Broadband Gateway, manufactured by coaXmedia, model no. BG-200, serial no. 014. E) A laptop computer, manufactured by Toshiba, part no. PRS408U-T2CW8, serial no. 59668335A, FCC DOC marked. 2- The EUT utilized the following cables and were connected as indicated below: A) A shielded printer cable was connected from the computer’s parallel printer port to the printer. B) A shielded USB cable was connected from the computer’s USB port to the Switch Interface’s USB port. C) A 75 ohm coaxial cable with a 40 ohm attenuater was connected from the EUT’s RF port to the IN port of a typical 2-way splitter, manufactured by Signal Vision Inc., part no. SV-2G. The OUT ports of the splitter were connected to the Broadway Gateway’s RFI and RFO ports by two 75 ohm coaxial cables. EMC Testing Lab. (770) 781-9228 Test report no. 02-136A Page 6 6 o o f f 1 1 8 8 Test report summary sheet 3 of 4 D) An unshielded category 5 cable was connected from the EUT’s Ethernet port to the laptop (Toshiba, part no. PS171U-11K93H, serial no. Y024923CU) computer’s Ethernet port. E) An unshielded category 5 cable was connected from the laptop (Toshiba, part no. PRS408U-T2CW8, serial no. 59668335A) computer’s Ethernet port to the Broadband Gateway Ethernet port. Test operation: For all measurements, the equipment under test was caused to function in a continuous mode of operation for maximum electrical activity as specified by the manufacturer. Specifically the EUT was made to continuously send and receive a ping signal between the two laptop computers. Additionally, the laptop computer directly connected to the EUT was made to continuously send a scrolling “H” character to the display. Modifications: The following modifications were required to comply with the indicated limits: 1- None Engineering Statement: All measurement data, of this test report, was taken in accordance with the FCC, Part 15, Subpart B Rules and Regulations and ANSI C63.4-1992 by EMC Testing Laboratories, Inc., located in Cumming, Georgia. Although this data is taken under stringent laboratory conditions and to the best of our knowledge, represents accurate data, it must be recognized that emissions from or immunity to this type equipment may be greatly affected by the final installation of the equipment. Therefore, EMC Testing Laboratories, Inc., while supporting the accuracy of the data in this rep…

Text truncated - open the document above for the full version.
