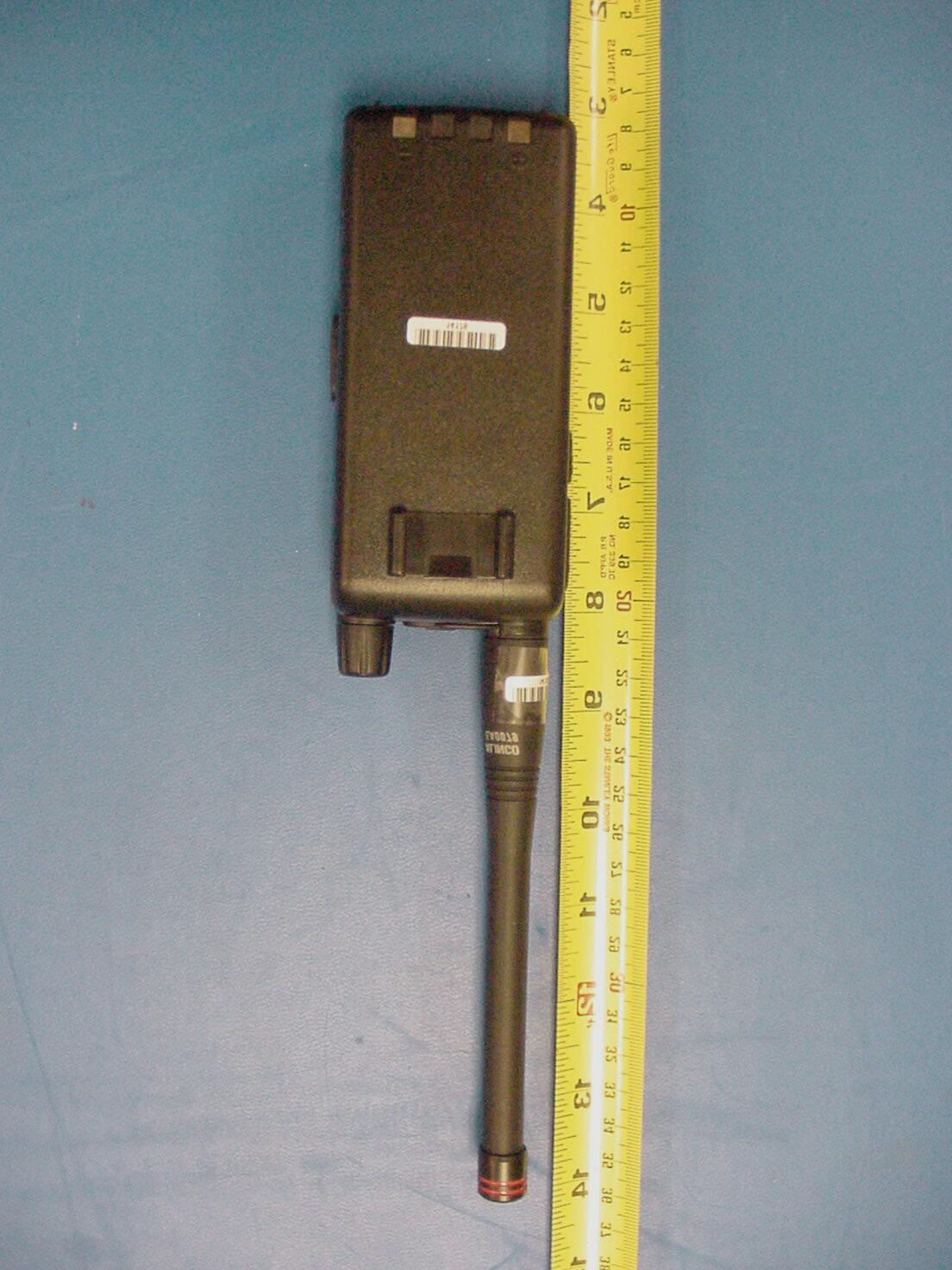

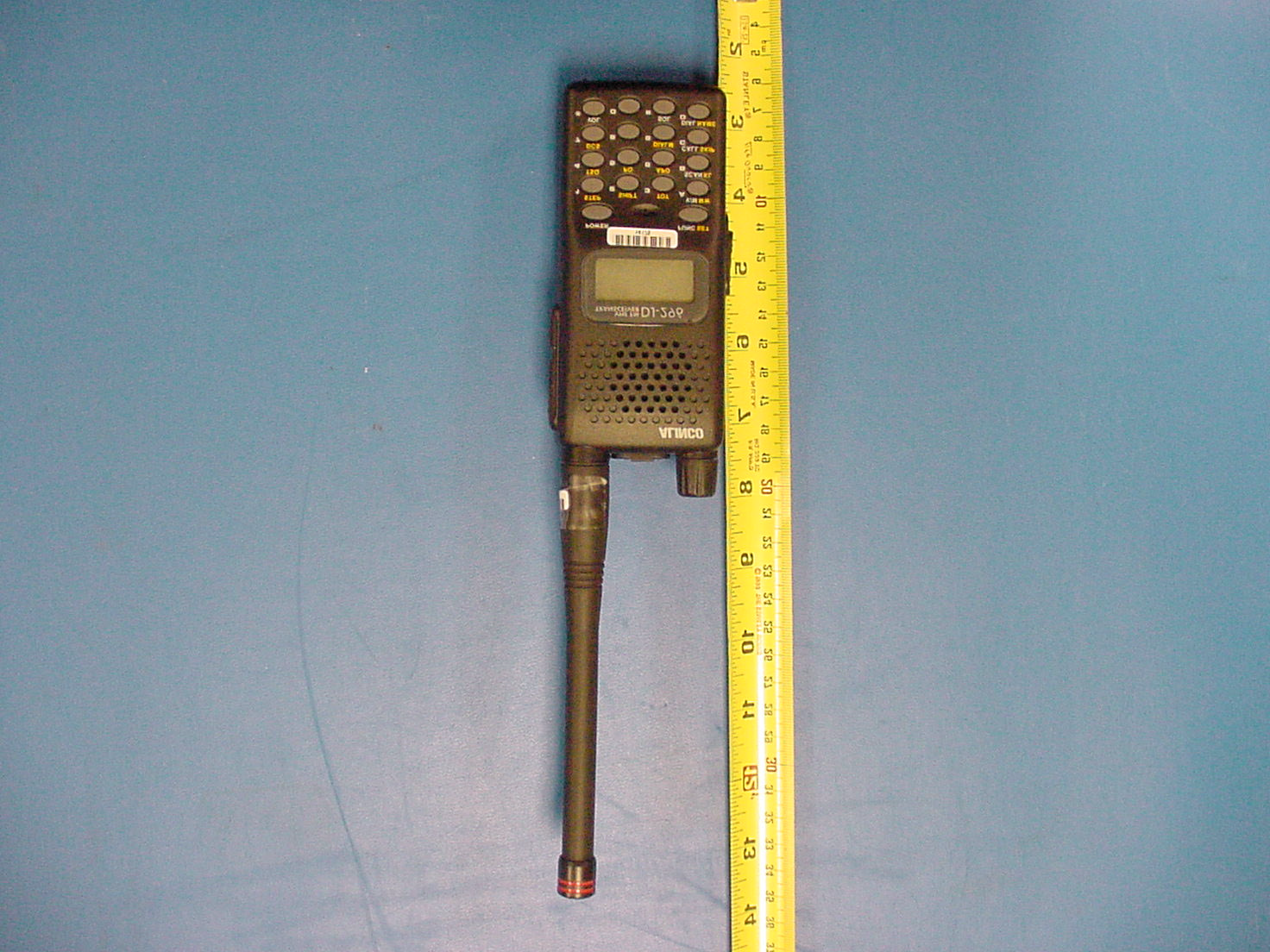

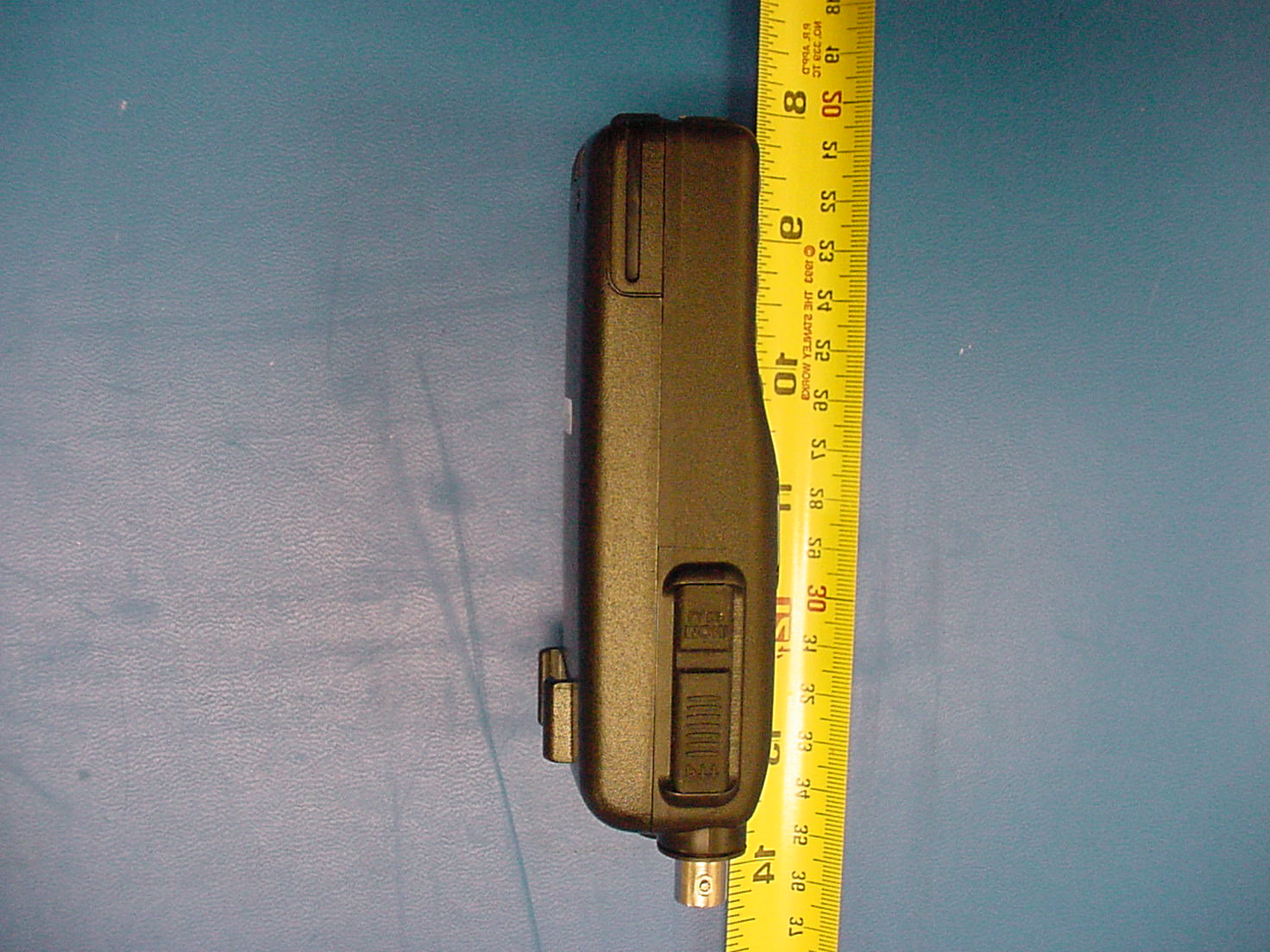

PH3DJ-296THand held radio

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com Scanning Receiver Certification Report Page 26 Alinco, Inc. FCC ID: PH3DJ-296T Work Order: 2002032 / QRTL02-151DF Rev: 1 3/21/02 APPENDIX I: MANUAL DJ296 INSTRUCTION MANUAL 1. INNOVATIVE AND NEW FEATURES . Comes equipped 39 CTCSS Tone Squelch function. . Comes equipped 104DCS Digital code squelch function. . TOT (Time Out Timer) can be set to a Duty Cycle most accommodating to the user’s requirements. . Alphanumeric channel name function. . Tone burst function (1750, 2100, 1000, 1450 Hz) . Nine Autodial memories easily accessed from the DTMF keypad with redial function. . Direct frequency entry from DTMF function. . Burglary Alarm Function . Mosquito Repel sound function. 2. ACCESSORIES Standard Accessories . EBP-50N (9.6V DC 700mAh) Ni-Mh battery . EDC-93 (120V AC) Wall charger . Flexible rubber helical antenna . Belt clip . Hand strap . Instruction Manual Optional Accessories . EBP-50N (9.6V DC 700mAh) Ni-Mh battery . EDC-36 Mobile Cigarette lighter adapter with active noise filter . EDC-37 External DC supply cable . EDC-88 Rapid charger . EDC-93 (120V) Wall charger . EMS-9 Speaker microphone . EMS-51 Speaker microphone . EME-12 Headset with VOX . EME-13 Earphone and Mic with VOX . EME-15 Tie-pin Mic with VOX . EME-6 Earphone . EBC-6 Mobile bracket . EJ-39D SmartTrunk Logic Board . ESC-36 Softcase (for use with EBP-50N) 3. CONTROLS/FUNCTIONS Top, Front, Sides and Rear View 1. LCD DISPLAY PANEL Refer to LCD Display section of this manual. 2. MAIN TUNING DIAL The main tuning dial/knob may be rotated in either direction to select RX/TX frequency and volume/squelch level. 3. EXTERNAL MICROPHONE JACK When the external microphone is prefered, plug in a 2.5mm stereo plug into this jack. 4. EXTERNAL SPEAKER JACK When the external speaker is prefered, plug in a 3.5mm mono plug into this jack. 5. POWER SWITCH To turn on the unit, press and hold for about one second. 6. FUNCTION KEY The F key allows you to access the secondary function. Press and hold for about two seconds ,The Set-mode function activated. 7. MIC Speak into the microphone from approximately 10cm or 3” distance. 8. DTMF KEYPAD During transmission, each numerical or letter key activates one DTMF tone. 9. BNC ANTENNA CONNECTOR Connect the supplied rubber helical antenna. When an external antenna is connected, please make sure that your antenna has a low SWR(Standing Wave Ratio). 10. PTT(PUSH TO TALK)SWITCH To transmit, press and hold this switch. When you release it, the unit will return to the receive mode. 11. MONITOR KEY This key is used to un-mute squelch, and a weak or intermittent signal can be monitored regardless the squelch setting. This also available to monitor receive frequencies when TSQ or DCS is set. 12. DC JACK Plug in the EDC-36 cigarette lighter adapter with active noise filter for mobile operation. The jack is polarized, the center pin is positive and outer pin is negative. Applying excessive or will void the radio’s warranty. 43 9 10 11 7 6 8 12 5 1 2 4. LCD Display 1. F When the F icon appears, secondary function keys may be activated. 2. + It indicated the plus or minus offset direction. 3. T It appears when the tone encoder is activated. 4. TSQ It appears when the tone squelch is activated. 5. DCS It appears when the digital code squelch is activated 6. The “ “icon appears when the key and frequency Lock is activated. 7. APO It appears when the APO (Automatic Power Off) function is activated. 8. When the voltage of the battery is dropped to be recharged,” “is disappears. 9. LO When the low power output is selected the LO icon appears. 10. VOL It appears while the volume level is adjusted by either the tuning dial. 11. SQL It appears while the squelch level is adjusted by either the tuning dial 12. 888 It indicates the TX/RX frequency, other function selected. 13. M In the Memory Mode , the M icon appears. 14. 88 While either the volume/squelch level is adjusted, and Memory channel No. 15. . decimal point 16. BUSY BUSY icon will appear when a signal is received, or squelch is unmuted. 17. 000 It indicates the received signal strength and / or the output power level. 18. * It appears when the “SCR” function activated. 19. A It appears when the “EXP” function activated. 20. It appears when the “MRS” function activated. 1 23 4 5 6 7 8 9 18 19 10 11 1314 15 16 17 12 20 Operation Manual DJ296 Contents 5 Operation 1(Basics) 5-1 Adjusting the Volume 5-2 Adjusting the Squelch 5-3 Receiving 5-4 Transmitting 5-5 Frequency Selection 5-6 Channel Step 5-7 Shift Direction and Offset Frequency 5-8 Memory Channel Operation 5-9 CALL Channel Operation 5-10 Scanning 5-11 Output Power Switching 5-12 Key Lock Function 5-13 Tone Burst Function 5-14 Auto Power Off Function 5-15 Battery Save (BS) Function 5-16 Lamp Function 5-17 Monitor Function 5-18 Beep Function 5-19 Clock Shift Function 6 Operation 2 (Applications) 6-1 Selective Calling 6-2 Tone Encoder and Tone Squelch Function 6-3 Tone Encoder Frequency/Tone Decoder Frequency Programming 6-4 DCS (Digital Code Squelch) Function 6-5 Manual DTMF Transmitting 6-6 Auto Dialer Memory Setting 6-7 Auto Dialer Function 6-8 Redial 6-9 DTMF Time Setting 6-10 Alphanumeric Function 6-11 TOT (Time Out Timer) Function 6-12 TOT Penalty Function 6-13 BCLO (Busy Channel Lock Out) Function 7 Operation 3 (Others) 7-1 Cable Clone 7-2 Burglary Alarm Function 7-3 External Terminal Control 7-4 MRS (Mosquito Repeller Sound) Function 8 Set Mode 8-1 Setting of Set Mode 8-2 Functions Set in the Set Mode 9 Reset Function 5 Operation 1 (Basics) 5-1 Adjusting the Volume . [VOL] appears on LCD when VOL key is pressed, volume level is displayed. The initial value is 00 (minimum). The volume can be increased or decreased by rotating the dial. The maximum value is 20. There are 21 steps from 00-20 in volume adjustment. The setting value can be kept even while the power is off. . When the volume point data is (00), the voice can not be heard.…
