PH3DJ-G46TUHF FM TRANSCEIVER

A1.230712 Alinco Incorporated, Electronics Division Yodoyabashi Dai-bldg 13F 4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan Phone: +81-6-7636-2362 Fax: +81-6-6208-3802 http://www.alinco.com E-mail:[email protected] Copyright Alinco, lnc. PS1096/FNFG-FI Printed in China Instruction Manual UHF FM TRANSCEIVER Thank you for purchashing your new Alinco transceiver.Please read this manual carefully before using the product to ensure full performance, and keep this manual for future reference as it contains information on after-sales service. In case addendum or errata sheets are included with this product,please read those materials and keep them together with this instruction manual for future reference. GMRS license is required to operate this device. DJ-G46T [MEMO] Introduction Thank you very much for purchasing this excellent Alinco transceiver. Our products are ranked among the finest in the world. This radio has been manufactured with state of the art technology and it has been tested carefully at our factory. It is designed to operate to your satisfaction for many years under normal use. Please read this manual completely from the first page to the last, to learn all the functions the product offers. It is important to note that some of the operations may be explained in relation to information in previous chapters. By reading just one part of the manual, you may risk not understanding the complete explanation of the function. Before transmitting There are many radio stations operating in to the frequency ranges this product covers. Be careful not to cause interference when transmitting around such radio stations. ■ Lightning Any person is not safe outdoor during thunderstorm and lightning. This condition is getting worse if somebody keeps a hand-held radio; chances of being hit by lightning are doubled since lightning may hit a radio antenna as well. At this time, there is no hand-held radio having any kind of protection against lightning current (which is higher than10 kA.). Note also that no car provides adequate protection of its passengers or drivers against lightning as well. Therefore, Alinco will not take responsibility for any danger associated with using its hand-held radios outdoor or inside the car during lightning. ■ About IP54 rating / Dust and splash resistant About IP54 rating 5: Dust protected /Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment; complete protection against contact. 4: Splashing water / Water splashing against the enclosure from any direction shall have no harmful effect. Test duration: 5 minutes / Water volume: 10 litters per minute /Pressure: 80~100 kN/m² The IP54 designation provides for limited dust and splash proofing of the radio per specified above. This compatibility is factory guaranteed for a period of one year provided all the jack covers are securely in place, any accessories connected must be specified genuine Alinco accessories and the radio has not been disassembled by the customer. The factory has tested and made the equipment compatible to IP54 certification during engineering. However, please understand that this equipment is NOT certified IP54 compliant but is designed to remain operational when used in hard conditions and is in no way stating that you should attempt to wash the radio for cleaning. Warranty will not cover radios that are water/dust damage due to negligence or misuse of the product. The warranty period of dust and splash resistance is the same as the period of the product warranty. ■ Covering ranges You may expect a range of approx. 3km/2 miles or more when located on a flat, noise-free place like on a beach.However,it may vary drastically depending on how to wear and carry the radios, surrounding locations/conditions and static noise levels (below or near power transmission lines), etc. In urban areas with many buildings or inside a building, such covering range will become drastically short even to several tens of meters. ■ FCC Information Your ALINCO radio operates on communicationsfrequencies which are subject to FCC (Federal Communications Commission) Rules & Regulations. FCCRules require that all operators using Personal Radio Servicefrequencies obtain a radio license before operating theirequipment. Application for license must be made on FCCform 574. Temporary operation is allowed, using form 574Twhich has been provided for your convenience (remove theform from the center of this Instruction Manual). Please readand follow the instructions on the provided form. ■ Compliance Information Statement WARNING This equipment generates or uses radio frequency energy.Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. FCC INFORMATION This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to pursuant to part 15 of the FCC Rules. These limits are desianed to provide reasonablle protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation, If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more ofthe following measures ： • Reorent or relocate the receiving antenna. • Increase the separation between the equipment and receiver.…

Text truncated - open the document above for the full version.

Alinco Incorporated, Electronics Division ADD: Yodoyabashi Dai Building 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka, 541-0043, Japan TEL: 06-7636-2360 FAX: 06-6208-3801 E-mail: [email protected] CFR 47 §2.911(d)(5)(i)(ii) Attestation Letter Attestation Letter Date: 09-19-2023 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i)(ii) Filing FCC ID: PH3DJ-G46T Alinco Incorporated, Electronics Division (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Alinco Incorporated, Electronics Division (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Printed Name: Kazuhiro Kusuhara Title: General Manager, Production, Electronics Div.

QA-FR-170-B Alinco Incorporated, Electronics Division ADD: Yodoyabashi Dai Building 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka, 541-0043, Japan TEL: 06-7636-2360 FAX: 06-6208-3801 E-mail: [email protected] FCC Authorization Date: 2023-09-19 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Alinco Incorporated, Electronics Division, Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Printed Name: Kazuhiro Kusuhara Title: General Manager, Production, Electronics Div.

QA-FR-171-A Alinco Incorporated, Electronics Division ADD: Yodoyabashi Dai Building 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka, 541-0043, Japan TEL: 06-7636-2360 FAX: 06-6208-3801 E-mail: [email protected] FCC Confidential Authorization Date: 2023-09-19 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: PH3DJ-G46T In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Alinco Incorporated, Electronics Division hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  BOM  Tune Up Procedure The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printed Name: Kazuhiro Kusuhara Title: General Manager, Production, Electronics Div.

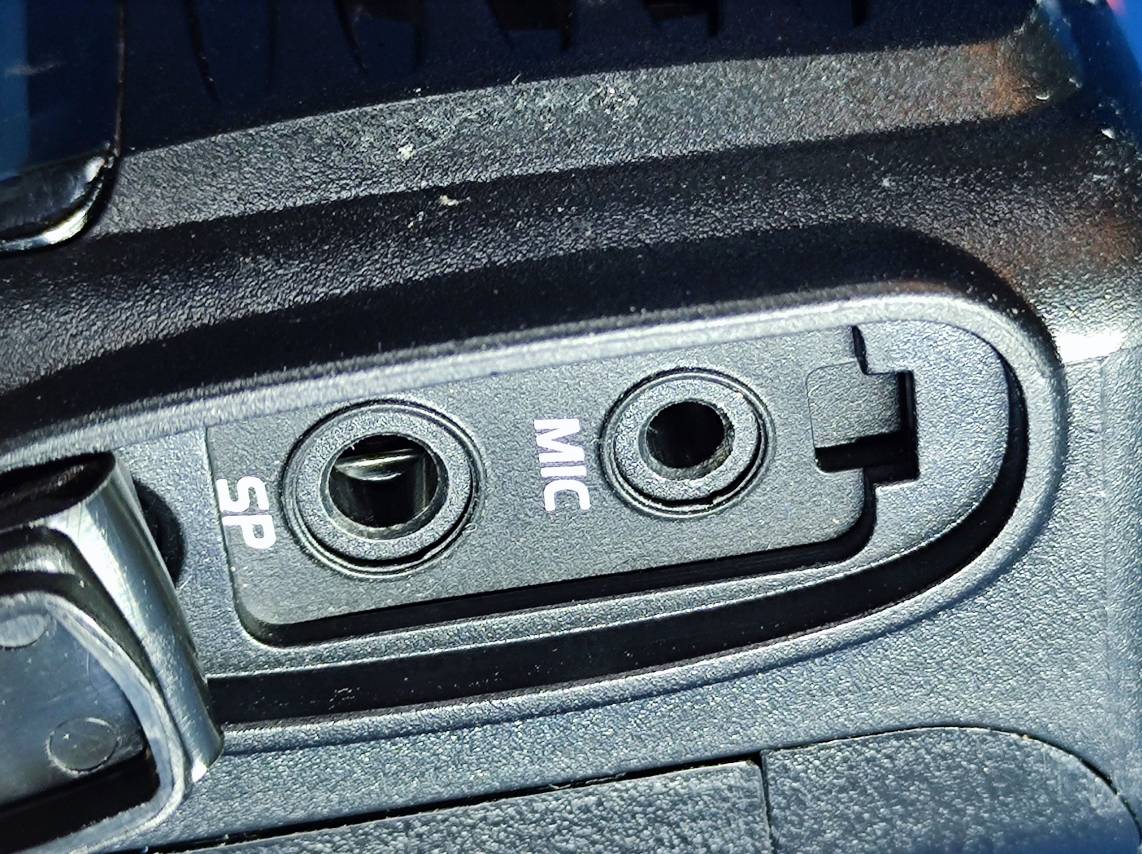

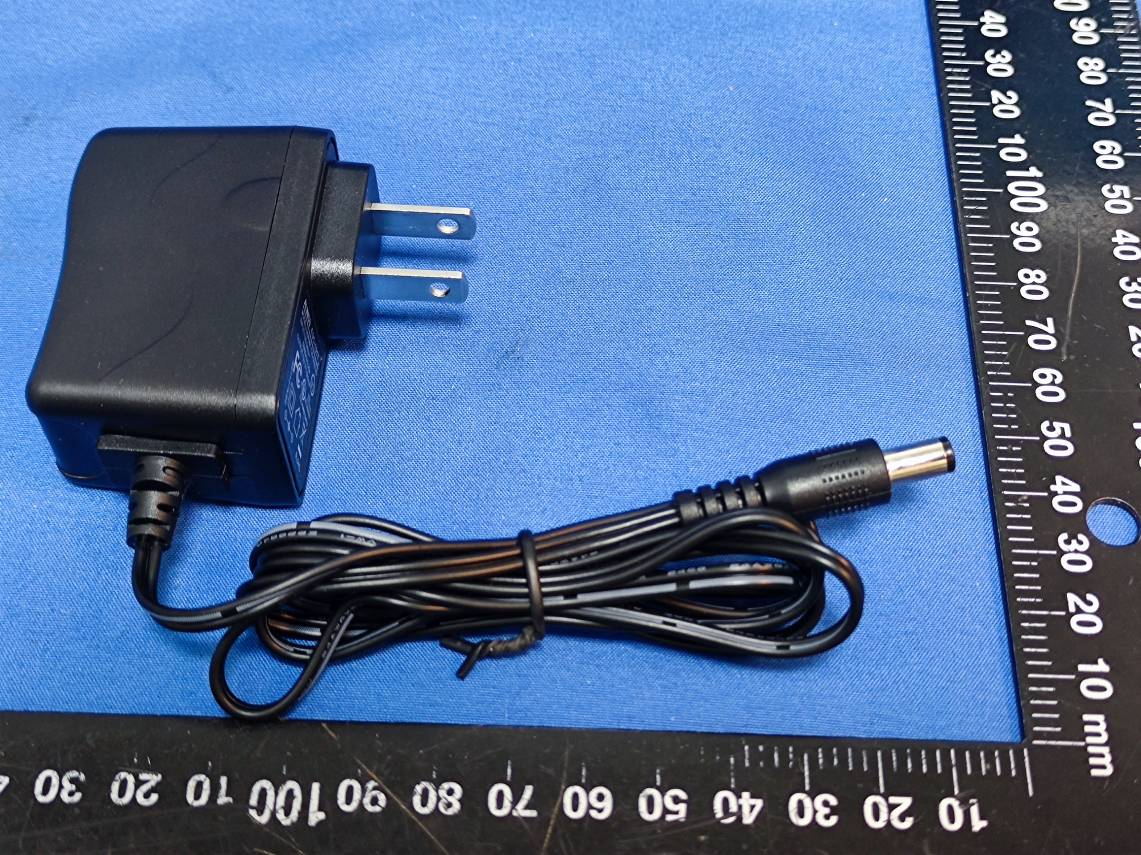

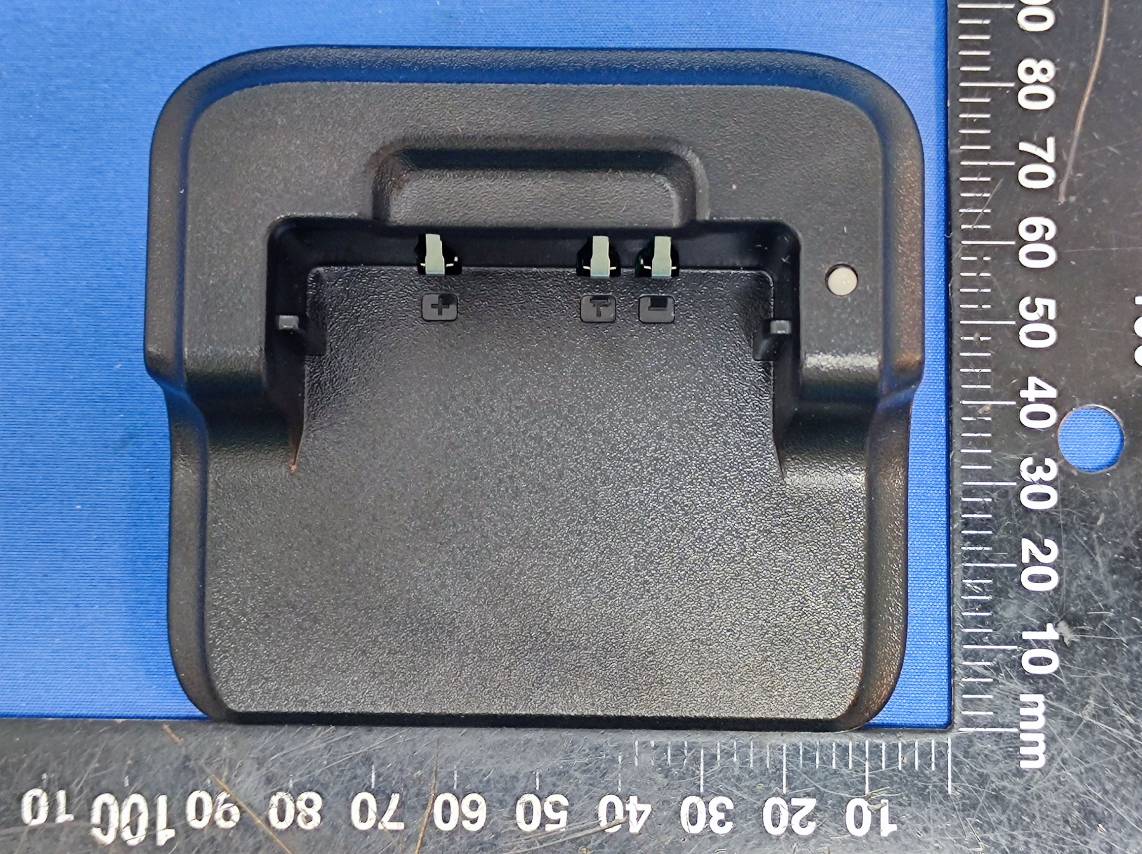

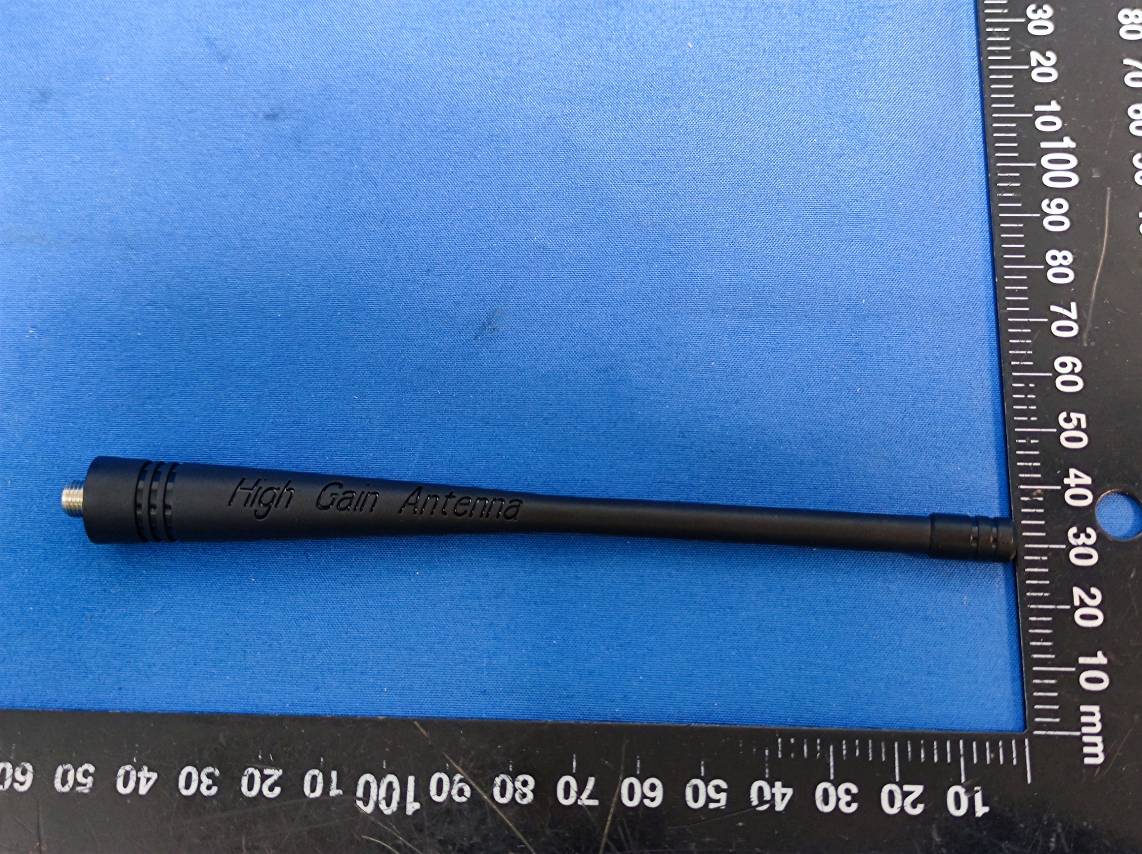

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-EXP Page 1 of 8 EUT EXTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-EXP Page 2 of 8 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-EXP Page 3 of 8 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-EXP Page 4 of 8 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-EXP Page 5 of 8 Belt Clip China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-EXP Page 6 of 8 Antenna China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-EXP Page 7 of 8 Charger Base China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-EXP Page 8 of 8

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-INP Page 1 of 7 EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-INP Page 2 of 7 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-INP Page 3 of 7 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-INP Page 4 of 7 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-INP Page 5 of 7 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-INP Page 6 of 7 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-INP Page 7 of 7

SAR TEST REPORT Applicant: Alinco Incorporated, Electronics Division Address: Yodoyabashi Dai Building 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka, 541-0043, Japan FCC ID: PH3DJ-G46T Product Name: UHF FM TRANSCEIVER Model Number: DJ-G46T Standard(s): 47 CFR Part 2(2.1093) The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230743394-SAM1 Date Of Issue: 2023-11-05 Reviewed By: Karl Gong Title: SAR Engineer Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-SAM1 Page 2 of 40 SAR TEST RESULTS SUMMARY Operation Frequency Bands Highest Reported 1g SAR (W/kg) Limits (W/kg) Head Face Up (Gap 25mm) Body-Worn (Gap 0mm) PTT(462.5500-467.7250MHz) 1.131.531.6 Maximum Simultaneous Transmission SAR Items Head Face Up (Gap 25mm) Body-Worn (Gap 0mm) Limits Sum SAR(W/kg) N/A N/A 1.6 SPLSR N/A N/A 0.04 EUT Received Date: 2023/07/14 Tested Date: 2023/11/03 Tested Result: Pass China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-SAM1 Page 3 of 40 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-SAM1 Page 4 of 40 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 TEST SPECIFICATION, METHODS AND PROCEDURES ........................................................................ 7 1.3 SAR LIMTS ........................................................................................................................................... 8 1.4 FACILITIES ........................................................................................................................................ 9 2. SAR MEASUREMENT SYSTEM .......................................................................................... 10 3. EQUIPMENT LIST AND CALIBRATION .......................................................................... 17 3.1 EQUIPMENTS LIST & CALIBRATION INFORMATION ....................................................................... 17 4. SAR MEASUREMENT SYSTEM VERIFICATION ........................................................... 18 4.1 LIQUID VERIFICATION ...................................................................................................................... 18 4.2 SYSTEM ACCURACY VERIFICATION ................................................................................................. 19 4.3 SAR SYSTEM VALIDATION DATA ............................................................................................. 20 5. EUT TEST STRATEGY AND METHODOLOGY .............................................................. 21 5.1 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................ 21 5.2 TEST POSITIONS FOR FRONT-OF-FACE ............................................................................................ 22 5.3 TEST DISTANCE FOR SAR EVALUATION .......................................................................................... 22 5.4 SAR EVALUATION PROCEDURE ....................................................................................................... 23 6. CONDUCTED OUTPUT POWER MEASUREMENT ........................................................ 24 6.1 TEST PROCEDURE .............................................................................................................................. 24 6.2 MAXIMUM TARGET OUTPUT POWER ............................................................................................... 24 6.3 TEST RESULTS: .................................................................................................................................. 24 7. SAR MEASUREMENT RESULTS ........................................................................................ 26 7.1 SAR TEST DATA ................................................................................................................................ 26 8. SAR MEASUREMENT VARIABILITY ............................................................................... 27 9. SAR PLOTS .............................................................................................................................. 28 APPENDIX A MEASUREMENT U…

Text truncated - open the document above for the full version.

APPENDIX D CALIBRATION CERTIFICATES

TEST REPORT A pplicant: Alinco Incorporated, Electronics Division Address: Yodoyabashi Dai Building 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka, 541-0043, Japan FCC ID: PH3DJ-G46T Product Name: UHF FM TRANSCEIVER Standard(s): 47 CFR Part 95 Subpart E ANSI C63.26-2015 ANSI/TIA 603-E-2016 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230743394-00A Date Of Issue: 2023/8/22 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-00A Page 2 of 49 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-00A Page 3 of 49 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 7 1.2.1 EUT Operation Condition: ............................................................................................................................. 7 1.2.2 Support Equipment List and Details .............................................................................................................. 7 1.2.3 Support Cable List and Details ...................................................................................................................... 7 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 7 1.3 MEASUREMENT UNCERTAINTY .......................................................................................................... 8 2. SUMMARY OF TEST RESULTS ............................................................................................ 9 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 10 3.1 GMRS Frequency Accuracy ........................................................................................................................... 10 3.1.1 Applicable Standard ..................................................................................................................................... 10 3.1.2 EUT Setup Block Diagram .......................................................................................................................... 10 3.1.3 Test Procedure ............................................................................................................................................. 10 3.2 RF Output Power ............................................................................................................................................ 12 3.2.1 Applicable Standard ..................................................................................................................................... 12 3.2.2 EUT Setup Block Diagram .......................................................................................................................... 12 3.2.2 Test Procedure ............................................................................................................................................. 12 3.3 GMRS Emission Types ................................................................................................................................... 13 3.3.1 Applicable Standard ..................................................................................................................................... 13 3.3.2 Judgment ...................................................................................................................................................... 13 3.4 GMRS Authorized Bandwidth ........................................................................................................................ 14 3.4.1 Applicable Standard ....................…

Text truncated - open the document above for the full version.

Antenna Report 1. Specifications No Item Specifications 1 Model Name 2 Band Width 400-480 MHz 3 Gain 0dBi 4 V.S.W.R(in BW) ≤1.5 5 Azimuth Beam width 0mni-directional 6 Polarization Linear 7 Impedance 50Ω 8 Manufacture 9 Address 2. Antenna Picture: TH3318 Alinco Incorporated, Electronics Division Yodoyabashi Dai Building 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka, 541-0043, Japan 3. Antenna Pattern

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230743394-00A-TSP TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
