PH3DJ-500VHF/UHF FM HANDHELD TRANSCEIVER

VHF/UHF FM HANDHELD TRANSCEIVER User Manual Brand name: ALINCO Model name: DJ-500T FCC ID:PH3DJ-500 IC:3070C-DJ500 RX;136.000~173.995MHz / 400.000~479.995MHz A1.131031 ALINCO, INC. Yodoyabashi Dai-bldg 13F 4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan Phone: +81-6-7636-2362 Fax: +81-6-6208-3802 http://www.alinco.com E-mail:[email protected] Copyright Alinco, lnc. PS0800/FNEG-EN Printed in China VHF/UHF FM amateur transceiver All EU and EFTA member states. Operator license is required. 144.000-148.000MHz / 420.000-450.000MHz DJ-500T Thank you for purchasing your new Alinco transceiver. Please read this manual carefully before using the product to ensure full performance, and keep this manual for future reference as it contains information on after-sales service. In case addendum or errata sheets are included with this product, please read those materials and keep them together with this instruction manual for future reference. VHF/UHF FM Transceiver Instruction Manual T Introduction Thank you very much for purchasing this excellent Alinco transceiver. Our products are ranked among the finest in the world. This radio has been manufactured with state of the art technology and it has been tested carefully at our factory. It is designed to operate to your satisfaction for many years under normal use. Please read this manual completely from the first page to the last, to learn all the functions the product offers. It is important to note that some of the operations may be explained in relation to information in previous chapters. By reading just one part of the manual, you may risk not understanding the complete explanation of the function. In addition, please understand that your radio may be programmed by the dealer according to the local regulation, masking some of features mentioned in this manual.Please consult your dealer for details of programming. Before transmitting There are many radio stations operating in proximity to the frequency ranges this product covers. Be careful not to cause interference when transmitting around such radio stations. ■ Lightning Any person is not safe outdoor during thunderstorm and lightning. This condition is getting worse if somebody keeps a hand-held radio; chances of being hit by lightning are doubled since lightning may hit a radio antenna as well. At this time, there is no hand-held radio having any kind of protection against lightning current (which is higher than10 kA.). Note also that no car provides adequate protection of its passengers or drivers against lightning as well. Therefore, Alinco will not take responsibility for any danger associated with using its hand-held radios outdoor or inside the car during lightning. ■ About IP54 rating / Dust and splash resistant About IP54 rating 5: Dust protected / Ingress of dust is not entirely prevented, but it must not enter in sufficient quantity to interfere with the satisfactory operation of the equipment; complete protection against contact. 4: Splashing water / Water splashing against the enclosure from any direction shall have no harmful effect. Test duration: 5 minutes / Water volume: 10 litters per minute / Pressure: 80~100 kN/m² The IP54 designation provides for limited dust and splash proofing of the radio per specified above. This compatibility is factory guaranteed for a period of one year provided all the jack covers are securely in place, any accessories connected must be specified genuine Alinco accessories and the radio has not been disassembled by the customer. The factory has tested and made the equipment compatible to IP54 certification during engineering. However, please understand that this equipment is NOT certified IP54 compliant but is designed to remain operational when used in hard conditions and is in no way stating that you should attempt to wash the radio for cleaning. Warranty will not cover radios that are water/dust damage due to negligence or misuse of the product. ■ Covering ranges You may expect a range of approx.3km/2 miles or more at high-power when located on a flat, noise-free place like on a beach. However, it may vary drastically depending on how to wear and carry the radios, surrounding locations/conditions and static noise levels (below or near power transmission lines), etc. In urban areas with many buildings or inside a building, such covering range will become drastically short even to several tens of meters. ■ Emergency Kill/Stun/Revive, Alarm signal, Various scan modes, Key lock, ■ Output power selectable 5W ■ 200 PC-programmable channels ■ Li-Ion battery pack and stand-charger as standard accessories ■ Alphanumeric name tags ■ FM broadcast 76-108MHz receiver built-in ■ Selectable Battery-save parameters ■ Busy Channel Lockout ■ CTCSS/DCS Encode/Decode, DTMF/ANI, 5-Tone ■ VOX built-in Narrow operations and more at NO extra costs. Features Conformity Symbols Tested to comply MIL-STD-810G -Shock: Method 514.6/I,IV -Vibration: Method 516.6/I Alert Environment and condition of use It is recommended that you check local traffic regulations regarding the use of a radio equipment while driving. Some countries prohibit or apply restrictions for the operation of radios and mobile-phones while driving. Do not use this product in close proximity to other electronic devices, especially medical ones. It may cause interference to those devices. Keep the radio out of the reach of children. In case a liquid leaks from the product, do not touch it. It may damage your skin. Rinse with plenty of cold water if the liquid contacted your skin. Never operate this product in facilities where radio products are prohibited for use such as aboard aircraft, in airports, in ports, within or near the operating area of business wireless stations or their relay stations. Use of this product may be prohibited or illegal outside of your country. Be informed in advance when you travel. The manufacturer declines any responsibilities against loss of life and/or a property due to a failure …

Text truncated - open the document above for the full version.

Alinco Incorporated, Electronics Division Yodoyabashi-Dai Bldg 13F,4-4-9, Koraibashi, Chuo-ku Osaka 541-0043 Japan Tel: 06-7636-2360 Fax: 06-6208-3801 Mar.31.2014 To: Federal Communication Commission Authorization and Evaluation Division Subject: Attestation statement regarding the Land Mobile Radio frequency Applicant: Alinco Incorporated, Electronics Division Yodoyabashi-Dai Bldg 13F,4-4-9, Koraibashi, Chuo-ku Osaka 541-0043 Japan Kazuhiro Kusuhara / General Manager TYPE OF QEUIPMENT: Scanning Receiver FCC ID: PH3DJ-500 Dear Sir or Madam I attest that the receiver is incapable of tuning, or readily being altered, by the user to operate bands allocated to the scanning receiver in §15.121 Please contact the undersigned if you have any questions or need any further information. Regards Alinco Incorporated, Electronics Division Signature: Name, Job Title and Dept.: Kazuhiro Kusuhara / General Manager

Nov.21, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: PH3DJ-500 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Alinco, Incorporated, Electronics Division Contact person: Kazuhiro Kusuhara Title: General manager

Alinco Incorporated, Electronics Division Yodoyabashi-Dai Bldg 13F,4-4-9, Koraibashi, Chuo-ku Osaka 541-0043 Japan Date: Nov.21, 2013 Statement We, Alinco Incorporated, Electronics Division states that our device, FCC ID: PH3DJ‐500,IC:3070C‐DJ500 , has no space to put the label except the battery compartment of this device. It is visible to the users as they purchase the products and install the battery. Regards Company: Alinco Incorporated, Electronics Division Contact Person: Kazuhiro Kusuhara Title: General Manager

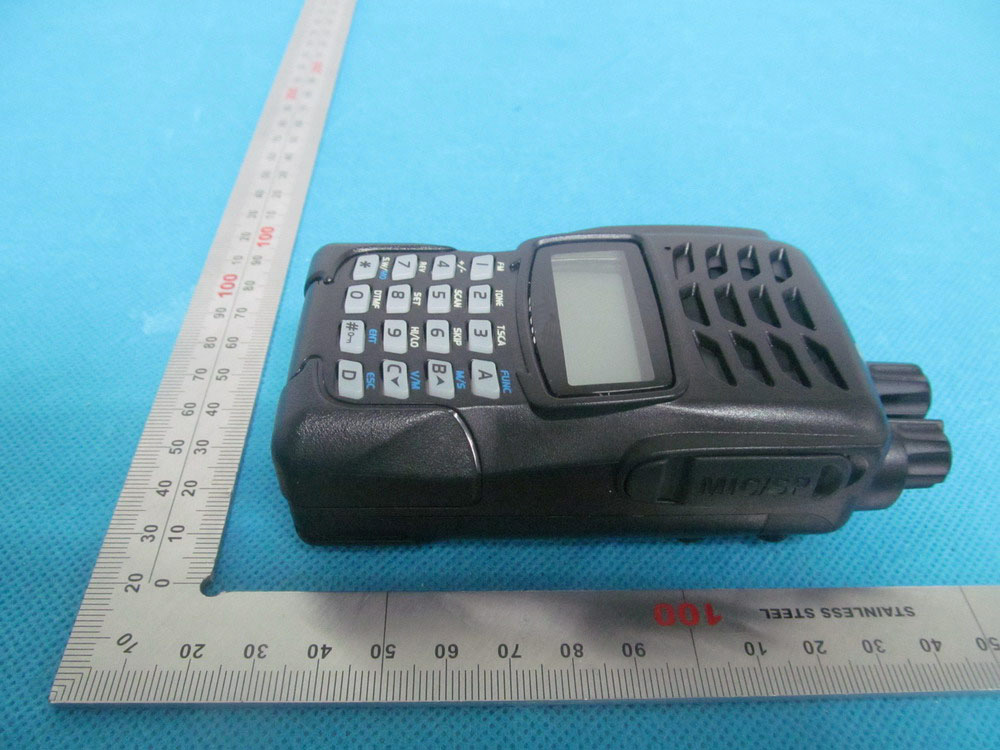

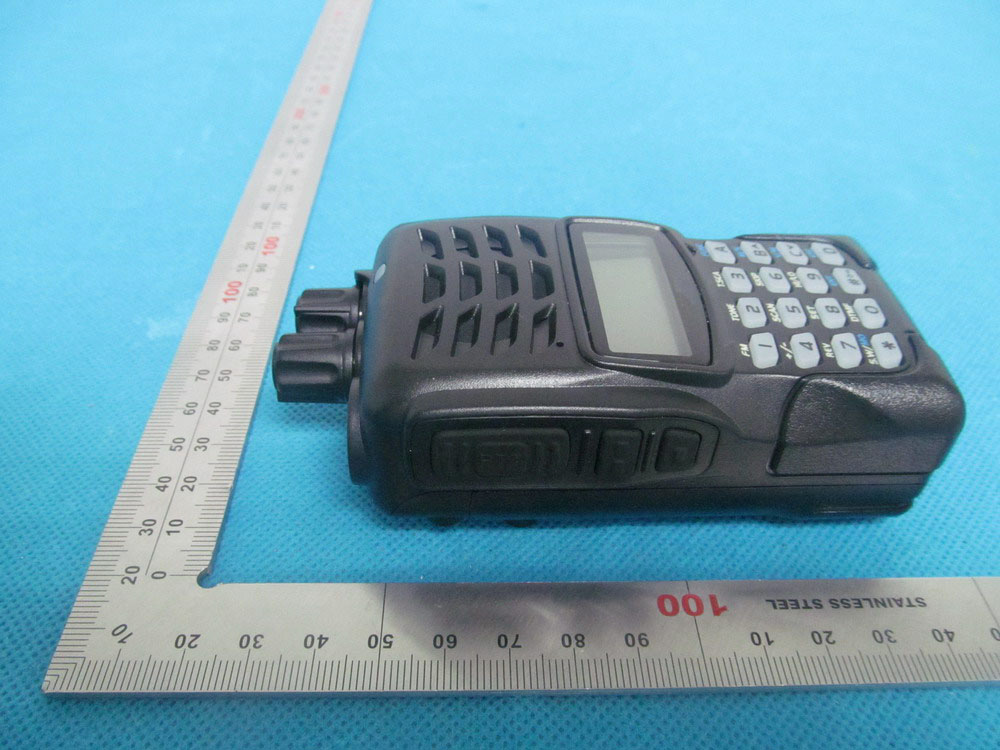

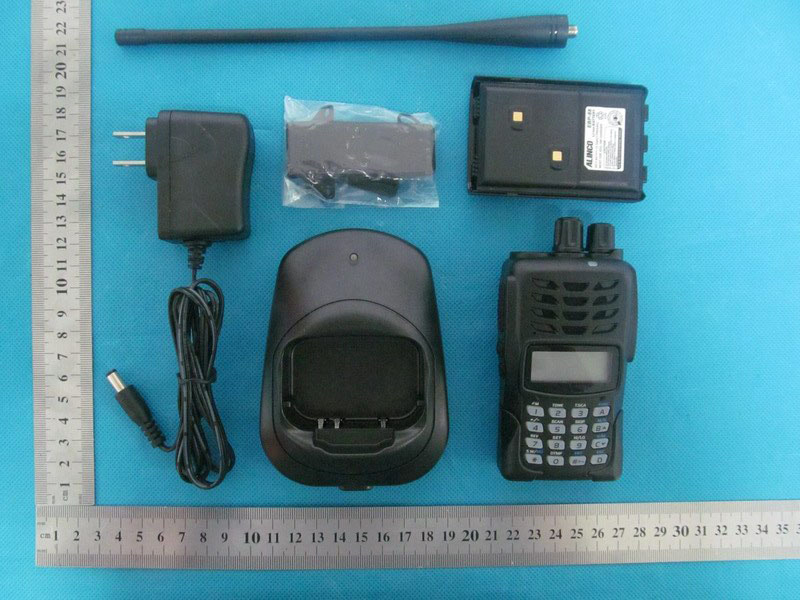

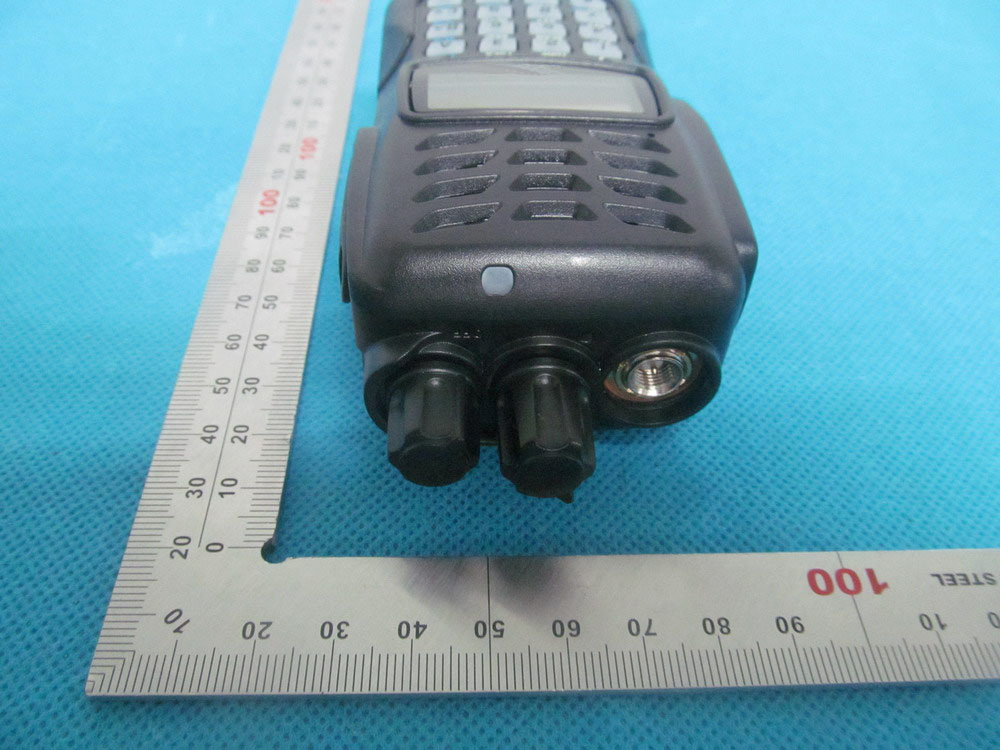

External Photos WHOLE VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location VHF/UHF FM HANDHELD TRANSCEIVER Model: DJ-500T Brand Name: ALINCO FCC ID: PH3DJ-500 IC:3070C-DJ500

Internal Photos OPEN VIEW-1 OF EUT OPEN VIEW-2 OF EUT INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT INTERNAL VIEW-6 OF EUT INTERNAL VIEW-7 OF EUT

Report No.: AGC00589131103FE08 Page 1 of 27 FCC ID : PH3DJ‐500 IC : 3070C‐DJ500 TYPE OF AUTHORIZATION : Certification APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : VHF/UHF FM HANDHELD TRANSCEIVER BRAND NAME : ALINCO TEST MODEL :DJ‐500T CLIENT : Alinco Incorporated, Electronics Division DATE OF ISSUE : Nov.14, 2013 STANDARD(S) : FCC Part 15 Rules&RSS‐215 REPORT VERSION : V 1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. FCC Part 15 Rules &RSS­215 Test Report Report No.: AGC00589131103FE08 Report No.: AGC00589131103FE08 Page 2 of 27 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Nov.14, 2013Valid Original Report Report No.: AGC00589131103FE08 Page 3 of 27 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................4 2. PRODUCT INFORMATION ............................................................................................................5 3. TEST FACILITY ............................................................................................................................6 4. SUPPORT EQUIPMENT LIST ........................................................................................................7 5. SYSTEM DESCRIPTION ................................................................................................................7 6 SUMMARY OF TEST RESULTS ......................................................................................................8 7. FCC LINE CONDUCTED EMISSION TEST ......................................................................................9 7.1. TEST EQUIPMENT OF LINE CONDUCTED EMISSION TEST .......................................................... 9 7.2 .LIMITS OF LINE CONDUCTED EMISSION TEST .............................................................................. 9 7.3. BLOCK DIAGRAM OF LINE CONDUCTED EMISSION TEST ............................................................ 9 7.4. PROCEDURE OF LINE CONDUCTED EMISSION TEST ................................................................. 10 7.5 TEST RESULT OF LINE CONDUCTED EMISSION TEST ................................................................ 11 8. FCC RADIATED EMISSION TEST ................................................................................................ 13 8.1. TEST EQUIPMENT OF RADIATED EMISSION ................................................................................ 13 8.2. LIMITS OF RADIATED EMISSION TEST .......................................................................................... 13 8.3 BLOCK DIAGRAM OF RADIATED EMISSION TEST ......................................................................... 13 8.4 PROCEDURE OF RADIATED EMISSION TEST ................................................................................ 14 8.5 TEST RESULT OF RADIATED EMISSION TEST .............................................................................. 15 APPENDIX 1 .................................................................................................................................. 19 PHOTOGRAPHS OF TEST SETUP .................................................................................................. 19 APPENDIX 2 .................................................................................................................................. 20 PHOTOGRAPHS OF EUT ............................................................................................................... 20 Report No.: AGC00589131103FE08 Page 4 of 27 1. VERIFICATION OF COMPLIANCE Applicant Alinco Incorporated, Electronics Division Address Yodoyabashi Dai-Bldg 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka 541-0043, Japan Manufacturer Alinco Incorporated, Electronics Division Address Yodoyabashi Dai-Bldg 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka 541-0043, Japan Product Designation VHF/UHF FM HANDHELD TRANSCEIVER Brand name: ALINCO Test Model DJ-500T Hardware Version: V1.0 Software Version: V2.02 Measurement Procedure ANSI C63.4: 2003 Date of test: Nov.11, 2013 to Nov.13, 2013 Deviation: None Condition of Test Sample Normal The above equipment was tested by Attestation Of Global Compliance (Shenzhen) Co., Ltd. for compliance with the requirements set forth in the FCC Rules and Regulations Part 15, the measurement procedure according to ANSI C63.4:2003. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Tested by Wall Huang Nov.14, 2013 Checked By Kidd Yang Nov.14, 2013 Authorized By Solger Zhang Nov.14, 2013 Report No.: AGC00589131103FE08 Page 5 of 27 2. PRODUCT INFORMATION The EUT is a VHF/UHF FM HANDHELD TRANSCEIVER designed for voice communication. It is designed by way of utilizing the FM modulation achieves the system operating. A major technical description of EUT is described as following: Communication Type Voice / Tone only Modulation FM RX Frequency Range 144MHz-148MHz&420MHz-450 MHz 136MHz-174MHz &400MHz-480MHz Channel step 12.5KHz Antenna Designation Detachable Power Supply DC 7.4V by battery Adapter Parameter Input: 100-240V, 50/60HZ, 0.3A Output: 12V, 0.5A I/O Port Information ( Applicable Not Applicable) I/O Port of EUT I/O Port Type Q’TY Cable Tested with DC Input Port 1 1.5m, Unshielded Antenna Connect Port 1 0 1 Hand-Operated Microphone Connect Port 1 0.5m, Unshielded 1 Report No.: AGC00589131103FE08 Page 6 of 27 3. TEST FACILITY Facility Attestation of Global Compliance (Shenzhen) Co., Ltd Location: 2/F., Building 2, No.1-No.4, Chaxi Sanwei Technical Industrial Park, Gushu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Description: …

Text truncated - open the document above for the full version.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP RADIATED TEST SETUP CONDUCTED EMISSION
