PH3DJ-C7TVHF/UHF FM Mobile Transceiver

Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 25 of 50 APPENDIX H: MANUAL Please see the following pages. DJ-C7 T/E Instruction Manual Thank you for purchasing this ALINCO transceiver. This instruction manual contains important safety and operation instructions. Please read it carefully before using the transceiver and be sure to keep it for future reference. VHF/UHF FM TRANSCEIVER ALINCO, INC. NOTICE / Compliance Information Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receive. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Tested to Comply With FCC Standards FOR HOME OR OFFICE USE Information in this document is subject to change without notice or obligation. All brand names and trademarks are the property of their respective owners. Alinco cannot be liable for pictorial or typographical inaccuracies. Some parts, options and/or accessories are unavailable in certain areas. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. VHF/UHF FM Transceiver DJ-C7 T/E This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Conformity Information In case the unit you have purchased is marked with a CE symbol, a copy of relative conformity certificate or document can be reviewed at http://www.alinco.com/usa.html. Copyright © 2004 All rights reserved. No part of this document may be reproduced, copied, translated or transcribed in any from or by any means without the prior written permission of Alinco. Inc., Osaka, Japan, English Edition Printed in Japan. CE FCC 2 3 Before Operating the Transceiver..................................... Attention ..................................................................................... Points to Note Before Transmitting ............................................. Points to Note When Using an External Power Supply .............. 1. Functions and Features................................................. 1.1 Standard Accessories .......................................................... 2. Accessories.................................................................... 2.1 Attaching Accessories ......................................................... Connecting and Disconnecting the Antenna ................ Attaching and Detaching the Battery Pack ................... Prevent Short Circuiting the Battery Pack ..................... Battery Recharger (AC Adapter) ................................... Low Battery Indicator .................................................... 3. Control Function ............................................................ 3.1 Name and Operation of the Transceiver Controls................ Top and Front Views...................................................... Side View ....................................................................... 3.2 Keypad ................................................................................. 3.3 Display.................................................................................. 4. Basic Operations ........................................................... 4.1 Turning the Power ON .......................................................... 4.2 Adjusting the Audio Volume ................................................. 4.3 Adjusting the Squelch .......................................................... 4.4 Operating Modes ................................................................. Switching Between Modes ........................................... 4.5 VFO Mode ............................................................................ Switching the Band ....................................................... 1MHz UP/DOWN ........................................................... Entry Completion Digit for Different Tuning Steps......... 4.6 Memory Mode ...................................................................... Types of Memory ........................................................... Programming a Memory Channel ................................. Selecting a Memory Channel ........................................ Clearing a Memory Channel.......................................... Contents of Memory Channel ........................................ 4.7 Receiving.............................................................................. Monitoring...................................................................... 4.8 Transmitting .......................................................................... 5. Advanced Operations .................................................... 5.1 Scanning ........................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 19 of 50 APPENDIX C: ATTESTATION ON CELLULAR BAND BLOCKING Please refer to the following page. .f{aryn.r llyilF N ALINC0 "shin-Dai Buitding" et Ftoor, z-0, t-chome, Dojimahama, Kna-ku, loutttcol INCORPORATED Osakh,530-0004, JAPAN Fu:81-6-4797-2157 Phone:81.6-4297-2196 March L2,2004 Federal Communications Commissions RE: PHB DJ'CZT / 800MHz analog cellular telephone band blocking To Whom It May Concern, This is to declare that the device in application PH3 DJ'C7T has been blocked for any and all access of 824.00 to 849.9975MH2 and 869.00 to 894.9975MH2. The device uses double super heterodyne circuit for a narrow'FM and single super heterodyne for a wide'FM receiver and frequency is generated only by PLL synthesizer circuitry. The first local oscillation frequencies are as follows and it can't be other than these values: Receiving frequency : VCO frequency : Image frequency 88.100-107.995MH2 : 77.40f'- 79.295MH2 : 66.700- 86.595MH2 108.000-173.995MH2 : 158.850-224.845M'Hz : 209.700-275.695MH2 380.000-419.995MH2 : 430.850-470.845MH2 : 481.700-521.695MH2 420.000-511.995MH2 : 369.150-461.145MH2 : 369.150-410'295MHz As shown, none of them are in the cell'phone frequencies. In addition, band'pass filters are used to filter'out unwanted signals. The CPU used in this device, our parts code ICG XA1011, vender's code M38268MCL/GP is exclusively programmed, burned as above and Alinco, Inc exports solely this version to the US market. This component is a one'time chip therefore it can't be modified or reprogrammed by any means. To my best of knowledge, above declared is true. Sincerely, Kazuhiro Kusuhara manager, Production & Engineering Alinco. Inc. Electronics Div.

Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 17 of 50 APPENDIX A: AGENCY AUTHORIZATION Please refer to the following page.

Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 19 of 50 APPENDIX C: ATTESTATION ON CELLULAR BAND BLOCKING Please refer to the following page. .f{aryn.r llyilF N ALINC0 "shin-Dai Buitding" et Ftoor, z-0, t-chome, Dojimahama, Kna-ku, loutttcol INCORPORATED Osakh,530-0004, JAPAN Fu:81-6-4797-2157 Phone:81.6-4297-2196 March L2,2004 Federal Communications Commissions RE: PHB DJ'CZT / 800MHz analog cellular telephone band blocking To Whom It May Concern, This is to declare that the device in application PH3 DJ'C7T has been blocked for any and all access of 824.00 to 849.9975MH2 and 869.00 to 894.9975MH2. The device uses double super heterodyne circuit for a narrow'FM and single super heterodyne for a wide'FM receiver and frequency is generated only by PLL synthesizer circuitry. The first local oscillation frequencies are as follows and it can't be other than these values: Receiving frequency : VCO frequency : Image frequency 88.100-107.995MH2 : 77.40f'- 79.295MH2 : 66.700- 86.595MH2 108.000-173.995MH2 : 158.850-224.845M'Hz : 209.700-275.695MH2 380.000-419.995MH2 : 430.850-470.845MH2 : 481.700-521.695MH2 420.000-511.995MH2 : 369.150-461.145MH2 : 369.150-410'295MHz As shown, none of them are in the cell'phone frequencies. In addition, band'pass filters are used to filter'out unwanted signals. The CPU used in this device, our parts code ICG XA1011, vender's code M38268MCL/GP is exclusively programmed, burned as above and Alinco, Inc exports solely this version to the US market. This component is a one'time chip therefore it can't be modified or reprogrammed by any means. To my best of knowledge, above declared is true. Sincerely, Kazuhiro Kusuhara manager, Production & Engineering Alinco. Inc. Electronics Div.

Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 18 of 50 APPENDIX B: CONFIDENTIALITY REQUEST Please refer to the following page. Engineering and Testing for EMC and Safety Compliance Accredited 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 703 689-0368 ext 106 FAX 703 689-2056 February 24, 2003 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Product Description • Block Diagram • Internal Photographs Best Regards, Kathy Grzovic [email protected] Rhein Tech Laboratories, Inc.

Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 28 of 50 APPENDIX J: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 4: FRONT Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 29 of 50 PHOTOGRAPH 5: BACK Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 30 of 50 PHOTOGRAPH 6: BACK WITHOUT BATTERY Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 31 of 50 PHOTOGRAPH 7: SIDE Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 32 of 50 PHOTOGRAPH 8: SIDE Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 33 of 50 PHOTOGRAPH 9: TOP Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 34 of 50 PHOTOGRAPH 10: ANTENNA

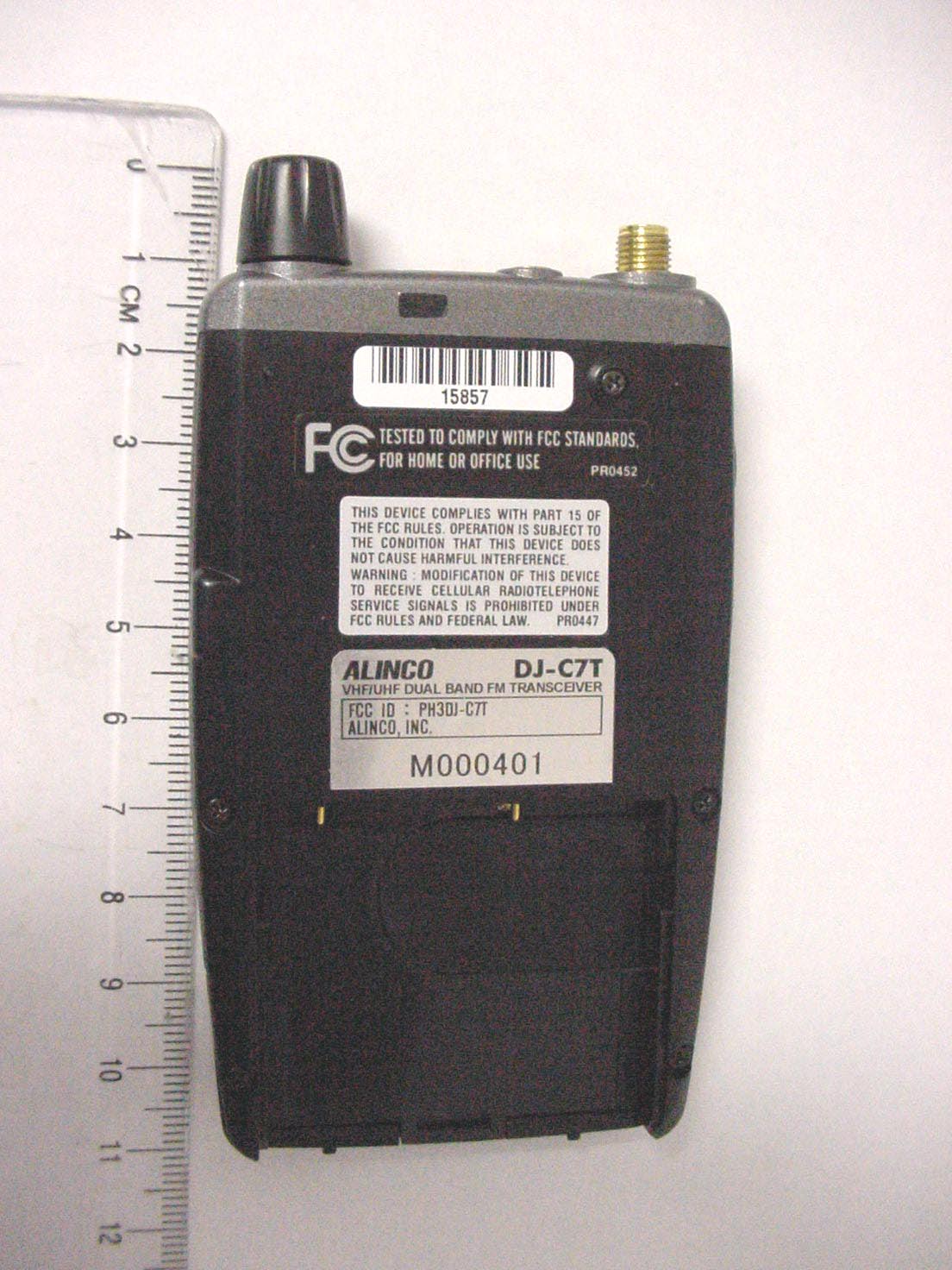

Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 20 of 50 APPENDIX D: LABEL INFORMATION FIGURE 6-1: SAMPLE FCC IDENTIFICATION LABEL FIGURE 6-2: SAMPLE WARNING LABEL Alinco, Inc. Model: DJ-C7T Industry Canada: XXXXX FCC ID: PH3DJ-C7T This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. WARNING: Modification of this device to receive cellular radio-telephone service signals is prohibited under FCC rules and federal law. Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 21 of 50 PHOTOGRAPH 1: LABEL LOCATION ON BACK OF EUT FCC ID LABEL LOCATION Warning Label

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 APPLICATION FOR FCC CLASS B CERTIFICATION WIDE BAND COMMUNICATIONS RECEIVER MODEL: DJ-C7T FCC ID: PH3DJ-C7T Alinco Incorporated Electronics Division Shin-Dai Building 9F 2-6, 1-Chome, Dojimahama, Kita-ku Osaka 530-0004 Japan April 22, 2004 STANDARDS REFERENCED FOR THIS REPORT PART 2: 2003 F REQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 2003 R ADIO FREQUENCY DEVICES ANSI C63.4-2001 S TANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS RSS-215; ISSUE 1 (PROVISIONAL): 1999 A NALOGUE SCANNER RECEIVERS FCC Rules Parts Frequency Range (MHz) Output Power (W) Frequency Tolerance Emission Designator 15.121 88.1-173.9875 and 380-511.9875 N/A N/A N/A REPORT PREPARED BY: Rhein Tech Laboratories, Inc. Test Engineer: Daniel Baltzell Administrative Writer: Daniel Baltzell Document Number: 2004067 This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 2 of 50 TABLE OF CONTENTS 1 GENERAL INFORMATION........................................................................................................................... 5 1.1 MODIFICATIONS ......................................................................................................................................................... 5 1.2 RELATED SUBMITTAL(S)/GRANT(S) ...................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................... 5 1.4 TEST FACILITY ............................................................................................................................................................ 5 2 CONFORMANCE STATEMENT................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION .............................................................................................................. 7 3.1 JUSTIFICATION............................................................................................................................................................ 7 3.2 EXERCISING THE EUT ............................................................................................................................................... 7 3.3 TEST SYSTEM DETAILS ............................................................................................................................................. 7 3.4 CONFIGURATION OF TESTED SYSTEM.................................................................................................................. 8 4 RADIATED EMISSIONS................................................................................................................................. 9 4.1 TEST METHODOLOGY FOR RADIATED EMISSIONS MEASUREMENTS .......................................................... 9 4.2 RADIATED EMISSION DATA................................................................................................................................... 10 5 38 DB REJECTION TEST ............................................................................................................................. 13 5.1 38 DB REJECTION TEST DATA FOR BASE BAND (869.040-893.970 MHZ) ....................................................... 14 5.2 38DB REJECTION TEST DATA FOR MOBILE BAND (824.040-848.970 MHZ) ................................................... 15 6 CONCLUSION ................................................................................................................................................ 16 Rhein Tech Laboratories Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-C7T Suite 1400 Standards: FCC 15.121/IC RSS-215 Herndon, VA 20170 Report #: 2004067 http://www.rheintech.com Date: April 22, 2004 Page 3 of 50 TABLE INDEX TABLE 3-1: EQUIPMENT UNDER TEST (EUT)................................................................................................................... 7 TABLE 4-1: RADIATED EMISSIONS: (INPUT FREQUENCY: 98.1 MHZ) ...................................................................... 10 TABLE 4-2: RADIATED EMISSIONS: (INPUT FREQUENCY: 125 MHZ) ....................................................................... 10 TABLE 4-3: RADIATED EMISSIONS: (INPUT FREQUENCY: 158 MHZ) ....................................................................... 10 TABLE 4-4: RADIATED EMISSIONS: (INPUT FREQUENCY: 400 MHZ) ....................................................................... 11 TABLE 4-5: RADIATED EMISSIONS: (INPUT FREQUENCY: 466 MHZ) ....................................................................... 11 TABLE 4-6: EQUIPMENT USED FOR TESTING................................................................................................................ 12 TABLE 5-1: 38DB REJECTION {FREQUENCY INJECTED: 869.040 MHZ} (CELLULAR BAND) ............................... 14 TABLE 5-2: 38DB REJECTION {FREQUENCY INJECTED: 881.500 MHZ} (CELLULAR BAND) ............................... 14 TABLE 5-3: 38DB REJECTION {FREQUENCY INJECTED: 893.970 MHZ} (CELLULAR BAND) ............................... 14 TABLE 5-4: 38DB REJECTION {FREQUENCY INJECTED: 824.040 MHZ} (MOBILE BAND) ..................................... 15 TABLE 5-5: 38DB REJECTION {FREQUENCY INJECTED: 836.500 MHZ} (MOBILE BAND) ..................................... 15 TABLE 5-6: 38DB REJECTION {FREQUENCY INJECTED: 848.970 MHZ} (MOBILE BAND) ...............................…
