PH3DR-MD500TVHF/UHF DUAL BAND TRANSCEIVER

A1.201027 Manufacture: ALINCO, INC. Y odoyabashi Dai-bldg 13F 4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan Phone: +81-6-7636-2362 Fax: +81-6-6208-3802 http://www.alinco.com E-mail:[email protected] Copyright Alinco, lnc. PS1001 / FNFN-EE Printed in China Electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items. Contact your local authority for details of disposal rules. DR-MD500 Instruction Manual VHF/UHF Dual Band Digital Transceiver Thank you for purchasing your new Alinco transceiver. Please read this manual carefully before using the product to ensure full performance, and keep this manual for future reference as it contains information on after-sales services. In case addendum or errata sheets are included with this product, please read those materials and keep them together with this instruction manual for future reference. NOTE: DR-MD500 may be delivered to you after dealer- programming. In such cases, please ask your dealer about the available features in your unit and how to operate this unit. Features and functions may be limited due to dealer- programming. ALINCO, INC. ■ Introduction Please read this manual completely from the first page to the last, to learn all the functions the product offers. It is important to note that some of the operations may be explained in relation to information in previous chapters. By reading just one part of the manual, you may risk not understanding the complete explanation of the function. ■ Safety It is important that the operator is aware of, and understands, hazards common to the operation of any transceiver. Before transmitting There are many radio stations operating in proximity to the frequency ranges this product covers. Be careful not to cause interference when transmitting around such radio stations. ■ Covering ranges It may vary drastically depending on the type and location of antenna system. Please consult your dealer for details as DR-MD500 requires an external antenna. ■ Lightning Any person is not safe outdoor during thunderstorm and lightning. Note also that no car provides adequate protection of its passengers or drivers against lightning as well. Therefore, Alinco will not take responsibility for any danger associated with using radios outdoor or inside the car during lightning. ■ Enclosure protection This transceiver is NOT water and dust protected of any degrees. Avoid contacts with water and dust, and if wet or dirty, immediately wipe them out with clean dry cloth. This product is NOT anti-explosive. Never use in close vicinity to explosive gas, combustible dust,on an oil rig or in an open mine. ■ For North American users Due to strict rules, this product is blocked for operations before sales and only dealers can program the radio before delivery to consumers. Manufacturer is not aware of details of such dealer-programming therefore please kindly contact your dealer first in case technical-service may be necessary. ■ Important Notice The utility software may be available to distributors/dealers only. Programming cable is optional. The manufacturer will not release the software to unauthorized party so please contact your dealer for details. This product may be delivered to the consumer after being preprogrammed with the operating parameters, then certain operation may be disabled for user-accesses. The manufacturer and distributers are not aware of details of such dealer-programming. Therefore, please contact to your dealer in case any technical assistance may be necessary. Conformity Symbols Copyright 2012 All rights reserved. NO part of this document may be reproduced, copied, translated or transcribed in any form or by any means without the prior writhout the prior written permission of Alinco. Inc, Osaka, Japan, English Edition Printed in China. FCC WARNING This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer for technical assistance. Comformity information Manufacturer: ALINCO, Inc. Electronics Division Yodoyabashi Dai-bldg. 13F 4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan Check with your local waste officials for details on recycling or proper disposal in your area. Tested to Comply With FCC Standards Compliance Information Statement WARNING: This Alinco transceiver generates RF EME while transmitting. RF EME (Radio Frequency Electric and Magnetic Energy) has the potential to cause slight thermal, or heating effects to any part of your body less than the recommended distance from this radio transmitter's antenna. RF energy exposure is determined primarily by the distance to and the powerof the transmitting device. In general, R…

Text truncated - open the document above for the full version.

QA-FR-171-A Company: Alinco Incorporated, Electronics Division Add: Yodoyabashi Dai Building 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka 541-0043, Japan Tel: 06-7636-2360 Fax: 06-6208-3801 E-mail: [email protected] FCC Confidential Authorization 2020- 12-11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: PH3DR-MD500T In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Alinco Incorporated, Electronics Division, hereby requests long-term confidential treatment o f information accompanying this application as outlined below: The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Typed or Printed Name: Kazuhiro Kusuhara Title: General Manager, Production, Electronics Div. •Block Diagram •Schematics •Operation Description •BOM/Tune-up

This transmitter was designed to operate in following frequency ranges: , 400-480MHz Date: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Extended Frequencies Justification for Certification of Transmitter with FCC ID: PH3DR-MD500T Dear Sir/Madam, To aid equipment authorization in other countries which accept the United States FCC Grant for Certification, is requesting that the FCC lists the frequencies , under FCC Rule Part 90 on the FCC Grant. attests that the will not be marketed to USA users with the frequency band which is not allowed by the rule Part 90. Per the FCC’s KDB634817 guidance, as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies. Also, equipment programming is the responsibility of Authorized Service Personnel, the complies with 47 CFR Part 90.203(e), in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Please contact me if you require any additional information. Sincerely Yours, Company: Alinco Incorporated, Electronics Division Add: Yodoyabashi Dai-Bldg 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka 541-0043, Japan Tel: 06-7636-2360 Fax: 06-6208-3801 E-mail: [email protected] 2021-03-08 Alinco Incorporated, Electronics Division VHF/UHF DUAL BAND TRANSCEIVER VHF/UHF DUAL BAND TRANSCEIVER 136-174MHz Alinco Incorporated, Electronics Division 136-174MHz, 400-480MHz Signature: Typed or Printed Name: Kazuhiro Kusuhara Title: General Manager, Production, Electronics Div.

2021-03-08 Company: Justification Le tter Date: FEDERAL CO M MUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Model number: Dear Sir/Madam, We, , acknowledge that this device will not be marketed to USA users with the frequency band which is not allowed by rule part 90.and it is a violation of FCC rules if this device is operated on unauthorized frequencies inside the U.S.A. This equipment meets the requirements of the FCC Rules, Parts 90.203(e) and (g), as applicable. Programming of this products transmit frequencies can be performed ONLY by the manufacturer or by service or by maintenance personal. The operator can’t program transmit frequencies using the equipment’s external operation controls. This is to certify that the requirements of 47 CFR Part 90.203(j)(4) and (5) spectrum efficiency are met by the as demonstrated by the tests conducted on the sample radio provided. The tests show that the 4FSK data rate is in accordance with ETSI TS 102 361-1, that is 9600 bits per second in a 12.5 kHz bandwidth to satisfy the data rate requirement of 4800 bits per second per 6.25 kHz of channel bandwidth (7K60F1D emissions). Additionally the use s the AMBE+2 half-rate vocoder to compress 60 ms of normal bursts are sent in alternate 30 ms TDMA slots and so comp ly with the equivalence of one voice channel per 6.25 kHz bandwidth (7K60F1E emission). Additionally the radio also meets the requirement of one voice channel per 12.5 kHz of channel bandwidth for analogue speech (11k0F3E emission). Alinco Incorporated, Electronics Division Add: Yodoyabashi Dai-Bldg 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka 541-0043, Japan Tel: 06-7636-2360 Fax: 06-6208-3801 PH3DR-MD500T DR-MD500T Alinco Incorporated, Electronics Division Alinco Incorporated, Electronics Division VHF/UHF DUAL BAND TRANSCEIVER E-mail: [email protected] Sincerely, Signature: Typed or Printed Name: Kazuhiro Kusuhara Title: General Manager, Production, Electronics Div.

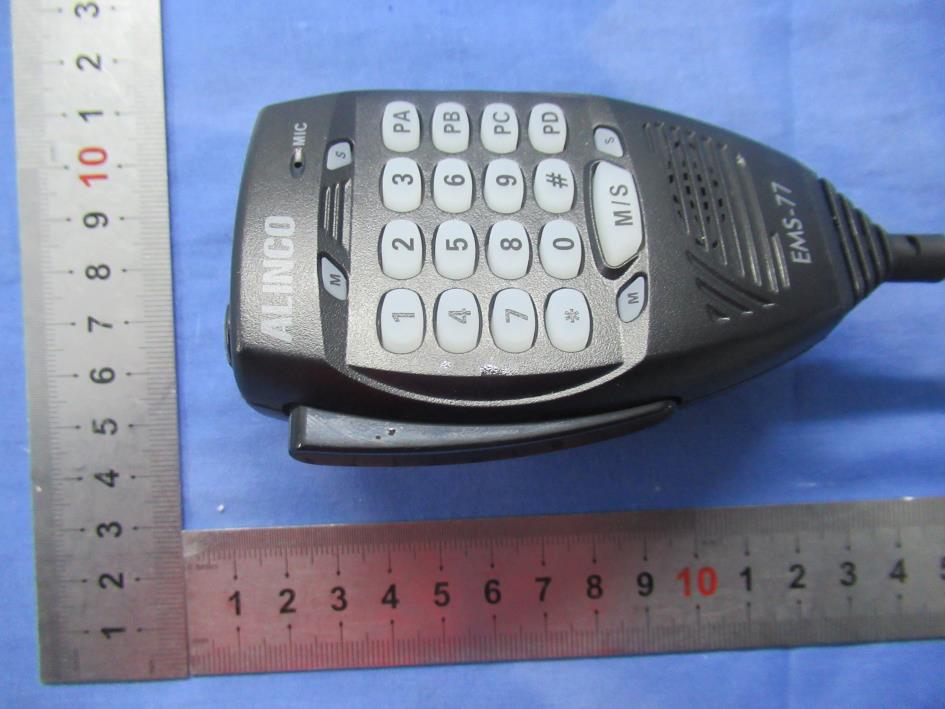

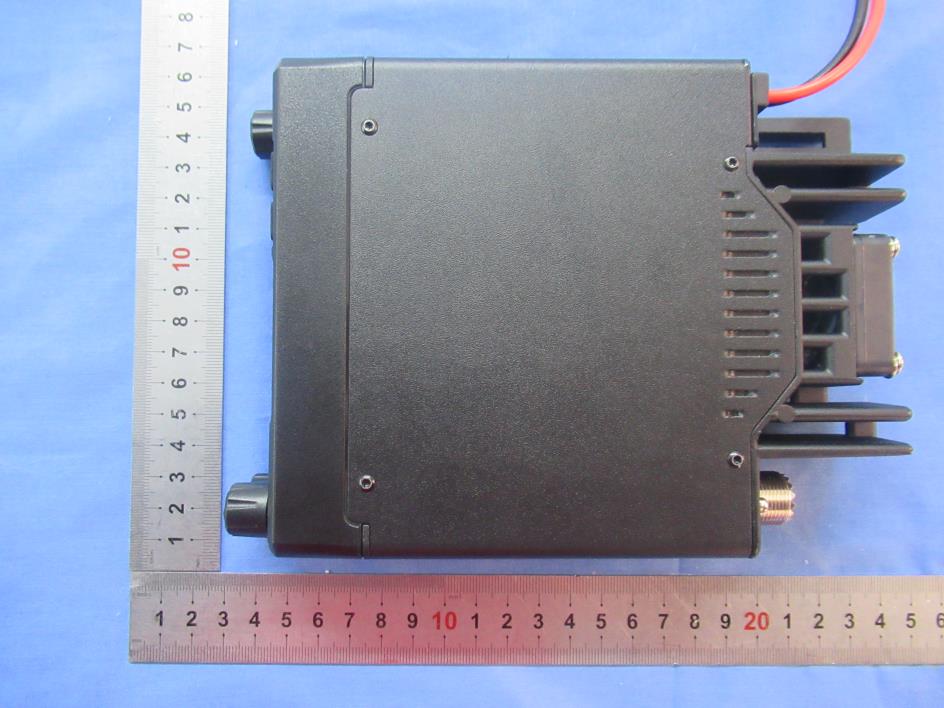

EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS

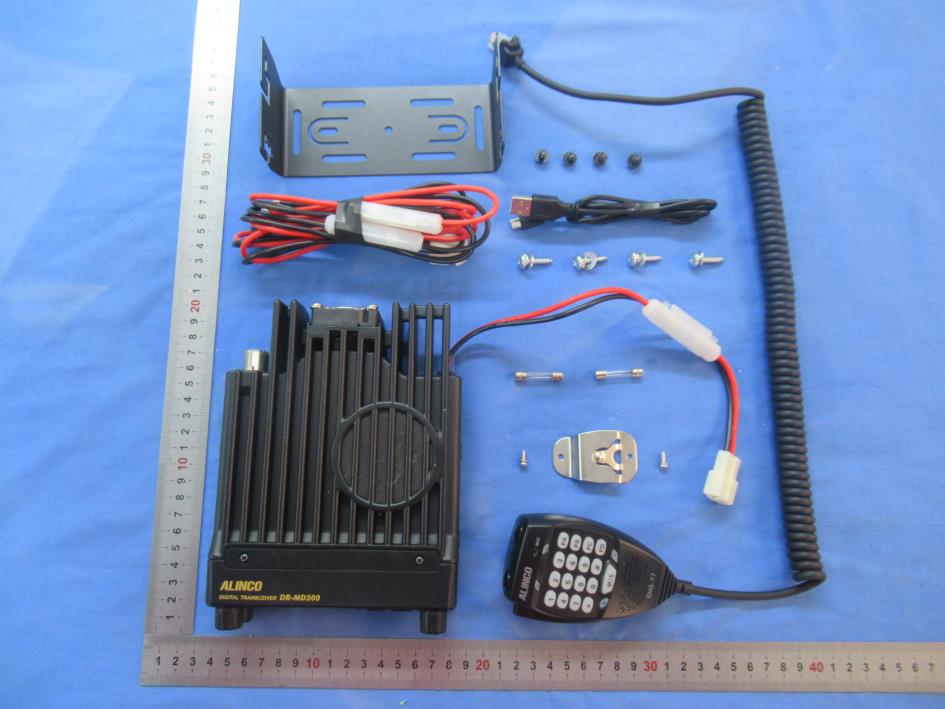

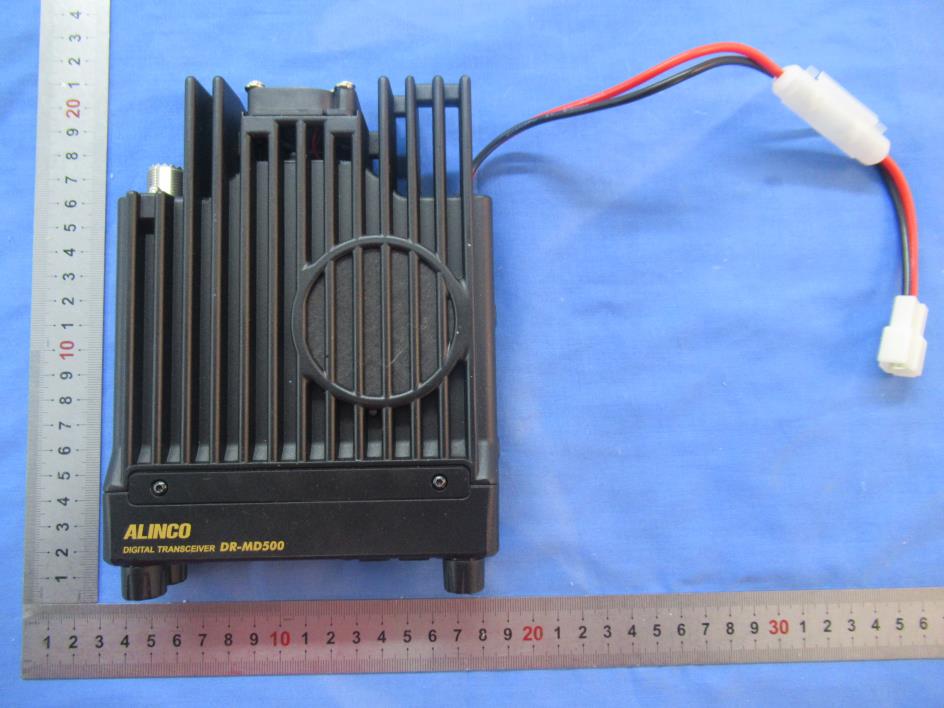

VHF/UHF DUAL BAND TRANSCEIVER Model：DR-MD500T FCC ID: PH3DR-MD500T

EXHIBIT B - EUT INTERNAL PHOTOGRAPHS

MAXIMUM PERMISSIBLE EXPOSURE TEST REPORT For Alinco Incorporated, Electronics Division Yodoyabashi Dai Building 13F, 4-4-9 Koraibashi, Chuo-Ku, Osaka 541-0043, Japan Report Type: Original Report Product Type: VHF/UHF DUAL BAND TRANSCEIVER Project Engineer: CK Huan g Re port Number: RSHD201211004-00C Re port Date: 2021-02-18 Reviewed B y: Oscar Ye EMC Mana ger Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu province, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn FCC ID: PH3DR-MD500T Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHD201211004-00C Page 2 of 6 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................................... 4 APPLICABLE STANDARD .............................................................................................................................................. 4 CALCULATED FORMULARY: ......................................................................................................................................... 4 CALCULATED DATA: .................................................................................................................................................... 5 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHD201211004-00C Page 3 of 6 GENERAL INFORMATION Product Description for Equipment under Test (EUT) Applicant Alinco Incorporated, Electronics Division Tested Model DR-MD500T Product Type VHF/UHF DUAL BAND TRANSCEIVER Modulation Mode FM/4FSK Maximum Output Powe r(Conducted) 136-174MHz: High: 55W; Low: 5W 400-480MHz: High: 40W; Low: 5W Operation Frequency 136-174MHz 400-480MHz Power Supply DC 13.8V *Antenna Gain 1.0 dBi Note*: The Maximum Antenna Gain was provided by manufacturer. All measurement and test data in this report was gathered from production sample serial number: RSHD201211004- 1.(Assigned by the BACL. The EUT supplied by the applicant was received on 2020-12-11) Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHD201211004-00C Page 4 of 6 FCC §2.1091 - MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to §2.1091 and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) f = frequency in MHz; * = Plane-wave equivalent power density; Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHD201211004-00C Page 5 of 6 Calculated Data: For worst case: Frequency Range (MHz) Antenna Gain (dBi) coaxial Cable loss (dB) Antenna Gain- coaxial Cable loss Tune-up Conducted Power Duty cycle Evaluation Distance (cm) Power Density (mW/cm²) Power Density Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) 136-174 1.0 0.72 0.28 1.07 47.5056234.13 50% 50 0.9545 1.0 400-480 1.0 0.72 0.28 1.07 47.0050118.72 50% 50 0.8507 1.3 Note: 1.The tune-up output power was declared by the Manufacturer. 2. The typical max antenna gain is 1.0dBi was provided by the Manufacturer Antenna Type Antenna Gain Omni antenna 1.0 3.typical use qualifies for a maximum duty cycle is 50% 4.A typical installation consists of system with a coaxial cable has a loss 0.72 dB. Result:The device meet FCC MPE at 50cm distance Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RSHD201211004-00C Page 6 of 6 Declarations 1: BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. 2: Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. 3: Otherwise required by the applicant or Product Regulations, Decision Rule in this report did not consider the uncertainty. 4: The extended uncertainty given in this report is obtained by combining the standard uncertainty times the coverage factor K with the 95% confidence interval. 5: This report cannot be reproduced except in full, without prior written approval of the Company. 6: This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. ***** END OF REPORT*****
