PH3DJ-G7TDJ-G7T 144/430/1200MHz Triple Band FM Transceiver

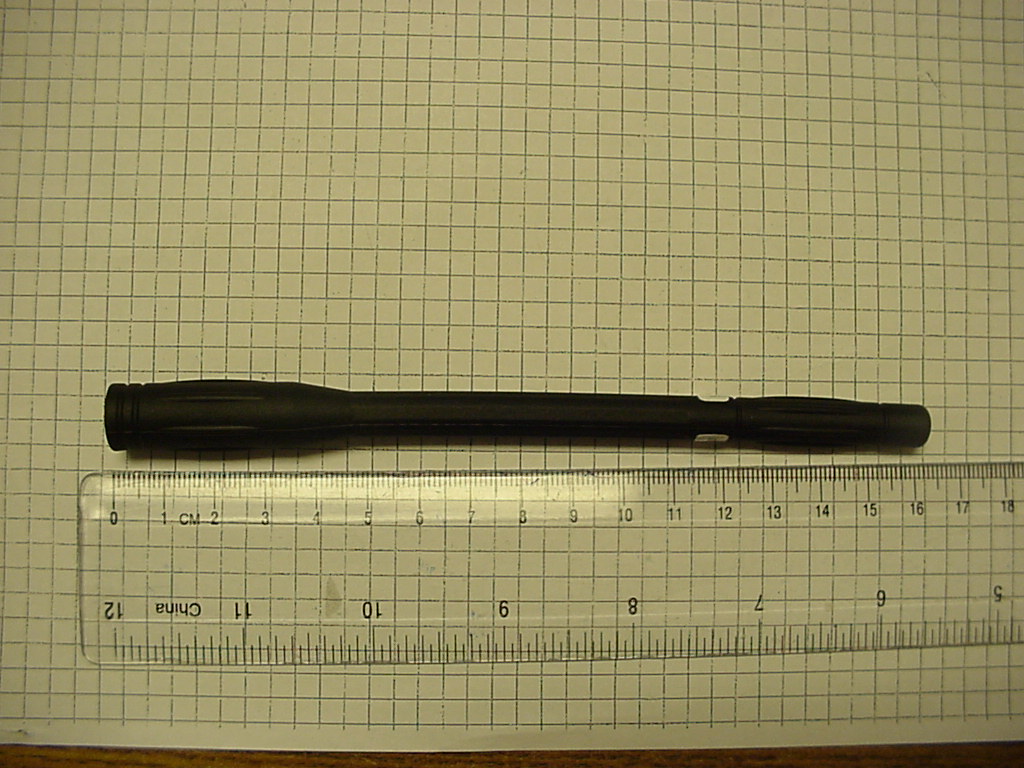

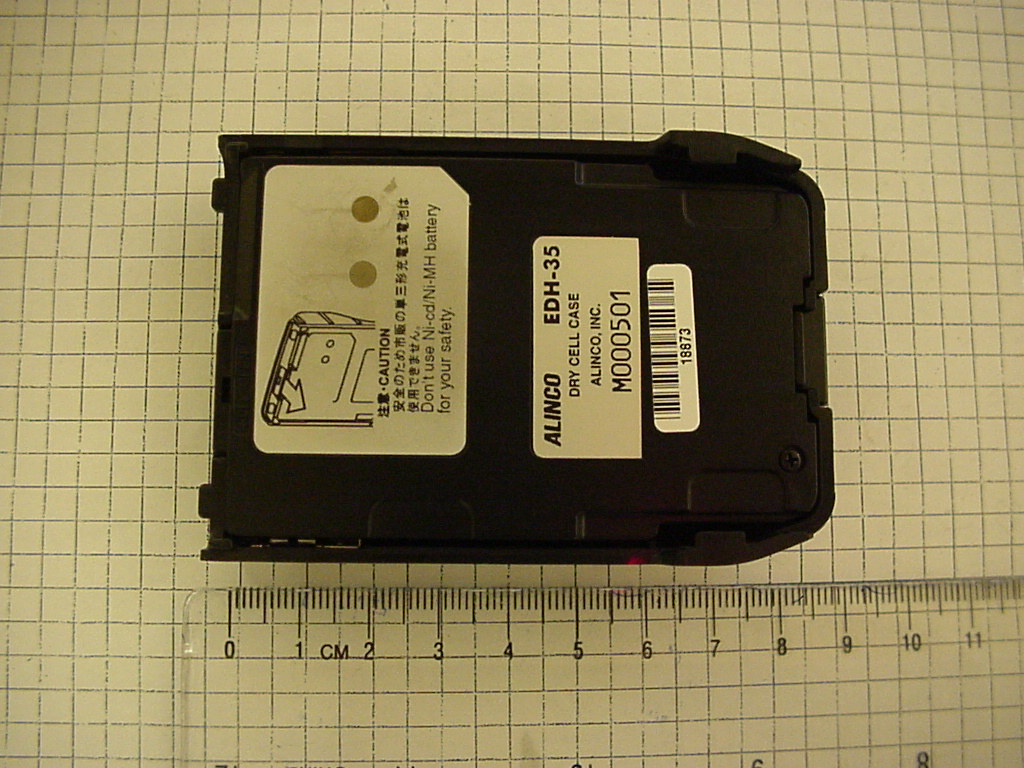

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 24 of 52 Appendix J: Manual Please see the following pages. The following accessories are supplied with the DJ-G7. Please confirm that nothing is missing before using the product. DJ-G7 Transceiver Flexible Whip Antenna EA-163 Li-ion Battery Pack EBP-73 Drop-in charger EDC-173T (120V) or EDC173E (220V) Dry cell case EDH-35 Belt Clip EBC-23 Hand Strap Instruction Manual (this booklet) Accessories may vary depending on the model you have purchased. Contact your local dealer for information on specifications of standard accessories and warranty details. NOTICE / Compliance Information Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the transceiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Information in this document is subject to change without notice or obligation. All brand names and trademarks are the property of their respective owners. Alinco cannot be liable for pictorial or typographical inaccuracies. Some parts, options and/or accessories are unavailable in certain areas. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 144/440/1200MHz FM amateur radio handheld transceiver DJ-G7T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufacturer: ALINCO, Inc. Yodoyabashi Dai Bldg 13F, 4-4-9, Koraibashi, Chuo-ku, Osaka 541-0043 JAPAN CE Conformity Information DJ-G7E FM amateur radio handheld transceiver 144.000~145.995MHz / 430.000~439.995MHz / 1260~1299.995MHz This device is authorized for use in all EU and EFTA member states. An operator's license is required for this device. Copyright ©All rights reserved. No part of this document may be reproduced, copied, translated or transcribed in any form or by any means without the prior written permission of Alinco. Inc., Osaka, Japan, English Edition Printed in Japan.

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 15 of 52 Appendix A: Agency Authorization Letter Please refer to the following page.

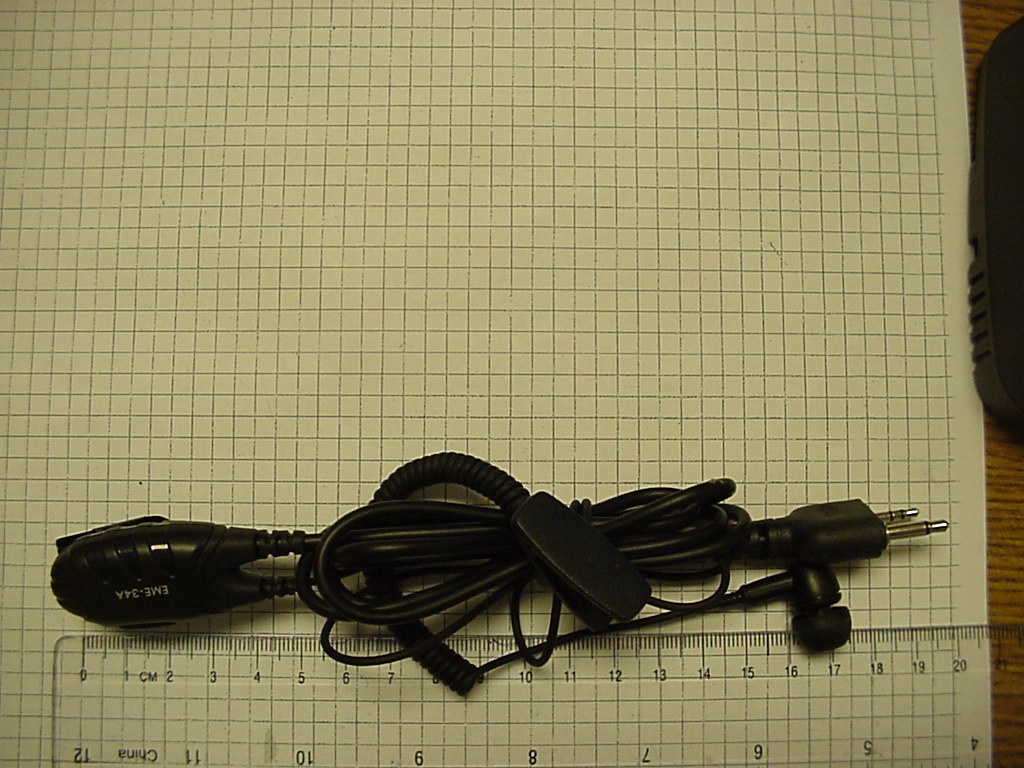

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 30 of 52 Appendix L: External Photographs Photograph 7: Front View Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 31 of 52 Photograph 8: Back View Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 32 of 52 Photograph 9: Right Side View Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 33 of 52 Photograph 10: Left Side View Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 34 of 52 Photograph 11: Top View Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 35 of 52 Photograph 12: Bottom View Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 36 of 52 Photograph 13: Antenna Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 37 of 52 Photograph 14: EBP-73 Li-Ion Battery Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 38 of 52 Photograph 15: EDH-35 Dry Cell Case Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 39 of 52 Photograph 16: EDC-173 Battery Charger Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 40 of 52 Photograph 17: EDC-170 AC Adapter Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 41 of 52 Photograph 18: Dongle for Microphone/Earphone Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 42 of 52 Photograph 19: Earphone/Microphone

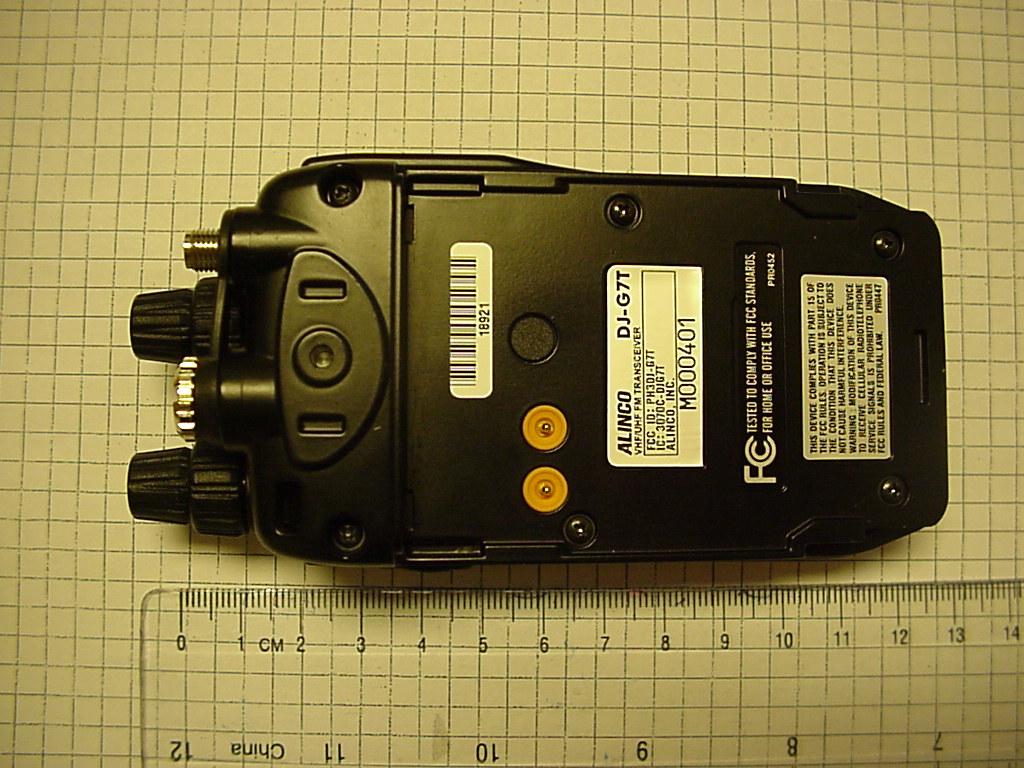

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 20 of 52 Appendix F: Label & Location FCC & IC ID Label & Location Warning Label & Location Photograph 1: ID and Warning Labels and Locations

Engineering and Testing for EMC and Safety Compliance Accredited under A2LA Testing Certificate # 2653.01 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 http://www.rheintech.com F F C C C C & & I I C C C C e e r r t t i i f f i i c c a a t t i i o o n n R R e e p p o o r r t t Model: DJ-G7T 144/430/1200 MHz Triple Band FM Transceiver FCC ID: PH3DJ-G7T IC: 3070C-DJG7T Alinco Incorporated Electronics Division Yodoyabashi Dai Building 13F 4-4-9 Koraibashi, Chuo-ku Osaka 541-0043 Japan April 17, 2009 Standards Referenced for this Report Part 2: 2006 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations Part 15.121: 2007 Radio Frequency Devices; Scanning Receivers and Frequency Converters Used with Scanning Receivers ANSI C63.4-2007 Standard Format Measurement/Technical Report Personal Computer and Peripherals RSS-215; Issue 1 (Provisional) Analogue Scanner Receivers Frequency Range (MHz) Output Power (W) Frequency Tolerance Emission Designators 136-169.995 N/A N/A 16K0F3E 420-469.995 N/A N/A 16K0F3E 1240-1299.995 N/A N/A 16K0F3E Sub-band 0.531-1299.995 N/A N/A 16K0F3E REPORT PREPARED BY: Test Engineer:Daniel Baltzell Administrative Writer:Daniel Baltzell Rhein Tech Laboratories, Inc. Document Number: 2009134 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Alinco Inc. The test results relate only to the item tested. Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 2 of 52 Table of Contents 1 General Information............................................................................................................................5 1.1 Modifications.................................................................................................................................................. 5 1.2 Related Submittal(s)/Grant(s)........................................................................................................................ 5 1.3 Test Methodology.......................................................................................................................................... 5 1.4 Test Facility.................................................................................................................................................... 5 2 System Test Configuration................................................................................................................6 2.1 Justification.................................................................................................................................................... 6 2.2 Exercising the EUT........................................................................................................................................ 6 2.3 Test System Details....................................................................................................................................... 6 2.4 Configuration of Tested System..................................................................................................................... 7 3 AC Conducted Emissions - FCC Rules and Regulations Part 15 §15.107(b): Conducted Limits ..............................................................................................................................................................8 3.1 Site and Test Description...............................................................................................................................8 3.2 Test Limits..................................................................................................................................................... 8 3.3 Conducted Emissions Test Data.................................................................................................................... 9 4 Radiated Emissions – FCC Rules and Regulations Part 15 §15.109(a): Radiated Emissions Limits; RSS-215 §7 - Receiver Spurious Emissions.............................................................................10 4.1 Test Methodology for Radiated Emissions Measurements.......................................................................... 10 4.2 Radiated Emissions Data............................................................................................................................. 11 5 FCC Rules and Regulations Part 15 §15.121(b) - 38 dB Rejection Test......................................12 5.1 38 dB Rejection Test Data for Base Band (869.04-893.970 MHz)............................................................... 13 5.2 38 dB Rejection Test Data for Mobile Band (824.04-848.970 MHz)............................................................ 13 6 Conclusion........................................................................................................................................14 Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 3 of 52 Table Index Table 2-1: Equipment Under Test (EUT)............................................................................................................... 6 Table 3-1: Conducted Emissions Test Data – Mode RX, Neutral (EDC-173 Charger).......................................... 9 Table 3-2: Conducted Emissions Test Data – Mode RX, Phase (EDC-173 Charger)........................................... 9 Table 3-3: Equipment Used for Testing................................................................................................................. 9 Table 4-1: Radiated Emissions – Mode RX......................................................................................................... 11 Table 4-2: Equipment Used for Testing........................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 25 of 52 Appendix K: Test Configuration Photographs Photograph 2: Radiated Emissions Test Configuration (Front View) Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 26 of 52 Photograph 3: Radiated Emissions Test Configuration (Rear View) Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 27 of 52 Photograph 4: 38 dB Rejection Test Configuration Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 28 of 52 Photograph 5: Conducted AC Emissions Test Configuration (Front View) Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-G7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2009134 Page 29 of 52 Photograph 6: Conducted AC Emissions Test Configuration (Rear View)
