PH3DJ-NX40TPush to Talk Radio

Form: CB-7.2.1 Issued by: QM Issue Date: 9/22/2011 Page 1 of 1 Revised by: QM-JS Revised Date: 6/23/2014 L:\Project\2015\p1550009-Alinco In\TCB Folder\RT's\CB-7.2.1 - Technical Review RT Form.docx CB-7.2.1 – Technical Review RT Form FCC ID: PH3DJ-NX40T IC ID: CT Project: P1550009 From: Shawn McMillen Date: RTs 06-16-2015 1--On Page 5 of the SAR report the modulations tested is blank. Please address. MSE 6/17/15: I filled in "CW" for modulation type, because although the radio transmitter was turned on by a switch during SAR testing, it only goes into modulation when someone is speaking by voice into the radio. The rest of the time the radio just transmits CW. I have upgraded the report revision to Rev 3.0 (from Rev 2.0). 2--Be advised that there are some documents in the main folder that may be part of the confidential documents. Also check the short and long term confidentiality requests to make sure certain documents are removed from the reports as not to violate the confidentiality requests. DW: Completed. CT - Response by: Submitted by: Date:

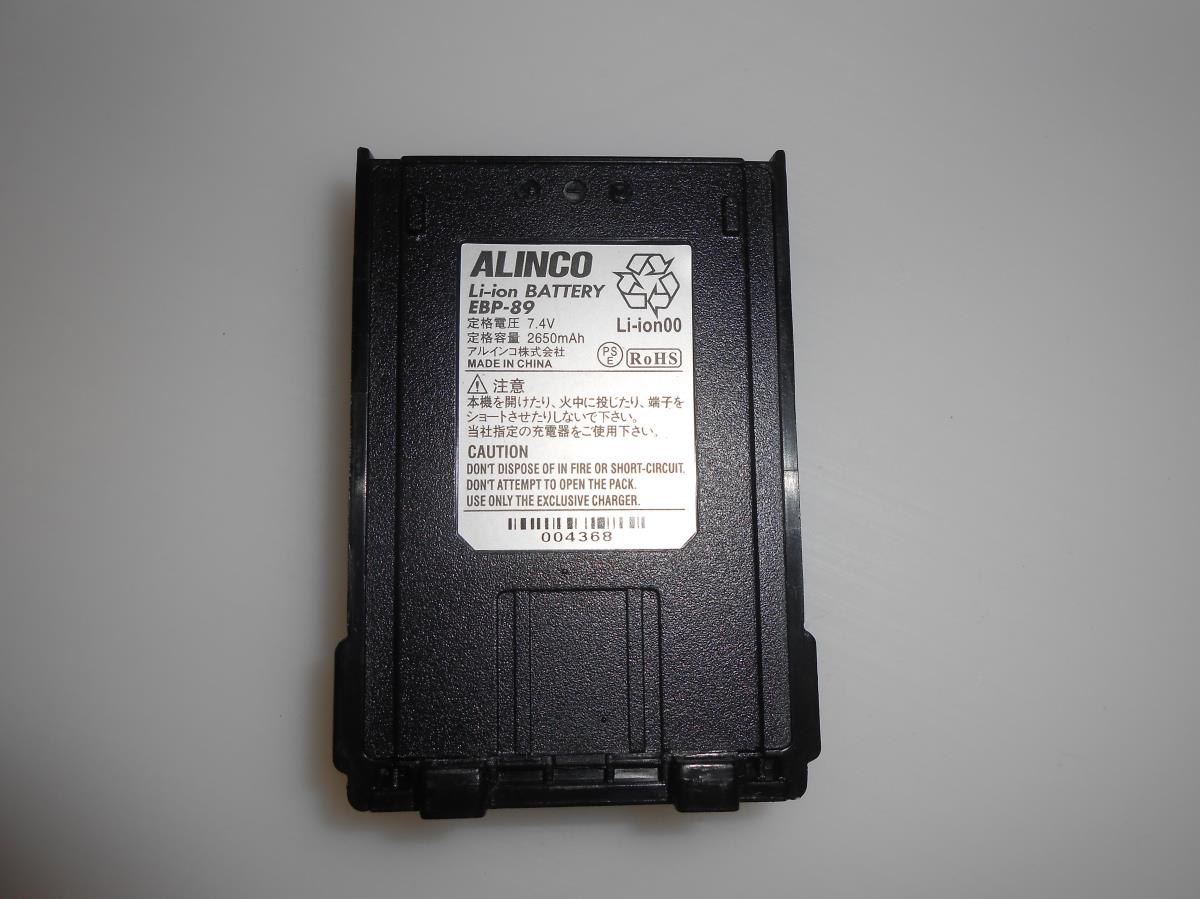

p1550009_Annex B_Accessories_Rev 1.0 Page 1 of 11 Annex B Accessories p1550009_Annex B_Accessories_Rev 1.0 Page 2 of 11 Right side of EUT p1550009_Annex B_Accessories_Rev 1.0 Page 3 of 11 Left side of EUT p1550009_Annex B_Accessories_Rev 1.0 Page 4 of 11 Face of EUT p1550009_Annex B_Accessories_Rev 1.0 Page 5 of 11 Belt Clip – Standard View p1550009_Annex B_Accessories_Rev 1.0 Page 6 of 11 Belt Clip – Side View p1550009_Annex B_Accessories_Rev 1.0 Page 7 of 11 Battery p1550009_Annex B_Accessories_Rev 1.0 Page 8 of 11 Battery & EUT p1550009_Annex B_Accessories_Rev 1.0 Page 9 of 11 Back of EUT p1550009_Annex B_Accessories_Rev 1.0 Page 10 of 11 Audio Accessory 1 p1550009_Annex B_Accessories_Rev 1.0 Page 11 of 11 Audio Accessory 2

30 35 T000501 070200000501 SERIAL NUMBER NXDN ESN COLOR LETTERS AND LINES : BLACK BACKGROUND : SILVER DWG No.- TITLE: DO NOT SCALE DRAWING DATE SIGN CHK'D DRAWN DESCRIPTION APPV'D APPV'D Conformity to RoHS regulation. ＲＥＶ． SCALE MODEL PLATE DJ-NX40T MATERIAL FINISHDIMENSIONAL TOLERANCE SIZE 1:1 MORIMOTO Jun 1.2015 A4

Annex A SAR Plots Date/Time: 5/28/2015 11:32:23 AM 450MHz validation 05-28-2015 DUT: Dipole 450 MHz; Type: D450V2; Serial: D450V2 - SN:1090 Communication System: CW; Frequency: 450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.83 mho/m; ε r = 46; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ES3DV3 - SN3035; ConvF(7.18, 7.18, 7.18); Calibrated: 5/18/2015 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn602; Calibrated: 5/22/2015 zPhantom: ELI v6.0; Type: QDOVA003AA; zMeasurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Area Scan (81x301x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 1.15 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 36.9 V/m; Power Drift = 0.040 dB Peak SAR (extrapolated) = 1.65 W/kg SAR(1 g) = 1.08 mW/g; SAR(10 g) = 0.720 mW/g Maximum value of SAR (measured) = 1.15 mW/g Page 1 of 1 Date/Time: 5/29/2015 9:53:27 AM high ch 511.9MHzbody worn DUT: Allinco; Type: PTT; Serial: T000403 Communication System: Alinco CW; Frequency: 512 MHz;Duty Cycle: 1:1 Medium parameters used: f = 512 MHz; σ = 1.01 mho/m; ε r = 60.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ES3DV3 - SN3035; ConvF(6.76, 6.76, 6.76); Calibrated: 5/18/2015 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn602; Calibrated: 5/22/2015 zPhantom: ELI v6.0; Type: QDOVA003AA; zMeasurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Area Scan (61x161x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.39 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 65.1 V/m; Power Drift = -0.330 dB Peak SAR (extrapolated) = 6.01 W/kg SAR(1 g) = 4.17 mW/g; SAR(10 g) = 2.9 mW/g Maximum value of SAR (measured) = 4.42 mW/g Page 1 of 1 Date/Time: 5/29/2015 8:12:12 AM high ch 511.9MHz face held DUT: Allinco; Type: PTT; Serial: T000403 Communication System: Alinco CW; Frequency: 512 MHz;Duty Cycle: 1:1 Medium parameters used: f = 512 MHz; σ = 0.88 mho/m; ε r = 44.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ES3DV3 - SN3035; ConvF(7.18, 7.18, 7.18); Calibrated: 5/18/2015 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn602; Calibrated: 5/22/2015 zPhantom: ELI v6.0; Type: QDOVA003AA; zMeasurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Area Scan (61x161x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.95 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 42.2 V/m; Power Drift = -0.325 dB Peak SAR (extrapolated) = 2.54 W/kg SAR(1 g) = 1.84 mW/g; SAR(10 g) = 1.37 mW/g Maximum value of SAR (measured) = 1.93 mW/g Page 1 of 1 Date/Time: 5/30/2015 9:57:18 AM mid ch 496MHz body worn DUT: Allinco; Type: PTT; Serial: T000403 Communication System: Alinco CW; Frequency: 496 MHz;Duty Cycle: 1:1 Medium parameters used: f = 496 MHz; σ = 1 mho/m; ε r = 60.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ES3DV3 - SN3035; ConvF(6.76, 6.76, 6.76); Calibrated: 5/18/2015 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn602; Calibrated: 5/22/2015 zPhantom: ELI v6.0; Type: QDOVA003AA; zMeasurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Area Scan (61x161x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 5.58 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 75.6 V/m; Power Drift = -0.401 dB Peak SAR (extrapolated) = 7.50 W/kg SAR(1 g) = 5.4 mW/g; SAR(10 g) = 3.91 mW/g Maximum value of SAR (measured) = 5.70 mW/g Page 1 of 1 6/4/2015file:///C:/Users/DASY4/Client%20Projects/mid%20ch%20496MHz%20body%20worn-3.htm Date/Time: 5/30/2015 11:24:50 AM high ch 496MHz face held DUT: Allinco; Type: PTT; Serial: T000403 Communication System: Alinco CW; Frequency: 496 MHz;Duty Cycle: 1:1 Medium parameters used: f = 496 MHz; σ = 0.86 mho/m; ε r = 44.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ES3DV3 - SN3035; ConvF(7.18, 7.18, 7.18); Calibrated: 5/18/2015 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn602; Calibrated: 5/22/2015 zPhantom: ELI v6.0; Type: QDOVA003AA; zMeasurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Area Scan (61x161x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.40 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.4 V/m; Power Drift = -0.364 dB Peak SAR (extrapolated) = 5.61 W/kg SAR(1 g) = 4.11 mW/g; SAR(10 g) = 3.02 mW/g Maximum value of SAR (measured) = 4.32 mW/g Page 1 of 1 6/4/2015file:///C:/Users/DASY4/Client%20Projects/high%20ch%20496MHz%20face%20held-1.htm Date/Time: 5/29/2015 10:47:01 AM low ch 450.1MHz body worn DUT: Allinco; Type: PTT; Serial: T000403 Communication System: Alinco CW; Frequency: 450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 450 MHz; σ = 0.96 mho/m; ε r = 61.5; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: zProbe: ES3DV3 - SN3035; ConvF(6.76, 6.76, 6.76); Calibrated: 5/18/2015 zSensor-Surface: 4mm (Mechanical Surface Detection) zElectronics: DAE4 Sn602; Calibrated: 5/22/2015 zPhantom: ELI v6.0; Type: QDOVA003AA; zMeasurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 145 Area Scan (61x161x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 6.48 mW/g Zoom Scan (7x7x7)…

Text truncated - open the document above for the full version.

p1550009_SAR_Rev 3.0 Page 1 of 32 SAR Test Report Prepared for: Alinco Inc. Electronics Division Model: DJ-NX40T Description: UHF Digital Transceiver Serial Number: T000401/T000402/T000403 FCC ID: PH3DJ-NX40T Date of Issue: June 17, 2015 On the behalf of the applicant: Alinco Inc. Electronics Division Yodoyabashi-Dai Bldg 13F, 4-4-9, Kroaibahsi, Chou-Ku Osaka, Japan 541-0043 Attention of: Katsumi Nakata, Manager Customer Services Ph: +81-6-7636-2360 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1550009 Mark Sechrist Project Test Engineer I attest to the accuracy and completeness of these measurements taken and the data presented, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment evaluated is capable of compliance for localized specific absorption rate (SAR) for controlled/occupational exposure limits specified in ANSI/IEEE Std. C95.1-1999. p1550009_SAR_Rev 3.0 Page 2 of 32 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 June 5, 2015 Mark Sechrist Original document 2.0 June 16, 2015 Amanda Reed Added list of attachments 3.0 June 17, 2015 Mark Sechrist Filled in modulation type tested. p1550009_SAR_Rev 3.0 Page 3 of 32 Table of Contents Description Page Introduction ............................................................................................................................................. 4 EUT Description ...................................................................................................................................... 5 EUT Accessories .................................................................................................................................... 6 SAR Measurement Results .................................................................................................................... 7 SAR Scaling Due to Drift ........................................................................................................................ 8 SAR Definition ......................................................................................................................................... 9 SAR Measurement System .................................................................................................................. 10 EAR Reference Point ............................................................................................................................ 12 Positioning for Cheek/Touch ................................................................................................................. 13 Body Worn Configurations .................................................................................................................... 14 Data Evaluation Procedures ................................................................................................................. 15 System Performance Check ................................................................................................................. 17 Simulated Equivalent Tissues ............................................................................................................... 18 Tissue Verification ................................................................................................................................. 19 Robot System Specifications ................................................................................................................ 24 Phantom(s): .......................................................................................................................................... 25 SAR Measurement System .................................................................................................................. 26 Test Equipment Utilized ........................................................................................................................ 29 Measurement Uncertainties .................................................................................................................. 30 Uncertainty for System Performance Check ........................................................................................ 31 References ............................................................................................................................................ 32 List of Attachments: Annex Description Number of Pages Annex A SAR Plots 30 Annex B Accessories 11 Annex C Dosimetric E-Field Probe Calibration Certificate ES3DV3 11 Annex D Data Acquisition Electronics DAE4 Calibration Certificate 7 Annex E Dipole 450MHz Calibration Certificate 8 Annex F Oval Flat Phantom ELI 2 p1550009_SAR_Rev 3.0 Page 4 of 32 Introduction This measurement report demonstrates that model DJ-NX40T, FCC ID: PH3DJ-NX40T, as described within this report, complies with the Specific Absorption Rate (SAR) RF exposure requirements specified in ANSI/IEEE Std. C95.1-1999, FCC 47 CFR §2.1093 and RSS-102 for Occupational/Controlled Exposure. The test results herein were based on a representative sample and therefore only apply to the sample tested. A description of the device under test, device operating configuration and test conditions, measurement and site description, methodology and procedures used in the evaluation, equipment used, detailed summary of the test results and the various provisions of the rules are included in this dosimetric assessment test report. Test and Measurement Data The wireless device referenced in this report was found to be compliant for localized SAR for controlled/occupational exposure limits as specified in ANSI/IEEE Std.C95.1-1999 and has been tested in accordance with measurement procedures specified in IEEE 1528-2013 and EN/IEC 62209:2010 References Description FCC KDB 447498 D01v05r02 General SAR Guidance FCC KDB 643646 D01 S…

Text truncated - open the document above for the full version.

p1550009_FCC_Part 90_Rev 1.0 Page 1 of 25 Test Report Prepared for: Alinco Inc. Electronics Division Model: DJ-NX40T Description: UHF Digital Transceiver Serial Number: T000401/T000402/T000403 FCC ID: PH3DJ-NX40T To FCC Part 90 Date of Issue: June 10, 2015 On the behalf of the applicant: Alinco Inc. Electronics Division Yodoyabashi-Dai Bldg 13F, 4-4-9, Kroaibahsi, Chou-Ku Osaka, 541-0043 Attention of: Katsumi Nakata, Manager Customer Service Ph: +81-6-7636-2362 E-Mail: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1550009 Alex Macon Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p1550009_FCC_Part 90_Rev 1.0 Page 2 of 25 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 June 4, 2015 Alex Macon Original Document p1550009_FCC_Part 90_Rev 1.0 Page 3 of 25 Table of Contents Description Page Standard Test Conditions and Engineering Practices 6 Test Result Summary 7 Carrier Output Power (Conducted) 8 Conducted Spurious Emissions 9 Field Strength of Spurious Radiation 10 Emission Masks (Occupied Bandwidth) 13 Transient Frequency Behavior 17 Audio Low Pass Filter (Voice Input) 19 Audio Frequency Response 20 Modulation Limiting 21 Frequency Stability (Temperature Variation) 22 Necessary Bandwidth Calculations 23 Test Equipment Utilized 25 p1550009_FCC_Part 90_Rev 1.0 Page 4 of 25 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1550009_FCC_Part 90_Rev 1.0 Page 5 of 25 The Applicant has been cautioned as to the following: 15.21: Information to the User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 15.27(a): Special Accessories Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without an additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p1550009_FCC_Part 90_Rev 1.0 Page 6 of 25 Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II, Part 2, Subpart J, Sections 2.947, 2.1033(c), 2.1041, 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, and the following individual Parts: FCC Part 90. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing. In accordance with ANSI/TIA 603C, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specified testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 24.5 – 25.3 28.9 – 34.7 963.4 – 967.2 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: DJ-NX40T Description: UHF Digital Transceiver Firmware: N/A Software: N/A Serial Number: T000401/T000402/T000403 Additional Information: EUT is a push to talk occupational radio EUT Operation during Tests EUT was continuously keyed during testing Accessories: None Cables: Qty Description Length (M) Shielding Y/N Shielded Hood Y/N Termination 1 Modulator Cable <3m N N N/A Modifications: None p1550009_FCC_Part 90_Rev 1.0 Page 7 of 25 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 2.1046 Carrier Output Power (Conducted) Pass 2.1051 Unwanted Emissions (Transmitter Conducted) Pass 2.1053 Field Strength of Spurious Radiation Pass 90.210, 2.1049 Emission Masks (Occupied Bandwidth) Pass 2.1047 Audio Low Pass Filter (Voice Input) Pass 2.1047 Audio Frequency Response Pass 2.1047(a) Modulation Limiting Pass 90.213 Frequency Stability (Temperature Variation) Pass 90.213 Fre…

Text truncated - open the document above for the full version.

Test Setup Photos FCC ID: PH3DJ-NX40T RF Conducted #1 RF Conducted #2 RF Radiated #1 RF Radiated #2
