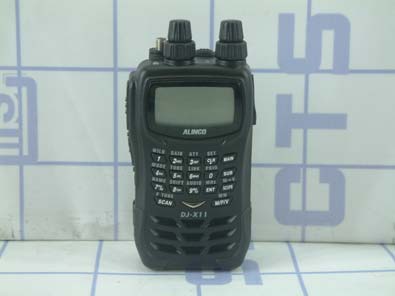

PH3DJ-X11TWide Band Communication Receiver

DJ-X11 Instruction Manual Thank you for purchasing your new Alinco receiver. This instruction manual contains important safety and operating instructions. Please read this manual carefully before using the product and keep it for future reference . WIDE BAND COMMUNICATION RECEIVER ALINCO, INC DJ-X11 1 WILD GAIN AT T MODE TONE SHIFT SET MW LINK NAME F TUNE PRIO STEP AUDIO 0 ENT CLR SUB MAIN SCOPE V/P/M SCAN M V 3 DEF 2 ABC 5 JKL 4 GHI 8 TUV 6 MNO 9 WX YZ 7 PQ RS 2 NOTICE / Compliance Information Statement NOTICE / Compliance Information Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular moudulation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Tested to Comply With FCC Standards FOR HOME OR OFFICE USE Information in this document is subject to change without notice or obligation. All brand names and trademarks are the property of their respective owners. Alinco cannot be liable for pictorial or typographical inaccuracies. Some parts, options and/or accessories are unavailable in certain areas. Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Wide Band Communication Receiver DJ-X11T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufacturer: ALINCO, INC. Yodoyabashi Daibiru Building 13th Floor 4-4-9, Koraibashi, Chuo-ku, Osaka 541-0043, JAPAN NOTICE / Compliance Information Statement 3 Conformity Information Alinco, Inc. Electronics Division hereby declare on our sole responsibility that the product(s) listed below comply the essential requirements of the Directive 1999/5/ EC, The council of 3/9/99 on Radio Equipment and Telecommunication Terminal Equipment and the mutual recognition of their conformity and with the provisions of Annex, after having performed the required measurements at Notifi ed Bodies per Standards, and relative certifi cate(s) or document(s) can be reviewed at http:// www.alinco. com/Ce/ DJ-X11E: Wide Band Communication Receiver 0.05 - 1299.99995MHz DJ-X11EGR: Portable broadcast/hamband Receiver 0.522 - 1.62000MHz 53.75 - 67.7500MHz 87.60 - 107.9000MHz 144.00 - 145.99995MHz 180.75 - 229.7500MHz 430.00 - 439.99995MHz 476.75 - 860.7500MHz 1260.00 - 1299.99995MHz Function: DJ-X11E DJ-X11EGR Inversion scramble decoder: Available N/A DJ-X11E is authorized for use in all EU and EFTA member states except for Greece. DJ-X11EGR is authorized for use in all EU and EFTA member states. DJ-X11E : Band-plan setting instruction In Europe, there are slight differences in frequency allocation country by country. Therefore the DJ-X11E has been preprogrammed with different VFO and Preset tables(band-plans) so that it will become handy when you travel. Select one of the band-plans by pressing the numeric key as instructed below when turning on the unit. The band plan Hold 2key while turning on : Pan-Europe Hold 3key while turning on : UK Please refer(P. 110)for the details of the band-plans. Copyright © All rights reserved. No part of this document may be reproduced, copied, translated or transcribed in any form or by any means without the prior written permission of Alinco. Inc., Osaka, Japan, English Edition Printed in Japan. 4 Warning Warning To prevent any hazard during operation of Alinco's radio product, in this manual and on the product you may find symbols shown below. Please read and understand the meanings of these symbols before starting to use the product. Danger This symbol is intended to alert the user to an immediate danger that may cause loss of life and property if the user disregards the warning. Alert This symbol is intended to alert the user to a possible hazard that may cause loss of life and property if the user disregards the warning. Caution This symbol is intended to alert the user to a possible hazard that may cause loss of property or injure the user if the warning is disregarded. Alert symbol. An explanation is given. Warning symbol. An explanation is given. Instruction symbol. An explanation is given. Alert ■ Environment and condition of use Do not use this product in close proximity to other electronic devices, especially medical ones. It may cause interference to those devices. Keep the radio out of the reach of children. In case a liquid leaks from the product, do not touch it. It may damage your skin. Rinse with plenty of cold water if the liquid contacted your skin. Never operate this product in facilities where radio products are prohibited for use such as aboard aircraft, in airports, in ports, within or near the operating area of business wireless stations or their relay stations. Use of this product may be prohibited or illegal outside of your country. Be informed in advance when you travel. The manufacturer declines any responsibilities against loss of life and/or prop…

Text truncated - open the document above for the full version.

4. Part Names and Operation 21 4 4. Part Names and Operation 4-1 Part Names and Functions of the Receiver 4-1-1 Top and front panels WILD GAIN AT T MODE TONE SHIFT SET MW LINK NAME F TUNE PRIO STEP AUDIO 0 ENT CLR SUB MAIN SCOPE V/P/M SCAN M V (7) (1)(2)(4)(3) (8) (9)(10) (5) (11) (6) 3 DEF 2 ABC 5 JKL 4 GHI 8 TUV 6 MNO 9 WX YZ 7 PQ RS 1 No.NameFunction (1) Upper main dial Rotate the dial to change the frequency/memory channel or to set items for the main band. Pressing this dial while is displayed switches the receiver to the mode coupling setting of the Bug Detector function. (2) Lower main dialRotate the dial to change audio volume or set items for the main band. (3) Upper sub dialRotate the dial to change the frequency/memory channel or set items for the sub band. Pressing this dial while is displayed switches the receiver to the sensitivity setting of the Bug Detector function. (4) Lower sub dialRotate the dial to change audio volume or set items for the sub band. (5) LCDThe status of the receiver is displayed. Refer to "LCD Display" for details. (6) Key padUse these keys for direct frequency input or various settings. 22 4. Part Names and Operation 4 No.NameFunction (7) Antenna connector (SMA) Attach the supplied antenna securely. To use other antennae, select an antenna which has been tuned to operate within the specifi ed operating frequency range. (8) Earphone jackUsed to connect an external earphone. (9) Main RX lampThis lamp illuminates in green while the main band squelch is open. (10) Sub RX lampThis lamp illuminates in green while the sub band squelch is open. (11) SpeakerA low-profi le, built-in speaker is provided. 4-1-2 Side panels (12) (13) (14) (15) No.NameFunction (12) FUNC keyUse this key in combination with other keys to use various functions. Rotating the upper main/sub dial while holding down this key changes the frequency by 1 MHz. Holding down this key (approx. 1 second) activates/deactivates the Quick Key-lock function. (13) MONI key (LAMP key) Press this key to open the squelch and hear the received sound. (14) POWER keyHold down this key (approx. 1 second) to turn ON/ OFF the receiver. (15) DC jackThis is an external power supply connection terminal. Connect the supplied AC adapter, or connect the optional cigarette lighter cable to use the receiver in a car. To use a stabilized power supply, be sure to use a power supply of 6.0 VDC and 1 A or higher. 4. Part Names and Operation 23 4 4-1-3 Key operation 1 WILD GAIN AT T MODE TONE SHIFT SET MW LINK NAME F TUNE PRIO STEP AUDIO 0 ENT CLR SUB MAIN SCOPE V/P/M SCAN M V 3 DEF 2 ABC 5 JKL 4 GHI 8 TUV 6 MNO 9 WX YZ 7 PQ RS NameFunctionAfter the FUNC Key is Pressed Hold Down the Key (Approx. 1 Second) Hold Down the Key and Operate the Dial 1Enter 1.WILD keyProgram/cancel the quick memory (in Memory mode). 2Enter 2.Adjust the receiving sensitivity. 3Enter 3.Set the Attenuator. 4Enter 4. Switch the modulation mode. 5Enter 5.Set the Tone Squelch/DCS 6Enter 6.Set the bank link. 7Enter 7. Set the memory name. 8Enter 8.Priority Monitoring function 9Enter 9.Received Sound Quality Adjustment function 0Enter 0. (rev)Frequency Shift function .Enter a decimal point. (CLR) Call up Set mode. ENTDetermine the entry.Channel step MAIN Switch bands/ banks. Edit the memory channel. Switch the main band between dual-/mono-band. Switch bands/ banks. SUB Switch bands/ banks. Switch the sub band between dual-/mono-band. SCOPE Channel Scope function MV function V/P/M Switch operation modes. Program/clear the memory channel. SCANSCAN keyF Tuning functionSelect the scan mode. 24 4. Part Names and Operation 4 4-2 LCD Display 145.000 FM FM BSDCSD ATH 433.000 001 MR 000 - (1) (2)(3)(4)(6)(5) (7) (8) (9) (10) (11) (13) (12) (15) (18) (17) (14) (16) VFO BUSY BUSY No.IndicationFunction (1) Appears when the [FUNC] key is pressed or when the Key-lock is activated (P. 63). (2) Appears while the Auto Power OFF function is ON (P. 81). (3) Indicates the band to be operated. (P. 28) (4) Appears while the Attenuator function is ON (P. 48, P. 49). (5) Appears while the Detection Signal Output function is ON (P. 76). (6) Indicates the frequency shift direction. (P. 57) (7) Appears while the Tone Squelch/DCS is ON (P. 51 - P. 53). (8) Appears while the Bell function is ON (P. 93). (9) Appears while the Battery Save function is ON (P. 82, P. 83). (10) Indicates the remaining power of the battery pack/ dry batteries. (P. 82) (11) Indicates the frequency of the main band. (12) Indicates the modulation mode (FM, Wide FM, AM, USB, LSB, CW). (P. 50) (13) Indicates the frequency of the sub band. (14) Indicates the memory bank No. (P. 34 - ) (15) Indicates the memory channel No. (P. 34 - ) (16) Indicates the reception level. (17) Appears while the squelch is open or while the Mute function is ON (P. 26, P. 27, P. 86, P. 87). (18) Indicates the operation mode status. (P. 29 - P. 33) 5. Basic Operation 25 5 5. Basic Operation 5-1 Turning the Power ON 1 Hold down the [POWER] key (approx. one second) to turn the power ON. Hold down the key again to turn the power OFF. MEMO • Due to utilize the capacity of the battery in full to maximize the operat- ing time, a special tune has been performed to the circuit of the DJ-X11. For this reason, you may encounter an event that the unit can’t be turned on after the battery pack is completely discharged and turned off by itself. In this case, remove any power source (the battery pack, dry cell case and external DC cable/adapter) from the unit, wait for 5 sec- onds or so, then supply one of correct DC power sources again to turn on. At this status, even an empty battery pack should work with an AC adapter. 5-2 Tuning the Frequency For the procedure to select the band to tune, refer to (P. 28). ● Tuning the frequency for the main band Rotate the upper main dial. ● Tuning the frequency for the sub band Rotate the upper sub dial. Rotating the dial clockwise sets the frequency higher; rotating the dial counterclockwise sets the frequen…

Text truncated - open the document above for the full version.

7 7. Memory Mode 41 3 Press the SET CLR key. The "MR" display on the left of the LCD changes to "SKIP", indicating that the Memory Skip function is set to the channel. To deactivate the Memory Skip function, select the memory channel and repeat the steps above. The "SKIP" display on the LCD changes to "MR" and the function is deactivated. 7-8 Memory Naming Function You can name the memory channel programmed in Memory mode by using up to 8 numbers, letters, Japanese character, symbols and pictographs in total. You can search memory channels more easily by registering call signs and broadcasting stations with names. ● Registering a memory name 1 Press the key to switch to Memory mode. 2 Press the [FUNC] key to display on the LCD. 3 Press the key to switch to Memory Naming mode. "Edit name" is displayed on the LCD. 4 Enter characters with the key pad. The keys on the key pad are assigned to specifi c characters. For details, refer to "List of characters assigned to the key pad" (P. 43 to P. 47). 5 To move the character entry cursor, rotate the lower dial. 6 To clear characters one at a time, press the SET CLR key. To clear all characters, hold down the SET CLR key (approx. one second). MEMO • Some of icons that appear in normal display mode won’t appear or may be displayed in different way. For example, “SKIP” won’t appear but skip channels are indicated without a hyphen between the bank and channel number in the memory naming mode. 42 7. Memory Mode 7 ● Entering a memory name The keys on the key pad are assigned to characters. (P. 43 to P. 47) When you press the keys on the key pad one at a time, the corresponding characters are displayed in the order the keys were pressed. When you press the key on the key pad and then rotate the upper dial, the characters assigned to the key are displayed in succession. Rotating the dial further displays kanji characters. Entry example: To enter "DJ - X11 " 1 Press the key and rotate the upper dial to select “D”. 2 Press the key and rotate the upper dial to select “J”. 3 Press the key and rotate the upper dial to select “-”. 4 Press the key and rotate the upper dial to select “X”. 5 Press the WIL D key once and rotate the lower dial to move the character entry cursor. 15-002 Registered channel name Memory channel Bank No. FM BS 6 Press the WIL D key once and ro- tate the lower dial to move the character entry cursor. 7 Press the key and rotate the dial to select “ ”. 8 Move the cursor to the right by rotating the lower right dial. 9 Press the [FUNC] key to finish the setting. MEMO • Even after the memory name is registered, you can use the frequency display. Refer to “Memory name display setting” (P. 92). • You can create your own pictographs using the utility software. • The flashing character is not yet registered. Be sure to move the cur- sor to the right so that it stop flashing. • It is recommended to use Alinco’s DJ-X11 free utility software down- loadable from alinco.com site for easier and faster naming operation. One of ERW-4C/7/8 optional PC-connection cables is necessary to operate with the software. 7 7. Memory Mode 43 ● List of characters assigned to the key pad WILD PRIO SHIFT ́ ̈ ― ... ‘ ’ “ ” ± × ÷ ≠ ∞ ♂ ♀ ° ′ ′′ § ○ ● □ ■ ▲ ▼ → ← ↑ ↓ ∩ ∂ ≡ √ ∫ ‰ ♪ † ‡ ¶ 44 7. Memory Mode 7 ● List of characters assigned to the key pad (kanji) WILD 7 7. Memory Mode 45 46 7. Memory Mode 7 7 7. Memory Mode 47 PRIO SHIFT <About kanji characters> The DJ-X11 is programmed with all of the fi rst class kanji characters of JIS standard. 48 8. Functions Assigned to the Key Pad 8 8. Functions Assigned to the Key Pad With the DJ-X11, the function shown above each key has been assigned to that key. To set the assigned function, press the [FUNC] key to display on the LCD and then press the corresponding key. 8-1 Shortcut Function You can assign any Set mode menu items to the [MONI] key and WILD key respectively. By assigning frequently used functions, you can change the setting quickly. 1 Press the [FUNC] key to display on the LCD. 2 Press the [MONI] key or WILD key to call up the assigned function. 3 Follow the procedure for the assigned Set mode operation. For the procedure for registering the function, refer to "Assigning a function to the WILD key" or "Assigning a function to the MONI key" (P. 86). 8-2 Receiving Sensitivity (RF Gain) Adjustment and Attenuator Function When there is interference with the receiving signal due to a station emitting strong signals on a nearby channel or when an FM broadcast is heard in the aviation radio band, use these functions to deliberately decrease the receiving sensitivity so that such interference is reduced and the target signal becomes more audible. Since the RF gain can be adjusted for the main and sub bands individually, it is suitable for the case when the main and sub bands are receiving different bands (such as the combination of the main band receiving VHF fire radio and the sub band receiving UHF simple business radio). The Attenuator function sets both bands in the same way, so that it is suitable for example when two frequencies of VHF aviation radio are received simultaneously. 8 8. Functions Assigned to the Key Pad 49 ● Adjusting the receiving sensitivity 1 Press the [FUNC] key to display on the LCD. 145.000 FM VFO BS Main band gain 1 2 Press the key to display “Main band gain” (for the main band) on the LCD. Pressing the key again displays “Sub band gain” (for the sub band). 3 Rotate the upper dial to adjust the sensitivity in 10 lev- els from “1” to “10”. The receiving sensitivity of this function can be set between "1" (highest) and "10" (lowest). ● Setting the Attenuator function 145.000 FM VFO BS Attenuator OFF 1 Press the [FUNC] key to display on the LCD. 2 Press the key to display “At- tenuator” on the LCD. 3 Rotate the upper dial to adjust the setting in three levels of “OFF”, “Low”, and “High”. When "Low" or "High" is selected, "ATL" or "ATH" illuminates respectively. CAUTION • The attenuation level of the…

Text truncated - open the document above for the full version.

8 8. Functions Assigned to the Key Pad 61 8-10-2 Memory Channel Scope The reception levels are displayed for the frequencies of neighboring programmed memory channels with the frequency of the displayed memory channel in the center. CAUTION • The Channel Scope function ignores empty memory channels. • When there is no memory channel which can be used as a scope tar- get, the Channel Scope function does not start. 1 In Memory mode, select the bank for which to display a scope display. 2 Press the key. The memory channel scope operation starts. The signals of the displayed memory channel (center channel) are received and the reception levels of the nearby programmed memory channels are indicated in the scope display. 3 Rotate the dial to select the center channel. The center channel changes upward or downward to the next target memory channel. The scope display shifts to the right or left accordingly. MEMO • By pressing the [FUNC] key to display and then pressing the key, you can change the reception operation for the center channel as follows. Normal mode: When signals are received through the center channel, the sound is output. The reception time follows the "Scan mode setting" (P. 88). The Channel Scope operation always starts in Normal mode. Display mode: Like other channels, the reception of the center channel signals is indicated with the level display only and no sound is output even when signals are received. • You can switch the band to operate by pressing the or keys. The bands are switched and the Channel Scope operation remains ac- tive. When the dual-band display is set, the Channel Scope operation can be conducted simultaneously for both bands. 62 8. Functions Assigned to the Key Pad 8 8-11 Copying the Memory Channel Data into VFO Mode You can copy the frequency of a memory channel into VFO mode. This function is useful when you want to receive a frequency slightly different from that of a memory channel or when you edit a memory channel. 1 In Memory mode, select a memory channel to copy its data into VFO mode. 2 Press the [FUNC] key to display on the LCD. 3 Press the key; the frequency of the memory channel is copied into VFO mode. When the copy is complete, the mode changes to VFO mode. 8-12 F Tuning Function This function allows reception of unknown radio signals by detecting a strong radio signal and quickly tuning to its frequency. The F Tuning function can be used in two modes: F COUNT (Frequency counter) and F TUNE (Strong signal- priority tuning). • In F COUNT mode, when an extremely strong signal is detected among the received signals, its frequency is displayed in real time. • In F TUNE mode, priority is given to detecting an extremely strong signal among the received signals. A normal scan is then performed around the frequency of the signal to catch the target signal more quickly and accurately. ● Setting the F Tuning function 1 Press the [FUNC] key to display on the LCD. F COUNT 2 Press the key several times to select “F COUNT” or “F TUNE”. 3 When “F TUNE” is selected, the receiver automatically changes to VFO mode when it detects a frequency, allowing you to hear the sound. 4 Press the [FUNC] key to fi nish the setting. CAUTION • The operating frequency for F COUNT and F TUNE is within the range of 50 MHz to 1299.99995 MHz. • This function may not work depending on the frequency condition, such as when there are radio signals or noise stronger than the target radio signal. • The resolution of F COUNT is 5 kHz. • The sensitivity may vary depending on the frequency. 9 9. Useful Functions 63 9. Useful Functions 9-1 Key-lock Function The Key-lock function prevents accidental operation of the keys and dials while the receiver is being used or carried. Two types of locking are available: Quick Lock which can be activated easily, and Normal Lock which is more complicated to unlock. 9-1-1 Key-lock procedure 145.000 FM BS VFO 433.000 VFO FM ● Quick Lock Hold down the [FUNC] key (approx. one second) to switch the function ON/OFF. While the Key-lock is active, the mark appears on the LCD. 145.000 FM BS VFO 433.000 VFO FM ● Normal Lock Hold down the key and press the left dial three times to switch the function ON/ OFF. While the Key-lock is active, the mark appears on the LCD. CAUTION • To release the Key-lock function, use the same method you used to activate the lock. There is no other way to release the lock. • If the key is held down but the dial is not pressed for about 1 sec- ond, the mono-band display is switched to the dual-band display and vice versa. 9-1-2 Operations available while the Key-lock is active ● Volume adjustment: You can adjust the volume level by rotating the lower dial. ● Squelch adjustment: You can adjust the squelch level by holding down the dial and rotating it. For the key settings which are available while the Key-lock is active, refer to "Key-lock mode setting" (P. 83). 64 9. Useful Functions 9 9-2 Scanning Function The Scan function automatically changes the frequencies and searches for signals being sent. The following scan types are available. VFO scanIn VFO mode, the scan searches all frequencies within the selected band by using the tuning step specifi ed in advance. Preset scanThe scan searches the frequencies within the band specifi ed in Preset mode. Memory scanI n memory mode, the scan searches for only frequencies which have been programmed in the memory. Programmed scanThe scan searches a range of frequencies between upper and lower limits which can be set by the user in advance. MEMO • The programmable items shown in P.35 with do not affect their func- tions while programmed scannintg, but setting such as tone-squelch and modulation mode must be completed in VFO mode, and VFO pa- rameters are always respected for programmed scan. ● Operations common to all scan types • Scanning stops when any one of the FUNC , keys is pressed. • The scanning direction can be changed by rotating the dial during scanning. • When the Monitor functio…

Text truncated - open the document above for the full version.

10 10. Set Mode Confi gurations 81 10-3 Power and Battery Setting Use this menu to set power-related options. 145.000 FM VFO BS < POWER & BATT. > 1 Select <POWER & BATT.> from the Set mode menu. 2 Press the SET CLR key to display the <POWER & BATT.> sub menu. 10-3-1 Auto power off setting “Auto Power Off” is abbreviated to APO. Use this function to make a beep- ing sound and turn off the power automatically when the receiver is not operated for the specifi ed period of time. 145.000 FM VFO BS Auto Power Off OFF 1 Rotate the upper dial to select “Auto Power Off”. The LCD displays the information as shown on the right. 2 Rotate the lower dial to select the period of no operation before the power is turned off automatically. Rotating the dial switches the options as follows 30min1hour2hrs3hrs5hrs8hrsOFF To turn on the receiver which was turned off by the APO function, hold down the POWER key. MEMO • The APO time is not extended while the receiver is only receiving signals. When any key is operated, the counter is reset and the timer restarts. • When the APO is set and the receiver is not operated for the speci- fi ed period of time, it is turned off even if the scan operation or Priority Monitoring function is active. 82 10. Set Mode Confi gurations 10 10-3-2 Battery setting Use this setting to display the battery level icons correctly. 145.000 FM VFO BS Battery type Battery pack 1 Rotate the upper dial to select “Battery type”. The LCD displays the information as shown on the right. 2 Rotate the lower dial to select “Battery pack” or “Dry Battery”. MEMO • Icon display When "Battery pack" is selected When "Dry Battery" is selected CAUTION • When this setting is incorrect, the battery level (remaining power) is not displayed properly; however, operation continues normally. • Be sure to use alkaline dry batteries. • Commercially-available rechargeable AA batteries cannot be used. The use of such batteries is not covered by our warranty because it is highly possible that such use may lead to malfunction, breakdown, so- lution leakage, and heat generation. 10-3-3 Battery save function setting Use this function to internally turn ON/OFF the power at short intervals to save the battery by reducing the current consumption during standby mode. 145.000 FM VFO BS BS ratio 0. 2 : 0. 8 1 Rotate the upper dial to select “BS ratio”. The LCD displays the information as shown on the right. 10 10. Set Mode Confi gurations 83 2 Rotate the lower dial to select the time while the power is ON and the time to save the battery. When this function is set to ON, “BS” appears on the LCD. Rotating the dial switches the options as follows: OFF0.2: 0.20.2: 0.4 0.2: 1.80.2: 1.20.2: 0.8 (Initial value) • This setting is factory-set to “0.2: 0.8”. Under normal conditions, it is unnec- essary to set this function to OFF. When you receive packet communication from amateur radio or data communication such as ACARS in aviation radio, set this function to OFF, even the squelch is opened. • The battery save function is disabled while signals are received or scanned. If longer battery save time is selected, the beginning of a sound at signal re- ception may be lost. 10-4 Key Assignment Setting Use this menu to set the key operation of the DJ-X11. 145.000 FM VFO BS < KEY ASSIGNMENT > 1 Select <KEY ASSIGNMENT> from the Set mode menu. 2 Press the SET CLR key to display the <KEY ASSIGNMENT> sub menu. 10-4-1 Key-lock mode setting Use this setting to specify the keys and dials that will be locked by the Key-lock function. 145.000 FM VFO BS Key lock mode All 1 Rotate the upper dial to select “Key lock mode”. 84 10. Set Mode Confi gurations 10 2 Rotate the lower dial to select the key lock mode. Rotating the dial switches the options as follows: All16-key pad17-key padDials only16-key + dials AllAll operation will be locked. 16-key padThe operation of the key pad will be locked except for the key. Dials onlyThe operation of the dials will be locked.* 17-key padThe operation of the key pad will be locked. 16-key + dialsThe operation of the key pad and dials will be locked except for the key. * It is possible to operate the dials for volume and squelch adjustment and to press the [MONI] key. 10-4-2 Set mode exit time setting Use this setting to specify the time to exit the Set mode automatically when no operation is performed. Available options are Manual and Auto (5 seconds to 5 minutes). 145.000 FM VFO BS Set mode exit Manual 1 Rotate the upper dial to select “Set mode exit”. The LCD displays the information as shown on the right. 2 Rotate the lower dial to select “Manual” or “Auto 5sec.” to “Auto 5min.” Manual (Initial value)The Set mode continues until the [FUNC] key is pressed. Auto 5sec.to Auto 5min. The Set mode is terminated automatically when no key is operated for the specifi ed time. Any change(s) in the setting(s) will be stored. 10-4-3 Band transition setting Use this setting to determine the operation when the scanning or dial operation reaches the upper/lower end of the current band in VFO mode. Select whether to return to the other end of the same band or to move to the next band. 145.000 FM VFO BS Band transition Stay in the band 1 Rotate the upper dial to select “Band transition”. The LCD displays the information as shown on the right. 10 10. Set Mode Confi gurations 85 2 Rotate the lower dial to select “Stay in the band” or “Go to next band”. Stay in the bandReturn to the other end of the same band. Go to next bandMove to the next band. 10-4-4 Right/left dial function setting Use this setting to swap the functions assigned to the right and left dials. 145.000 FM VFO BS Dial assignment L:Main / R:Sub 1 Rotate the upper dial to select “Dial assignment”. The LCD displays the information as shown on the right. 2 Rotate the lower dial to select “L:Main / R:Sub” or “L:Sub / R:Main”. 10-4-5 Upper/lower dial function setting Use this setting to swap the functions of the upper and lower dials. 145.000 FM VFO BS Dial Freq. :Upper…
