Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2006207 Page 26 of 50 Appendix J: Manual Please see the following pages. DJ-X30T/E/K Instruction Manual Thank you for purchasing your new Alinco receiver. This instruction manual contains important safety and operating instructions. Please read this manual carefully before using the product and keep it for future reference. WIDE BAND COMMUNICATION RECEIVER ALINCO, INC  NOTICE / Compliance Information Statement NOTICE / Compliance Information Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Tested to Comply With FCC Standards FOR HOME OR OFFICE USE Information in this document is subject to change without notice or obligation. All brand names and trademarks are the property of their respective owners. Alinco cannot be liable for pictorial or typographical inaccuracies. Some parts, options and/or accessories are unavailable in certain areas. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Wide Band Communication Receiver DJ-X30T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufacturer: ALINCO, INC. Shin-Dai building 9th Floor 2-6, 1-Chome Dojimahama, Kita-ku, Osaka 530-0004 JAPAN NOTICE / Compliance Information Statement 3 Conformity Information Alinco, Inc. Electronics Division hereby declare on our sole responsibility that the product(s) listed below comply the essential requirements of the Directive 1999/5/ EC, The council of 3/9/99 on Radio Equipment and Telecommunication Terminal Equipment and the mutual recognition of their conformity and with the provisions of Annex, after having performed the required measurements at Notified Bodies per Standards, and relative certificate(s) or document(s) can be reviewed at http:// www.alinco. com/Ce/ DJ-X30E: Wide Band Communication Receiver 0.1 - 1299.995MHz This device is authorized for use in all EU and EFTA member states. Copyright © All rights reserved. No part of this document may be reproduced, copied, translated or transcribed in any form or by any means without the prior written permission of Alinco. Inc., Osaka, Japan, English Edition Printed in Japan.  Warning Warning To prevent any hazard during operation of Alinco's radio product, in this manual and on the product you may find symbols shown below. Please read and understand the meanings of these symbols before starting to use the product. Danger This symbol is intended to alert the user to an immediate danger that may cause loss of life and property if the user disregards the warning. Alert This symbol is intended to alert the user to a possible hazard that may cause loss of life and property if the user disregards the warning. Caution This symbol is intended to alert the user to a possible hazard that may cause loss of property or injure the user if the warning is disregarded. Alert symbol. An explanation is given. Warning symbol. An explanation is given. Instruction symbol. An explanation is given. Alert ■ Environment and condition of use It is recommended that you check local traffic regulations regarding the use of radio equipment while driving. Some countries prohibit or apply restrictions for the operation of radios and mobile- phones while driving. Do not use this product in close proximity to other electronic devices, especially medical ones. It may cause interference to those devices. Keep the radio out of the reach of children. In case a liquid leaks from the product, do not touch it. It may damage your skin. Rinse with plenty of cold water if the liquid contacted your skin. Never operate this product in facilities where radio products are prohibited for use such as aboard aircraft, in airports, in ports, within or near the operating area of business wireless stations or their relay stations. Warning  Use of this product may be prohibited or illegal outside of your country. Be informed in advance when you travel. The manufacturer declines any responsibilities against loss of life and/or property due to a failure of this product when used to perform important tasks like life-guarding, surveillance, and rescue. Do not use multiple radios in very close proximity. It may cause interference and/or damage to the product(s). Risk of explosion if battery is replaced with an incorrect type. Dispose of, or recycle used batteries according to your local regulations. The manufacturer declines any responsibilities against loss of life and property due to a failure of this product when used with or as a part of a device made by third parties. Use of thir…

Text truncated - open the document above for the full version.

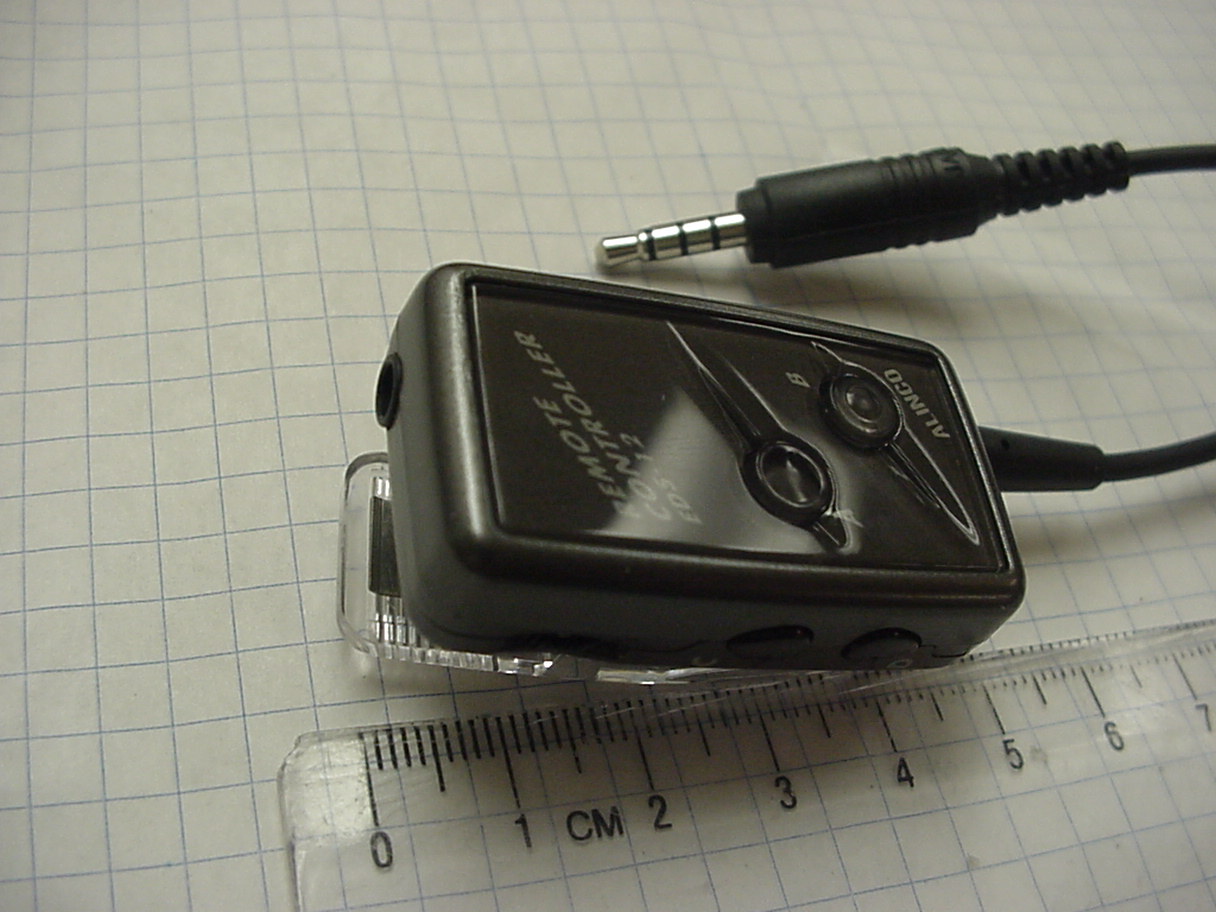

3. Using Accessories 1 3 MEMO • To prevent overcharging, charging automatically finishes after 12 hours (this time is can be changed with the Set mode). • Charging is possible even while signals are being received. • The DJ-X30 can be charged directly from the AC adapter without using the trickle charger. • Set the charging time according the battery to be used. The time can be changed with the "Charging time setting" of the Set mode. * The charging time of the battery pack (EBP-57N) is about 10 hours. CAUTION • Never attempt charging when AA-size dry cell batteries are installed. This may cause leakage or other problems. • When not using the AC adapter (EDC-139), you must unplug it from the wall outlet. • Signals received while charging may occasionally be interrupted with noise. This is not an abnormal phenomenon. • When the Ni-MH battery pack is charged repeatedly before it becomes low, the battery deteriorates and cannot be fully charged. Do not charge battery pack unless the icon is displayed on the LCD. If you are concerned about remaining battery power, carry spare batteries with you.  . Names and Functions of Parts 4 . Names and Functions of Parts -1 Names and Functions of Receiver Parts -1-1 Top/Front panel (1)(2)(3)(4) (5) (6) (8) (9) (10) (7) No.ItemDescription (1)DialRotate the dial to change frequency. Press the dial once to adjust the volume level. Pressing this dial while the icon is displayed switches the receiver to the Set mode. (2)RX lampThis lamp illuminates in green while the squelch is open. The lamp illuminates in red while the receiver is charging. (3)Earphone jackUsed to connect an earphone or the optional remote controller. (4)SMA antenna connector Used to install the included whip antenna. (5)LCDThe status of the receiver is displayed. Refer to "LCD Display" for details. (6)SpeakerA low-profile, built-in speaker is provided. (7)Key padUse these keys to directly input a frequency or to directly jump to the Set mode. It is also possible to fully cover the keys for simple operation. (8)SCAN keyUsed for scanning and Tone Squelch operations. (9)V/P/M keyUsed to switch the operating mode. (10)BAND keyUsed to switch the band, preset, or memory bank. . Names and Functions of Parts 3 4 -1- Side panel (12) Antenna sideDial side (13) (14) (11) No.ItemDescription (11)DC jackThis jack is for plugging in an external power supply. (12)FUNC (Function) keyUse this key in combination with other keys to access various functions. Holding down this key activates/ deactivates the Key-lock function. (13)MONI (Monitor) keyPress this key to open the squelch to receive weaker signals better. Rotating the dial while holding down this key allows you to set the squelch level. (14)PWR (Power) keyHolding down this key turns ON/OFF the power of the receiver. -1-3 Key operations (5) (6) (7) (8) (3) (4) (1) (2)  . Names and Functions of Parts 4 ● Main keys No.ItemDescription After the FUNC Key is pressed Holding Down for 1 Second Dial Operation While Holding Down (1)PWRTurn the power ON/OFF Turn the power ON/OFF (2)DialSet frequency, volume, or other parameters/ values Switch to the Set mode (3)FUNCSwitch between 10 MHz/1 MHz Set/release the Key-lock function (4)MONIPerform the Monitor function Set the tuning step/ memory skip Adjust the squelch level (5)SCANStart/stop scanning Switch between the Tone Squelch and Reverse Tone Squelch 10 MHz/1 MHz Change the scan mode (6)V/P/MSwitch between the VFO, Preset, and Memory modes Write to the memory (7)BANDSwitch among 10MHz/1MHz Switch banksSwitch frequencies between 10 MHz/ 1 MHz Select bands/banks . Names and Functions of Parts  4 ● Key pad No.ItemDescriptionAfter the [FUNC] key is pressed (8)1Enter 1Set the wild key (Default: ATT) 2Enter 2Set the reception mode 3Enter 3Adjust the tuning of the shortwave bar- antenna 4Enter 4Start Priority Monitoring. 5Enter 5Set the scan speed 6Enter 6Check the group setting 7Enter 7Set the audio quality of received signals 8Enter 8 9Enter 9 0Enter 0Set the frequency shift ● Enter a decimal point Set the memory name ● ENTConfirm the entry Reference: For operation details, refer to "Useful Functions/Operations When Key Pad is Installed".  . Names and Functions of Parts 4 - LCD Display (6)(7)(8)(9)(10)(11)(12) (13) (14)(16)(17)(15)(19)(18)(20)(21) (22) (5) (4) (3) (2) (1) No.IconDescription (1) Appears when the FUNC key is pressed. (2) Appears while the Normal Lock is activated. (3) Appears while the Priority Monitoring function is ON. (4) Appears while the skip is set. (5)(Not used with the DJ-X30) (6) Appears while the Quick Lock is activated. (7) Indicates the modulation type (AM/FM/WFM). (8) Appears while the audio quality is set to HI. (9) Appears while the Attenuator is activated. (10) Appears while the Auto-Power-Off function is ON. (11) Appears while the Battery save function is ON. (12) Appears when the remaining battery power is low. (13) Displays a receiving frequency or a setting value. (14) Indicates the strength of the receiving signals. (15)Blinks during scanning. (16) Appears when a signal is received. (17) Appears while the Bell function is ON. (18)Appears/blinks while the Tone Squelch/Reverse Tone Squelch function is ON. (19) Appears when a tone signal is detected. (20) Indicates the shift direction. (21) (Not used with the DJ-X30) (22) (Not used with the DJ-X30) . Basic Operation  5 . Basic Operation -1 Turning the Power ON 1 Hold down the [PWR] key to turn the power ON. Hold down the key again to turn the power OFF. - Adjusting Volume Level Volume can be adjusted within the range of 31 levels (0 to 30). The default is set to 20. Current frequency Volume level 1 Press the dial once. The current volume level is displayed. The LCD should look something like the figure on the right.  Adjust the volume level by rotating the dial. Turn the dial clockwise to increase the volume, and counterclockwise to decrease it. CAUTION • When using an earphone, be careful that the volu…

Text truncated - open the document above for the full version.

 . Useful Functions 6 -3 Key-lock Function The Key Lock function avoids unwanted, incorrect, or unauthorized operation of the keys and dial. Two types of locking are available: Quick Lock which can be activated easily, and Normal Lock which is difficult to unlock. -3-1 Key-lock procedure ● Quick Lock Hold down the [FUNC] key to switch the function ON/OFF. While the Normal Lock is active, the icon appears on the LCD. ● Normal Lock Press the dial three times while holding down the key to switch the function ON/OFF. While the Normal Lock is active, the icon appears on the LCD. CAUTION • To release the Key-lock function, you must use the same method you used to activate the lock. If you do not do this, the lock cannot be released. -3- Available operations while the Key-lock is active Volume adjustment: You can adjust the volume level by rotating the dial. Squelch adjustment: You can adjust the squelch level by rotating the dial while holding down the [MONI] key. . Useful Functions 3 6 - Tone Squelch/Reverse Tone Squelch Function The Tone Squelch/Reverse Tone Squelch system sends almost inaudible low- frequency signals (CTCSS tones) by radio waves and has the receiver detect the presence or frequency of the signals, so that only audio of a specified communication can be heard from the receiver speaker. The Tone Squelch function opens the squelch when the received tone frequency matches with the frequency specified by the DJ-X30. If you specify the tone frequency of the communication you want to listen to in advance, the squelch opens only when that tone frequency is received. The Reverse Tone Squelch function opens the squelch when the received tone frequency does not match with the frequency specified by the DJ-X30. 1 Rotate the dial to tune to the channel on which the CTCSS (Tone Squelch/Reverse Tone Squelch) system is used.  Press the [FUNC] key to display the icon on the LCD. 3 Press the key several times. For Tone Squelch select the icon when it is illuminated. For Reverse Tone Squelch, select the icon when it is blinking.  Rotate the dial to select the CTCSS tone frequency and press the [FUNC] key. For more information, refer to "Table of Available CTCSS Tones" ( + P. ••). When the Tone Squelch function is ON, the icon appears on the LCD and the squelch opens when a signal of the specified tone is received. When the Reverse Tone Squelch function is ON, the icon appears on the LCD and the squelch closes when a signal of the specified tone is received.  To deactivate the Tone Squelch/Reverse Tone Squelch function, press the [FUNC] key and then press the key several times until "OFF" appears on the LCD. Then, press the [FUNC] key. CAUTION • You should always set the normal squelch level properly even when the Tone Squelch function is used. If the normal squelch remains open, the Tone Squelch operation will require a long time.  . Useful Functions 6 - Descrambling Function The Descrambling function returns scrambled voice to normal reception. Note that the DJ-X30T/E does not have this function. This feature is available only for the E version. 1 Tune to a signal using analog-inversion scrambling.  Press the [FUNC] key to display the icon on the LCD. 3 Press the key several times until "SCR" appears on the LCD.  Select a decode No. by rotating the dial. Select a number from 0 to 28 where you can hear clear audio output. Pressing the [FUNC] key allows you to descramble the voice using the specified decode No. and to change the frequency at the same time.  To deactivate the Descrambling function, press the [FUNC] key and then press the key until "OFF" appears on the display. Then, press the [FUNC] key. MEMO • Use of the Descrambling function may be prohibited in some jurisdictions. Check local regulations before use. . Useful Functions  6 - Tone Scan Function The Tone Scan function automatically detects a CTCSS tone frequency in the received signals. 1 In VFO mode, tune to the channel you want to scan for the tone frequency.  While holding down the key, rotate the dial until "TONE" appears on the LCD. 3 Release the key. Scanning starts. Tone frequencies being scanned for are displayed one by one on the LCD. When a matching tone is detected, the receiver beeps, the icon and the tone frequency appear on the LCD, and scanning stops.  Scanning continues endlessly if a matching tone frequency is not found in the received signals. To quit scanning, press any one of the [FUNC], , , or keys. The receiver returns to VFO mode.  . Useful Functions/Operations When Key Pad is Installed 7 . Useful Functions/Operations When Key Pad is Installed Installing the key pad in the DJ-X30 enables the following: 1. Direct input of desired frequencies from the key pad. . Volume adjustment from the key pad 3. Selection of memory channels and Set mode items . Function enhancement by pressing the key pad keys while holding down the [FUNC] key. -1 Basic Key Pad Operation The key pad is arranged as shown below. To directly input a desired frequency Example 1 : To input 450.250 MHz Press the , , , , , and keys in this order and then press the key. Example 2 : To input 0.702 MHz (702 kHz) Press the , , , and keys in this order and then press the key. If you input a wrong frequency, rotate the dial to redo the input from the beginning. . Useful Functions/Operations When Key Pad is Installed  7 - Memory Naming Function You can name the memory channel programmed in the Memory mode by using up to 6 alphanumeric characters, and symbols in total. ● Registering a memory name 1 Press the key to switch to Memory mode.  Tune to the memory channel you want to name. 3 Press the [FUNC] key to display the icon on the LCD.  Press the key. The frequency is displayed on the upper right of the LCD, and the cursor starts blinking on the left of the LCD.  Select characters by operating the keys and dial as follows. Key operations for the Memory Naming function FUNCDetermines the memory name. DialSelec…

Text truncated - open the document above for the full version.

 8. Set Mode Configurations 8 . Set Mode Configurations The Set mode allows you to change the DJ-X30's functions and default settings as desired. -1 Configuring Values/Parameters of Set Mode Menu Items 1 Press the [FUNC] key to display the icon on the LCD.  Press the dial once to switch to Set mode. 3 Every time you press the dial, the setting item (Set menu item) is changed. • When you press the [MONI] key, the items are displayed in reverse order. • You can also select items by entering the menu number with the ten-key pad. For the list of the menu numbers, see page + P. ••. Menu numberMenu item Status  Rotate the dial to change the value or parameter of the item.  To exit the Set mode, press the [FUNC] key. The changed value/parameter is saved. 8. Set Mode Configurations  8 8-2 Set Mode Configurations Details of each item of the Set mode menu are as follows. --1 Attenuator (ATT) function setting Use this function when the receiving signal is interfered with by strong signals from nearby channels. When activated, this function weakens the reception level of the target signal. However, it also makes unnecessary signals difficult to receive, so that the target signal may become distinctly audible. The attenuation level is about 20 dB. 1 Select the Set menu No. 1, "Att".  Rotate the dial to display "ON". "ATT" appears at the top of the LCD. MEMO • This function is effective only when an antenna (i.e. the included antenna or an external antenna) is connected to the SMA antenna connector. Set this function to OFF when such an antenna is not connected. -- Earphone Antenna setting Use this function to switch between an earphone antenna and an external antenna. When you select an earphone antenna, the earphone cord works as an antenna. Signals can be received even when an external antenna is not connected. 1 Select Set menu No. , "Ant EnA".  Rotate the dial to change the display from "SMA" to "EAR". You can now use an earphone as an antenna. The LCD should look like the figure on the right. MEMO • When an earphone antenna is used, the received signals may be unstable depending on the condition of the earphone cord. • Like the earphone antenna on a card-type transistor radio, the earphone antenna is not tuned for specific frequencies. As a result, it may only be able to properly receive strong signals such as those of FM broadcasts or from near sources.  8. Set Mode Configurations 8 --3 AM Radio Bar-antenna setting You can choose either the built-in bar-antenna or an external antenna to receive AM radio signals. The bar-antenna covers the range of 100 kHz to 3 MHz including the AM radio band. 1 Select Set menu No. 3, "AbAr". The LCD should look like the figure on the right.  To use an external antenna, rotate the dial to change the display from "ON" to "OFF". The default is set to use the built-in bar-antenna. If you are using an external antenna, connect it to the SMA antenna connector. -- Shortwave Bar-antenna setting You can choose either the built-in bar-antenna or an external antenna to receive shortwave signals. The bar-antenna covers the range of 3 MHz to 30 MHz including the shortwave band. 1 Select Set menu No. , "SbAr". The LCD should look like the figure on the right.  To use an external antenna, rotate the dial to change the display from "ON" to "OFF". If the sensitivity is insufficient, refer to "Shortwave Tuning Function" ( + P. • •). 8. Set Mode Configurations  8 -- Lamp Operation setting You can set the operation of the backlight of the LCD. Using the backlight frequently increases the drain on the battery. 5-SEC ALLOFFOFF ON 1 Select Set menu No. , "LAMP". The LCD should look like the figure on the right.  Rotate the dial and the backlight operation changes as shown in the figure. OFFThe backlight does not turn ON. 5-SECWhen you operate the DJ-X30, the backlight turns ON for 5 seconds. ONThe backlight continues illuminating. ALLOFFThe backlight and RX lamp do not turn ON. -- Scan Type Switching setting You can set the scan-resume condition. 1 Select Set menu No. , "SCAn". The LCD should look like the figure on the right.  When you rotate the dial, the display changes from "BUSY" to a value between 1 and  seconds ("1-SEC" through "-SEC"). "BUSY" indicates busy scan mode, and "1-SEC" through "25-SEC" indicates the timer scan mode. Refer to the table below and select a desired setting. Busy scan mode After scanning stops, the DJ-X30 resumes scanning when it receives no signal. Timer scan mode After scanning stops, the DJ-X30 resumes scanning after the specified time even though it is still receiving signals. This time can be set to any value from 1 to 25 seconds. (Indicated on the LCD as "1-SEC" through "25-SEC") 0 8. Set Mode Configurations 8 -- Priority Channel selection Use this function to select a priority channel. This setting is effective when priority channels have been programmed in Memory mode ( + P. ••). 1 Select Set menu No. , "Prio". Channel Frequency  Rotate the dial to select a priority channel. The LCD should look like the figure on the right. -- Priority Monitoring interval setting You can select the interval for which signals from the main channel are received when the Priority Monitoring function is ON. 1 Select Set menu No. , "tiMESP".  Rotate the dial to select the monitoring interval. The LCD should look like the figure on the right. 3 By rotating the dial, you can set the interval within the range of  to 0 seconds. -- Priority Monitoring duration setting You can select the time for which reception of signals from the priority channel is stopped when the Priority Monitoring function is ON. 1 Select Set menu No. , "tiMEPr".  Rotate the dial to select the monitoring duration. The LCD should look like the figure on the right. 3 This setting also provides busy mode and 1- to -second timer mode options. Select the option according to the table in "Scan Type Switching setting" described adove. 8. Set Mo…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2006207 Page 19 of 50 Appendix D: FCC Attestation Letter Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2006207 Page 17 of 50 Appendix B: Confidentiality Request Letter Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2006207 Page 16 of 50 Appendix A: Agency Authorization Letter Please refer to the following page.

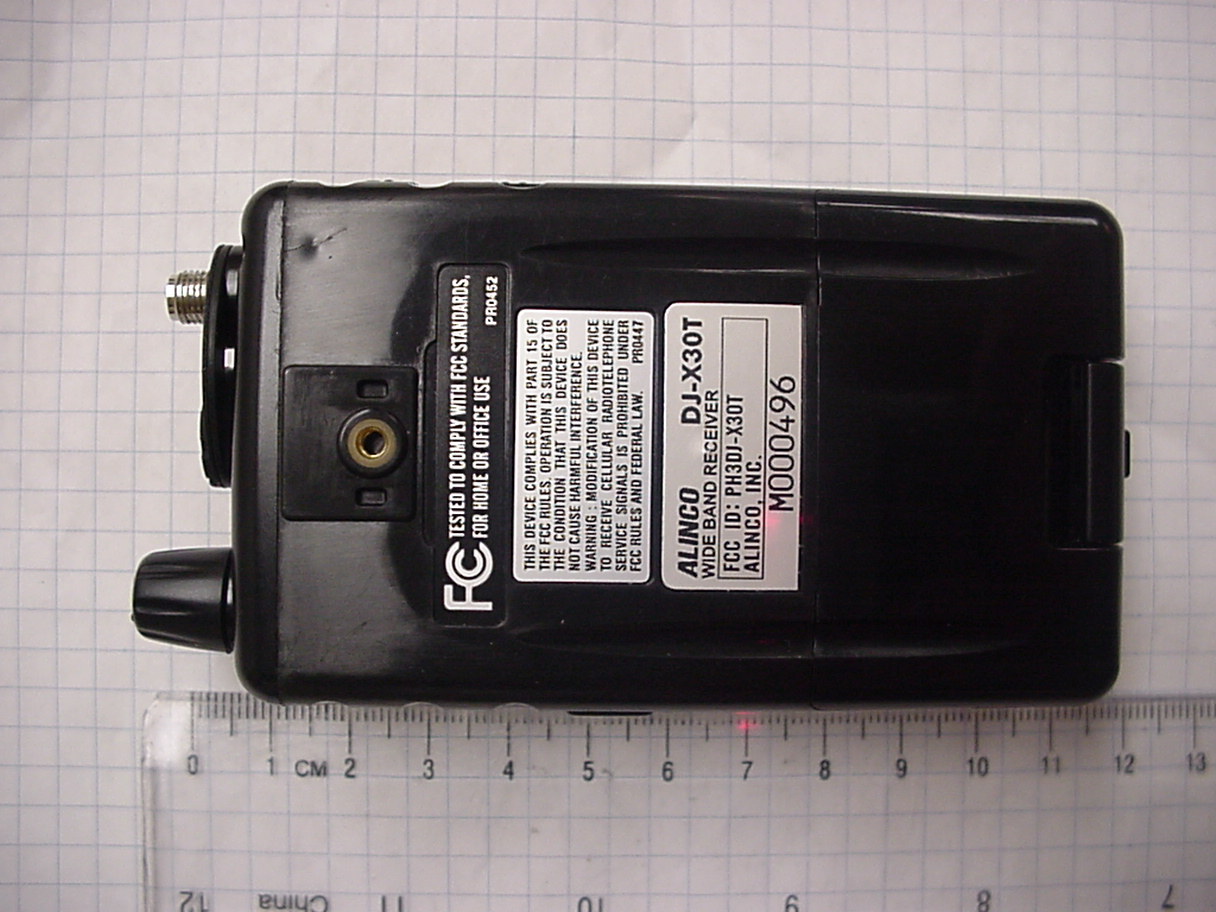

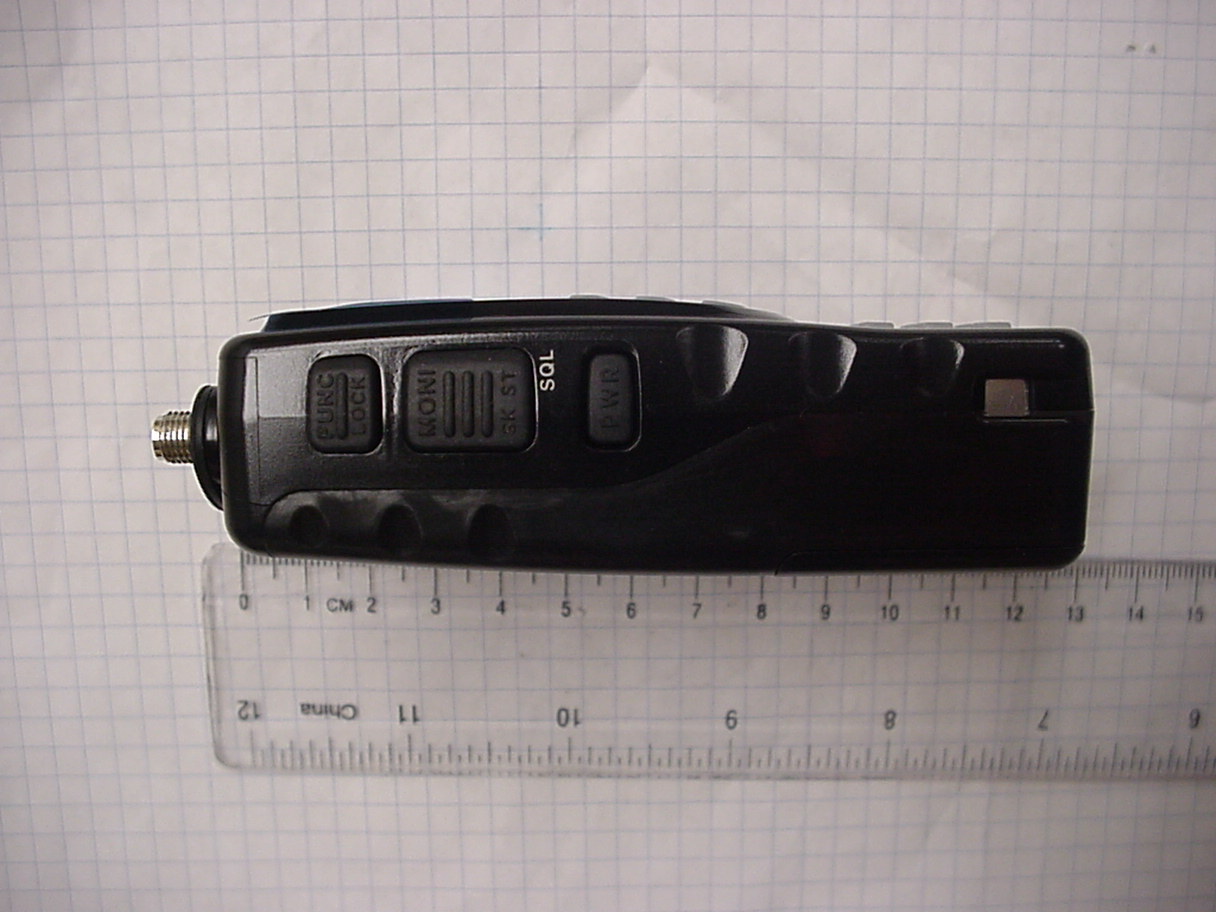

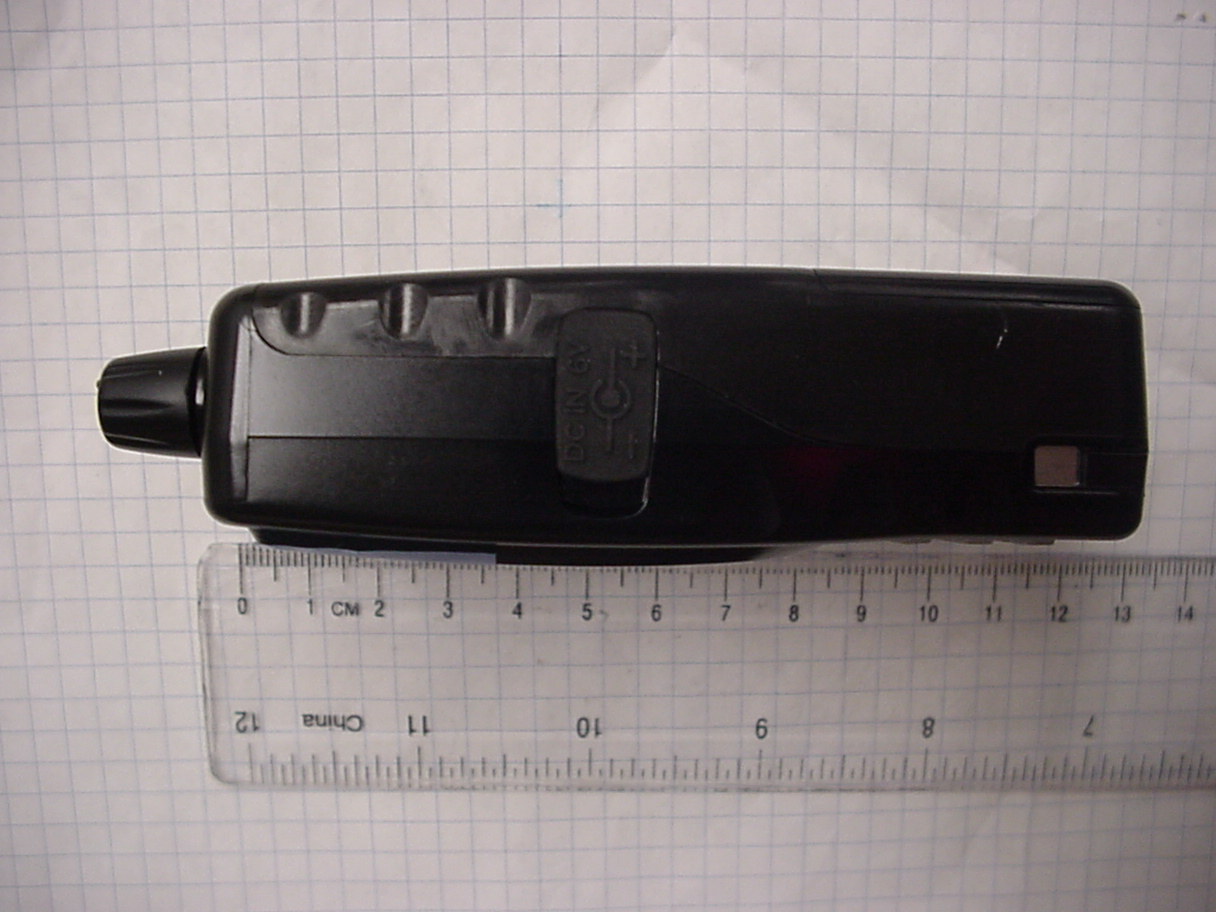

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2006207 Page 31 of 50 Appendix L: External Photographs Photograph 7: Front of EUT Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 ttp://www.rheintech.com h Report: 2006207 Page 32 of 50 Photograph 8: Top of EUT Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2006207 Page 33 of 50 Photograph 9: Back of EUT, US Version Shown; Canadian Version Labeled DJ-X30K Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 ttp://www.rheintech.com h Report: 2006207 Page 34 of 50 Photograph 10: Bottom of EUT Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2006207 Page 35 of 50 Photograph 11: Left Side Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 ttp://www.rheintech.com h Report: 2006207 Page 36 of 50 Photograph 12: Right Side Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2006207 Page 37 of 50 Photograph 13: Ear Bud Photograph 14: Antenna Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X30T/DJ-X30K Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report: 2006207 Page 38 of 50 Photograph 15: Remote Controller EDS-12
