Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 23 of 37 APPENDIX H: MANUAL Please see the following pages. DJ-X7T/E WIDE BAND COMMUNICATION RECEIVER TONE B ANK SHIFT MW PRI 10M/1M PWR B AND V/P/M SCAN DJ-X7 WIDE BAND COMMUNICATION RECEIVER Instruction Manual




               ALINCO, INC. 2 NOTICE / Compliance Information Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Tested to Comply With FCC Standards FOR HOME OR OFFICE USE Information in this document is subject to change without notice or obligation. All brand names and trademarks are the property of their respective owners. Alinco cannot be liable for pictorial or typographical inaccuracies. Some parts, options, and/or accessories are unavailable in certain areas. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the device. Wide Band Communication Receiver DJ-X7T This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Conformity Information In case the device you have purchased is marked with a CE symbol, a copy of the relative conformity certificate or document can be reviewed at http://www.alinco.com/usa.html. This device is authorized for use in all EU and EFTA member states. MANUFACTURER: ALINCO, INC. Shin Dai Building 9F, 1-2-6, Dojimahama, Kita-ku, Osaka, 530-0004, Japan Copyright © 2005 All rights reserved. No part of this document may be reproduced, copied, translated, or transcribed in any form or by any means without the prior written permission of Alinco, Inc., Osaka, Japan. English Edition Printed in Japan. 3 Precautions ......................................................................5 Precautionary Statement ..........................................................5 Precautionary Statement - External Power Supply ...................5 Request and Agreement ..........................................................5 Chapter 1 Features ..........................................................6 1.1 Standard Accessory List ....................................................6 Chapter 2 Accessories ....................................................7 2.1 Mounting Arrangement.......................................................7 ■Installing & uninstalling antenna..................................7 ■Installing & uninstalling battery ...................................7 ■Precaution for preventing short-circuit of battery ........8 ■Receiving while charging with AC adapter .................9 ■Low battery indicator ...................................................9 Chapter 3 Names and Functions of Parts ....................10 3.1 External View ....................................................................10 ■Top/Front panel .........................................................10 ■Side panel .................................................................11 3.2 Key Operations.................................................................12 3.3 Icons and Indicators.........................................................13 Chapter 4 Basic Operations ..........................................14 4.1 Turning Power ON ............................................................14 4.2 Adjusting Volume Level ....................................................14 4.3 Adjusting Squelch Level...................................................15 ■Monitor function .........................................................15 ■Mute function .............................................................16 4.4 Operating Modes .............................................................16 ■Switching among modes ...........................................16 4.5 Frequency Settings ..........................................................17 ■VFO mode .................................................................17 ■Preset mode ..............................................................18 ■Memory mode ...........................................................19 4.6 Memory Mode ..................................................................19 ■Memory types ............................................................19 ■Programming to memory channel .............................20 ■Clearing memory channel .........................................21 ■Programmable items to memory channels................21 Chapter 5 Advanced Operations ..................................22 5.1 Scanning Function............…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 16 of 37 APPENDIX A: AGENCY AUTHORIZATION LETTER Please refer to the following page.

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 17 of 37 APPENDIX B: CONFIDENTIALITY REQUEST LETTER Please refer to the following page.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 26, 2005 RE: Alinco Incorporated, Electronics Division FCC ID: PH3DJ-X7T I have a few comments on this Application. 1.) Please upload attestation that covers CFR Part 15.121 A1 and A2, and RSS-215 6.2(e) concerning modification of scanning receivers. Response : Please refer to the attestation letter uploaded with this response. Thank you, Douglas E. Noble Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 26, 2005 RE: Alinco Incorporated, Electronics Division FCC ID: PH3DJ-X7T I have a few comments on this Application. 1.) Please upload attestation that covers CFR Part 15.121 A1 and A2, and RSS-215 6.2(e) concerning modification of scanning receivers. Thank you, Douglas E. Noble Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 25 of 37 APPENDIX J: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 4: FRONT OF EUT PHOTOGRAPH 5: BACK OF EUT Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 26 of 37 PHOTOGRAPH 6: TOP OF EUT PHOTOGRAPH 7: LEFT SIDE

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 27 of 37 PHOTOGRAPH 8: RIGHT SIDE Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 28 of 37 PHOTOGRAPH 9: AC ADAPTER/CHARGER PHOTOGRAPH 10: LABEL ON AC ADAPTER/CHARGER

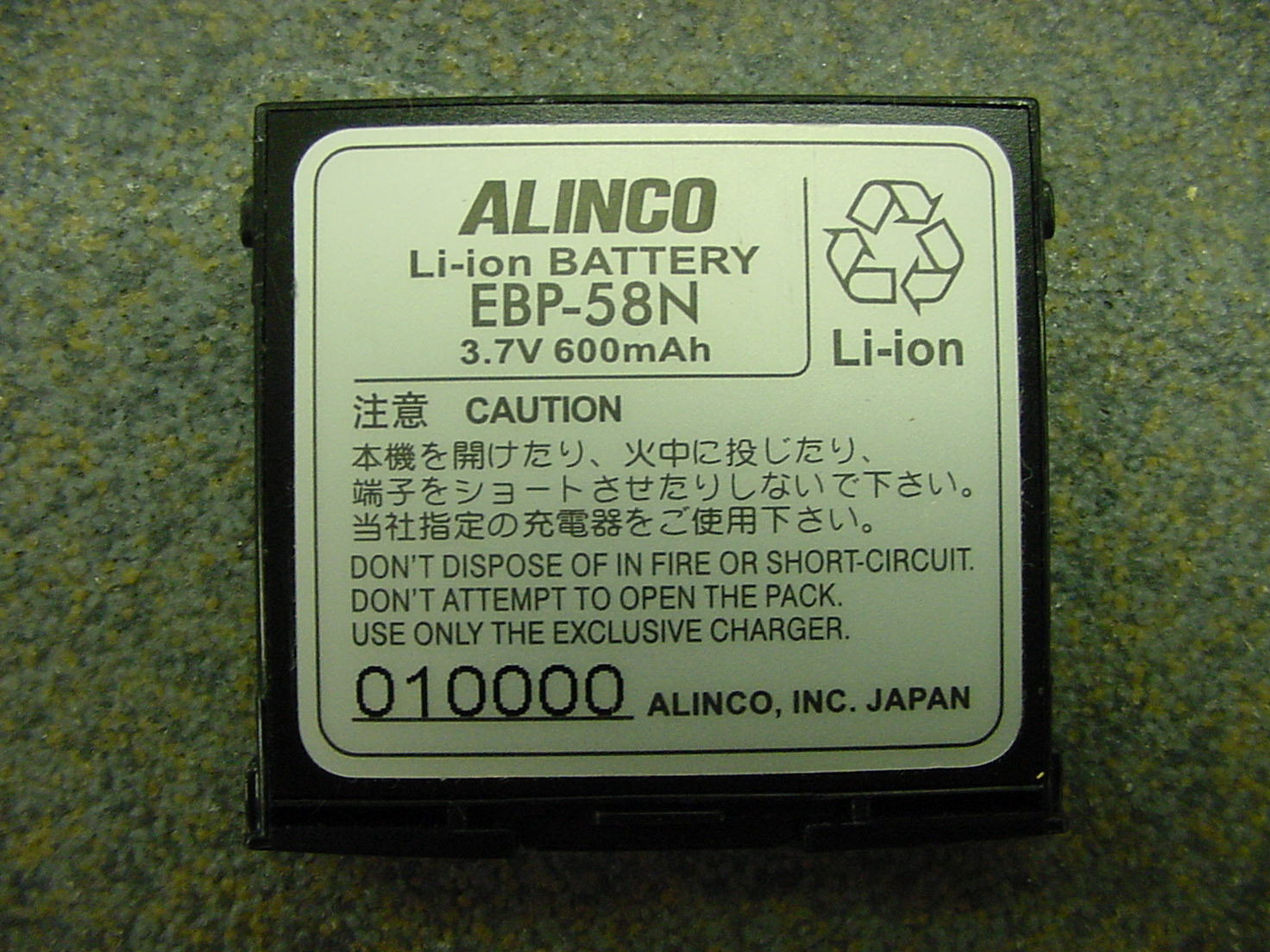

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 29 of 37 PHOTOGRAPH 11: LABEL ON BATTERY PHOTOGRAPH 12: EARPIECE Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 30 of 37 PHOTOGRAPH 13: ANTENNA SMA CONNECTOR

Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 19 of 37 APPENDIX D: LABEL & LOCATION INFORMATION PHOTOGRAPH 1: FCC ID LABEL AND WARNING LABEL AND LOCATION ON BACK OF EUT Warning Label Location FCC ID & IC ID Label Location

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368 Fax: 703-689-2056 FCC CERTIFICATION TEST REPORT WIDE BAND COMMUNICATIONS RECEIVER MODEL: DJ-X7T FCC ID: PH3DJ-X7T Alinco Incorporated Electronics Division Shin-Dai Building 9F 2-6, 1-Chome, Dojimahama, Kita-ku Osaka 530-0004 Japan May 17, 2005 Standards Referenced for this Report Part 2: 2004 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations Part 15.121: 2004 Radio Frequency Devices; Scanning Receivers and Frequency Converters Used with Scanning Receivers ANSI C63.4-2003 Standard Format Measurement/Technical Report Personal Computer and Peripherals RSS-215; Issue 1 (Provisional) Analogue Scanner Receivers Frequency Range (MHz) Output Power (W) Frequency Tolerance Emission Designator 0.100-1299.995 MHz N/A N/A N/A REPORT PREPARED BY: Test Engineer: Daniel Biggs Administrative Writer: Daniel Biggs Rhein Tech Laboratories, Inc. Document Number: 2005073 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 2 of 37 TABLE OF CONTENTS 1 GENERAL INFORMATION.......................................................................................................................................... 4 1.1 MODIFICATIONS............................................................................................................................................................................4 1.2 RELATED SUBMITTAL(S)/GRANT(S)....................................................................................................................................4 1.3 TEST METHODOLOGY...............................................................................................................................................................4 1.4 TEST FACILITY...............................................................................................................................................................................4 2 CONFORMANCE STATEMENT................................................................................................................................5 3 SYSTEM TEST CONFIGURATION........................................................................................................................... 6 3.1 JUSTIFICATION..............................................................................................................................................................................6 3.2 EXERCISING THE EUT...............................................................................................................................................................6 3.3 TEST SYSTEM DETAILS.............................................................................................................................................................6 3.4 CONFIGURATION OF TESTED SYSTEM............................................................................................................................7 4 CONDUCTED EMISSIONS.......................................................................................................................................... 8 5 RADIATED EMISSIONS – FCC RULES AND REGULATIONS PART 15 §15.109 (A): RADIATED EMISSIONS LIMITS; RSS-215 SECTION 7 - RECIEVER SPURIOUS EMISSIONS....................................... 9 5.1 TEST METHODOLOGY FOR RADIATED EMISSIONS MEASUREMENTS.............................................................9 5.2 RADIATED EMISSION DATA...................................................................................................................................................10 6 FCC RULES AND REGULATIONS PART 15 §15.121 (B) - 38 DB REJECTION TEST...................... 12 6.1 38 DB REJECTION TEST DATA FOR BASE BAND (869.040-893.970 MHZ).......................................................13 6.2 38DB REJECTION TEST DATA FOR MOBILE BAND (824.040-848.970 MHZ)....................................................14 7 CONCLUSION................................................................................................................................................................ 15 Rhein Tech Laboratories, Inc. Client: Alinco, Inc. 360 Herndon Parkway Model: DJ-X7T Suite 1400 Standards: FCC 15.121 Herndon, VA 20170 & IC RSS-215 http://www.rheintech.com Report #: 2005073 Page 3 of 37 TABLE INDEX TABLE 3-1: EQUIPMENT UNDER TEST (EUT) .....................................................................................................6 TABLE 5-1: RADIATED EMISSIONS – MODE RX ............................................................................................... 10 TABLE 5-2: EQUIPMENT USED FOR TESTING .................................................................................................. 11 TABLE 6-1: 38 DB REJECTION {FREQUENCY INJECTED: 869.040 MHZ} (CELLULAR BAND) ....................... 13 TABLE 6-2: 38 DB REJECTION {FREQUENCY INJECTED: 881.500 MHZ} (CELLULAR BAND) ....................... 13 TABLE 6-3: 38 DB REJECTION {FREQUENCY INJECTED: 893.970 MHZ} (CELLULAR BAND) ....................... 13 TABLE 6-4: 38 DB REJECTION {FREQUENCY INJECTED: 824.040 MHZ} (MOBILE BAND) ............................ 14 TABLE 6-5: 38 DB REJECTION {FREQUENCY INJECTED: 836.500 MHZ} (MOBILE BAND) ............................ 14 TABLE 6-6: 38 DB REJECTION {FREQUENCY INJECTED: 848.970 MHZ} (MOBILE BAND) ............................ 14 TABLE 6-7: EQUIPMENT USED FOR TESTING .................................................................................................. 14 APPENDIX INDEX APPENDIX A: AGENCY AUTHORIZATION LETTER ............................................................................................... 16 APP…
