PH3DR-620TAmateur Transceiver with Scanning Receiver

VHF/UHF FM TRANSCEIVER DR-620T/E Instruction Manual Thank you for purchasing your new Alinco transceiver. This instruction manual contains important safety and operating instructions. Please read this manual carefully before using the product and keep it for future reference. Printed in Japan Copyright Alinco,Inc. 2002 PS00000 ALINCO,INC. Head Office: Shin-Dai building 9th Floor 2-6, 1-Chome, Dojimahama, Kita-ku, Osaka 530-0004, JAPAN Phone:+81-6-4797-2136 Fax:+81-6-4797-2157 E-mail:[email protected] NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communi- cations. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Tested to Comply With FCC Standards FOR HOME OR OFFICE USE Information in this document is subject to change without notice or obligation. All brand names and trademarks are the property of their respective owners. Alinco cannot be liable for pictorial or typo- graphical inaccuracies. Some parts, options and/or accessories are unavailable in certain areas. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Conformity Information In case the unit you have purchased is marked with a CE symbol, a copy of relative conformity certifi- cate or document can be reviewed at http://www.alinco.com/usa.html. Copyright © 2002 All rights reserved. No part of this document may be reproduced, copied, translated or transcribed in any form or by any means without the prior written permission of Alinco. Inc., Osaka, Japan. English Edition Printed in Japan. Compliance Information Statement VHF/UHF FM Transceiver DR-620T/E This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. U.S. Representative: ATOC Amateur Distributing LLC 23 South High Street Covington, OH 45318 Telephone: 937-473-2840 1 Contents Before operating the transceiver ............. 3 Attention ................................................................ 3 Introduction ............................................... 3 New and Innovative Features ................... 4 Standard Accessories .............................. 5 Initial Installation ....................................... 6 For a base station set up ....................................... 6 For a mobile station set up .................................... 7 Location .................................................... 7 Installing a Mobile Antenna ....................... 7 Installing the Transceiver .......................... 7 Front Panel ............................................................ 8 External power supply control function .................. 9 Power supply voltage display function ................. 10 Part Names and Functions ..................... 11 Front Panel ........................................................... 11 Rear Panel ........................................................... 12 Display ................................................................. 13 Microphone EMS-53 (Standard) .......................... 14 Basic Operations ..................................... 15 Turning the unit on and off ................................... 15 Switching the MAIN band .................................... 15 Audio Volume level setting .................................. 15 Squelch level setting ............................................ 15 Squelch level setting on the SUB side .... 15 VFO mode ........................................................... 16 Change frequency by the channel step .. 16 Change frequency by 1 MHz step ........... 16 Setting the channel step ...................................... 17 Shift Direction and Offset frequency setting ........ 18 Memory Mode ...................................................... 19 Recalling a memory channel ................... 19 How to program memory ........................ 20 Memory channel deleting .................................... 21 Programmable data in the memory channel ...21 Channel name (Alphanumeric) registration function .....22 CALL mode .......................................................... 23 To recall a CALL channel ..................................... 23 To receive signals ................................................ 23 Monitor function ................................................... 24 Reverse function .................................................. 24 To transmit ........................................................... 25 Switching the transmission power ........... 25 Parameter Setting Mode ......................... 26 A list of the setting mode ..................................... 26 To use the setting mode ...................................... 27 Channel Step setting ........................................... 28 Scan Type ............................................................ 28…

Text truncated - open the document above for the full version.

29 Parameter Setting Mode TOT Penalty When transmission is shut down in the TOT mode, this function prohibits another transmission during a selected TOT penalty period regardless of the PTT key pressed. A beep sounds when the PTT key is pressed during the TOT penalty period. If the PTT is continuously pressed over both TOT and the TOT penalty period, this function will be automatically cancelled. Setting the TOT penalty time In case the setting time is 5 seconds Time-Out-Timer The TOT feature is popular in repeater systems. It prohibits the users from transmitting on the repeater after a certain period of time has elapsed. By setting this function and activating it accord- ing to the repeaters’ requirement, the radio alerts the user by a beep 5 seconds prior to time-out. When the time is expired, transmitting stops and the transceiver automatically returns to receiving mode. This avoids the repeater going into its TOT mode. Until the PTT is released once and pressed again, the transceiver will not transmit. 1.In this Menu the default display shows TOT- OFF. 2.Rotate the main dial to select time-out time. The display should change as shown. The num- ber followed by TOT is the time-out time in seconds. The TOT feature is selectable up to 450 sec- onds (7.5 minutes). During the setting time of 60 seconds TOT OFFTOT 30TOT 60TOT 450 1.[TOTP OFF] icon appears on the display. 2.By rotating the main dial, the display changes as below and TOT penalty setting is changed. The penalty time can be set up to 15 seconds. TOTP 0FFTOTP 1TOTP 4TOTP 15 (Refer page 27 for how to enter the setting mode.) 30 Parameter Setting Mode APO-Auto Power OFF This feature will automatically shut off the transceiver. It is useful for mobile operation to avoid draining the car battery. If there is no activity or use of the radio, it will turn off automatically after 30 minutes followed by a beep sound. 1.Default is APO-OFF. 2.Rotate dial to select APO-ON to activate the function. During the ON setting Tone-Burst Frequency This is to access Tone-Burst repeaters which require a certain pitch of audible tone to activate “sleeping” repeaters. Usually, a repeater system does not require the tone once the repeater is activated. Tone Burst frequency can be set to ALERT, 1750Hz, 2100Hz, 1000Hz and 1450Hz. (ALERT is an intermittent recalling sound) Clock shift In the unlikely event that CPU clock noise is present on a particular operating frequency pro- grammed into the radio, you can shift the CPU clock frequency to avoid the CPU clock noise, which normally is so weak that it is inaudible even if the radio is tuned exactly to its frequency. 1.[ALERT] icon appears on the display. 2.By rotating the main dial, the display changes as below and Tone Burst frequency setting is changed. ALERTTB 1750 TB 2100 TB 1000TB 1450 1.[CKSFT OFF] icon appears on the display. 2.By rotating the main dial, the display changes as shown and Clock shift setting is changed. CKSFT OFFCKSFT ON (Refer page 27 for how to enter the setting mode.) 31 Parameter Setting Mode Bell The bell informs you that you are being called by sounding a bell, and flashing the bell icon on the display. Busy-Channel-Lock-Out (BCLO) This function prohibits transmission as long as there is a signal on the receiving frequency. The default is BCLO-OFF, which is the off position. By activating this function, the radio transmits only when: 1. No signal is received (BUSY icon is gone) on the receiving frequency. 2. Tone-squelch is opened by the corresponding CTCSS tone of the receiving signal. 3. As above, with DCS code. Otherwise a beep sounds but the unit does not transmit even when the PTT is pressed. 1.[BELL OFF] icon appears on the display. 2.By rotating the main dial, the display changes as shown and Bell function setting is changed. BELL OFFBELL ON 1.[BCLO OFF] icon appears on the display. 2.By rotating the main dial, the display changes as shown and BCLO setting is changed. Theft Alarm (Please refer page 44 for details) BCLO OFFBCLO ON 1.[SCR OFF] icon appears on the display. 2.By rotating the main dial, the display changes as shown and Theft Alarm is set ON/OFF. 3.When Theft Alarm is set, [*] icon appears on the display. SCR OFFSCR ON SCR DLY (Refer page 27 for how to enter the setting mode.) 32 Parameter Setting Mode Illumination color setting This is to select display illumination color. 1.[COLOR 1] icon appears on the display. 2.By rotating the main dial, the display changes as right and illumination color is changed. COLOR 1 is Amber (Red) illumination. COLOR 2 is Yellow illumination. COLOR 3 is Orange illumination. COLOR 1COLOR 2 COLOR 3 Dimmer This is to provide better visibility of the display by dimming the display illumination in the dark. 1.[LAMP 4] icon appears on the display. 2.By rotating the main dial, the display changes as below and Dimmer setting is changed. It is bright with LAMP 4 and will be darker with 3-2-1. LAMP 1LAMP 2 LAMP 4LAMP 3 Call sign setting (In packet operation) This is to register the call sign of your station to transmit in Packet communication mode. 36 characters, A - Z and 0 - 9 are available for registration. 1.The display shows [C] flashing. 2.Rotate the dial to select a character to be pro- grammed. 3.By pressing the BAND key, the character is il- luminated and entered. An identical character to the one just entered flashes on the immediate right ready to be en- tered. 4.Enter with the BAND key (Repeat the same sequence). You can program up to 6 digits. 5.Pressing the CALL key during programming will delete all characters to be programmed. (Refer page 27 for how to enter the setting mode.) 33 Parameter Setting Mode Transmission speed setting (In packet operation) This is to set transmission speed at the time of data communication. 1.[HB 1200] icon appears on the display. 2.By rotating the main dial, the display changes as right and setting is changed. [HB 1200] Transmission speed is set at 1200bps. [HB 9600] Transmission speed is set a…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 28 of 55 APPENDIX D: ATTESTATION LETTER(S) (IF APPLICABLE) Please refer to the following page.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 25, 2002 RE: Alinco, Inc. FCC ID: PH3DR-620T After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide a close up photograph of the RF sections located underneath the shields. Response : Please refer to the new internal photograph uploaded with this response. 2) The information regarding frequencies of operation given in the application are not consistent. Please clarify what the actual frequencies are and correct the affected exhibits. Operational Description Users Manual 731 Form 87.5-108 76-107.995 87.5-107.995 108-173.995 118-135.995 108-135.995 108-173.995 136-173.995 136-173.995 335-480 335-479.995 335-479.995 Response : The actual RX frequencies are those listed on the 731 Form. The Operational Desc ription and the User Manual (p. 62) have been corr ected, and uploaded with this response. 3) The EUT is considered a composite device (PC Peripheral Device + scanning RX) and is subject to the applicable requirements of both. However, in the configuration specified in the test report the EUT has only been tested for the receiver portion of the device. For meeting the requirements of 15.107 & 15.109 as a PC peripheral the device should have also been tested with a minimum PC configuration as specified by ANSI C63.4 in order to meet the DoC requirements as a PC Peripheral Device. Please confirm that the EUT has been evaluated and tested in a properly configured configuration or alternatively provide a copy of the DoC report. Response : A copy of the DoC report has been uploaded with this response under 'Additional Information'. 4) If the device has been approved under a DoC authorization, the device should include a compliance information sheet that meets the following requirements: COMPLIANCE INFORMATION (47CFR 2.1077) If a product is tested and authorized under a Declaration of Conformity, a compliance information statement (all information located together on one single page or as a separate sheet) shall be supplied with the product at the time of marketing or importation, containing the following information: (1) Identification of the product, i.e. name and model number. (2) A statement similar to that contained in Section 15.19(a)(3) that the product complies with Part 15 of the regulations. (3) The identification, by name, address and telephone number, of the responsible party. The responsible party is defined as either the manufacturer, or if the equipment is imported, the importer. The responsible party for a Declaration of Conformity must be located within the United States. Note: All this information was found in the users manual, but should be contained on a single page in the manual. Response: The combined compliance information appears on the right side of page 2 of the revised user manual, uploaded with this response. I need to provide a USA address and phone number for the USA distributor, which I am confirming now. I will submit an updated manual asap. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued.

Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 27 of 55 APPENDIX C: CONFIDENTIALITY REQUEST LETTER (IF APPLICABLE) Please refer to the following page. Engineering and Testing for EMC and Safety Compliance Accredited 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 703 689-0368 ext 106 FAX 703 689-2056 September 20, 2002 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Product Description • Block Diagram • Internal Photos Best Regards, Kathy Grzovic [email protected] Rhein Tech Laboratories, Inc.

Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 26 of 55 APPENDIX B: AGENCY AUTHORIZATION LETTER Please refer to the following page.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 25, 2002 RE: Alinco, Inc. FCC ID: PH3DR-620T After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please provide a close up photograph of the RF sections located underneath the shields. 2) The information regarding frequencies of operation given in the application are not consistent. Please clarify what the actual frequencies are and correct the affected exhibits. Operational DescriptionUsers Manual731 Form 87.5-10876-107.995 87.5-107.995 108-173.995118-135.995108-135.995 108-173.995136-173.995136-173.995 335-480335-479.995335-479.995 3) The EUT is considered a composite device (PC Peripheral Device + scanning RX) and is subject to the applicable requirements of both. However, in the configuration specified in the test report the EUT has only been tested for the receiver portion of the device. For meeting the requirements of 15.107 & 15.109 as a PC peripheral the device should have also been tested with a minimum PC configuration as specified by ANSI C63.4 in order to meet the DoC requirements as a PC Peripheral Device. Please confirm that the EUT has been evaluated and tested in a properly configured configuration or alternatively provide a copy of the DoC report. 4) If the device has been approved under a DoC authorization, the device should include a compliance information sheet that meets the following requirements: COMPLIANCE INFORMATION (47CFR 2.1077) If a product is tested and authorized under a Declaration of Conformity, a compliance information statement (all information located together on one single page or as a separate sheet) shall be supplied with the product at the time of marketing or importation, containing the following information: (1) Identification of the product, i.e. name and model number. (2) A statement similar to that contained in Section 15.19(a)(3) that the product complies with Part 15 of the regulations. (3) The identification, by name, address and telephone number, of the responsible party. The responsible party is defined as either the manufacturer, or if the equipment is imported, the importer. The responsible party for a Declaration of Conformity must be located within the United States. Note: All this information was found in the users manual, but should be contained on a single page in the manual. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. z Page 2September 25, 2002 Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 1, 2002 RE: Alinco, Inc. FCC ID: PH3DR-620T After a review of the submitted information, I have a few comments on the above referenced Application. 1) The uploaded photograph is not clear enough. Please provide a close up photograph of the RF sections located underneath the shields. 2) If the device has been approved under a DoC authorization, the device should include a compliance information sheet that meets the following requirements: COMPLIANCE INFORMATION (47CFR 2.1077) If a product is tested and authorized under a Declaration of Conformity, a compliance information statement (all information located together on one single page or as a separate sheet) shall be supplied with the product at the time of marketing or importation, containing the following information: (1) Identification of the product, i.e. name and model number. (2) A statement similar to that contained in Section 15.19(a)(3) that the product complies with Part 15 of the regulations. (3) The identification, by name, address and telephone number, of the responsible party. The responsible party is defined as either the manufacturer, or if the equipment is imported, the importer. The responsible party for a Declaration of Conformity must be located within the United States. Note: All this information was found in the users manual, but should be contained on a single page in the manual. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 1, 2002 RE: Alinco, Inc. FCC ID: PH3DR-620T After a review of the submitted information, I have a few comments on the above referenced Application. 1) The uploaded photograph is not clear enough. Please provide a close up photograph of the RF sections located underneath the shields. Response : We have taken as clear a photo as possible. Please refer to Photograph 20 in the Internal Photographs exhibit uploaded with this response. 2) If the device has been approved under a DoC authorization, the device should include a compliance information sheet that meets the following requirements: COMPLIANCE INFORMATION (47CFR 2.1077) If a product is tested and authorized under a Declaration of Conformity, a compliance information statement (all information located together on one single page or as a separate sheet) shall be supplied with the product at the time of marketing or importation, containing the following information: (1) Identification of the product, i.e. name and model number. (2) A statement similar to that contained in Section 15.19(a)(3) that the product complies with Part 15 of the regulations. (3) The identification, by name, address and telephone number, of the responsible party. The responsible party is defined as either the manufacturer, or if the equipment is imported, the importer. The responsible party for a Declaration of Conformity must be located within the United States. Note: All this information was found in the users manual, but should be contained on a single page in the manual. Response : The compliance information is consolidated on one page of the manual, and a U.S. representative has been provided. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

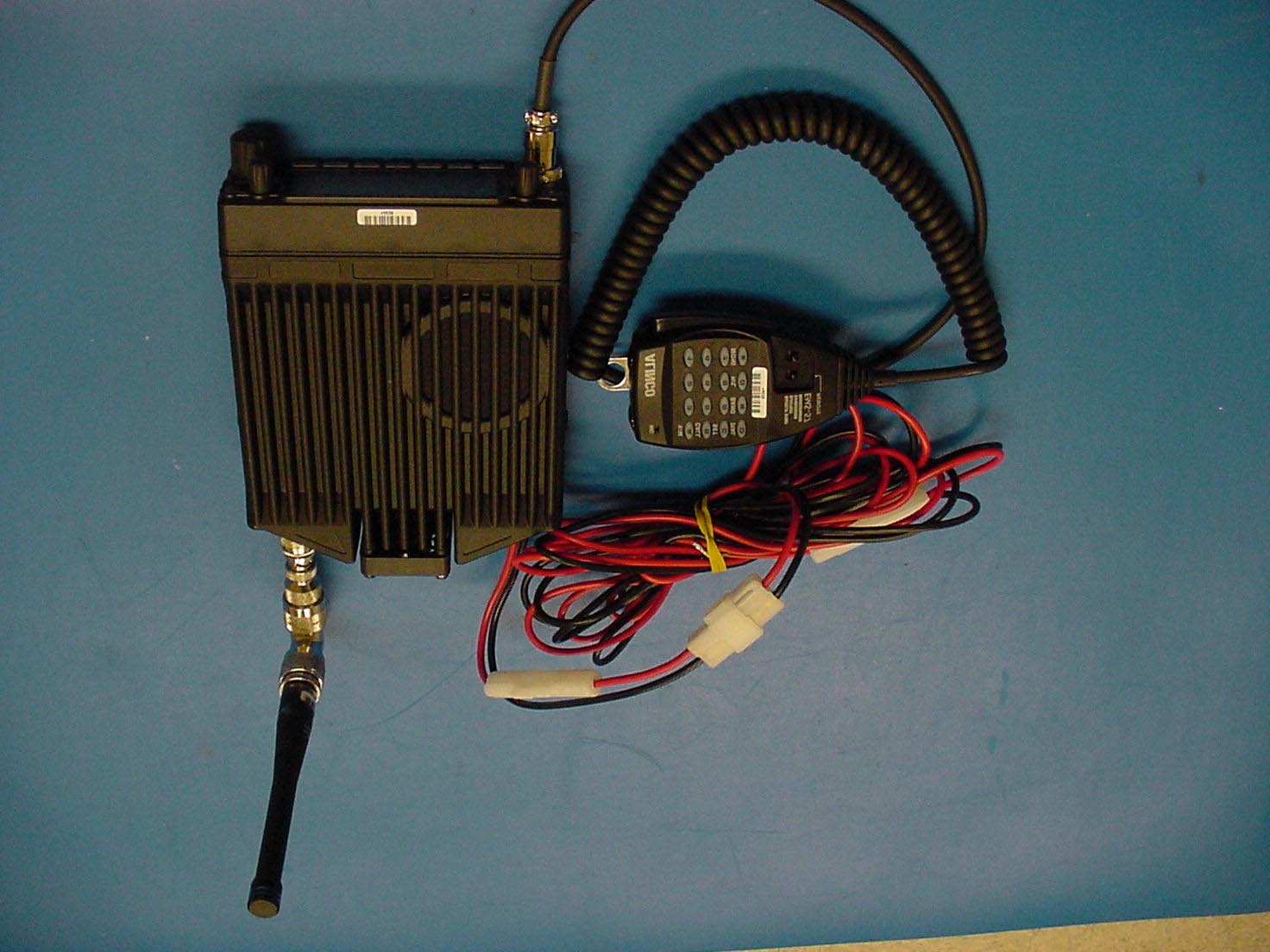

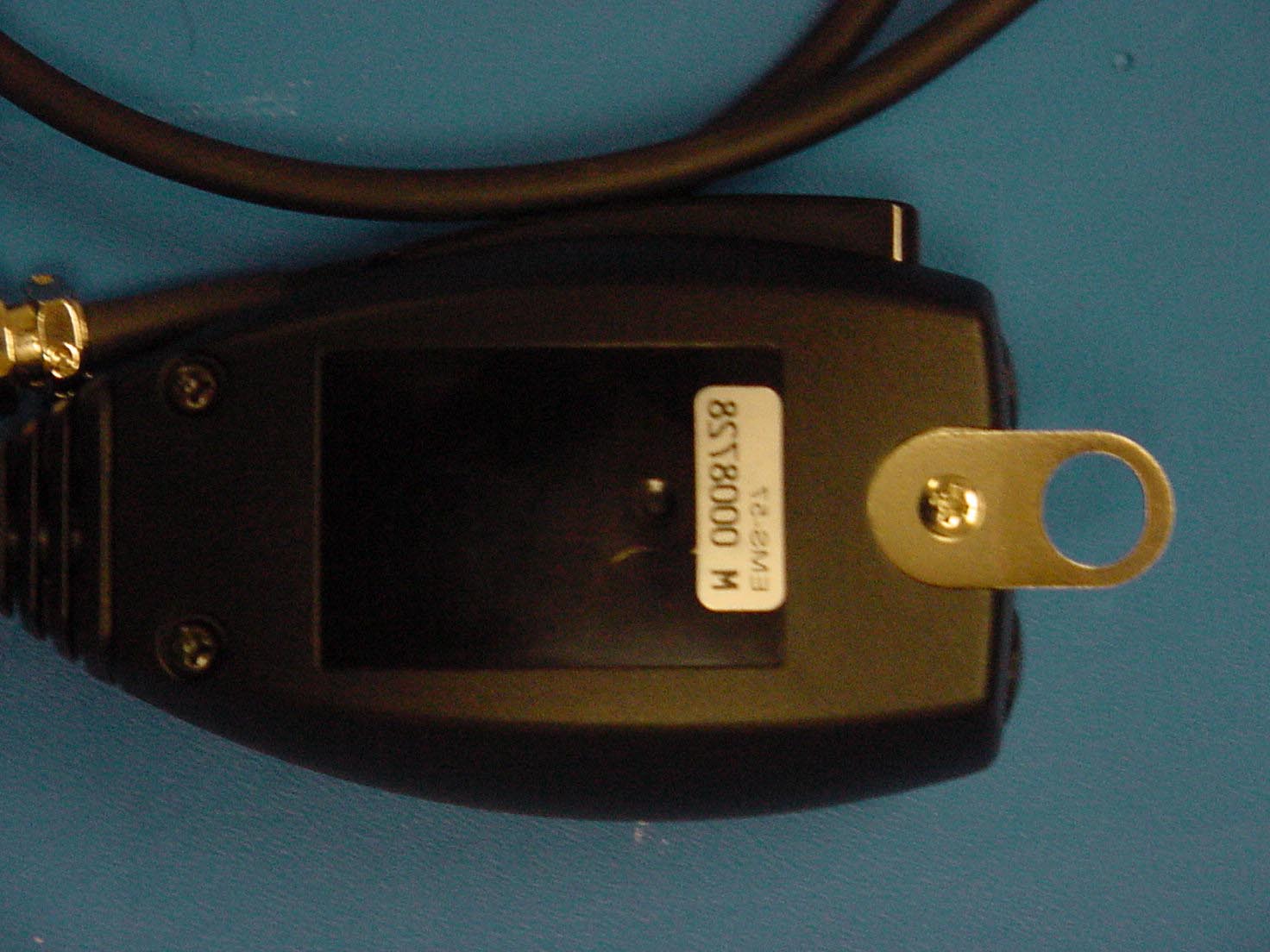

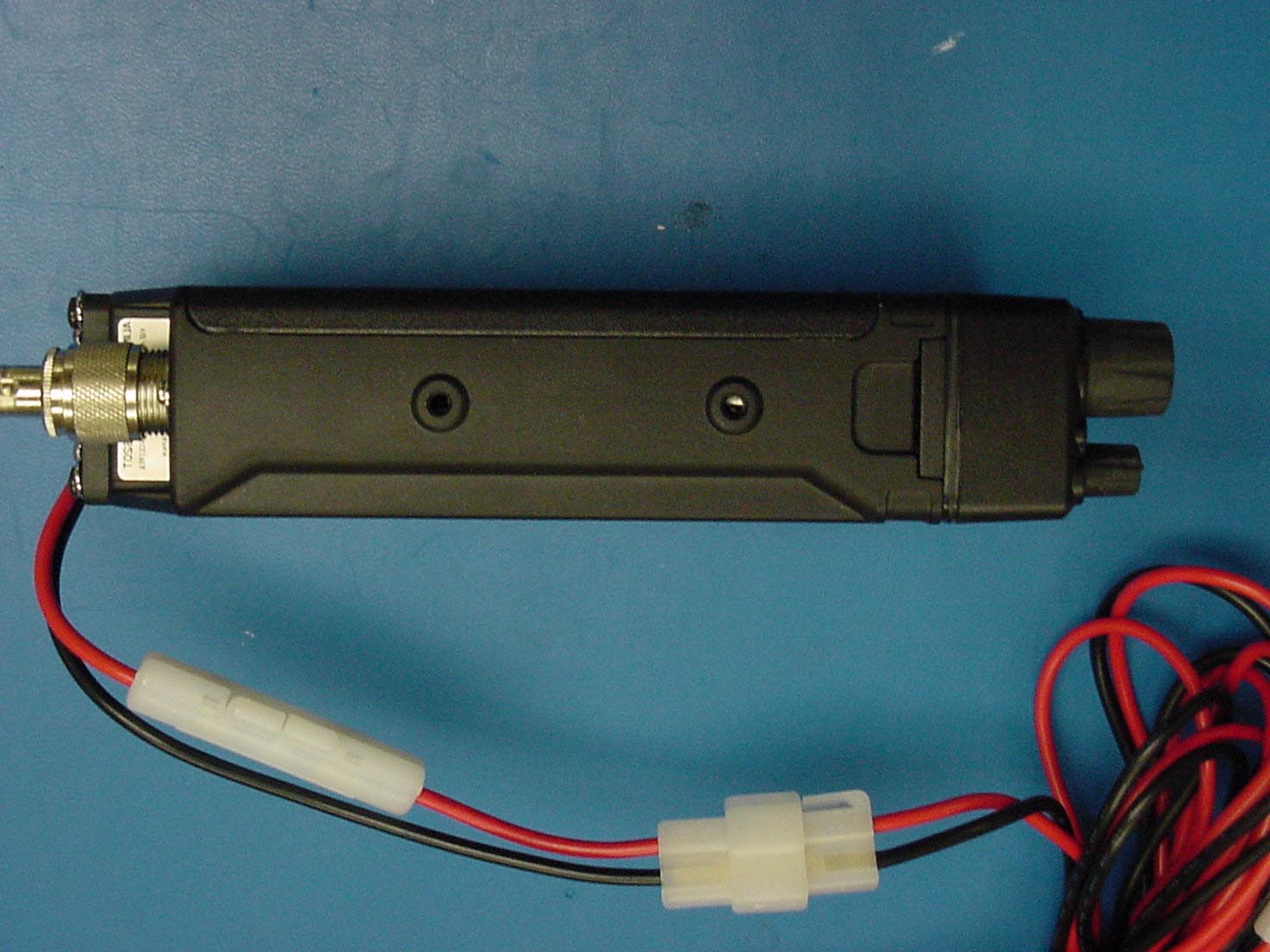

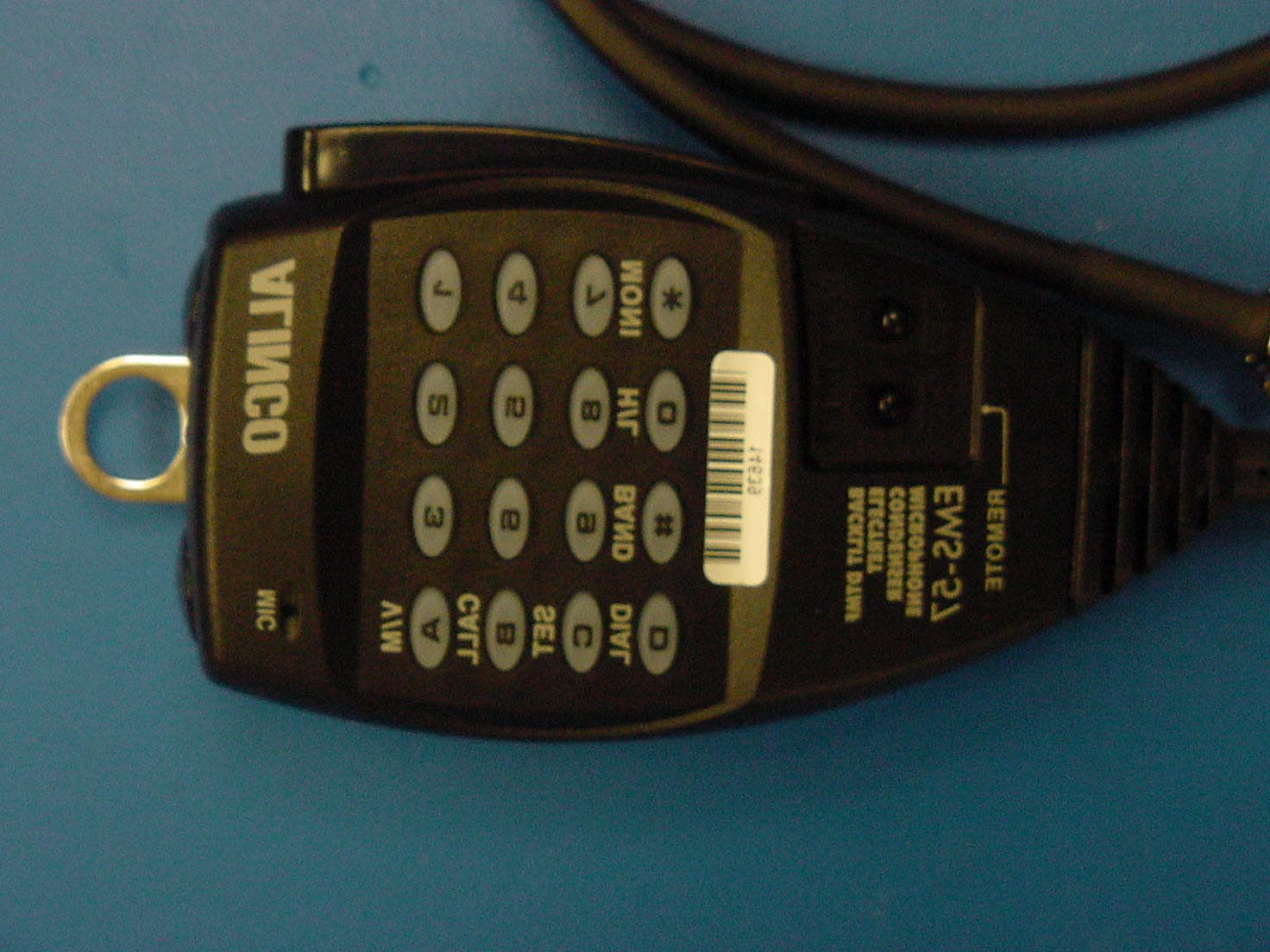

Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 39 of 55 APPENDIX K: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 7: EUT BOTTOM WITH MICROPHONE AND ANTENNA CONNECTED Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 40 of 55 PHOTOGRAPH 8: FRONT VIEW OF EUT Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 41 of 55 PHOTOGRAPH 9: REAR VIEW OF EUT Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 42 of 55 PHOTOGRAPH 10: LEFT SIDE OF EUT Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 43 of 55 PHOTOGRAPH 11: RIGHT SIDE OF EUT Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 44 of 55 PHOTOGRAPH 12: MICROPHONE Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 45 of 55 PHOTOGRAPH 13: MICROPHONE WITH CABLE AND CONNECTOR Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 46 of 55 PHOTOGRAPH 14: BACK VIEW OF MICROPHONE Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 47 of 55 PHOTOGRAPH 15: ANTENNA CONNECTED TO EUT

Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 30 of 55 APPENDIX F: LABEL AND LABEL LOCATION PHOTOGRAPH 1: LABEL LOCATIONS (Please refer to the photographs on the following pages) FCC ID LABEL HERE Other Labels Placed Here Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 31 of 55 PHOTOGRAPH 2: FCC ID LABEL Rhein Tech Laboratories Report number: 2002159 360 Herndon Parkway FCC: Part 15.121 Suite 1400 Industry Canada: RSS-215 FCC ID: PH3DR-620T Herndon, VA 20170 http://www.rheintech.com M/N: DR-620T VHF/UHF Twin Band FM Transceiver Page 32 of 55 PHOTOGRAPH 3: OTHER REQUIRED LABELS

DECLARATION OF CONFORMITY FOR A CLASS B DIGITAL DEVICE We, the Responsible Party Alinco Incorporated Electronics Division Shin Dai Building 9F 1-2-6 Dojimahama Kita-ku, Osaka 530-0004 Japan declare that the product DR-620T Document Number: 2002159 Reference Number: QRTL02-545 is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (Signature) (Full Name) (Position) This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 STANDARDS REFERENCED FOR THIS REPORT FCC PART 15 Radio Frequency Devices ANSI C63.4-1992 Standard Format Measurement/Technical Report Personal Computer and Peripherals I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified stand…

Text truncated - open the document above for the full version.
