PH3DR-635T2Mobile VHF/UHF FM Transceiver

VHF/UHF FM TRANSCEIVER DR-635T/E Instruction Manual Thank you for purchasing your new Alinco transceiver. This instruction manual contains important safety and operating instructions. Please read this manual carefully before using the product and keep it for future reference. NOTICE / Compliance Information Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Tested to Comply With FCC Standards FOR HOME OR OFFICE USE Information in this document is subject to change without notice or obligation. All brand names and trademarks are the property of their respective owners. Alinco cannot be liable for pictorial or typographical inaccuracies. Some parts, options and/or accessories are unavailable in certain areas. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. VHF/UHF FM Transceiver DR-635T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Manufacturer:ALINCO,INC Shin-Dai building 9th Floor 2-6, 1-Chome, Dojimahana, Kita-ku, Osaka 530-0004, JAPAN Conformity Information In case the unit you have purchased is marked with a CE symbol, a copy of relative conformity certificate or docu- ment can be reviewed at http://www.alinco.com/usa.html. Please see the back-cover for more details. Copyright © 2005 All rights reserved. No part of this document may be reproduced, copied, translated or transcribed in any form or by any means without the prior written permission of Alinco. Inc., Osaka, Japan. English Edition Printed in Japan. 1 Contents Before operating the transceiver ............. 3 Attention ................................................................ 3 Introduction ............................................... 3 New and Innovative Features ................... 4 Standard Accessories .............................. 5 Initial Installation ....................................... 6 For a base station set up ....................................... 6 For a mobile station set up .................................... 7 Location .................................................... 7 Installing a Mobile Antenna ....................... 7 Installing the Transceiver .......................... 7 Front Panel ............................................................ 8 External power control function ............................. 9 Power supply voltage display function ................. 10 Part Names and Functions ..................... 11 Front Panel ........................................................... 11 Rear Panel ........................................................... 12 Display ................................................................. 13 Microphone EMS-53 (Standard) .......................... 14 Basic Operations ..................................... 15 Turning the unit on and off ................................... 15 Switching the MAIN band .................................... 15 Audio Volume level setting .................................. 15 Squelch level setting ............................................ 15 Squelch level setting on the SUB band .. 15 VFO mode ........................................................... 16 Changing frequency by channel step ...... 16 Changing frequency by 1 MHz step ........ 16 Setting the channel step ...................................... 17 Shift Direction and Offset frequency setting ........ 18 Memory Mode ...................................................... 19 Recalling a memory channel ................... 19 How to program memory channel (s) ...... 20 Memory channel deleting .................................... 21 Programmable data in the memory channel ...21 Channel name (Alphanumeric) registration function .....22 CALL mode.......................................................... 23 To recall a CALL channel ..................................... 23 To receive signals ................................................ 23 Monitor function ................................................... 24 Reverse function .................................................. 24 To transmit ........................................................... 25 Selecting transmission power ................. 25 Parameter Setting Mode ......................... 26 A list of the parameters ........................................ 26 To use the parameter setting mode ..................... 27 Channel Step setting ........................................... 28 Scan Type ............................................................ 28 Beep Sound ......................................................... 28 Time-Out-Timer (TOT) ......................................... 29 TOT Penalty ........................................................…

Text truncated - open the document above for the full version.

JOB PAGE Adjustment Spot MODEL DR635 Power Supply Voltage 13.8 V Output of SSG is all EMF indication If without instruction, SSG output is MOD 1KHz 3.5KHz/DEV. Standard Modulation is also based above. Speaker load is 8Ohm and Output is 50 – 100 mV. Adjustment Mode Memory CH VHF Frequency (MHz) VHF Frequency (MHz) Contents CH1 146.000 440.000 PD Voltage CH2 146.000 440.000 Ref Frequency CH3 146.000 440.000 Hi Power CH4 146.000 440.000 Mid Power CH5 146.000 440.000 Low Power CH6 146.050 440.050 RX Distortion CH7 136.050 400.050 RX Sensitivity L CH8 146.050 440.050 RX Sensitivity M CH9 173.950 479.950 RX Sensitivity H CH10 146.050 440.050 S Meter 1 CH11 146.050 440.050 S Meter FULL CH12 146.050 440.050 Squelch CH13 87.700 RX Distortion CH14 87.700 S Meter 1 CH15 87.700 S Meter FULL CH16 146.000 440.000 TX Deviation CH17 146.000 440.000 TX Deviation NAR CH18 146.000 440.000 Mic Gain CH19 146.000 440.000 CTCSS 88.5Hz CH20 146.000 440.000 DCS 255 CH21 146.000 440.000 Tone Burst 1750Hz CH22 145.050 435.050 aging After the above frequency is written in the memory, it is set on the adjustment mode by the following operation. FUNC –> TS/DCS (Key Lock) BAND –> CALL –> MHz*2 –> TS/DCS –> H/L*2 Memory switching of VHF and UHF can be done with the BAND key. Adjustment mode is canceled when a power switch is turned on with CALL key. In RX Sensitivity adjustment (L, M and H), the following inequality must be realized. CH7 (L) < CH8 (M) < CH9 (H) [Example CH7=5A CH8=60 CH9=E0] *1 *2 *3 VHF and Freq Adjustment Specification (1) ITEM CH No CONDITION UNIT ADJ.SPOTADJUSTING METHOD VCO Adjustment CH1 146.00MHz RX MAIN L25 Adjust so that PDV voltage becomes 2.7V Adjustment Frequency CH2 (UHF) 440.00MHz TX MAIN VR6 Adjust so that Tx Frequency becomes within 146.00MHz +/– 100Hz HI POWER Adjustment CH3 146.00MHz HI POWER FRONTRE601 Adjust to 50.0 +/– 1.0W MID POWER Adjustment CH4 146.00MHz MID POWER FRONTRE601 Adjust to 20.0 +/– 1.0W LOW POWER Adjustment CH5 146.00MHz LOW POWER FRONTRE601 Adjust to 5.0 +/– 0.5W RX Distortion Adjustment CH6 146.05MHz SSG 60dBu MAIN L101 It is adjusted to become maximum volume when a position of Volume is done at 11 o'clock. Confirm : Less than 3% Rx Signal Sensitivity Adjustment CH7 136.05MHz FRONTFUNC –> RE601 –> FUNC Adjust so that the Rx sensitivity becomes in maximum. Confirm: At –7dBu SINAD more than 12dB Rx Signal Sensitivity Adjustment CH8 146.05MHz FRONTFUNC –> RE601 –> FUNC Adjust so that the Rx sensitivity becomes in maximum. Confirm: At –7dBu SINAD more than 12dB Rx Signal Sensitivity Adjustment CH9 173.95MHz FRONTFUNC –> RE601 –> FUNC Adjust so that the Rx sensitivity becomes in maximum. Confirm: At +6dBu SINAD more than 12dB S Meter(1) Adjustment CH10 146.05MHz SSG –3dBu FRONTFUNC It is confirmed by the FUNC key. S Meter(FULL) Adjustment CH11 146.05MHz SSG 15dBu FRONTFUNC It is confirmed by the FUNC key. Squelch Adjustment CH12 146.05MHz SSG OFF Indication 01 MAIN VR8 Adjust so that the squelch stops at perfectly close location RX Distortion Adjustment CH13 87.5MHz SG 60dBu 1KHz 22KHz/DEV WFM MAIN L53 It is adjusted to become maximum volume when a position of Volume is done at 11 o'clock. Confirm : Less than 3% SG OUT 20 – 80dBu : Less than 5% VHF Adjustment Specification (2) ITEM CH No CONDITION UNIT ADJ.SPOTADJUSTING METHOD S Meter (1) Adjustment CH14 87.7MHz SSG 5dBu 1KHz 22KHz/DEV WFM FRONTFUNC It is confirmed by the FUNC key. S Meter (FULL) Adjustment CH15 87.7MHz SSG 20dBu 1KHz 22KHz/DEV WFM FRONTFUNC It is confirmed by the FUNC key. Maximum Deviation Adjustment CH16 146.00MHz MOD 1KHz 40mVemf MAIN VR3 4.5 +/– 0.1KHz/DEV Maximum Deviation Confirmation CH17 146.00MHz MOD 1KHz 40mVemf NARROW 2.2 +/– 0.3KHz/DEV Mic Gain Adjustment CH18 146.00MHz MOD 1KHz 4mVemf MAIN VR5 2.85 +/– 0.1KHz/DEV CTCSS Modulation Level Confirmation CH19 146.00MHz 88.5Hz 800 +/– 400Hz/DEV 3KHz LPF ON DCS Modulation Level Adjustment CH20 146.00MHz 255 Code MAIN VR7 800 +/– 50Hz/DEV 3KHz LPF ON 1750Hz Modulation Level Confirmation CH21 146.00MHz 1750Hz 3.0 +/– 0.5KHz/DEV UHF Adjustment Specification (1) ITEM CH No CONDITIONUNIT ADJ.SPOTADJUSTING METHOD VCO Adjustment CH1 440.00MHz RX MAIN L57 Adjust so that PDU voltage becomes 3.4V HI POWER Adjustment CH3 440.00MHz HI POWER FRONTRE601 Adjust to 35.0 +/– 1.0W MID POWER Adjustment CH4 440.00MHz MID POWER FRONTRE601 Adjust to 20.0 +/– 1.0W LOW POWER Adjustment CH5 440.00MHz LOW POWER FRONTRE601 Adjust to 5.0 +/– 0.5W RX Distortion Adjustment CH6 440.05MHz SSG 60dBu MAIN L102 It is adjusted to become maximum volume when a position of Volume is done at 11 o'clock. Confirm : Less than 3% Rx Signal Sensitivity Adjustment CH7 400.05MHz FRONTFUNC –> RE601 –> FUNC Adjust so that the Rx sensitivity becomes in maximum. Confirm: At –8dBu SINAD more than 12dB Rx Signal Sensitivity Adjustment CH8 440.05MHz FRONTFUNC –> RE601 –> FUNC Adjust so that the Rx sensitivity becomes in maximum. Confirm: At –7dBu SINAD more than 12dB Rx Signal Sensitivity Adjustment CH9 479.95MHz FRONTFUNC –> RE601 –> FUNC Adjust so that the Rx sensitivity becomes in maximum. Confirm: At +6dBu SINAD more than 12dB S Meter (1) Adjustment CH10 440.05MHz SSG -3dBu FRONTFUNC It is confirmed by the FUNC key. S Meter (FULL) Adjustment CH11 440.05MHz SSG 15dBu FRONTFUNC It is confirmed by the FUNC key. Squelch Adjustment CH12 440.05MHz SSG OFF Indication 01 MAIN VR9 Adjust so that the squelch stops at perfectly close location UHF Adjustment Specification (2) ITEM CH No CONDITION UNITADJ.SPOTADJUSTING METHOD Maximum Deviation Adjustment CH16 440.00MHz MOD 1KHz 40mVemf MAINVR4 4.5 +/– 0.1KHz/DEV Maximum Deviation Confirmation CH17 440.00MHz MOD 1KHz 40mVemf NARROW 2.2 +/– 0.3KHz/DEV Mic Gain Confirmation CH18 440.00MHz MOD 1KHz 4mVemf 3.0 +/– 0.5KHz/DEV CTCSS Modulation Level Confirmation CH19 440.00MHz 88.5Hz 800 +/– 400Hz/DEV 3KHz LPF ON DCS Modulation Level Confirmation CH20 440.00MHz 255 Code 800 +/– 400Hz/DEV 3KHz LPF ON 1750Hz Modulation Level Confirmation CH21 440.00MHz 1750Hz 3.0 +/–…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER FCC ID: PH3DR-635T2 Date: 30 Sep. 2009 To whom it may concern: We, the undersigned, hereby authorize Centre of Testing Service Co., Ltd, (CTS) to act on our behalf, in the following matters related to the FCC approval of our products: Report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification, any act carried out by CTS within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 moths from original date. If you have any questions regarding the authorization, Please don’t hesitate to contact us. Thanks. Sincerely, (kazuhiro kusuhara/General Manager, production section)

1 Date: 15 Dec. 2010 Federal communication commission FCC ID: PH3DR-635T2 Confidentiality Request Pursuant to Section 0.457 and 0.459 of the commission’s Rules, the application hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation description 4. Internal Photos of EUT The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclose of matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457 disclose of this application and all accompanying document will not be made before the date of the grant for this application. Thanks. Sincerely, (kazuhiro kusuhara/General Manager, production section)

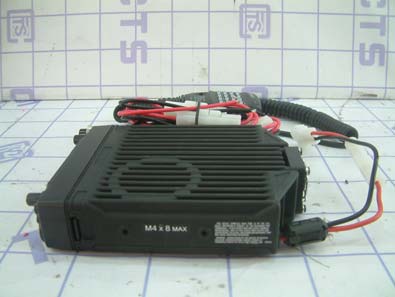

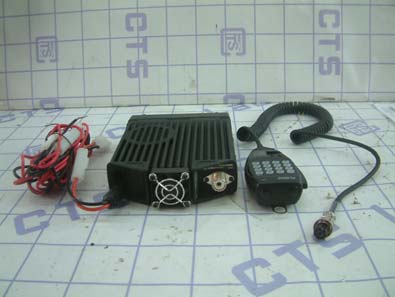

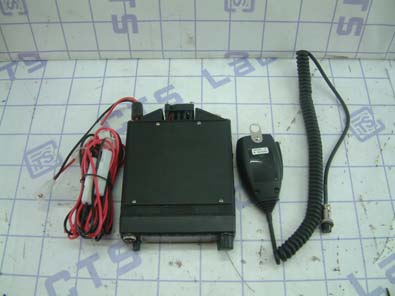

FCC ID: PH3DR-635T2 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CNB3100706-02952-E Page 1 of 2 12. External Photos of the EUT External view-front External view-base External view-rear FCC ID: PH3DR-635T2 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CNB3100706-02952-E Page 2 of 2 External view-side

FCC ID: PH3DR-635T2 ____________________________________________________________________________________________ Report No.: CNB3100706-02952-E Page 1 of 3 APPLICATION FOR IC CERTIFICATION Applicant : Alinco Inc. Electronic Div. EUT : Mobile VHF/UHF FM Transceiver Model No. : DR-635T Document List: EXHIBIT 1. LABEL DRAWING............................................................................................2 EXHIBIT 2. PHOTOGRAPHS..............................................................................................3 FCC ID: PH3DR-635T2 ____________________________________________________________________________________________ Report No.: CNB3100706-02952-E Page 2 of 3 EXHIBIT 1. Label Drawing FCC/IC Label Drawing 3mm Please refer Exhibit 2 Figure 2 for Label Placement Location 1.5mm FCC ID: PH3DR-635T2 ____________________________________________________________________________________________ Report No.: CNB3100706-02952-E Page 3 of 3 EXHIBIT 2. Photographs Figure 1 External view-back Figure 1 Figure 2 Label Location

CENTRE OF TESTING SERVICE INTERNATIONAL OPERATE ACCORDING TO ISO/IEC 17025 FCC/IC TEST REPORT TEST REPORT NUMBER : CNB3100706-02952-E CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China. FCC ID: PH3DR-635T2 IC:3070C-DR635T2 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CNB3100706-02952-E Page 1 of 17 TEST REPORT For FCC ID 47 CFR PART 15:2009, 47 CFR PART 2:2009 ANSI C63.4-2009, RSS-215 Issue 2 Report Reference No. .......................... CNB3100706-02952-E Date of issue ........................................... 11 August 2010 Testing Laboratory Name ..................... CETRE OF TESTING SERVICE CO., LTD Address ................................................... Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China. Testing location/ procedure ..................... Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s name ..................................Alinco Inc. Electronic Div. Address ................................................... Yodoyabashi Daibiru Building,4-4-9,Koraibashi, Chuo-ku, Osaka 541-0043, Japan Test specification.................................. Standard ................................................. 47 CFR PART 15:2009, 47 CFR PART 2:2009 ANSI C63.4-2009, RSS-215 Issue 2 Test Report Form No. ..........................CTSEMC-1.0 TRF Originator........................................ CENTRE OF TESTING SERVICE CO., LTD Master TRF............................................. Dated 2009-01 CENTRE OF TESTING SERVICE CO., LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the CENTRE OF TESTING SERVICE CO., LTD is acknowledged as copyright owner and source of the material. CENTRE OF TESTING SERVICE CO., LTD takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ...........................Mobile VHF/UHF FM Transceiver Trade Mark............................................. ALINCO Manufacturer.......................................... Alinco Inc. Electronic Div. Model/Type reference ............................DR635T Ratings................................................... DC 12V Result ..................................................... Positive Compiled by: Supervised by: Approved by: Quty Liu / File administrators Jackson Zhang / Technique principalKevin Liang / Manager FCC ID: PH3DR-635T2 IC:3070C-DR635T2 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CNB3100706-02952-E Page 2 of 17 FCC ID&IC -- T E S T R E P O R T Test Report No. : CNB3100706-02952-E 11 August 2010 Date of issue Type / Model............................ DR635T EUT.......................................... Mobile VHF/UHF FM Transceiver Applicant......................... Alinco Inc. Electronic Div. Address.................................... Yodoyabashi Daibiru Building, 4-4-9,Koraibashi, Chuo-ku, Osaka 541-0043, Japan. Telephone................................ +81-6-7636-2363 Fax............................................ +81-6-6208-3803 Contact..................................... Katsumi Nakata Manufacturer.................... Alinco Inc. Electronic Div. Address.................................... Yodoyabashi Daibiru Building, 4-4-9,Koraibashi, Chuo-ku, Osaka 541-0043, Japan. Telephone................................ +81-6-7636-2363 Fax............................................ +81-6-6208-3803 Contact..................................... Katsumi Nakata Test report holder............. Alinco Inc. Electronic Div. Address.................................... Yodoyabashi Daibiru Building, 4-4-9,Koraibashi, Chuo-ku, Osaka 541-0043, Japan. Telephone................................ +81-6-7636-2363 Fax............................................ +81-6-6208-3803 Contact..................................... Katsumi Nakata Test Result according to the standards on page 3:Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. FCC ID: PH3DR-635T2 IC:3070C-DR635T2 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CNB3100706-02952-E Page 3 of 17 TABLE OF CONTENTS Description Page 1. TEST STANDARDS.................................................................................................................................... 5 2. SUMMARY.................................................................................................................................................. 5 2.1 GENERAL REMARKS .........................…

Text truncated - open the document above for the full version.

FCC ID: PH3DR-635T2 opyright of this report is owned by Centre of Testing Service and may not be reproduced other than in full except with the written approval of the issuing Company. CENTRE OF TESTING SERVICE CO., LTD. Building F, Dachuang industrial park, No.379, Zhongshan Dadao, Guangzhou, China Tel：+86-20-85543113 (32 lines) Fax：+86-20-38780406 Complaint line：+86-20-85533471 E-mail：[email protected] See Reverse For Terms And Conditions of Service Report No.: CNB3100706-02952-E Page 1 of 1 12. TEST PHOTOGRAPHS 12.1 Photos of Test Setup
