PHX-BTS2400ANon-Line of Site Wireless Data Link

i Installing the Low Power Base Station Broadband Wireless Access System Part Number: 104-0046-0001 ii BaseConnect, Expedience, NetProvision, and ProvisionLink are trademarks of NextNet Wireless, Inc. ©2004 NextNet Wireless, Inc. All rights reserved. The Low Power Base Station must be professionally installed to ensure that all regulatory requirements are met. These include but are not limited to: local building and safety codes, National Electrical Code, and the FCC rules and regulations. The NextNet Wireless Low Power Base Station is a fixed product that operates as a point-to-point wireless data link. As such, this product is only authorized to operate as manufactured by NextNet Wireless and cannot be modified to operate in any other manner. Installers must ensure that this product complies with the FCC rules. Modifications to this product would be in violation of the FCC rules detailed in 47CFR15.247(b)(3)(iii) which states: Fixed, point-to-point operation, as used in paragraphs (b)(3)(i) and (b)(3)(ii) of this section, excludes the use of point-to-multipoint systems, omnidirectional applications, and multiple co-located intentional radiators transmitting the same information. The operator of the spread spectrum intentional radiator or, if the equipment is professionally installed, the installer is responsible for ensuring that the system is used exclusively for fixed, point-to-point operations. WARNING: This equipment has been tested and found to comply with the FCC guidelines as found in 47CFR1.1310 for Radio Frequency Radiation Exposure Limits as detailed below. A minimum of 36 centimeters or 14 inches of separation between the base station antenna and all persons must be maintained. Radio Frequency Radiation Exposure Limits (FCC Rules 47CFR1.1310) f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential or commercial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a TABLE 1. Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field- strength (V/m) Magnetic field- strength (A/m) Power density (mW/cm 2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.06141.63*(100)6 3.0-301842/f4.89/f *(900/f 2 ) 6 30-30061.40.1631.06 300-1500——f/3006 1500-100,000——56 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f *(180/f 2 ) 30 30-30027.50.073.230 300-1500——f/150030 1500-100,000——1.030 iii particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications to this equipment not expressively approved by NextNet Wireless could void the user's authority to operate this product. THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRENTY OF ANY KIND. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCT. NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE ARE PROVIDED "AS IS" WITH ALL FAULTS. NEXTNET WIRELESS DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FOM A COUSRE OF DEALING, USAGE, OR TRADE PRACTICE. IN NO EVENT SHALL NEXTNET WIRELESS OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OF DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF NEXTNET WIRELESS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TABLE 2. Technical Information Frequency band2400-2483 MHz TX/RX Transmitting powerUp to 0.5 watts Number of channels 13 Frequency stability ±1.0 ppm Channel bandwidth 6 MHz Operating voltage120 VAC nominal ModulationOrthogonal Frequency Division Multiplex TransmissionTime Division Duplex/Time Division Multiplex iv v CONTENTS Welcome ..............................................................................................1 LPB product overview .........................................................................1 Before you begin .....................................................…

Text truncated - open the document above for the full version.

FCC ID: PHX-BTS2400A Page 1 of 5 Exhibit 2 Attestation Statement Cover Letters NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 2 FCC ID: PHX-BTS2400A Attestation Statement Page 2 of 5 The measurements performed on the test sample for this FCC product Certification were performed by me or by personnel under my direction. NextNet Wireless, Inc. part number: 900-0046-1XXX NextNet Wireless, Inc model number: BTS-2400-AV Tim Blom Principal Engineer NextNet Wireless, Inc. Exhibit Summary Exhibit Section Contents 1 FCC ID Label / Location Information 2 Attestation Statement and Cover Letters 3 External Photographs 4 Block Diagrams 5 Schematics 6 Test Report 7 Test Setup Photographs 8 Installation and Operating Manual 9 Internal Photographs 10 Parts List 11 RF Exposure Information 12 Operational Description 13 Correspondence NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 2 FCC ID: PHX-BTS2400A Attestation Statement Page 3 of 5 Cover Letters Gentlemen: This report is being submitted to the Federal Communications Commission for the certification of equipment pursuant to 47 CFR Telecommunication CHAPTER I FEDERAL COMMUNICATIONS COMMISSION, Parts 0, 1, 2, and 15 deemed as current in the Federal Register as of August 20, 2004. FCC Rule Part Description Response 0.457dii Records not routinely available for public inspection See Exhibit 13 0.459 Requests that materials or information submitted to the Commission be withheld from public inspection. See Exhibit 13 Part 15 “Application for Certification” requirements 2.1033(b) Applications for equipment operating under Parts 11, 15 and 18 of the rules shall be accompanied by a technical report containing the following information: 2.1033(b)1 The full name and mailing address of the manufacturer of the device and the applicant for certification. NextNet Wireless, Inc. 9555 James Avenue South, Suite 270 Bloomington, MN 55431 2.1033(b)2 FCC identifier. PHX-BTS2400A 2.1033(b)3 A copy of the installation and operating instructions. See information located within Exhibit 8 2.1033(b)4 A brief description of the circuit functions of the device along with a statement describing how the device operates. This statement should contain a description of the ground system and antenna, if any, used with the device. See Exhibit 12 2.1033(b)5 A block diagram showing the frequency of all oscillators in the device. The signal path and frequency shall be indicated at each block. The tuning range(s) and intermediate frequency(ies) shall be indicated at each block. A schematic diagram is also required for intentional radiators. Block diagram contained in Exhibit 4. Schematics contained in Exhibit 5. 2.1033(b)6 A report of measurements showing compliance with the pertinent FCC technical requirements. This report shall identify the test procedure used (e.g., specify the FCC test procedure, or industry See Test Report measurements in Exhibit 6 NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 2 FCC ID: PHX-BTS2400A Attestation Statement Page 4 of 5 test procedure that was used), the date the measurements were made, the location where the measurements were made, and the device that was tested (model and serial number, if available). The report shall include sample calculations showing how the measurement results were converted for comparison with the technical requirements. 2.1033(b)7 A sufficient number of photographs to clearly show the exterior appearance, the construction, the component placement on the chassis, and the chassis assembly. The exterior views shall show the overall appearance, the antenna used with the device (if any), the controls available to the user, and the required identification label in sufficient detail so that the name and FCC identifier can be read. In lieu of a photograph of the label, a sample label (or facsimile thereof) may be submitted together with a sketch showing where this label will be placed on the equipment. Photographs shall be of size A4 (21 cm × 29.7 cm) or 8×10 inches (20.3 cm × 25.4 cm). Smaller photographs may be submitted provided they are sharp and clear, show the necessary detail, and are mounted on A4 (21 cm × 29.7 cm) or 8.5×11 inch (21.6 cm × 27.9 cm) paper. A sample label or facsimile together with the sketch showing the placement of this label shall be on the same size paper. FCC label information is contained in Exhibit 1. External Photographs are contained in Exhibit 3. Internal Photographs are contained in Exhibit 9. 2.1033(b)8 If the equipment for which certification is being sought must be tested with peripheral or accessory devices connected or installed, a brief description of those peripherals or accessories. The peripheral or accessory devices shall be unmodified, commercially available equipment. See Test Report measurements in Exhibit 6 2.1033(b)9 For equipment subject to the provisions of part 15 of this chapter, the application shall indicate if the equipment is being authorized pursuant to the transition provisions in §15.37 of this chapter. Tested to comply with the limits currently in effect on 8/20/2004 2.1033(b)10 Applications for the certification of Not applicable NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 2 FCC ID: PHX-BTS2400A Attestation Statement Page 5 of 5 scanning receivers shall include a statement describing the methods used to comply with the design requirements of all parts of §15.121 of this chapter. The application must specifically include a statement assessing the vulnerability of the equipment to possible modification and describing the design features that prevent the modification of the equipment by the user to receive transmissions from the Cellular Radiotelephone Service. The application must also demonstrate compliance with the signal rejection requirement of §15.121 of this chapter, including detail…

Text truncated - open the document above for the full version.

NextNet Wireless, Inc Exhibit 13 9555 James Ave. South Suite 270 FCC ID: PHX-BTS2400A Bloomington, MN 55431 Page 1 of 6 09/27/2004 Exhibit 13 Correspondence NextNet Wireless, Inc Exhibit 13 9555 James Ave. South Suite 270 FCC ID: PHX-BTS2400A Bloomington, MN 55431 Page 2 of 6 09/27/2004 Request for Confidentiality 09/27/2004 NextNet Wireless, Inc. 9555 James Avenue South Suite 270 Bloomington, MN 55431 RE: Certification Application FCC ID: PHX-BTS2400A NextNet Wireless, Inc. model number: BTS-2400-AV Please be advised that the following information is to be held confidential on behalf of NextNet Wireless, Inc.: • Exhibit 4 - Block Diagrams • Exhibit 5 – Schematics • Exhibit 10 – Parts list • Exhibit 12 - Operational Description This application contains technical information that NextNet Wireless, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of NextNet Wireless, Inc. in the market place. Thank you for your attention to this matter. Tim Blom NextNet Wireless, Inc. NextNet Wireless, Inc Exhibit 13 9555 James Ave. South Suite 270 FCC ID: PHX-BTS2400A Bloomington, MN 55431 Page 3 of 6 09/27/2004 Modification Letter 09/27/2004 NextNet Wireless, Inc. 9555 James Avenue South Suite 270 Bloomington, MN 55431 RE: Certification Application FCC ID: PHX-BTS2400A NextNet Wireless, Inc. model number: BTS-2400-AV Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. The printed circuit board has been updated to include all design changes in effect at the time of FCC compliance testing. The schematics and bill of materials associated with this filing reflect the updated design changes. Thank you for your attention to this matter. Tim Blom NextNet Wireless, Inc. NextNet Wireless, Inc Exhibit 13 9555 James Ave. South Suite 270 FCC ID: PHX-BTS2400A Bloomington, MN 55431 Page 4 of 6 09/27/2004 Warning Statements and Locations The following statements and warnings are located in the “Installing the Low Power Base Station” manual: The Low Power Base Station must be professionally installed to ensure that all regulatory requirements are met. These include but are not limited to: local building and safety codes, National Electrical Code, and the FCC rules and regulations. The NextNet Wireless Low Power Base Station is a fixed product that operates as a point-to-point wireless data link. As such, this product is only authorized to operate as manufactured by NextNet Wireless and cannot be modified to operate in any other manner. Installers must ensure that this product complies with the FCC rules. Modifications to this product would be in violation of the FCC rules detailed in 47CFR15.247(b)(3)(iii) which states: Fixed, point-to-point operation, as used in paragraphs (b)(3)(i) and (b)(3)(ii) of this section, excludes the use of point-to-multipoint systems, omnidirectional applications, and multiple co-located intentional radiators transmitting the same information. The operator of the spread spectrum intentional radiator or, if the equipment is professionally installed, the installer is responsible for ensuring that the system is used exclusively for fixed, point-to-point operations. WARNING: This equipment has been tested and found to comply with the FCC guidelines as found in 47CFR1.1310 for Radio Frequency Radiation Exposure Limits as detailed below. A minimum of 36 centimeters or 14 inches of separation between the base station antenna and all persons must be maintained. NextNet Wireless, Inc Exhibit 13 9555 James Ave. South Suite 270 FCC ID: PHX-BTS2400A Bloomington, MN 55431 Page 5 of 6 09/27/2004 Manufacturer’s Letter 09/27/2004 NextNet Wireless, Inc. 9555 James Avenue South Suite 270 Bloomington, MN 55431 RE: Certification Application FCC ID: PHX-BTS2400A NextNet Wireless, Inc. model number: BTS-2400-AV To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. All changes or modifications in place during the FCC testing of this product have been incorporated into the current bill of material or manufacturing processes. Thank you for your attention to this matter. Tim Blom NextNet Wireless, Inc. NextNet Wireless, Inc Exhibit 13 9555 James Ave. South Suite 270 FCC ID: PHX-BTS2400A Bloomington, MN 55431 Page 6 of 6 09/27/2004 Professional Installation Requirement 09/27/2004 NextNet Wireless, Inc. 9555 James Avenue South Suite 270 Bloomington, MN 55431 RE: Certification Application FCC ID: PHX-BTS2400A NextNet Wireless, Inc. model number: BTS-2400-AV To Whom It May Concern: Application of the device: The NextNet Wireless BTS-2400-AV base station is a fixed product that operates as a point-to-point wireless data link. Installation/Marketing requirements: The NextNet Wireless BTS-2400-AV base station will only be sold to dealers that are responsible for the design, construction and operation of the wireless network. System setup requires the base station operating parameters to be configured by the system operator. The software necessary for system setup is not available to the general public. Thank you for your attention to this matter. Tim Blom NextNet Wireless, Inc.

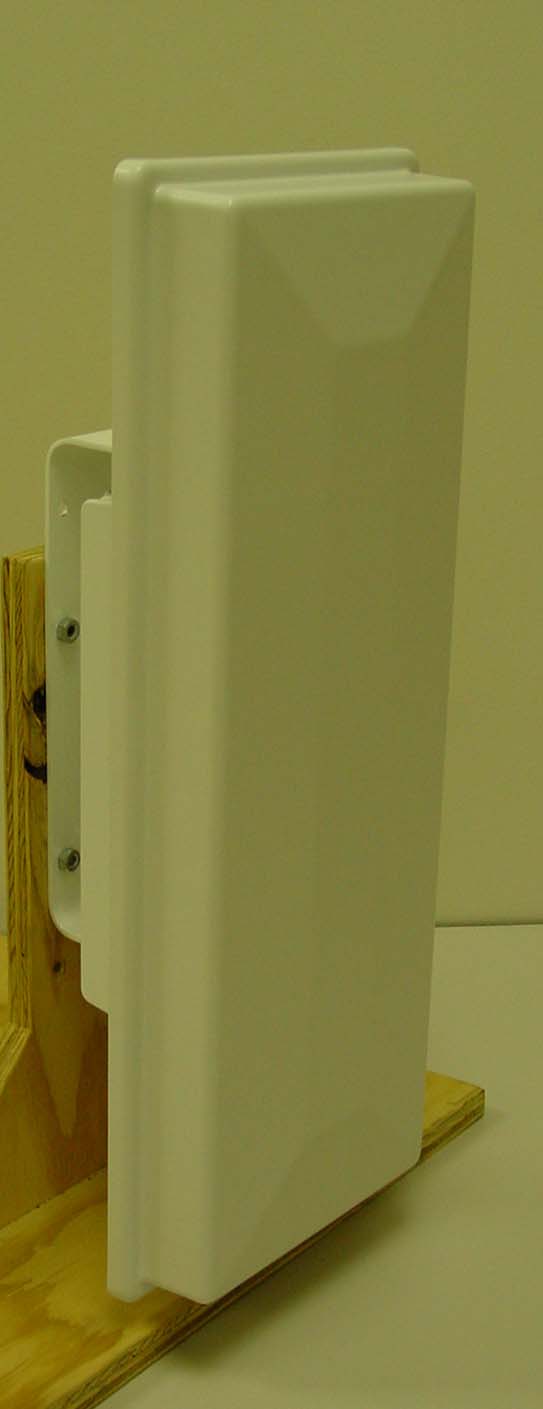

FCC ID: PHX-BTS2400A Page 1 of 2 NextNet Wireless, Inc 09/27/2004 Exhibit 3 External Photographs 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 3 FCC ID: PHX-BTS2400A External Photographs Page 2 of 2 Front View Back view NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431

FCC ID: PHX-BTS2400A Exhibit 1 Labeling Requirements and Information NextNet Wireless, Inc 09/27/2004 9555 James Ave. South, Suite 270 Page 1 of 3 Bloomington, MN 55431 Exhibit 1 FCC ID: PHX-BTS2400A Labeling Requirements 09/27/2004 NextNet Wireless, Inc. 9555 James Avenue South Suite 270 Bloomington, MN 55431 RE: FCC Labeling Requirements FCC ID: PHX-BTS2400A NextNet Wireless Model: BTS-2400-AV The following label information is required by the FCC for certified devices. Thank you for your attention to these matters. Sincerely, Tim Blom NextNet Wireless, Inc. NextNet Wireless, Inc 09/27/2004 9555 James Ave. South, Suite 270 Page 2 of 3 Bloomington, MN 55431 Exhibit 1 FCC ID: PHX-BTS2400A Labeling Requirements ID Label / Location Information The FCC ID label is attached to the BTS-2400-AV base station product with a permanent adhesive. FCC ID: PHX-BTS2400A Part Number: 900-0046-1XXX ||||||| ||||| ||||| |||||||||| SN: 1234X123XAAX87654321 ||||||| |||||||||||| |||||| |||||| |||| This device complies with Part 15 of the FCC Rules. BTS-2400-AV 19.5 Vdc 1.5A NextNet ® Wireless Inc., Minneapolis, MN 55431 USA FCC ID Label Sample This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. To comply with FCC radio frequency exposure rules, 47CFR1.1307 and 1.1310, a minimum separation of 36 cm (14 inches) is required between this device and all persons. Part 15 / Radiation Hazard label Photo showing label location on BTS-2400-AV base station product NextNet Wireless, Inc 09/27/2004 9555 James Ave. South, Suite 270 Page 3 of 3 Bloomington, MN 55431

FCC ID: PHX-BTS2400A Page 1 of 7 Exhibit 9 Internal Photographs NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 9 FCC ID: PHX-BTS2400A Internal Photographs Page 2 of 7 RF Board and Interconnect Board (Component Side / No Shields) RF Board, Interconnect Board, Low Pass Filter board (Component Side / With Shields) NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 9 FCC ID: PHX-BTS2400A Internal Photographs Page 3 of 7 RF Board (Bottom Side) Low Pass Filter Assembly (Top Side) Low Pass Filter Assembly (Bottom Side) NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 9 FCC ID: PHX-BTS2400A Internal Photographs Page 4 of 7 Interconnect Board (Top Side) Interconnect Board (Bottom Side) Chassis (Top View) NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 9 FCC ID: PHX-BTS2400A Internal Photographs Page 5 of 7 Chassis (Bottom View) Vertical Polarization Antenna Board (Bottom Side) Vertical Polarization Antenna Board (Top Side) NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 9 FCC ID: PHX-BTS2400A Internal Photographs Page 6 of 7 Radome Cover (outside) Radome Cover (Inside) NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 9 FCC ID: PHX-BTS2400A Internal Photographs Page 7 of 7 Antenna Plate (Top Side) Antenna Plate (Bottom Side) NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Bloomington, MN 55431

Exhibit 11 FCC ID: PHX-BTS2400A Radio Frequency Exposure Exhibit 11 RF Exposure Information NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Page 1 of 6 Bloomington, MN 55431 Exhibit 11 FCC ID: PHX-BTS2400A Radio Frequency Exposure Radio Frequency Radiation Exposure Evaluation Rule Part Number: 1.1307, 1.1310, 2.1091, 15.247(b)(5) 1.1307 Actions that may have a significant environmental effect, for which Environmental Assessments (EAs) must be prepared. TABLE 1—TRANSMITTERS, FACILITIES AND OPERATIONS SUBJECT TO ROUTINE ENVIRONMENTAL EVALUATION Multipoint Distribution Service (subpart K of part 21). Non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and power > 1640 W EIRP Building-mounted antennas: power > 1640 W EIRP MDS licensees are required to attach a label to subscriber transceiver or transverter antennas that: (1) provides adequate notice regarding potential radio frequency safety hazards, e.g., information regarding the safe minimum separation distance required between users and transceiver antennas; and (2) references the applicable FCC-adopted limits for radio frequency exposure specified in § 1.1310. Experimental, auxiliary, and special broadcast and other program distributional services (part 74). Subpart I: non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and power > 1640 W EIRP Building-mounted antennas: power > 1640 W EIRP ITFS licensees are required to attach a label to subscriber transceiver or transverter antennas that: (1) provides adequate notice regarding potential radio frequency safety hazards, e.g., information regarding the safe minimum separation distance required between users and transceiver antennas; and (2) references the applicable FCC-adopted limits for radio frequency exposure specified in § 1.1310. 1.1310 Radio frequency radiation exposure limits. TABLE 1—LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 1500–100,000 ..................... ...................... ......................... 5 6 (B) Limits for General Population/Uncontrolled Exposure 1500–100,000 ..................... ..................... ...................... 1.0 30 f = frequency in MHz 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §1.1307(b)(1) of this chapter. NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Page 2 of 6 Bloomington, MN 55431 Exhibit 11 FCC ID: PHX-BTS2400A Radio Frequency Exposure Radio Frequency Radiation Exposure Evaluation Calculations: The NextNet Wireless BTS-2400-AV Expedience Base Station can operate at a maximum of 0.5 watts (27 dBm) peak power while transmitting. The Base Station is capable of transmitting at a 100 % duty cycle while in test mode. The NextNet Wireless BTS- 2400-AV Base Station contains an integral antenna vertically polarized and is sealed inside the unit. The maximum vertical polarization antenna gain is 15 dBi. Therefore the maximum radiated transmit power would be: 100 % Transmit duty cycle: Pmax = Ptx + G(antenna) Pmax = 27 (dBm) + 15 (dBi) = 27 + 15 Pmax = 42 dBim = 15.85 Watts EIRP The following calculations can be used to determine the distance from the transmitting antenna that must be maintained to ensure that the exposure limit as defined in Table 1 of part 1.1310 (B) Limits for General Population/Uncontrolled Exposure and part 1.1310 (A) Limits for Occupational/Controlled Exposures. The formula for the following calculations are found in the OET Bulletin 65, edition 97-01 August 1997, “Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields”. It is noted that the formulas from Bulletin 65 are for prediction of power density in the far-field of the antenna and will over predict the requirements in the near-field. NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Page 3 of 6 Bloomington, MN 55431 Exhibit 11 FCC ID: PHX-BTS2400A Radio Frequency Exposure Radio Frequency Radiation Exposure Evaluation The maximum power level from the previous calculations will be used. S = EIRP/4 πR 2 or R = (EIRP/4πS) 0.5 EIRP = 15.85 W EIRP = 15,850 mW EIRP For S = 1 mW/cm 2 R = (15850/(4*π*1)) 0.5 R = 35.51 cm For S = 5 mW/cm 2 R = (15850/4*π*5) 0.5 R = 15.88 cm The calculated safe distance from a transmitting antenna considered to be a point source radiation element is 35.51 cm for the general population and is 15.88 cm for occupational exposure. The antenna to be used for this base station is a phased array patch antenna that is integral to the product and is not detachable. A measurement of the power density at 36 cm and the distance from the antenna to achieve 1 mW/cm 2 of power density is detailed below. NextNet Wireless, Inc 09/27/2004 9555 James Ave. South Suite 270 Page 4 of 6 Bloomington, MN 55431 Exhibit 11 FCC ID: PHX-BTS2400A Radio Frequency Exposure Radio Frequency Radiation Exposure Evaluation Test Procedure: The NextNet Wireless, Inc. Expedience system operates as a Time Division Duplex (TDD) product with a Time Division Multiplex (TDM) frame structure. Because the base station is capable of transmitting at a 100% duty cycle in test mode, radiation hazard testing is performed with the maximum exposure potential. To measure the RF Exposure, the base station transmitter is enabled in a test mode and transmitting random data at the 0.5 watt power level into the integral antenna. Measurements are performed at the low, mid, and high channels and 4-QAM, 16-QAM, and 64-QAM modulation formats. Measurement distances are from the surface of the antenna pc board and are not from the surface of the radome cover. Test Conditions: Freq…

Text truncated - open the document above for the full version.

FCC ID: PHX-BTS2400A Page 1 of 103 NextNet Wireless, Inc 09/27/2004 Exhibit 6 Test Report 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 6 FCC ID: PHX-BTS2400A Test Report Page 2 of 103 The NextNet Wireless 2.4 GHz base station (model BTS-2400-AV) has been tested for compliance to the FCC rules contained in 47CFR part 15.247 as of 20 August 2004. NextNet Wireless, Inc 09/27/2004 FCC Rule Part Description Response 15.31(m) Number of measurement frequencies 3 (low, middle, high) 15.215(c) § 15.215 Additional provisions to the general radiated emission limitations. (c) Intentional radiators operating under the alternative provisions to the general emission limits, as contained in §§15.217 through 15.257 and in subpart E of this part, must be designed to ensure that the 20 dB bandwidth of the emission is contained within the frequency band designated in the rule section under which the equipment is operated. The requirement to contain the 20 dB bandwidth of the emission within the specified frequency band includes the effects from frequency sweeping, frequency hopping and other modulation techniques that may be employed as well as the frequency stability of the transmitter over expected variations in temperature and supply voltage. If a frequency stability is not specified in the regulations, it is recommended that the fundamental emission be kept within at least the central 80% of the permitted band in order to minimize the possibility of out-of-band operation. Pass See pages 47-52 15.247 Operation within the bands 902–928 MHz, 2400–2483.5 MHz, and 5725–5850 MHz. 15.247(a)(2) Systems using digital modulation techniques may operate in the 902–928 MHz, 2400– 2483.5 MHz, and 5725–5850 MHz bands. The minimum 6 dB bandwidth shall be at least 500 kHz. Pass See pages 5-11 15.247(b)(3) The maximum peak output power of the intentional radiator shall not exceed the following: For systems using digital modulation in the 902–928 MHz, 2400– 2483.5 MHz, and 5725–5850 MHz bands: 1 Watt. Pass See pages 12-18 15.247(b)(4)(i) Except as shown in paragraphs (b)(3) (i), (ii) and (iii) of this section, if transmitting antennas of directional gain greater than 6 dBi are used the peak output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1) or (b)(2) of this section, as appropriate, by the amount in dB that the directional gain of the antenna exceeds 6 dBi. Systems operating in the 2400–2483.5 MHz band that are used exclusively for fixed, point-to-point operations may employ transmitting antennas Pass See page 12 Also see “Exhibit 8 Installation Manual”. 9555 James Ave. South Suite 270 Bloomington, MN 55431 Exhibit 6 FCC ID: PHX-BTS2400A Test Report Page 3 of 103 with directional gain greater than 6 dBi provided the maximum peak output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6 dBi. 15.247(b)(4)(iii) F…
