PHYOMDONData Transceiver

User Guide – user guide 2 © 2001 by Bachstraße 59, 5023 Salzburg – Austria www.orderman.com Rights of modification reserved. Duplication of this guide or parts thereof is permitted only with a written agreement of think dig. P3.45-247 V1.0
think dig does not assume any liability or legal responsibility for omissions or errors in this guide.
think dig does not assume any liability for any loss or claims of third persons, that are caused by the use of this guide.
think dig reserves the right to make changes and improvements in this guide without prior notice.
This guide can not be part of a contract. – user guide 3 Contents ORDERMAN DON overview ................................................... 4 Back view of ORDERMAN DON........................................... 5 General Parts included, warranty....................................................... 6 Correct handling Safety precautions, care of the unit.................................... 7 Battery use Charging and exchanging........................................................ 8 Getting started..................................................................... 9 Setup-menu Display-settings..................................................................... 10 Power-settings ................................................................... 10 Touch calibration ............................................................... 10 Changing menu card............................................................. 11 Technical data .................................................................. 12 Radio certification................................................................ 13 CE- declaration of conformity ............................................ 14 FAQs – frequently asked questions...................................... 15 – user guide 4 ORDERMAN DON overview touch-Display touch-pad – menu card area fax-function Ordercard reader – optional (integrated in the housing ) On/Off button connection for the power supply unit charging contacts for the charging station (optional) printing function power Off-function – user guide 5 Back view of ORDERMAN DON release button for battery menu card holder release area type plate aperture for mounting the cord-holder – user guide 6 General information Welcome to the world of ORDERMAN DON Think dig, the company, is among the top international developers and manufacturers of hand-held wireless terminals for the hospitality industry. By purchasing ORDERMAN DON you have acquired a quality product, that brings you future technology today. The use of this product will also bring your company many financial as well as operational advantages. ORDERMAN DON has been specially developed for the hospitality industry. As an electronic wireless order-pad, it is part of the hardware of your EPOS solution. This manual describes the operation of ORDERMAN DON. Software functions are described in the user manual of your EPOS system. Parts included With your ORDERMAN DON, you will have received a power supply unit, a rechargeable battery (accumulator), a touch-pen and this user guide. Warranty Repairs should be carried out by your ORDERMAN dealer. The warranty is annulled, if the unit is opened. – user guide 7 Correct handling Safety precautions ORDERMAN DON should be used only with an ORDERMAN DON battery resp. with an ORDERMAN DON power supply unit and with the entry pen of the ORDERMAN DON touch pen. ORDERMAN DON should never be exposed to rain, hail or snow. If the unit gets damaged, it must be checked by your ORDERMAN dealer for possible defects. The touch-area of the unit is made of glass, and should therefore be treated carefully. Never short-circuit the battery and the charging contact surfaces. Never expose the battery to open fire – danger of explosion ! Even if tests have proved, that ORDERMAN DON can survive falls of approx. 1 m and still be in working condition with only the case damaged, please treat the unit with the appropriate care. For the operation of the unit do not use a fountain pen, a pencil or other sharp pens. The surface of the touch-area can get scratched. Use only the entry pen of the ORDERMAN DON touch pen. Care Clean ORDERMAN DON with a soft, clean cloth. Never use detergents, chemicals or compressed air to remove dust. Be careful, that the battery and the charging contact surfaces do not get dirty. This can prolong the charging time of the battery. – user guide 8 Battery use Charging Connect the original power supply unit to the underside of the ORDERMAN DON (see also page 4). The charging procedure of the battery (accumulator) inside the unit is shown by the filling battery symbol. A complete charging procedure takes about 4 hours. The unit can be used during this charging operation. You may also charge the battery separately from the unit, using the ORDERMAN DON charging station (optional). This charging process takes about 60 minutes. The operation time with a fully charged battery is about 6 to 16 hours (depending on the use of the backlight). Exchanging the battery: After pressing the unlock button (see page 5), the battery rises, and can be easily taken out of the ORDERMAN DON. When replacing it again, push the battery into the unit until the unlock button fixes it firmly in place. The battery can be recharged more than 1000 times. You can also use a battery with an integrated vibra call (for waiter calling/paging). Display Indicator for battery level: While working with the handheld, you can get an information of the battery level (percentage indication), by pressing the battery sign. – user guide 9 Getting started To start the operation with ORDERMAN DON, insert the battery and press the On/Off-Button. Before the first operation, it is advisable to do a complete charge of the battery (see page 8). After having switched on the unit for the first time, you get the information of the version of the operating system. By pressing the touch, you arrive at the main men…

Text truncated - open the document above for the full version.

Request for Confidentiality Date PHOENIX TEST-LAB GmbH Kˆnigswinkel 10 D32825 Blomberg Germany RE: Certification Application FCC ID: PHYOMDON Please be advised that the following information is to be held confidential on behalf of think dig High Tech Solutions GmbH: • Schematics • Block Diagram • Technical Description The application contains technical information which think dig High Tech Solutions GmbH deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory Johann Roidt

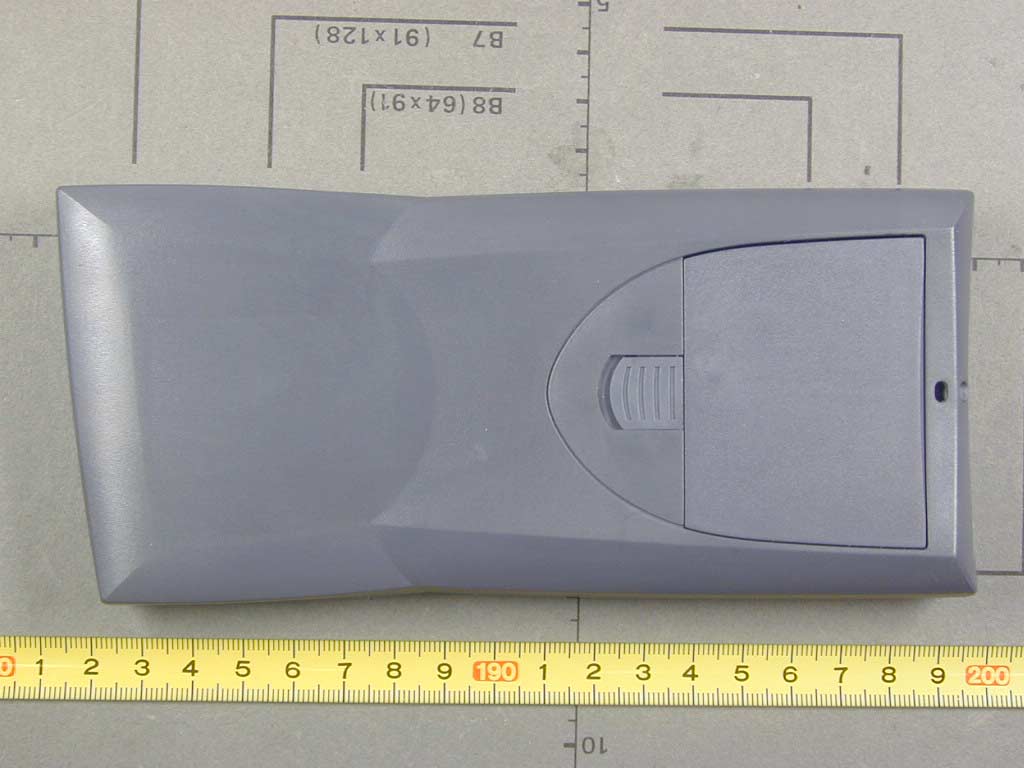

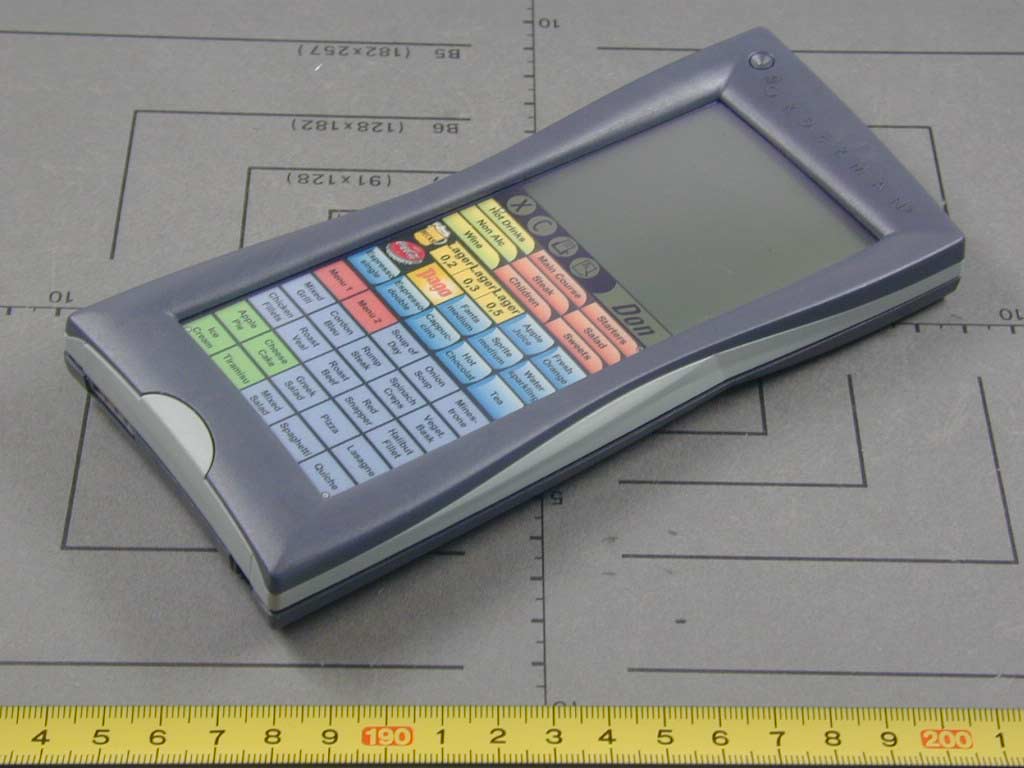

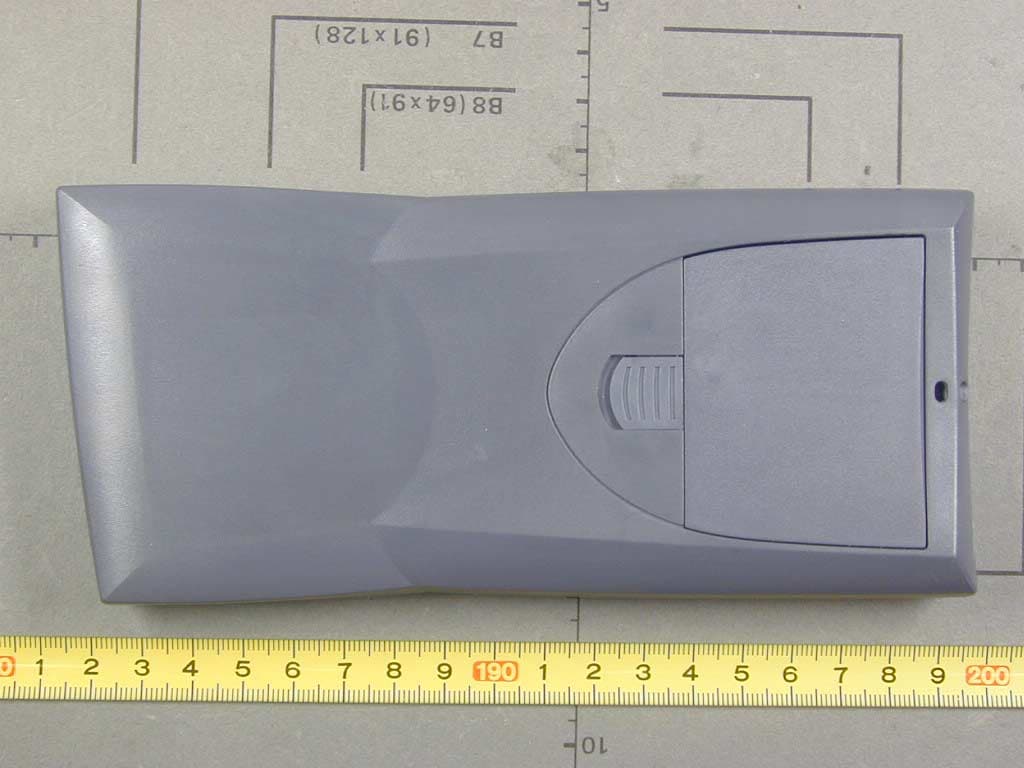

FCC ID PHYOMDON External Photographs

FCC ID PHYOMDON Label Information

FCC ID PHYOMDON Internal Photographs

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Page 1 of 25 Pages Straubing, Januar 30, 2002 T E S T - R E P O R T No. 55416-20032 for OM-DON Data Transceiver Applicant: think dig High Tech Solutions GmbH Purpose of testing: To show compliance with FCC Code of Federal Regulations, Part 15 Subpart C, Section ß15.249 Industry Canada Radio Standards Specification RSS-210 Issue 2, Section 6.1 (Category I Equipment) Note: The test data of this report relate only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test Report No. 55416-20032 Page 2 of 25 Pages Table of Contents 1. Administrative Data.................................................................................... 3 2. Identification of Test Laboratory................................................................. 4 3. Summary of Test Results........................................................................... 5 4. Operation Mode of EUT ............................................................................. 6 5. Configuration of EUT and Peripheral Devices ........................................... 7 6. Measuring Methods ................................................................................... 8 6.1. Radiated Emission 30 MHz - 1 GHz (FCC ß15.205.a,b, ß15.209, ß15.249 (a) / RSS-210 Sections 6.1.1.b, 6.3)....................... 9 6.2. Radiated Emission 1 GHz - 40 GHz (FCC ß15.205.a,b, ß15.209, ß15.249 (a) / RSS-210 Sections 6.1.1.b, 6.3)..................... 11 7. Equipment List ......................................................................................... 13 8. Photographs Taken During Testing ......................................................... 15 9. List of Measurements............................................................................... 19 9.1. List of Measurements According To FCC Part 15 Subpart C .......................................................................................... 20 9.2. List of Measurements According To Industry Canada RSS-210 ............................................................................................ 20 10. Referenced Regulations .......................................................................... 21 11. Test Results ............................................................................................. 22 Charts taken during Testing ............................................................................. 25 EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test Report No. 55416-20032 Page 3 of 25 Pages 1. Administrative Data Equipment Under Test (EUT): OM-DON Serial number(s): F 14701 Type of equipment: Data Transceiver Parts/accessories: --- FCC-ID: PHY Applicant: (full address) Think dig High Tech Solutions GmbH Bachstrasse 59 A-5023 Salzburg Contract identification: --- Contact person: Mr. Klaus Strasser Manufacturer: think dig High Tech Solutions GmbH Receipt of EUT: 17 January 2002 Date of test: 20 January 2002 Note: Responsible for testing: Johann Roidt Responsible for test report: Johann Roidt EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test Report No. 55416-20032 Page 4 of 25 Pages 2. Identification of Test Laboratory Test Laboratory: Senton GmbH EMI/EMC Test Center (full address): Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Contact person: Mr. Johann Roidt Communication: Telephone (+49) 0 94 21 / 55 22-0 Fax (+49) 0 94 21 / 55 22-99 eMail: [email protected] FCC registration number: 90926 Industry Canada file number: IC 3050 EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test Report No. 55416-20032 Page 5 of 25 Pages 3. Summary of Test Results The tested sample complies with the requirements set forth in the Code of Regulations Part 15 Subpart C, Section ß15.249 (intentional radiators) of the Federal Communication Commission (FCC) and the Radio Standards Specification RSS-210 Issue 2, Section 6.1 for Low Power Licence-Exempt Radiocommuniction Devices of Industry Canada. Johann Roidt Technical Manager EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test Report No. 55416-20032 Page 6 of 25 Pages 4. Operation Mode of EUT - TX continously active with internal modulation - RX Mode EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test Report No. 55416-20032 Page 7 of 25 Pages 5. Configuration of EUT and Peripheral Devices Configuration of cables of EUT - Not applicable Configuration of peripheral devices connected to EUT - Not applicable EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test Report No. 55416-20032 Page 8 of 25 Pages 6. Measuring Methods EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test Report No. 55416-20032 Page 9 of 25 Pages 6.1. Radiated Emission 30 MHz - 1 GHz (FCC ß15.205.a,b, ß15.209, ß15.249 (a) / RSS-210 Sections 6.1.1.b, 6.3) Radiated emissions are measured over the frequency range from 30 MHz to 1 GHz. The bandwidth of the EMI-receiver is set to 120 kHz and the detector-function is set to CISPR quasi-peak. The test setup is made in accordance with ANSI C63.4-1992. Measurements are made in both the horizontal and vertical planes of polarization. Preliminary scans are taken in a semi-anechoic room using a spectrum analyzer with the detector function set to peak. Hand-held or body-worn devices are rotated through three orthogonal axes to determine which attitude and configuration produces the highest emission relative to the limit and therefore shall be used for final testing. All tests are performed at a test-distance of 3 meters. For final testing an open-area test-site is used. During the tests the EUT is rotated all around and the receiving-antenna is raised and lowered from 1 meter to 4 meters to find the maximum levels of emissions. The cables and equipment is placed and moved within the range of position likely to find their maximum emissions. See figure 2 for the measurement setup. Test equipment used (see equipment list for details): 01, 02, 05, 12, 38, 39, 40, 41, 58, 61, 64, 66 EMV-Pr ̧fzentrum EMI/EMC-Testcenter T…

Text truncated - open the document above for the full version.

EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test Report No. 55416-20032 Page 16 of 25 Pages Test setup for radiated emission pre-test 30 MHz - 1 GHz (semi anechoic room) EUT position: Flat on table EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test Report No. 55416-20032 Page 17 of 25 Pages EUT position: On long side EMV-Pr ̧fzentrum EMI/EMC-Testcenter Test Report No. 55416-20032 Page 18 of 25 Pages EUT position: Upright
